Tailor-Made Hydraulic Excellence: Q95 Valve Offers Limitless Customization Options

Control Method:Manual

Spool:3 Spool

Rated Flow:95 L/min (25.1 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:Q95 Series Monoblock Directional Valve

Packagingsize:25*25*12

Grossweight:11.00 kg

Availability: In Stock

609 Views are Looking for this Product

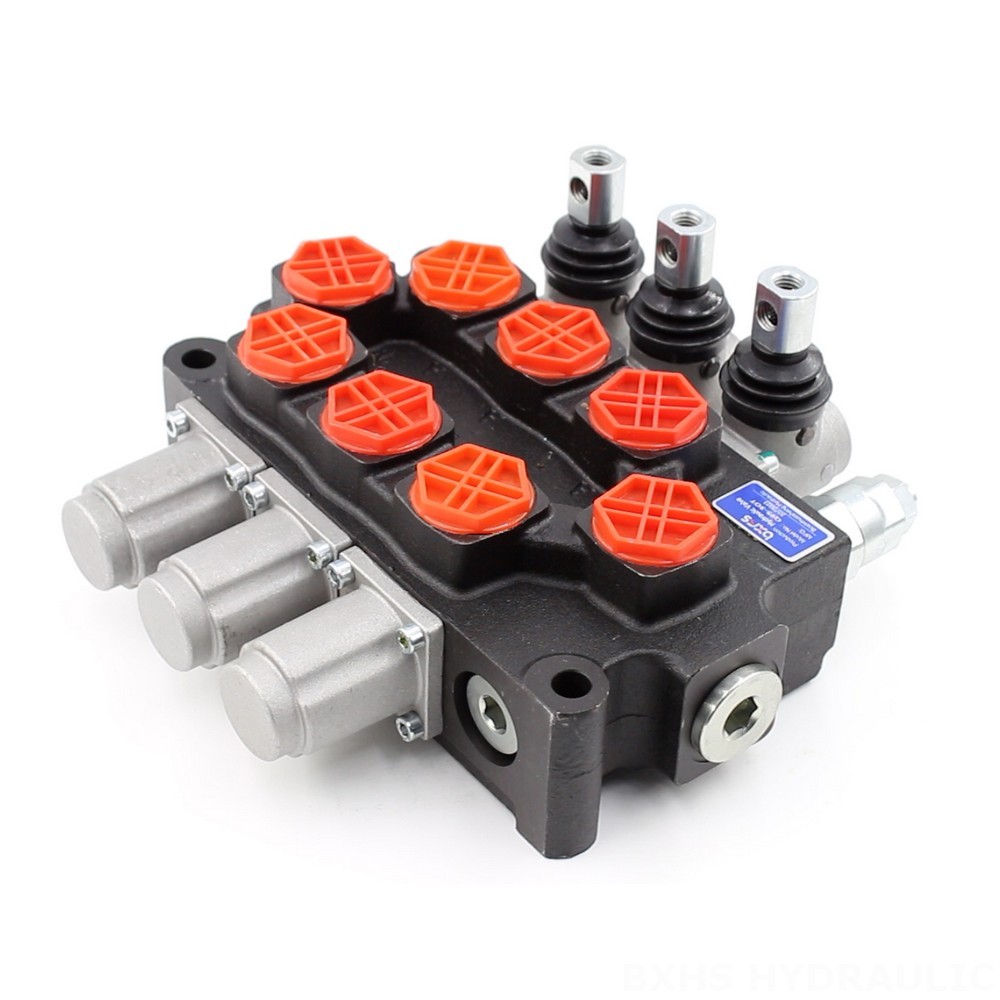

Tailor-Made Hydraulic Excellence: Q95 Valve Offers Limitless Customization Options detailed image

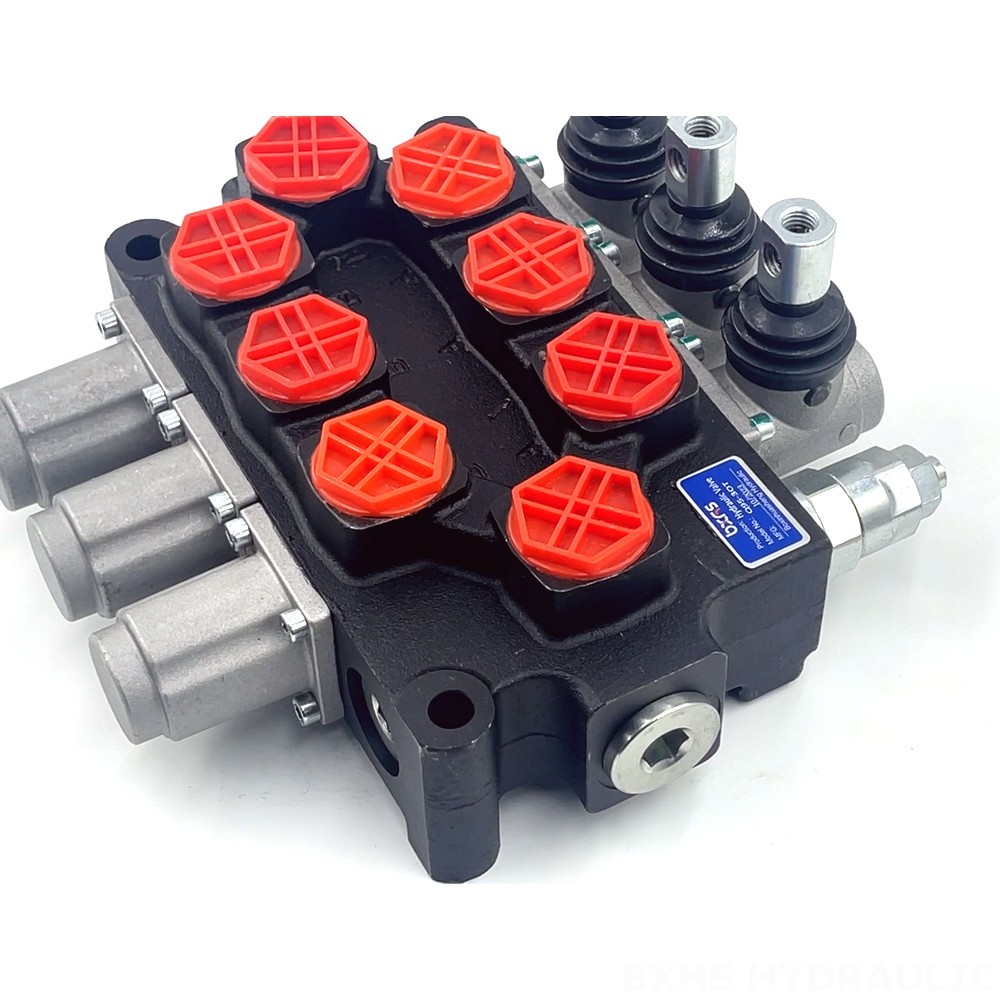

Tailor-Made Hydraulic Excellence: Q95 Valve Offers Limitless Customization Options detailed image

Tailor-Made Hydraulic Excellence: Q95 Valve Offers Limitless Customization Options drawing image

The Q95 Valve, part of the Q95 Series, is a high-performance, 3-section, 3-spool monoblock valve offering unparalleled customization options. With a rated flow of 95 L/min and a maximum pressure of 315 bar, the Q95 Valve is ideal for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles.

Q95 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 95 L/min (25.1 US gpm)
Max Pressure 315 bar (4600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The Q95 Valve features a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It is suitable for use with a variety of models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. As a leading manufacturer of hydraulic products, we offer OEM, private label, and customization services to meet the specific requirements of our customers. Our commitment to quality and innovation ensures that the Q95 Valve delivers exceptional performance and reliability in even the most challenging applications.
