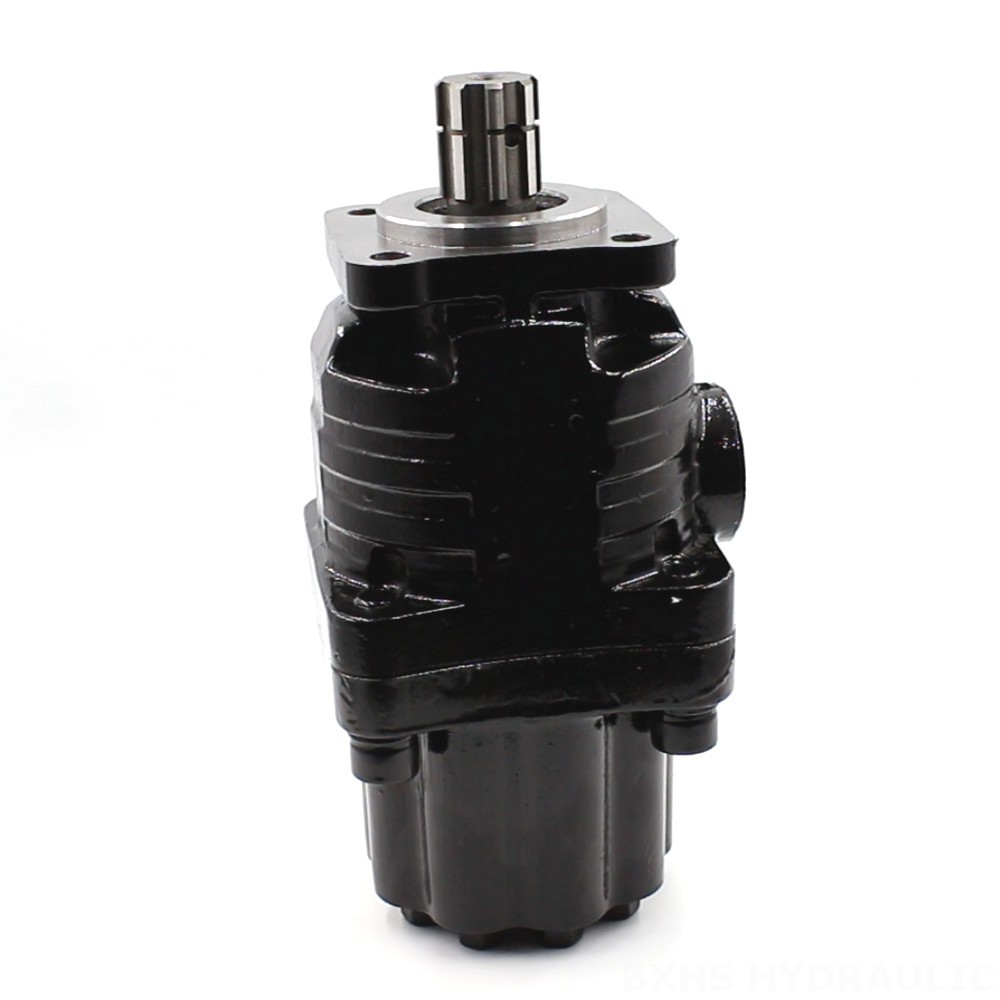

The P9-80 Series Hydraulic Piston Pump is designed for industrial applications and offers a range of displacement options from 32 cc/rev to 125 cc/rev. It features a rated pressure of 30 MPa (4351 psi), rated speed of 1300 r/min, and maximum speed of 1000 r/min. The pump has a swashplate structure and is made of cast iron. It is available with ISO-4 or UNI-3 mounting holes and a rectangle spline shaft type. The P9-80 Series is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Rated Pressure | 25 MPa (3625 psi) |
|---|---|
| Max Pressure | 30 MPa (4351 psi) |
| Rated Speed | 800 r/min |
| Max Speed | 1300 r/min |
| Rotation | /: (Bidirectional) |
| Structure | Swashplate |
| Flange Version | ISO-4 Mounting Holes,UNI-3 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
**Product Name:** Hydraulic Piston Pump for Industrial Applications - P9-80 Series
**Displacement:**
- 45 cc/rev
- 63 cc/rev
- 80 cc/rev
- 100 cc/rev
- 125 cc/rev
- 32 cc/rev
**Rated Pressure:** 30 MPa (4351 psi)
**Rated Speed:** 1300 r/min
**Max Speed:** 1000 r/min
**Rotation:** Bidirectional
**Structure:** Swashplate
**Material:** Cast Iron
**Flange Version:**
- ISO-4 Mounting Holes
- UNI-3 Mounting Holes
**Shaft Type:** Rectangle Spline
**Series:** P Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
- WHEEL LOADER
