Two Way Spool Valve Manual Monoblock Hydraulic Valve: P40-G12 Series | Trusted Manufacturer

Control Method:Manual

Spool:3 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:24*21*13

Grossweight:6.60 kg

Availability: In Stock

528 Views are Looking for this Product

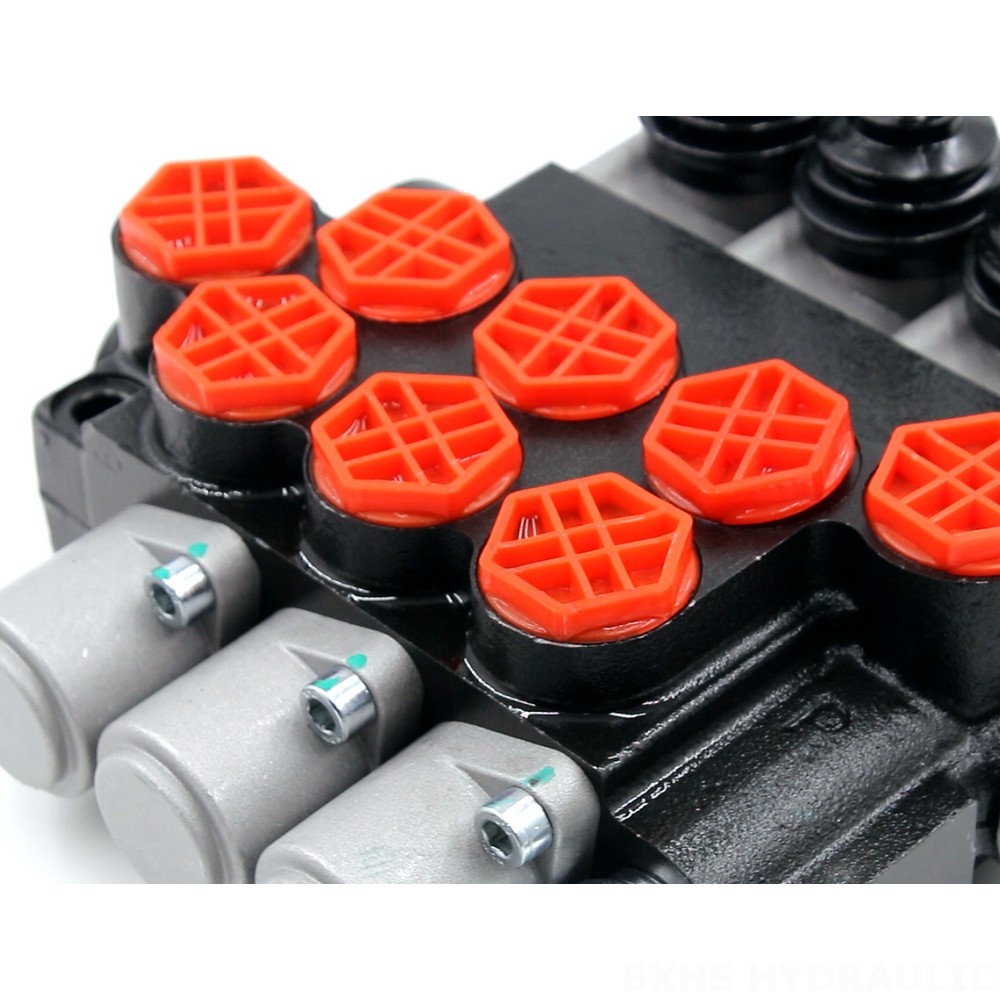

Two Way Spool Valve Manual Monoblock Hydraulic Valve: P40-G12 Series | Trusted Manufacturer detailed image

Two Way Spool Valve Manual Monoblock Hydraulic Valve: P40-G12 Series | Trusted Manufacturer detailed image

Two Way Spool Valve Manual Monoblock Hydraulic Valve: P40-G12 Series | Trusted Manufacturer drawing image

The P40-G12 Series Two Way Spool Valve is a manual monoblock hydraulic valve designed for use in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40-G12 Series Two Way Spool Valve is a robust and reliable hydraulic valve designed for demanding applications. It features a compact monoblock construction with a 3-section design, offering precise control and efficient operation. This manual valve delivers a rated flow of 40 L/min and can withstand pressures up to 250 bar. It is suitable for use in a wide range of vehicles and equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The valve is built to withstand harsh operating environments with an ambient temperature range of -40°C to +80°C and an operating viscosity range of 15-75 mm²/s. The P40-G12 Series is a reliable and efficient choice for any application requiring precise hydraulic control.
