XQF-22W Pneumatic 1 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:1 MPa (145 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:XQF Series Monoblock Directional Valve

Productsize:20*13*10

Netweight:0.40 kg

Availability: In Stock

  • Pneumatic
  • 1 Spool
1450 Views are Looking for this Product

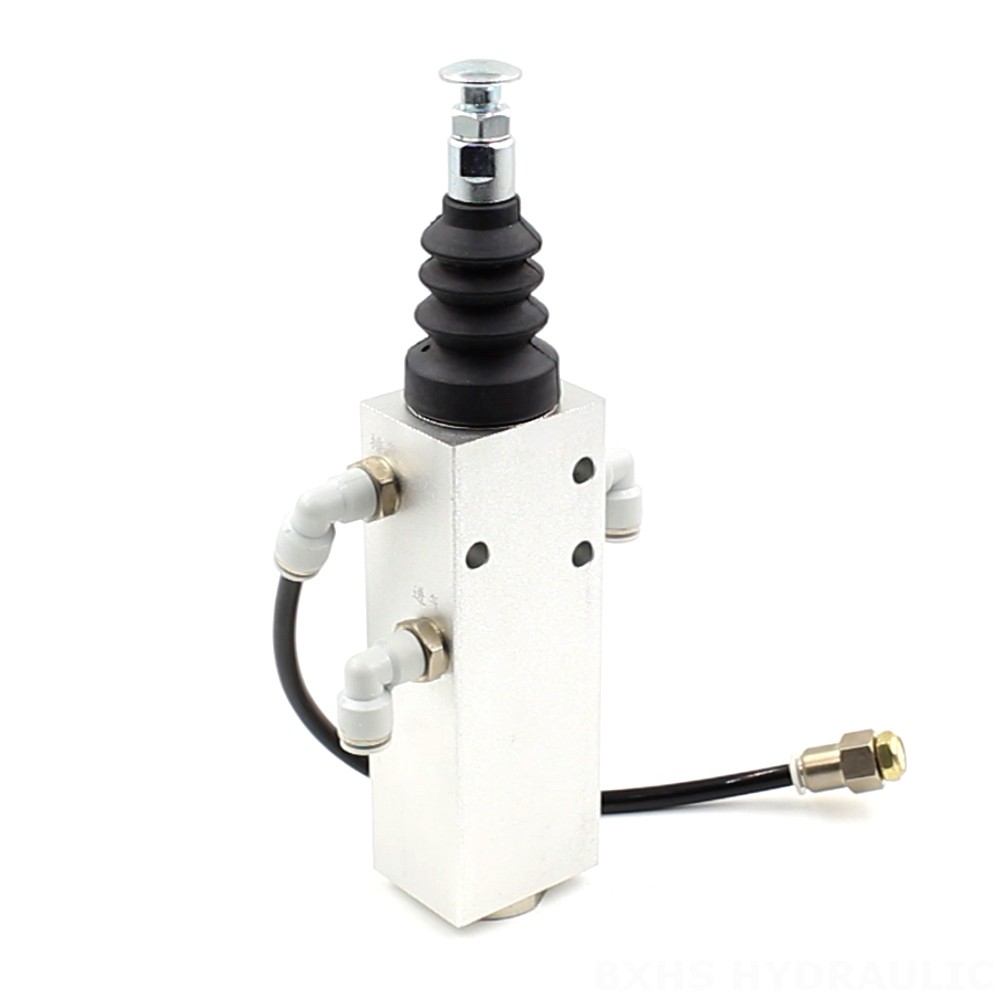

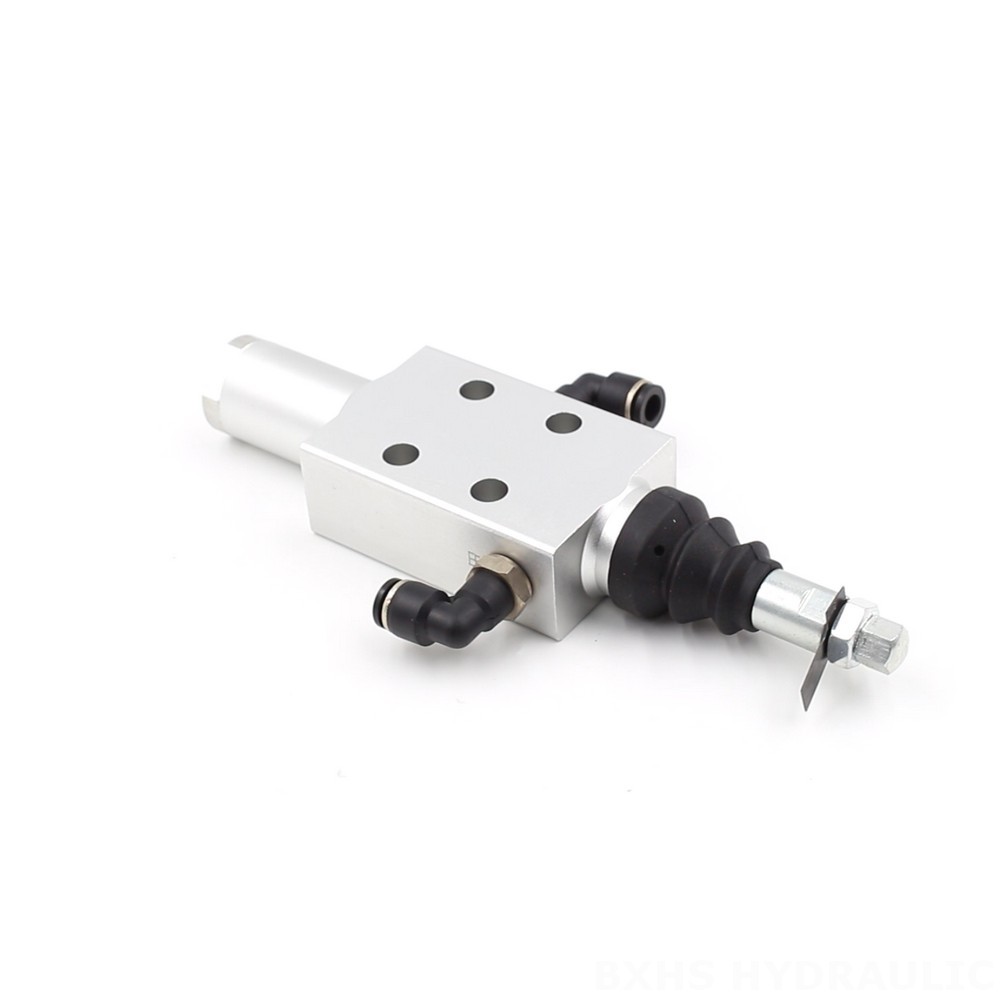

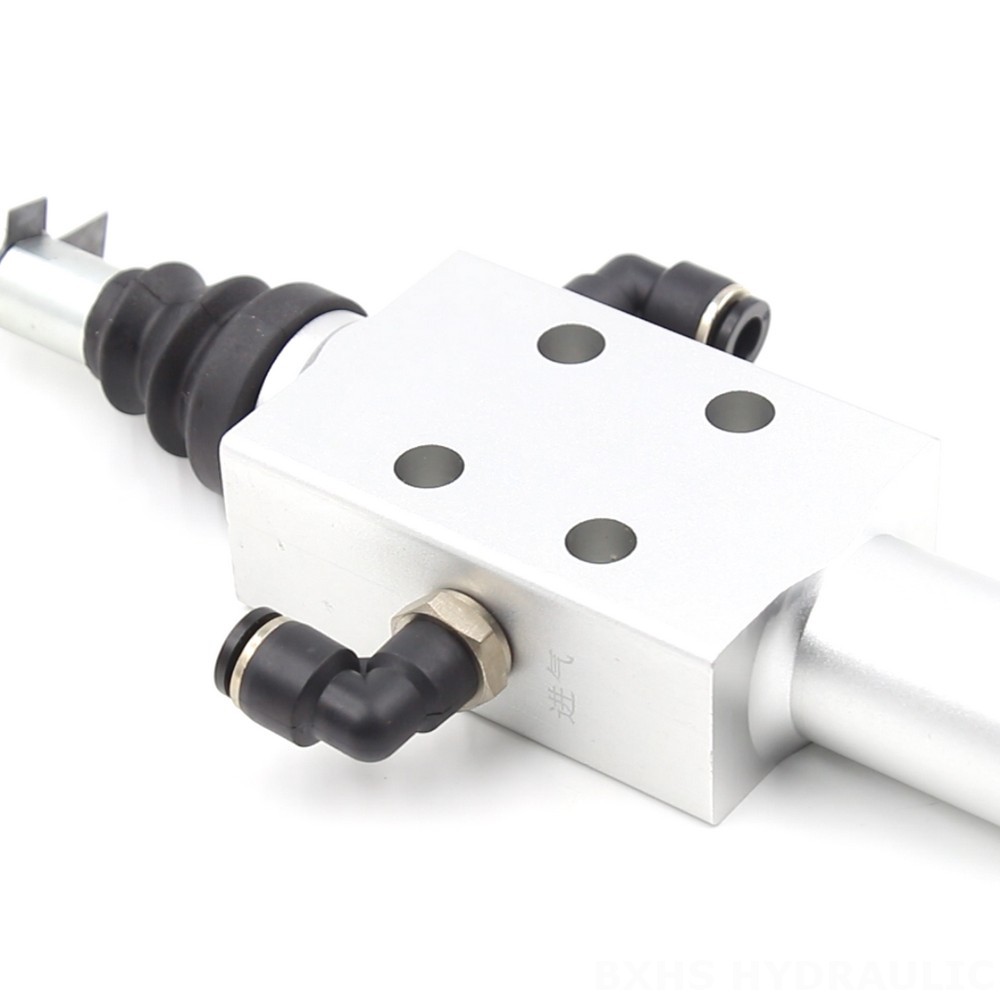

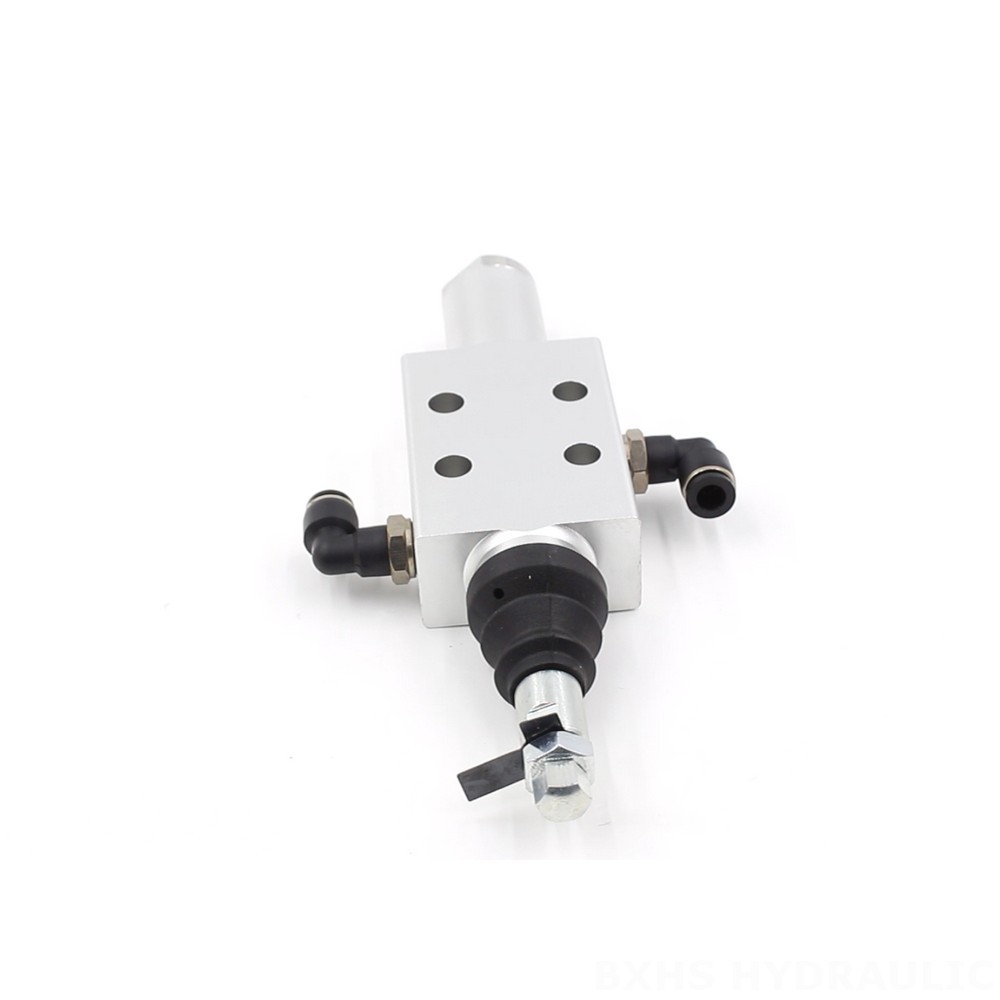

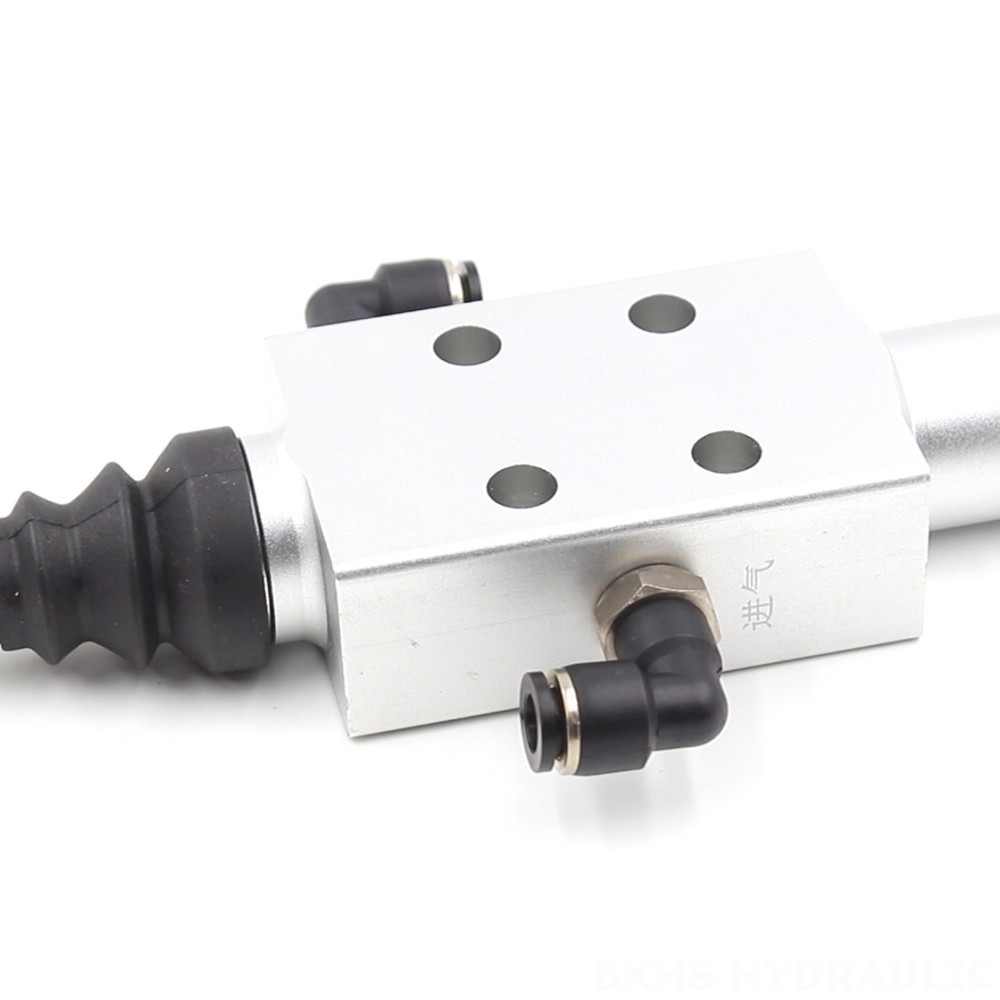

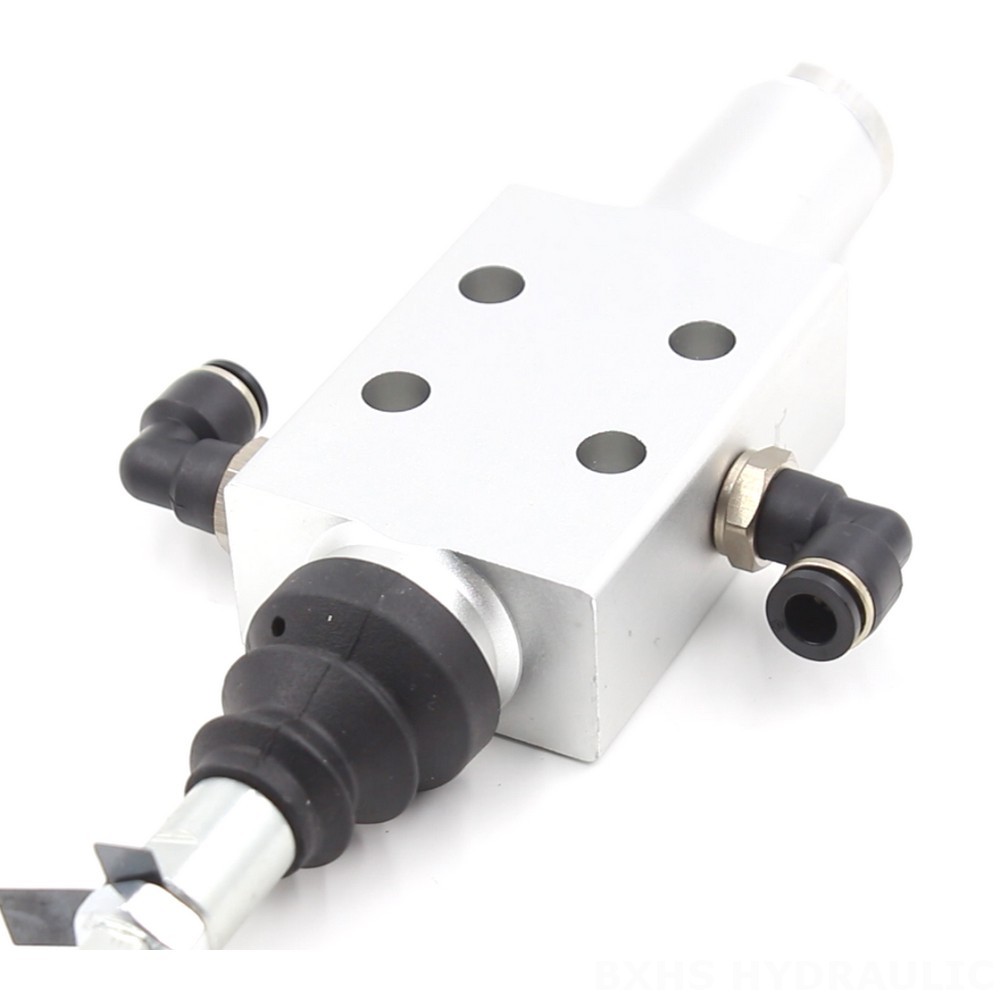

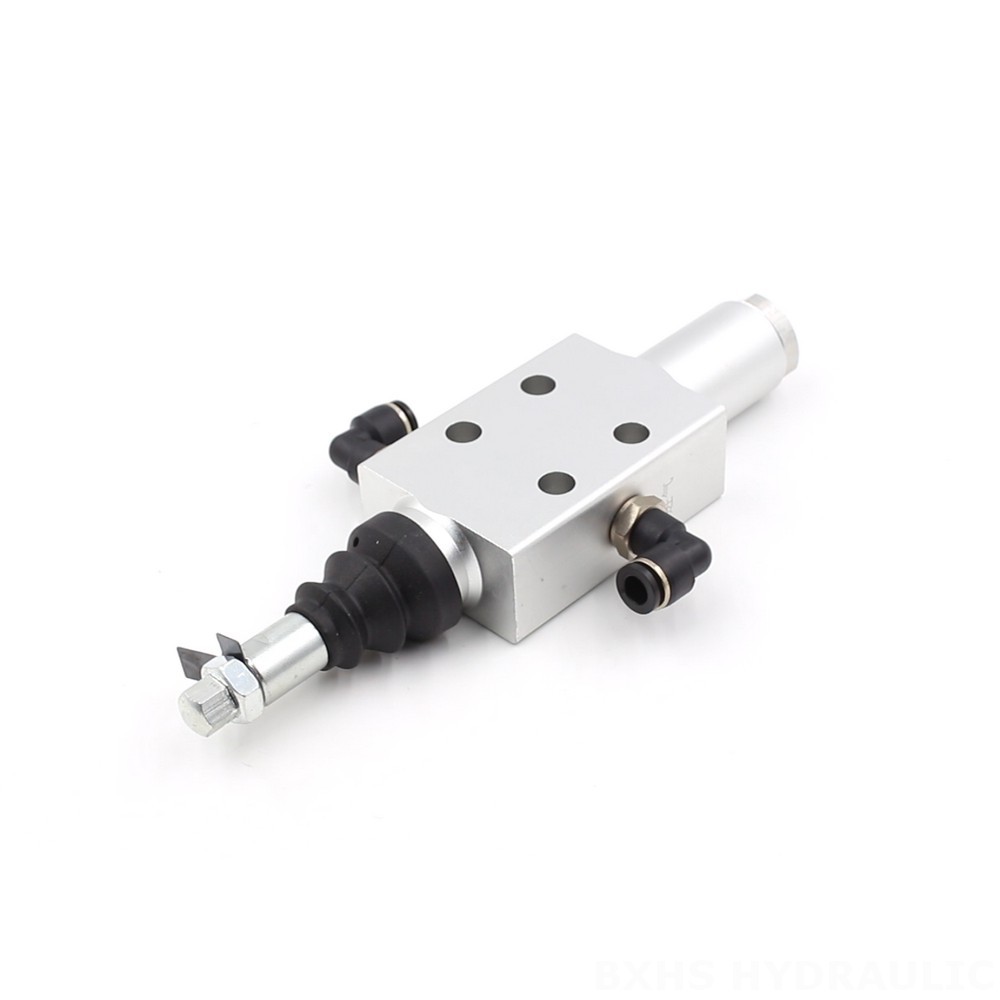

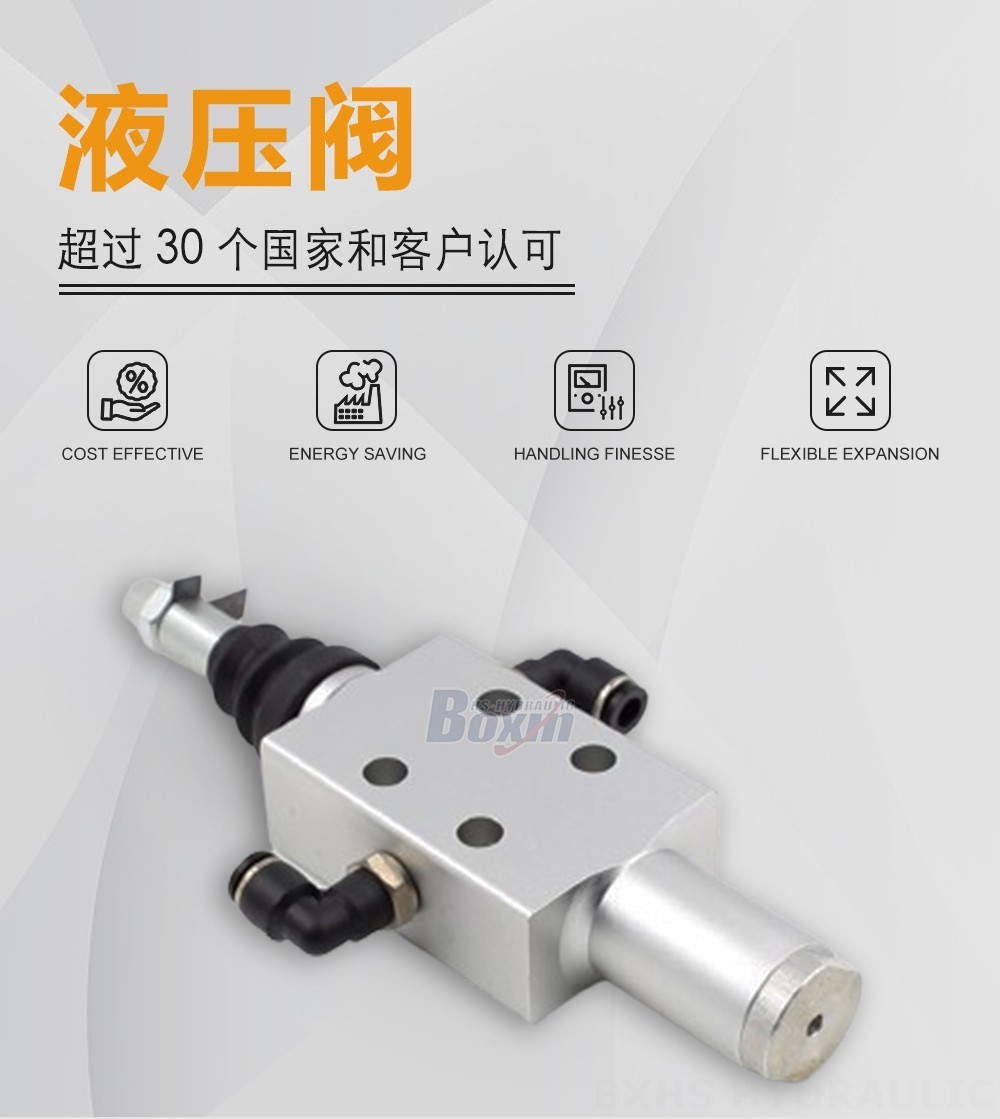

XQF-22W Pneumatic 1 Spool Monoblock Directional Valve detailed image

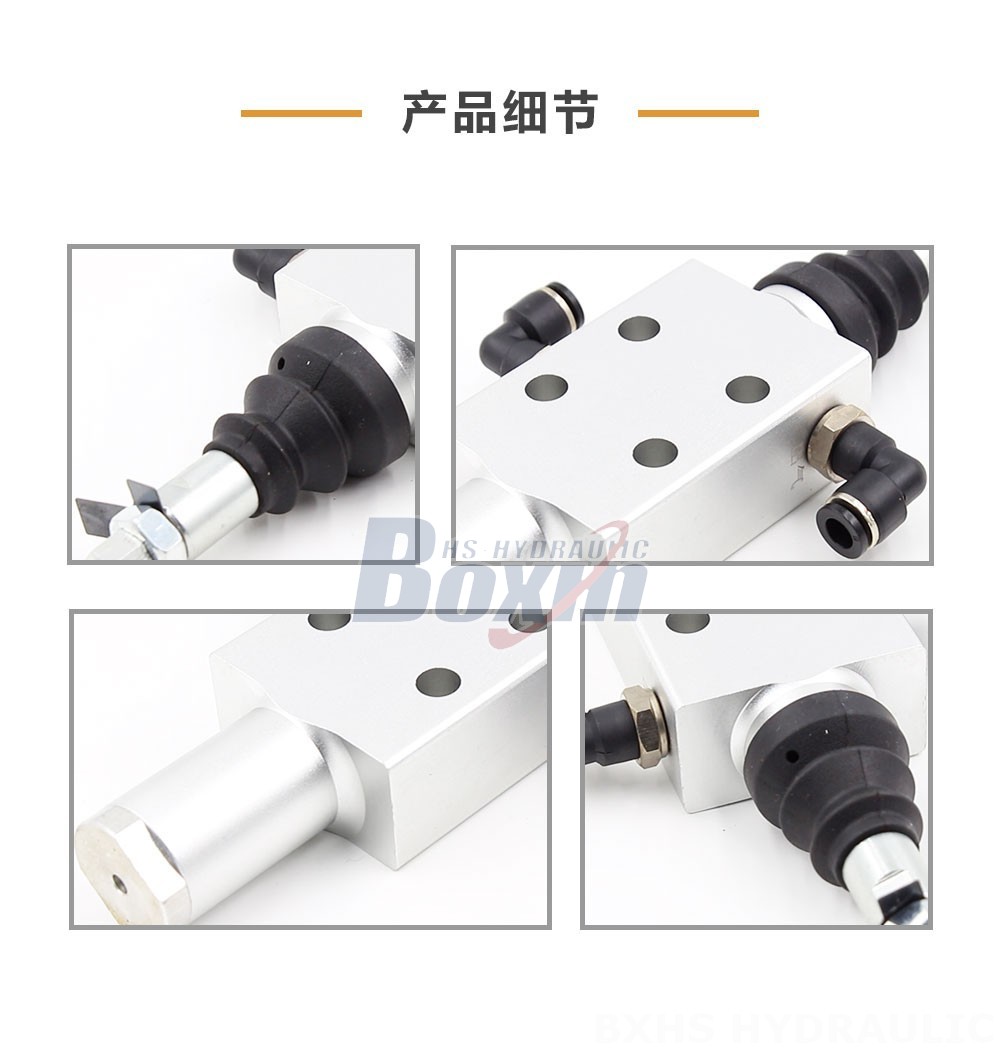

XQF-22W Pneumatic 1 Spool Monoblock Directional Valve detailed image

XQF-22W Pneumatic 1 Spool Monoblock Directional Valve drawing image

The XQF-22W is a robust, high-pressure pneumatic monoblock directional valve, ideal for various applications in material handling, construction, agriculture, and industrial vehicles. Its compact design and reliable performance make it a versatile choice for controlling hydraulic systems.

XQF Series Monoblock Directional Valve Parameters
Control Method Pneumatic
Spool 1 Spool
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Structure Type Monoblock valve
Section 1 Section
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 50 L/min (13.2 US gpm)
Max Pressure 200 bar (2900 psi)
Inlet Port G1/4
Outlet Port G1/4
Port Size G1/4

The XQF-22W Pneumatic 1 Spool Monoblock Directional Valve offers exceptional performance and durability in demanding environments. With a maximum pressure rating of 200 bar (2900 psi) and an operating viscosity range of 12-400 mm²/s (12-400 cSt), it's suitable for a wide range of hydraulic fluids. Its monoblock construction ensures high strength and leak resistance. The valve operates within a broad temperature range of -40°C to +60°C (-40°F to +140°F), making it suitable for various climates and applications. The pneumatic control offers precise and responsive actuation. The XQF-22W is particularly well-suited for applications requiring reliable directional control in forklifts, tractors, skid steer loaders, compact wheel loaders, mini-excavators, telehandlers, and backhoe loaders. It's designed for ease of integration into existing hydraulic systems and requires minimal maintenance. We offer manufacturing, OEM, private labeling, customization, and wholesale services globally, and we are actively seeking distributors, wholesalers, agents, and trading partners.
