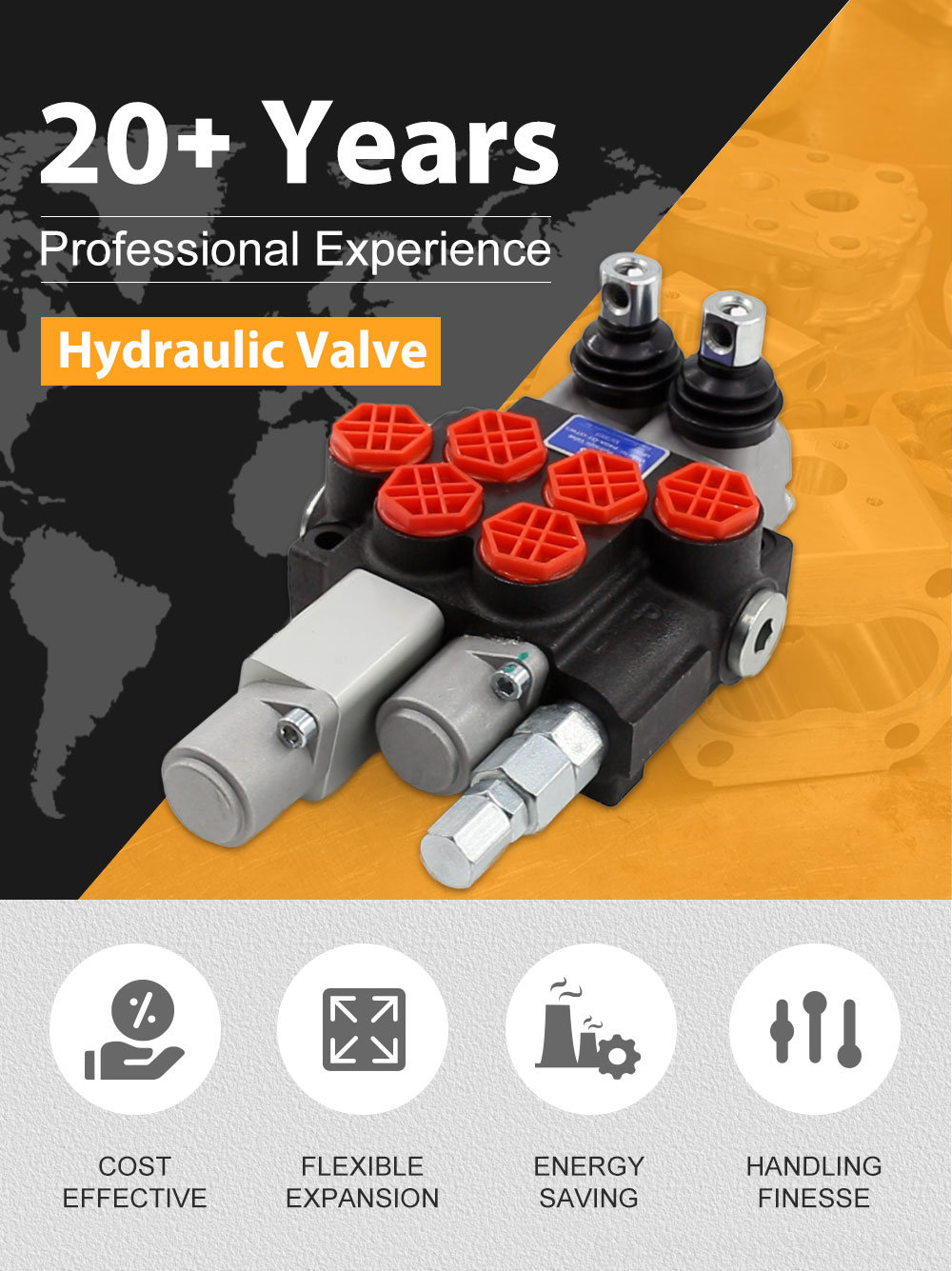

The P40A Manual 2 Spool Monoblock Directional Valve is a high-flow, manually controlled valve designed for demanding hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for use in a wide range of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| P40A Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features and Benefits:**
* Flow rate of 40 L/min for increased efficiency
* Manual control for precise and responsive operation
* Monoblock construction for durability and reliability
* Wide operating temperature range of -40°C to +80°C for use in various environments
* Compact design for easy installation in space-constrained applications
**Applications:**
The P40A Manual 2 Spool Monoblock Directional Valve is ideal for use in a variety of hydraulic applications, including:
* Material handling: Forklifts, telehandlers, stackers, aerial platforms
* Construction and earth moving: Excavators, loaders, motor graders, compact wheel loaders
* Agriculture: Tractors, harvesters, balers, sprayers
* Industrial vehicles: Sweepers, waste compactors, hook-loaders
