SD5 Solenoid 1 Spool Monoblock Directional Valve

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Productsize:29*12*11

Netweight:4.40 kg

Availability: In Stock

Description

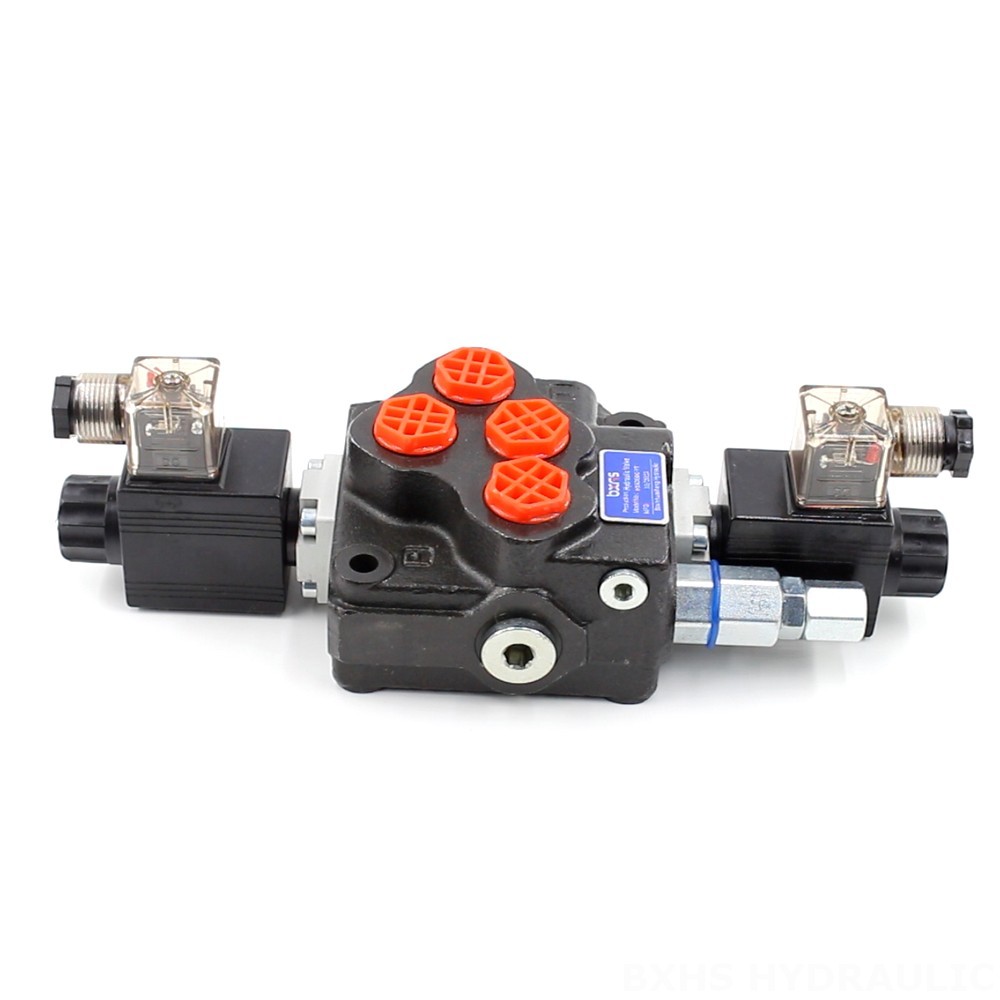

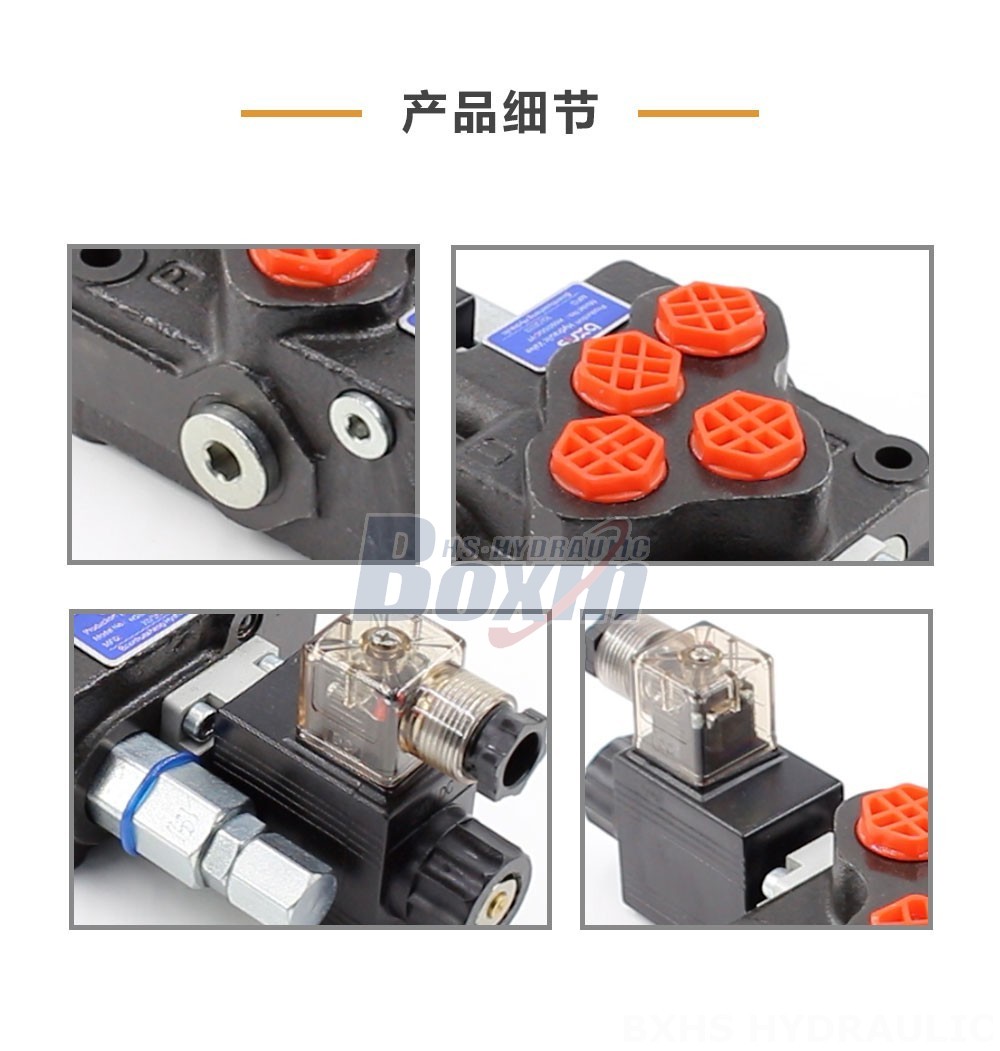

SD5 Solenoid 1 Spool Monoblock Directional Valve detailed image

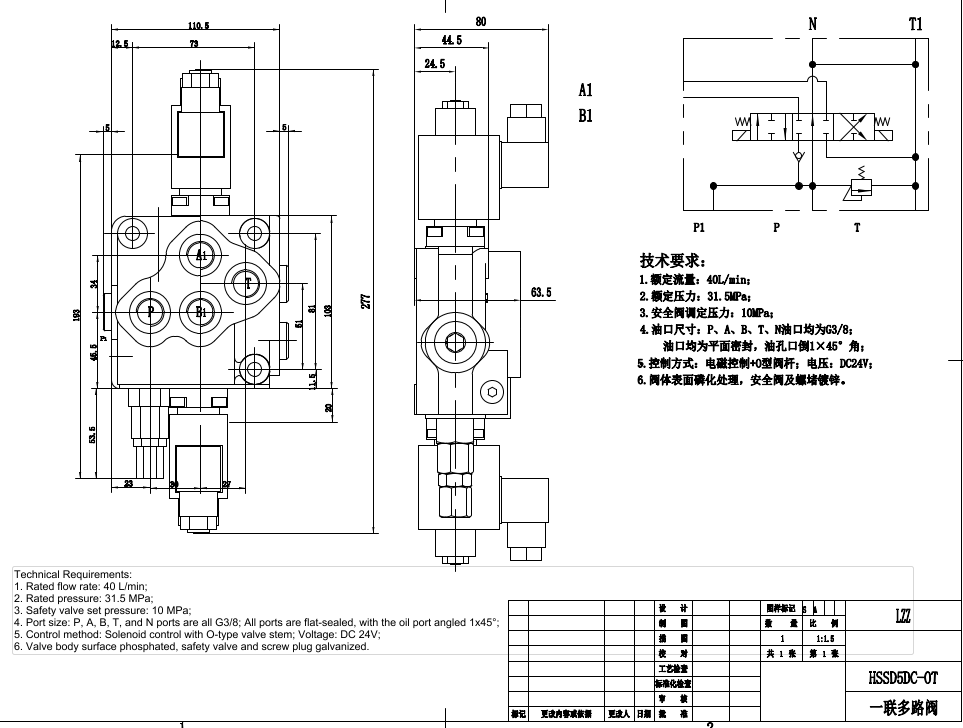

SD5 Solenoid 1 Spool Monoblock Directional Valve drawing image

SD5 Solenoid 1 Spool Monoblock Directional Valve is a one-section, solenoid operated valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). It is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, cranes, stackers, and aerial platforms.

SD5 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	305 bar (4400 psi)
Inlet Port	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Outlet Port	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Port Size	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Compact and lightweight design
* High flow capacity
* Low pressure drop
* Excellent sealing performance
* Long service life

**Applications:**

* Material handling equipment
* Construction machinery
* Agricultural machinery
* Industrial vehicles

SD5 Solenoid 1 Spool Monoblock Directional Valve application image
