3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve

Control Method:Manual

Spool:4 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*27*11

Grossweight:13.40 kg

Availability: In Stock

856 Views are Looking for this Product

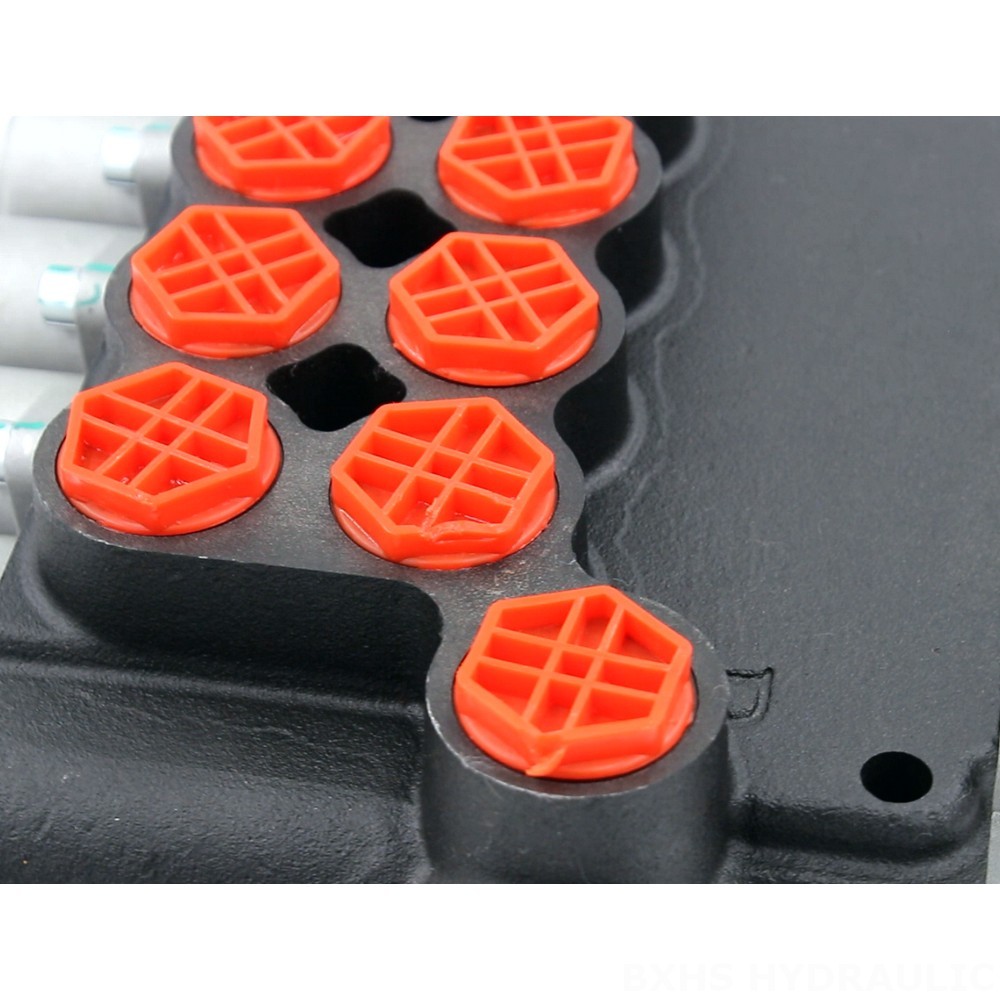

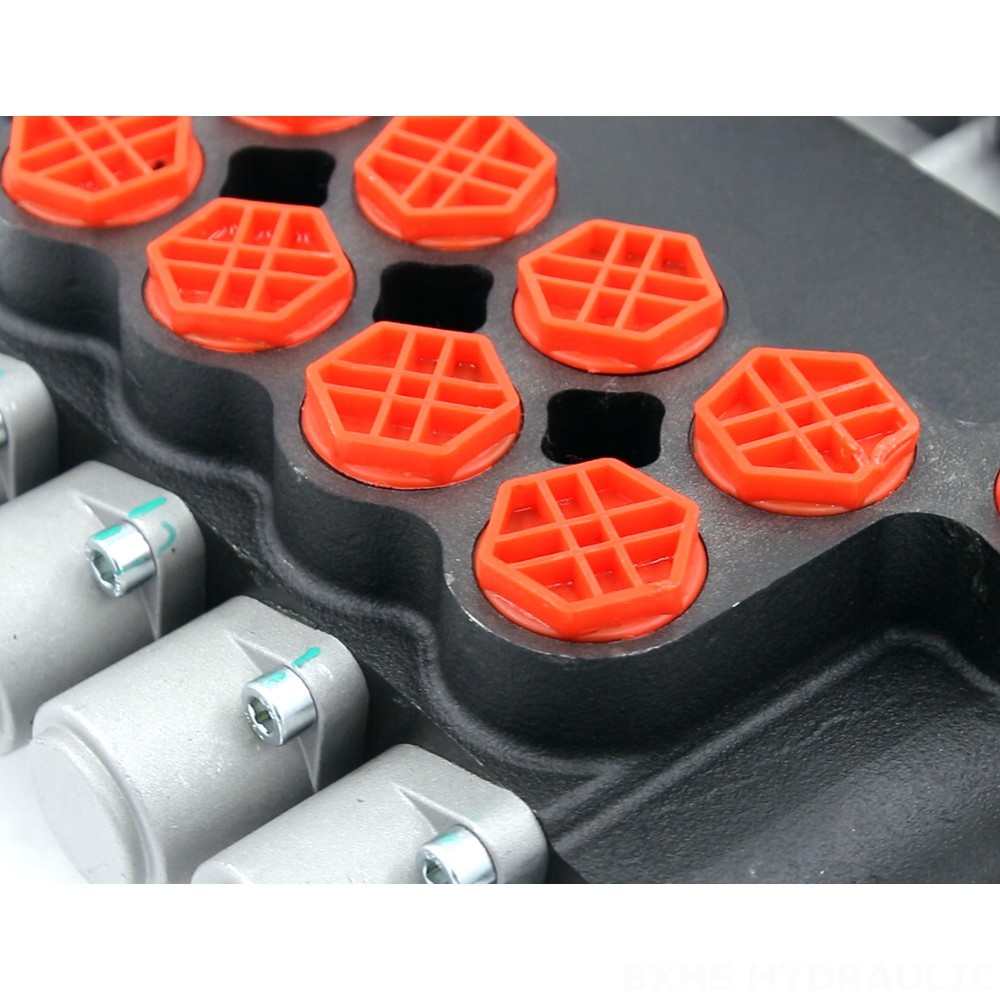

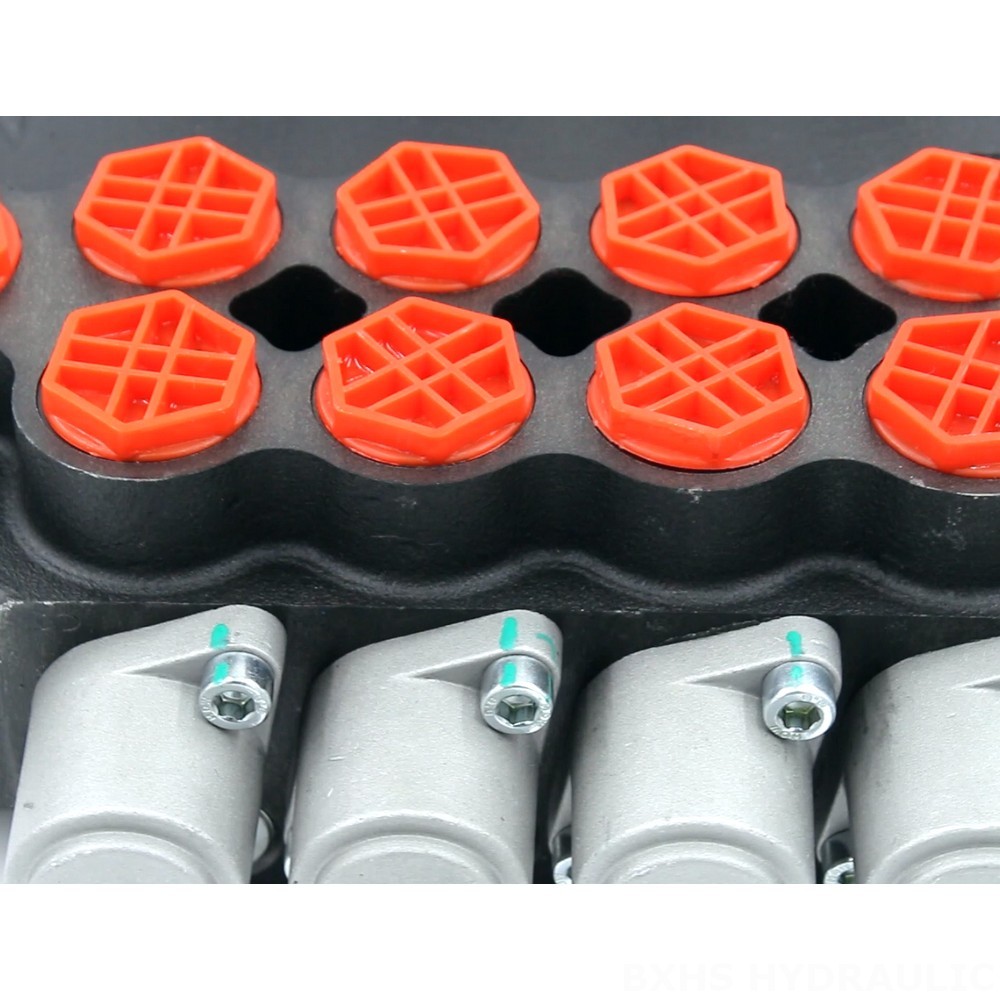

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve detailed image

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve detailed image

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve drawing image

The P80-G34-G12-4OT is a 4-section, manual control, 3-way, monoblock hydraulic directional valve with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for heavy duty applications in material handling, construction, earth moving, agriculture, and industrial vehicles.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

This high-performance hydraulic valve is ideal for controlling various hydraulic functions in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. Its 4-spool design allows for precise control of multiple hydraulic functions. The monoblock construction provides durability and reliability. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-pressure, high-flow hydraulic systems. The manual control method allows for easy operation and adjustment. The P80-G34-G12-4OT is a robust and reliable hydraulic valve that meets the demanding requirements of a wide range of applications.

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve application image

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve packing image

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve company image

3 Way Spool Shut Off Valve Hydraulic P80-G34-G12-4OT Manual 4 Spool Monoblock Directional Valve certification image
