SDS180 Manual 3 Spool Sectional Directional Valve

Rated Flow:160 L/min (42.2 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product series:SDS180 Series Sectional Directional Valve

Productsize:35*26*10

Netweight:30.00 kg

Availability: In Stock

  • Manual
  • Hydraulic
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
1065 Views are Looking for this Product

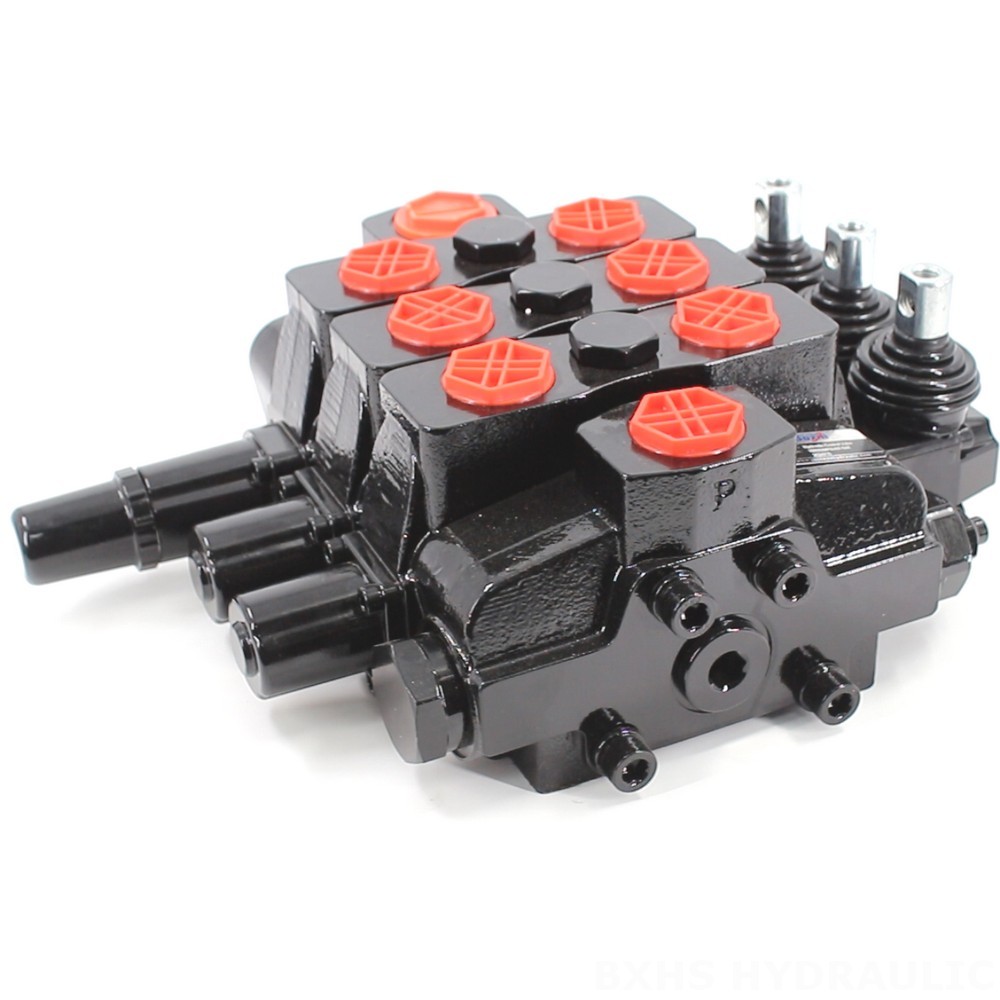

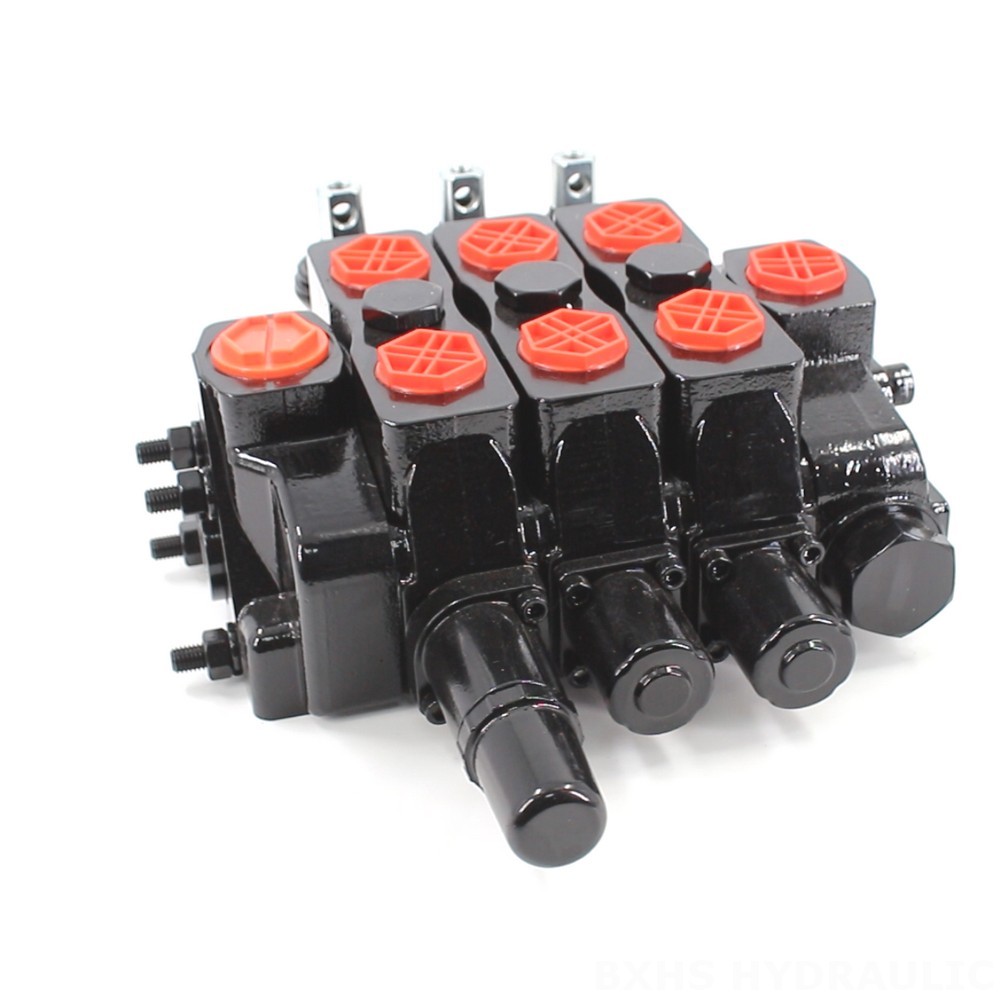

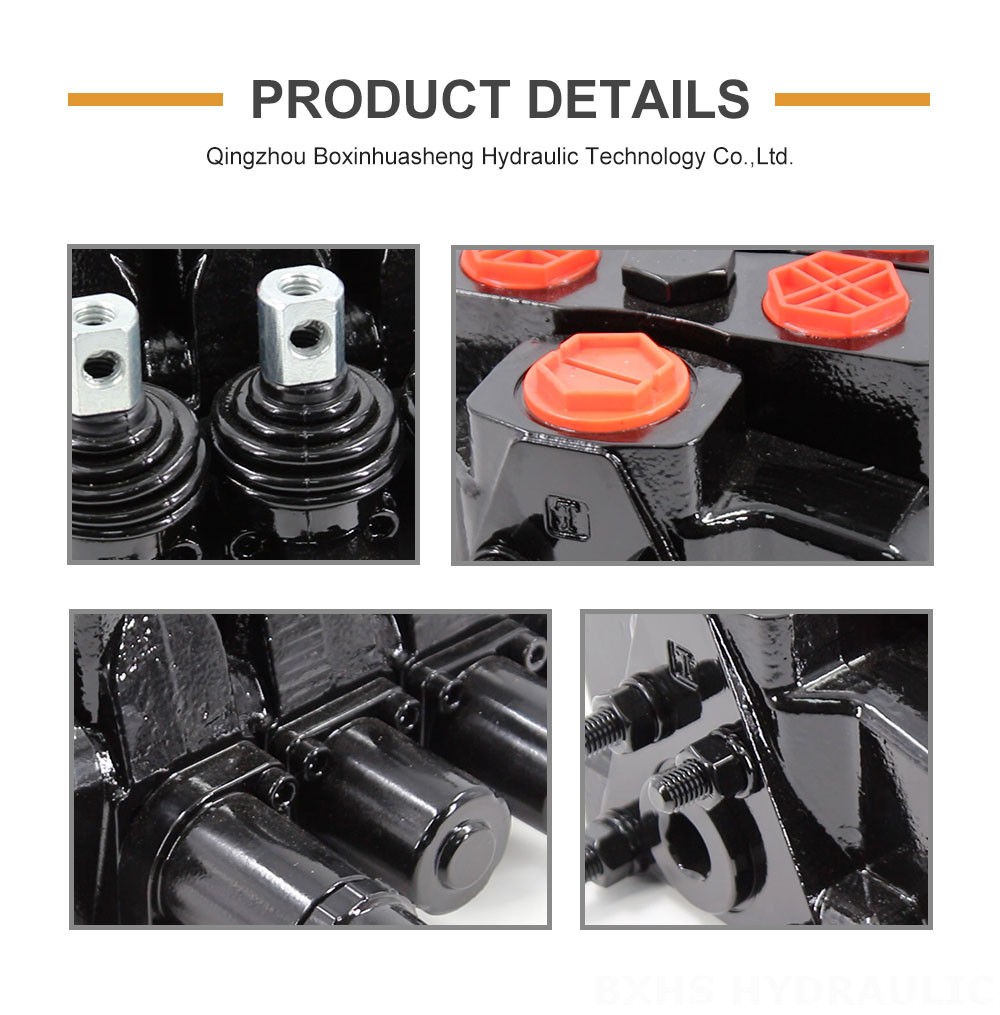

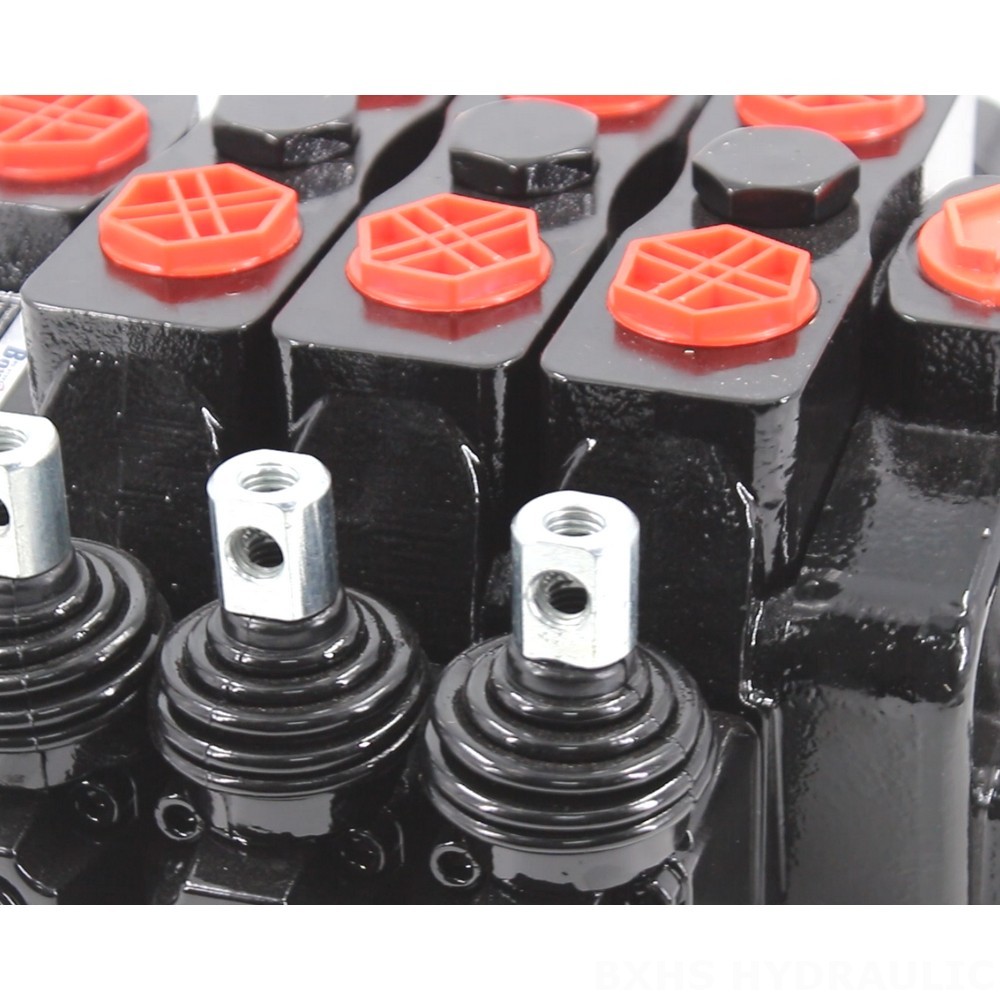

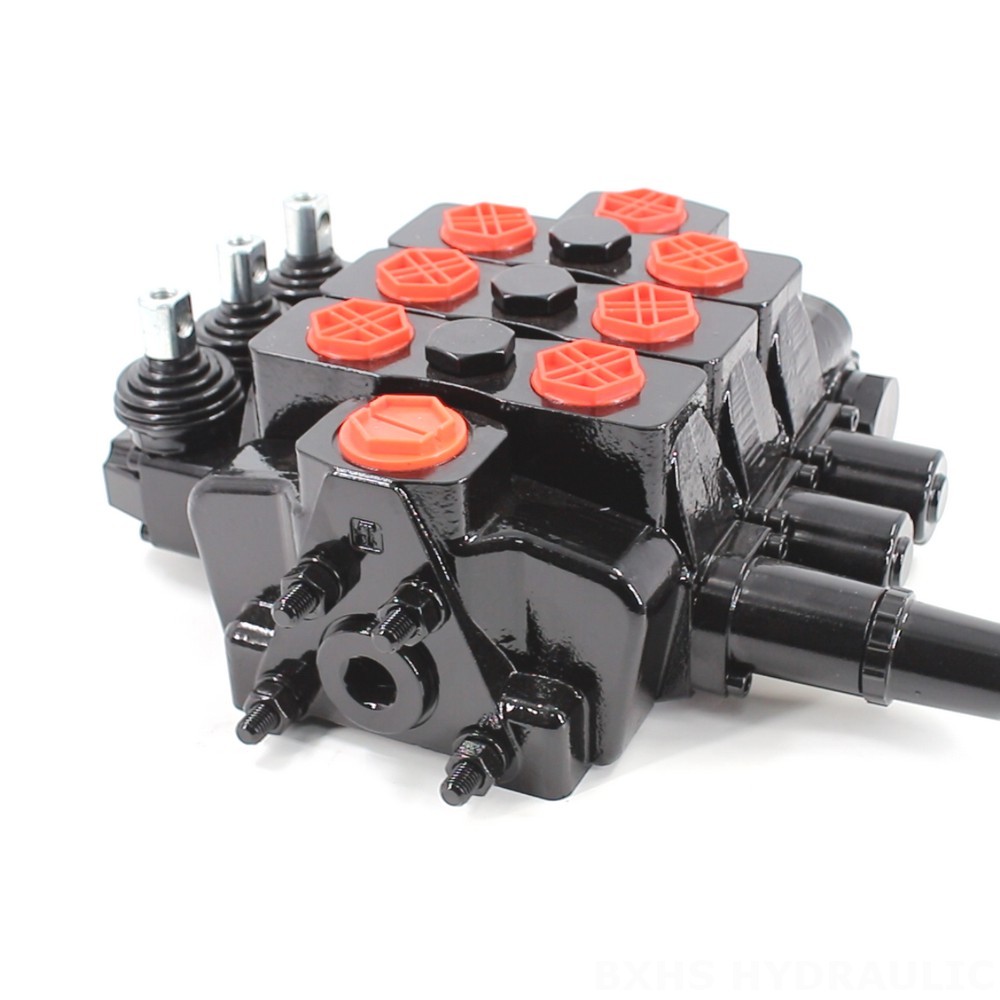

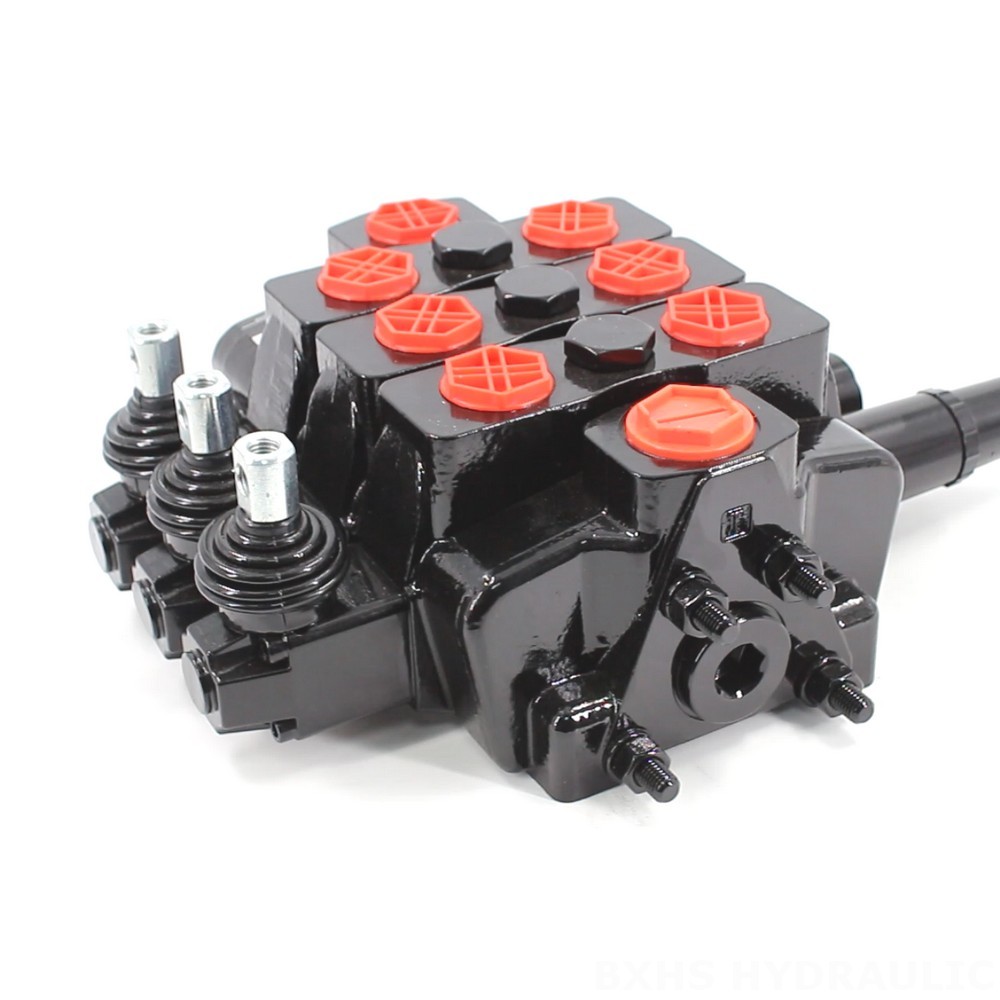

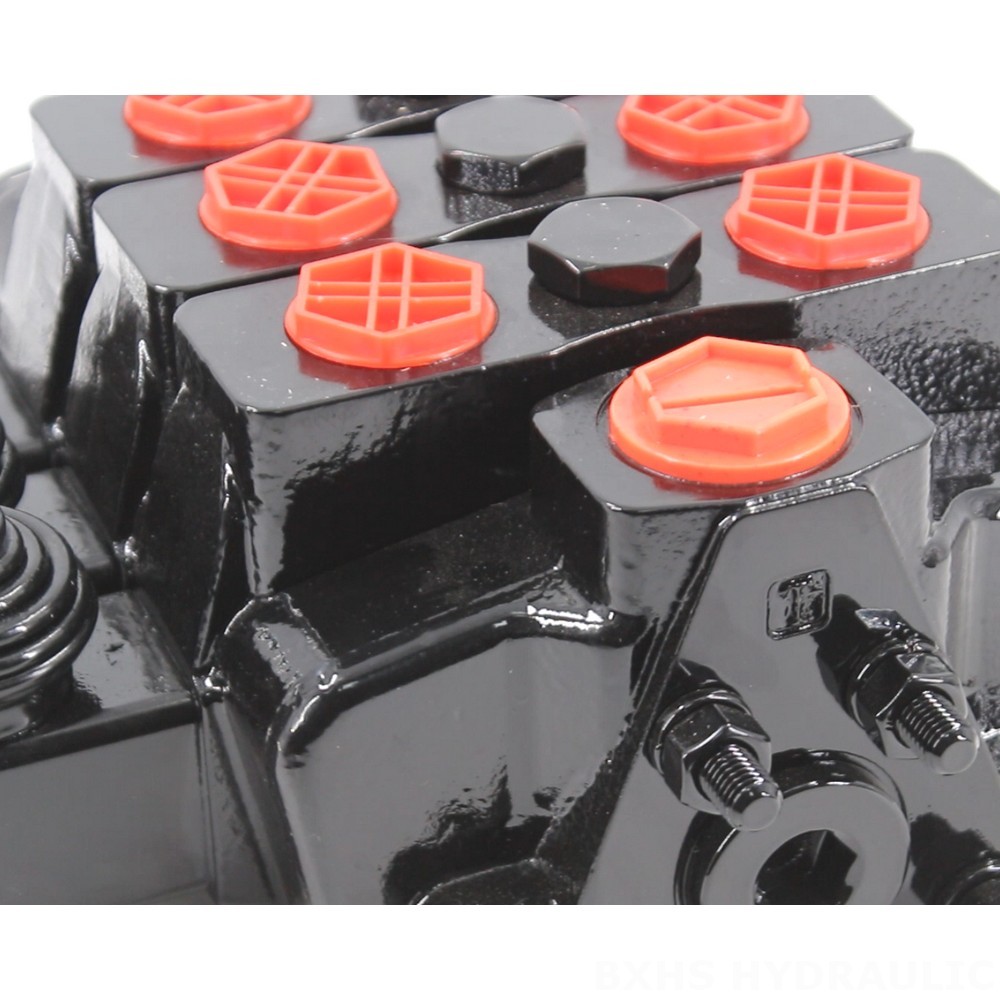

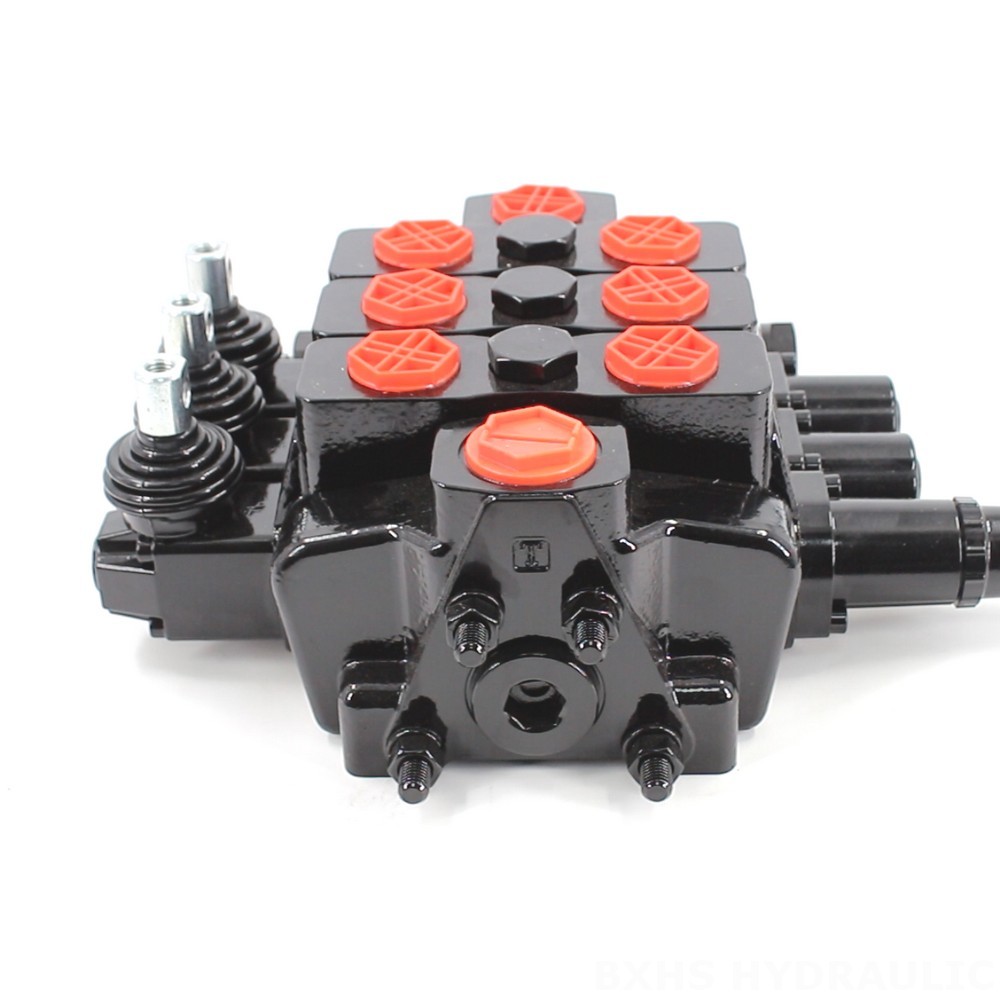

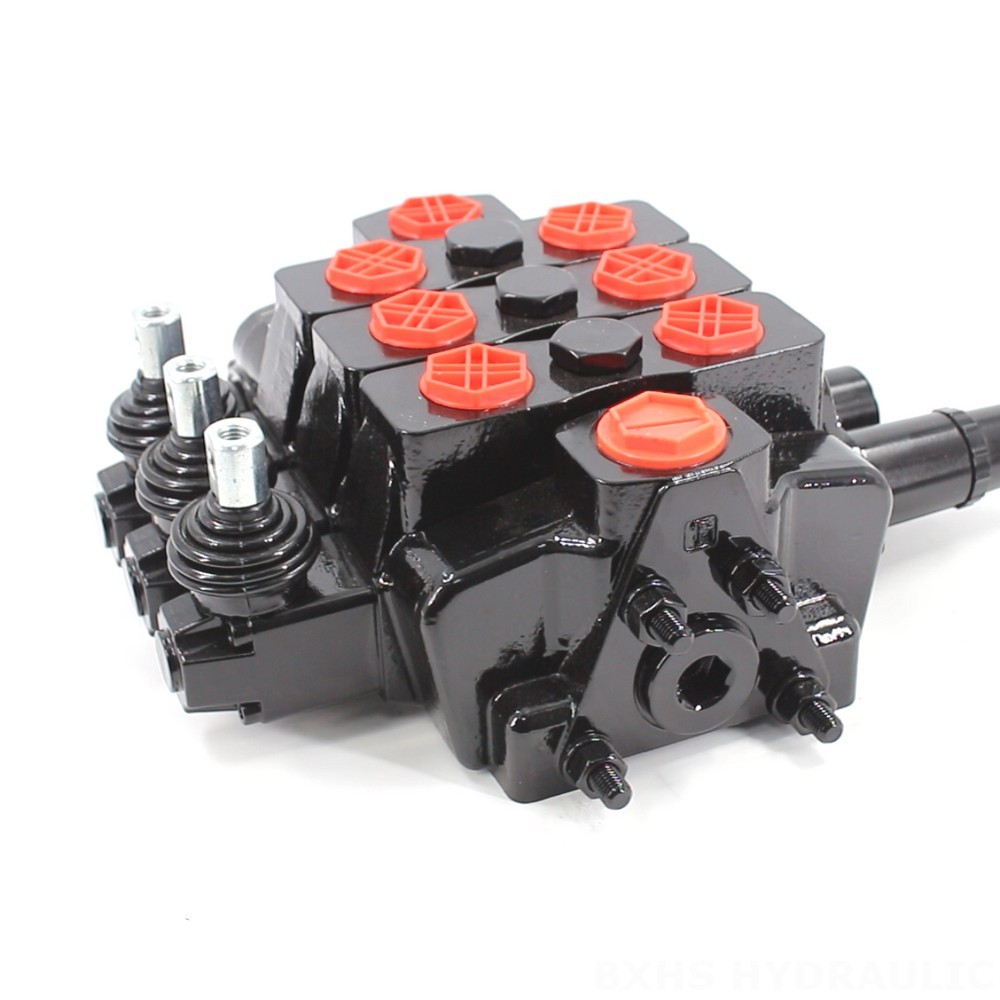

SDS180 Manual 3 Spool Sectional Directional Valve detailed image

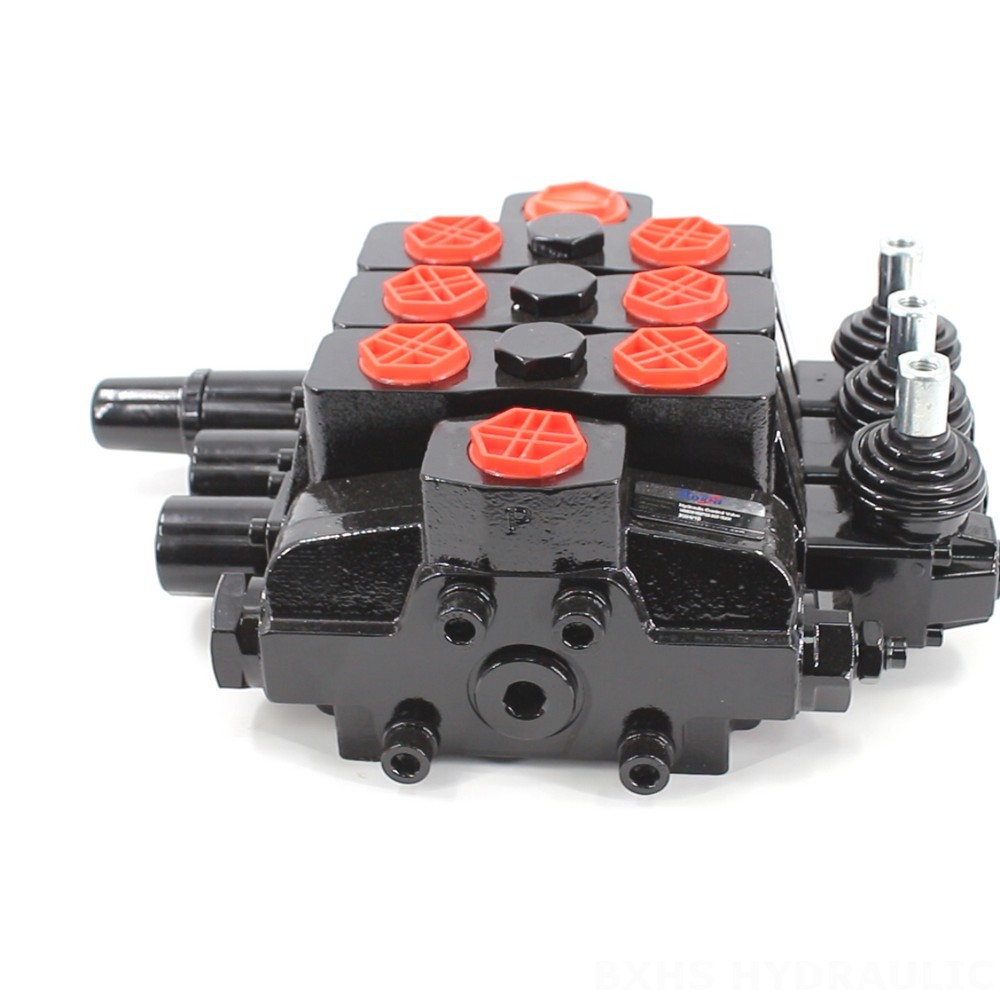

SDS180 Manual 3 Spool Sectional Directional Valve detailed image

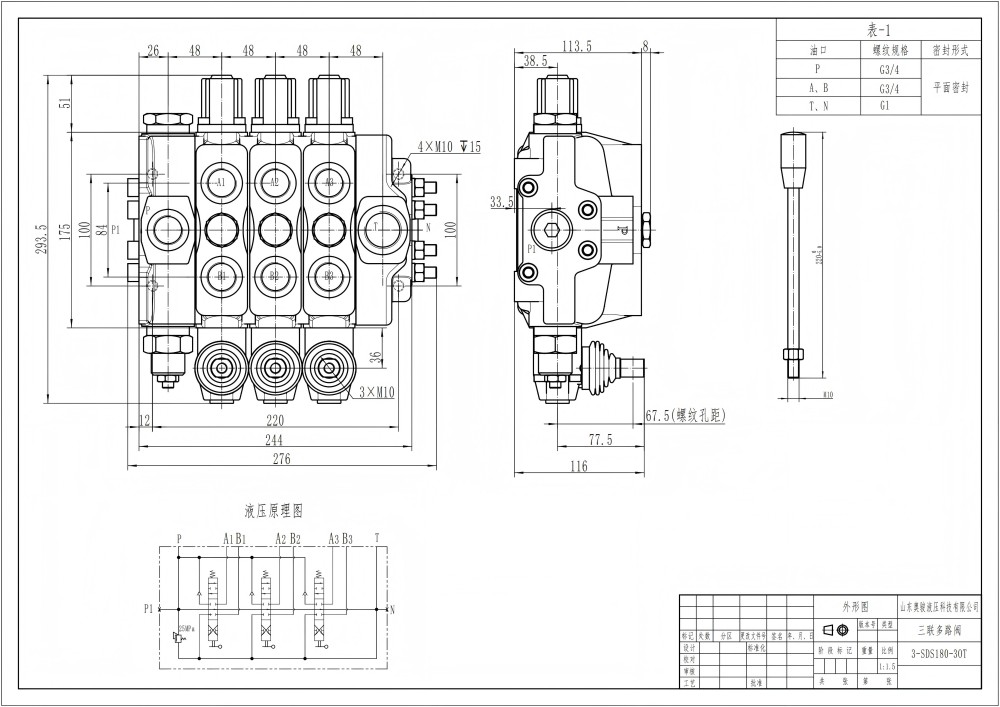

SDS180 Manual 3 Spool Sectional Directional Valve drawing image

The SDS180 is a robust 3-spool sectional directional hydraulic and manual valve with a rated flow of 160 L/min and a maximum pressure of 350 bar. Designed for demanding applications in construction, agriculture, and industrial vehicles, it features a wide operating temperature range and high viscosity tolerance. Available for OEM, ODM, private labeling, and wholesale.

SDS180 Series Sectional Directional Valve Parameters
Control Method Manual, Hydraulic
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 160 L/min (42.2 US gpm)
Max Pressure 315 bar (4600 psi), 350 bar (5100 psi)
Inlet Port G3/4, G1, SAE 12
Outlet Port G1, SAE 16
Port Size G3/4, G1, SAE 12

The SDS180 Hydraulic and Manual 3 Spool Sectional Directional Valve offers superior performance and reliability in various applications. Its high flow rate (160 L/min) and high-pressure capacity (350 bar) make it ideal for powering heavy-duty equipment. The manual override ensures control even in case of hydraulic failure. Its wide operating temperature range (-40°C to +80°C) and viscosity tolerance (12-400 mm²/s) ensure consistent performance across diverse environments and conditions. The sectional valve design simplifies maintenance and repair. We offer various manufacturing options including OEM, ODM, private labeling, and wholesale to meet diverse customer needs. This valve is perfectly suited for mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors with front-end loaders, telehandlers, and harvesters, among other applications demanding precise and powerful hydraulic control. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide.
