4-Spool Hydraulic Distributor: CDBF20 Model | Factory Direct & Customizable

Control Method:Manual

Spool:4 Spool

Rated Flow:160 L/min (42.2 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:M22×1.5

Outlet Port:M22×1.5

Port Size:M22×1.5

Vendor:BXHS

Product Type:Hydraulic Distributor

Product Series:CDBF20 Series Hydraulic Distributor

Packagingsize:38*40*25

Grossweight:36.00 kg

Availability: In Stock

569 Views are Looking for this Product

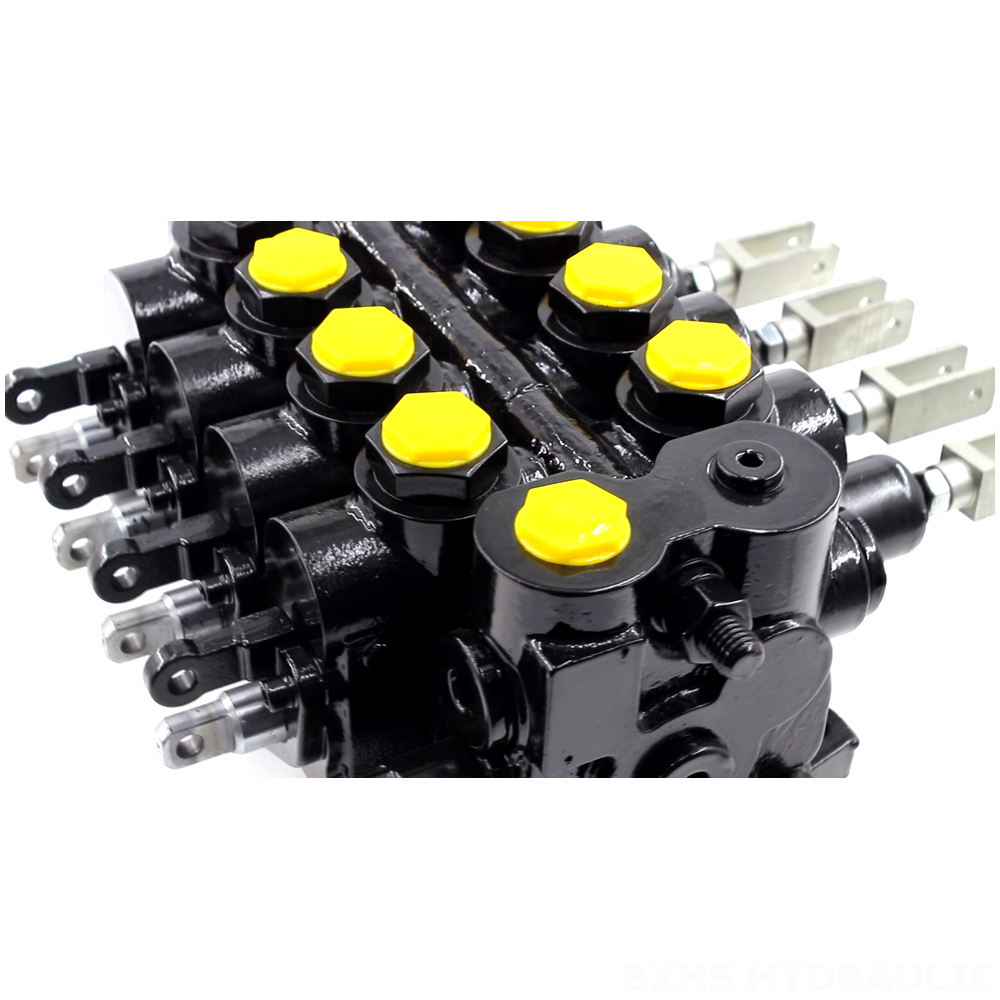

4-Spool Hydraulic Distributor: CDBF20 Model | Factory Direct & Customizable detailed image

4-Spool Hydraulic Distributor: CDBF20 Model | Factory Direct & Customizable detailed image

4-Spool Hydraulic Distributor: CDBF20 Model | Factory Direct & Customizable drawing image

The 4-Spool Hydraulic Distributor: CDBF20 Model is a high-performance hydraulic component designed for various industrial applications. It features a compact and modular design, allowing for easy integration into existing systems. With a rated flow rate of 100 L/min and a maximum pressure of 315 bar, this distributor can handle demanding hydraulic operations. Its wide operating viscosity range of 15 - 75 mm²/s ensures optimal performance in diverse operating conditions.

CDBF20 Series Hydraulic Distributor Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Control Method Manual
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 100 L/min (26.5 US gpm)
Structure Type Sectional valve

**CDBF20 4-Spool Hydraulic Distributor**

**Key Features:**

- Manual control for precise operation
- Sectional valve design for modularity and flexibility
- High flow rate of 100 L/min for efficient hydraulic power transmission
- Robust construction with a maximum pressure of 315 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for versatility in various conditions
- Suitable for ambient temperatures ranging from -40°C to +80°C for reliable operation in extreme environments

**Applications:**

The CDBF20 4-Spool Hydraulic Distributor finds applications in a wide range of industries, including:

- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles

**Specific Applications:**

- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
