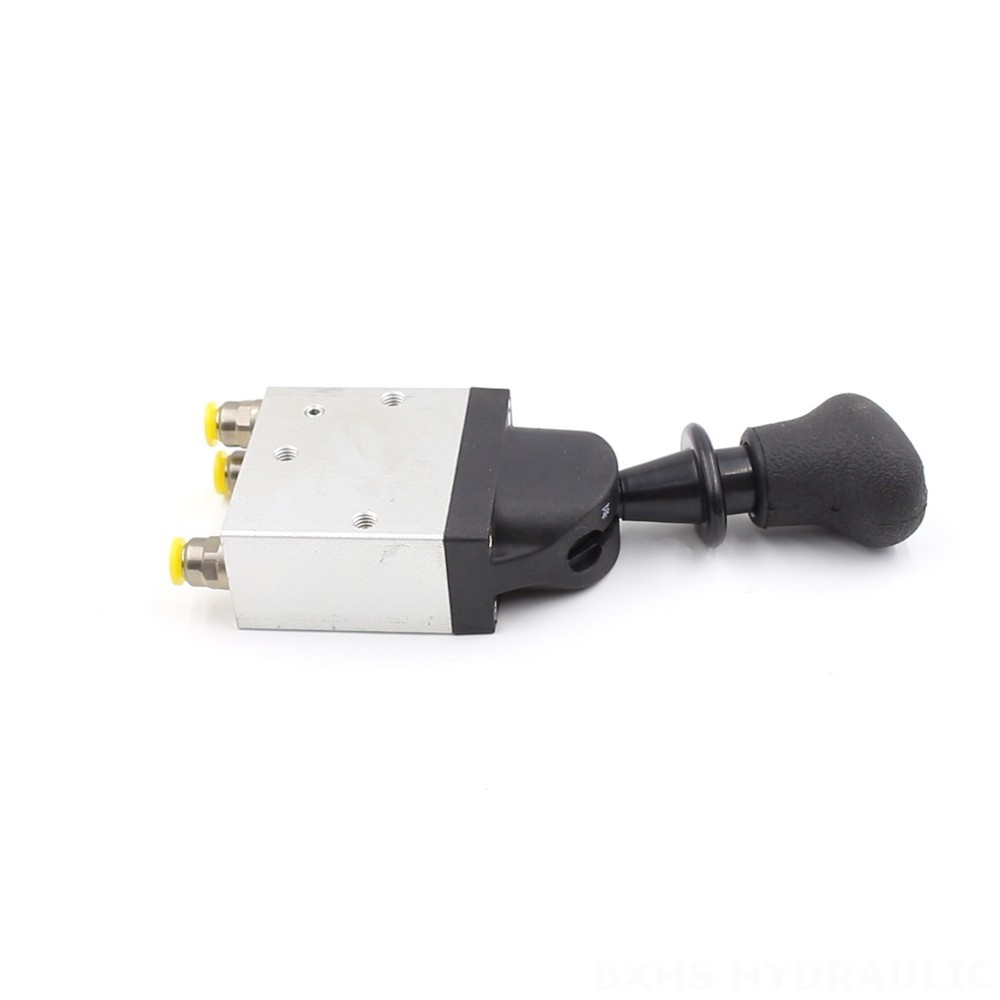

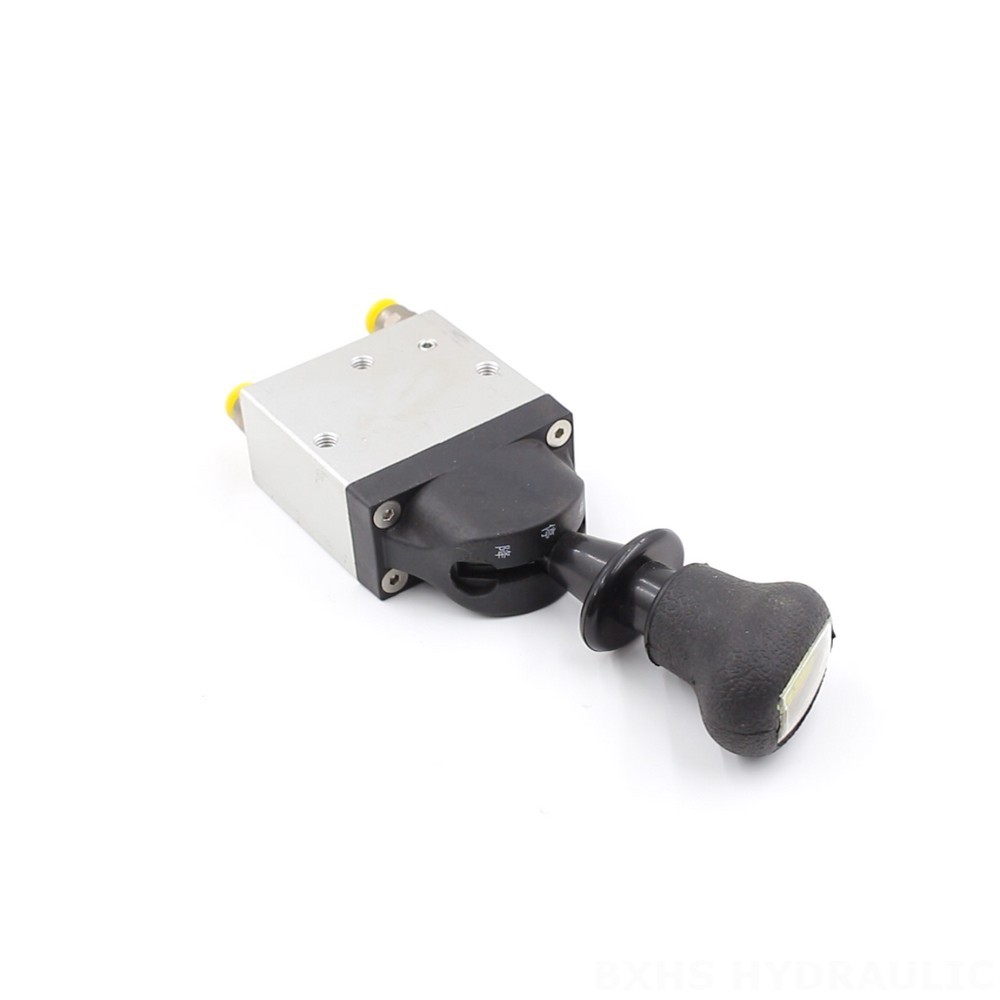

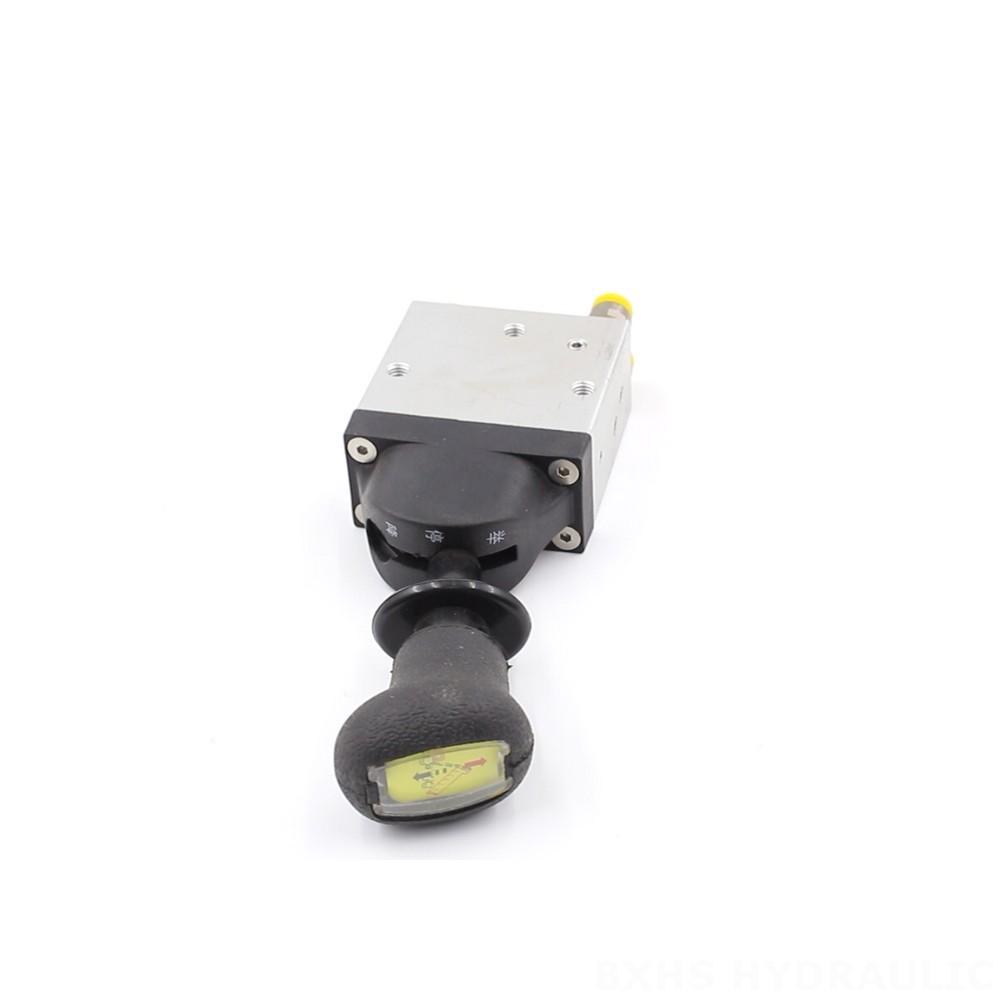

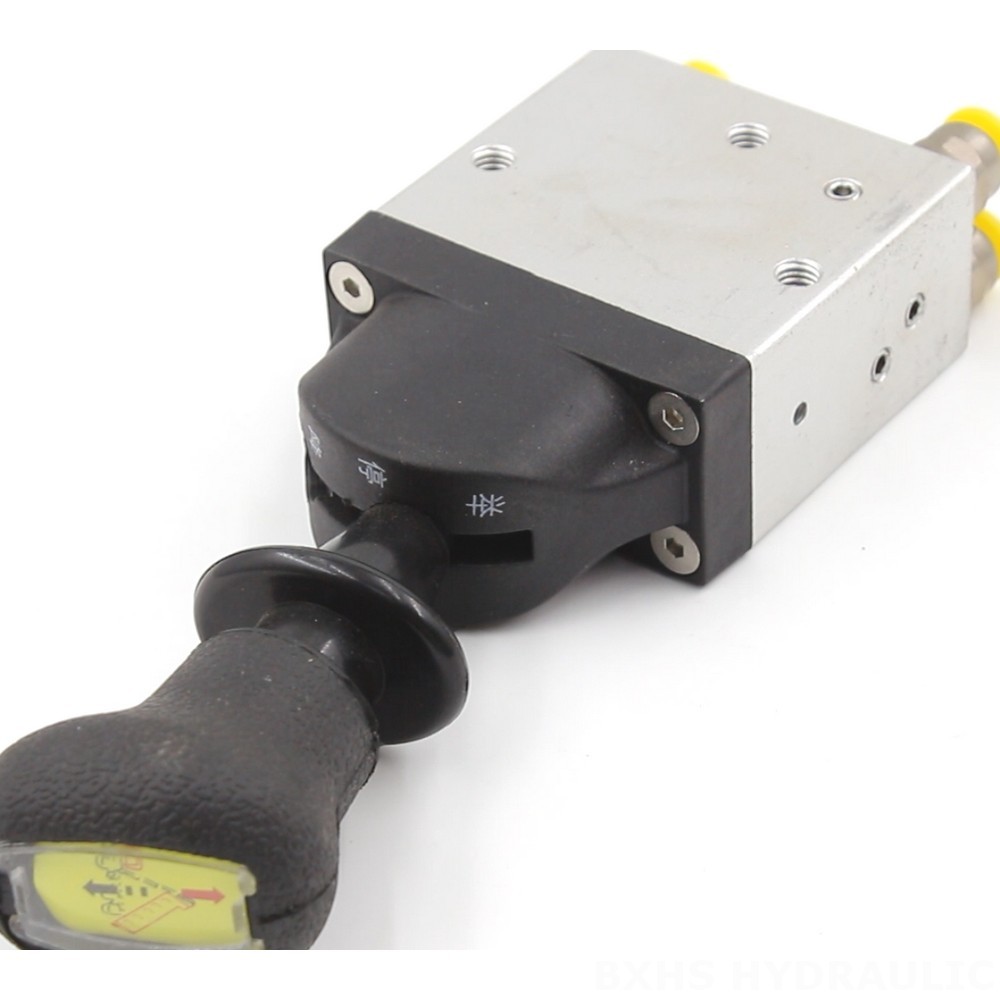

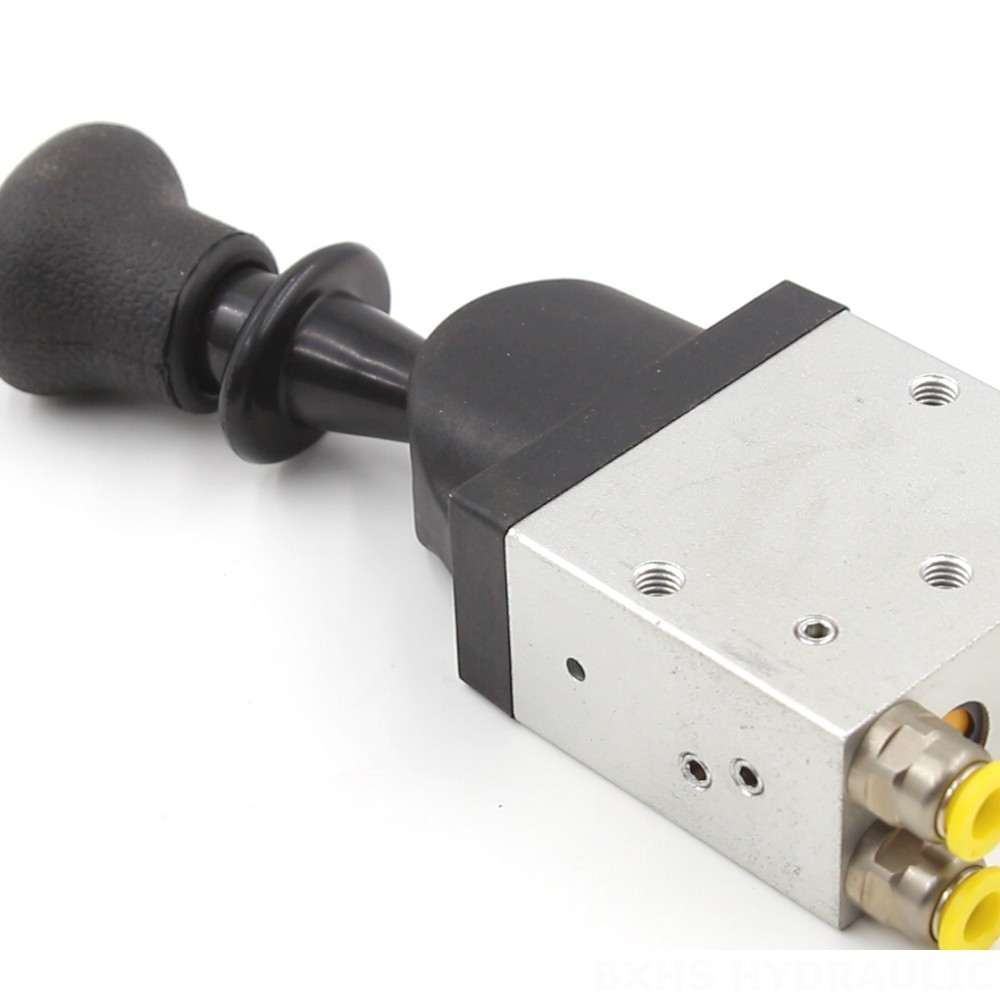

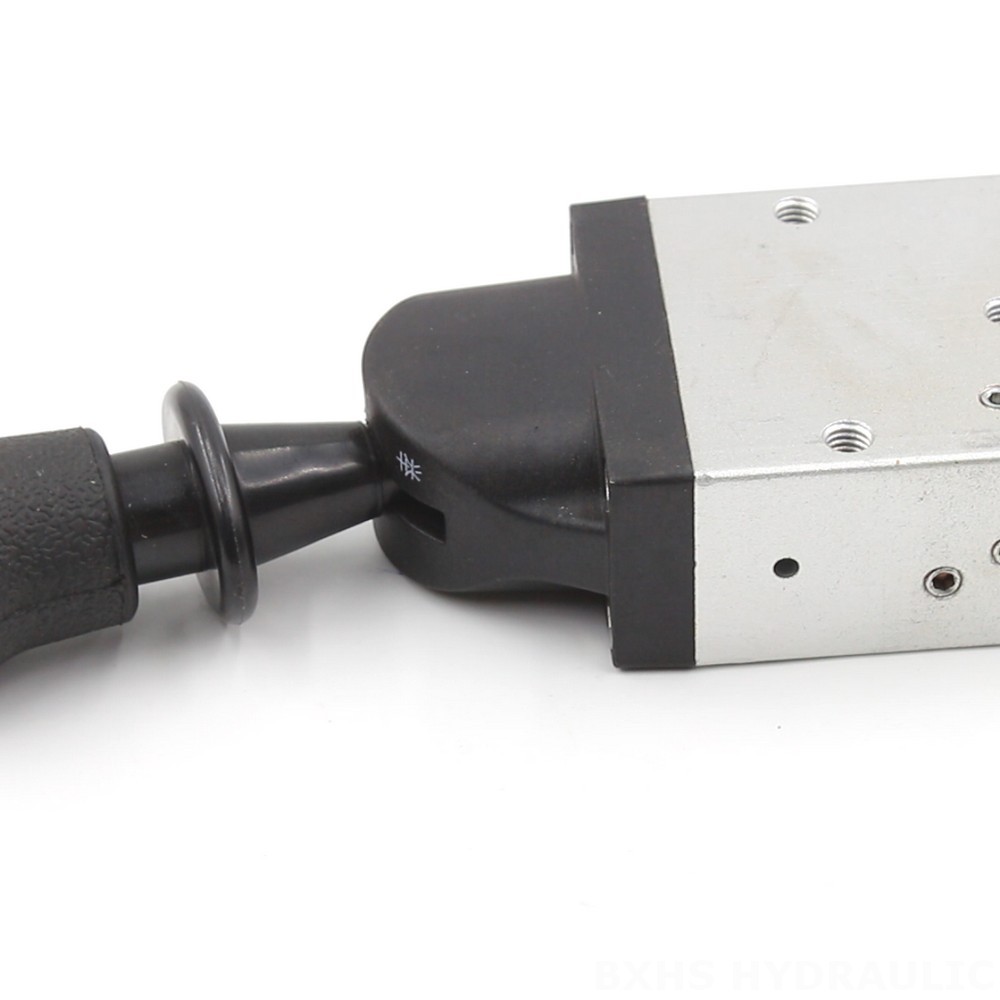

The BKQF34B-C is a robust, compact 1-spool pneumatic control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Offering a rated flow of 40 L/min and a maximum pressure of 1 MPa, this monoblock valve provides reliable and efficient control in demanding environments.
| BKQF34 Series Pneumatic Control Valve Parameters | |
|---|---|
| Control Method | Pneumatic |
| Spool | 1 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 1 MPa (145 psi) |
| Inlet Port | G1/4 |
| Outlet Port | G1/4 |
| Port Size | G1/4 |
The BKQF34B-C Pneumatic 1 Spool Pneumatic Control Valve is a high-performance, cost-effective solution for controlling hydraulic systems. Its compact monoblock design ensures easy installation and maintenance, while its durable construction guarantees long-term reliability in harsh operating conditions. The valve's wide operating temperature range (-40°C to +80°C) and viscosity range (12-400 mm²/s) make it suitable for various fluids and climates. Its pneumatic control offers precise and responsive operation, making it ideal for applications requiring precise control of hydraulic actuators. This valve finds applications in various machinery including forklifts, tractors, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, balers, and sprayers, among others. The valve's high flow rate and pressure capability ensure efficient operation in demanding hydraulic systems, contributing to improved productivity and reduced downtime. Our manufacturing capabilities include custom designs, OEM services and private labeling to meet specific client requirements. We are actively seeking distributors, wholesalers, agents and trading partners globally.
