Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM

Control Method:Manual

Spool:5 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:SAE 10

Outlet Port:SAE 12

Port Size:SAE 10

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*30*11

Grossweight:16.00 kg

Availability: In Stock

1320 Views are Looking for this Product

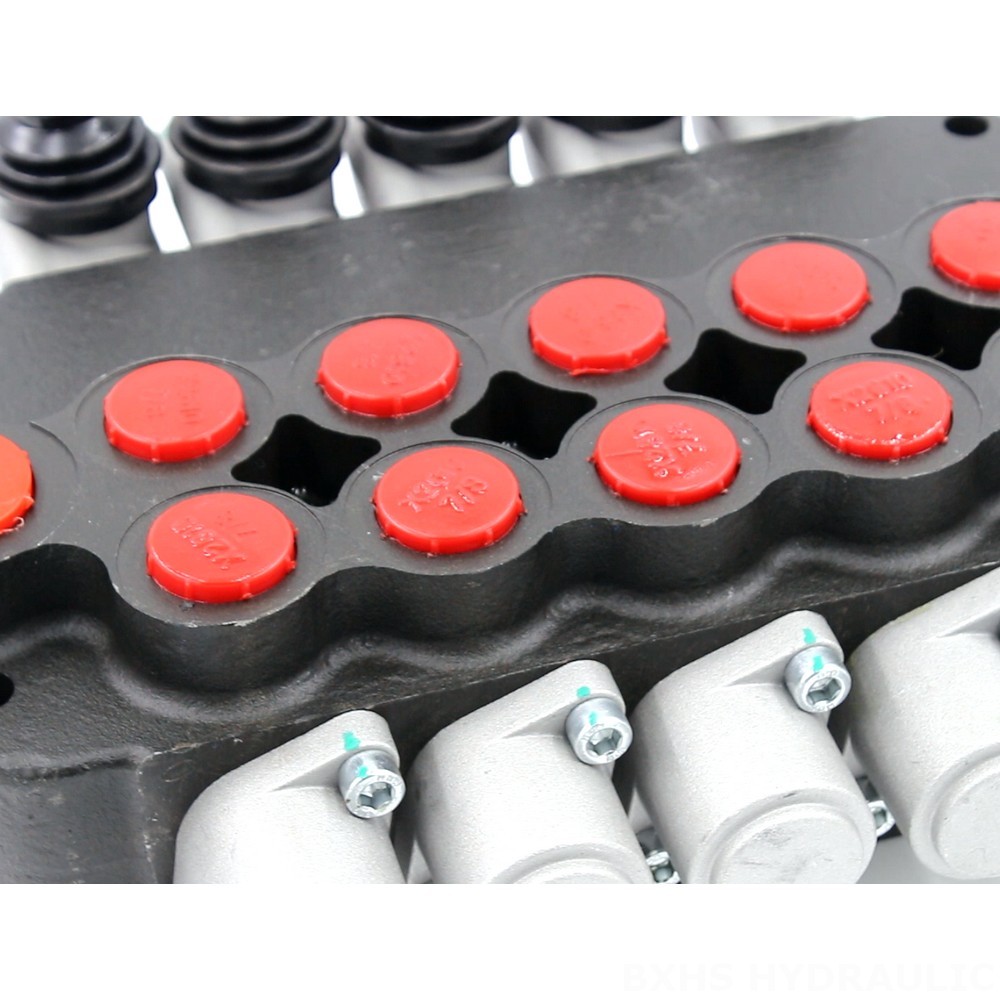

Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM detailed image

Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM detailed image

Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM drawing image

The P80-U116-U78-5OT Hydraulic Directional Control Valve is a high-performance, 5-section monoblock valve designed for bucket control applications in construction, material handling, and industrial vehicles. It features a rated flow of 80 L/min and a maximum pressure rating of 250 bar.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

This 5-spool manual control valve is part of the P80 series and is designed for demanding applications. It offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi). The valve operates effectively within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). The P80-U116-U78-5OT is specifically designed for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders, making it a versatile solution for various construction and material handling needs.

Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM application image

Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM packing image

Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM company image

Bucket Control Valve P80-U116-U78-5OT Hydraulic Directional Control Valve | Wholesale & OEM certification image
