CBHS-C20 20 cc/rev Hydraulic Gear Pump

Rated Pressure:20 MPa (2900 psi)

Max Pressure:25 MPa (3625 psi)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:CBHS-C20 Series Hydraulic Gear Pump

Productsize:18*16*25

Netweight:7.90 kg

Availability: In Stock

  • 100 cc/rev
375 Views are Looking for this Product

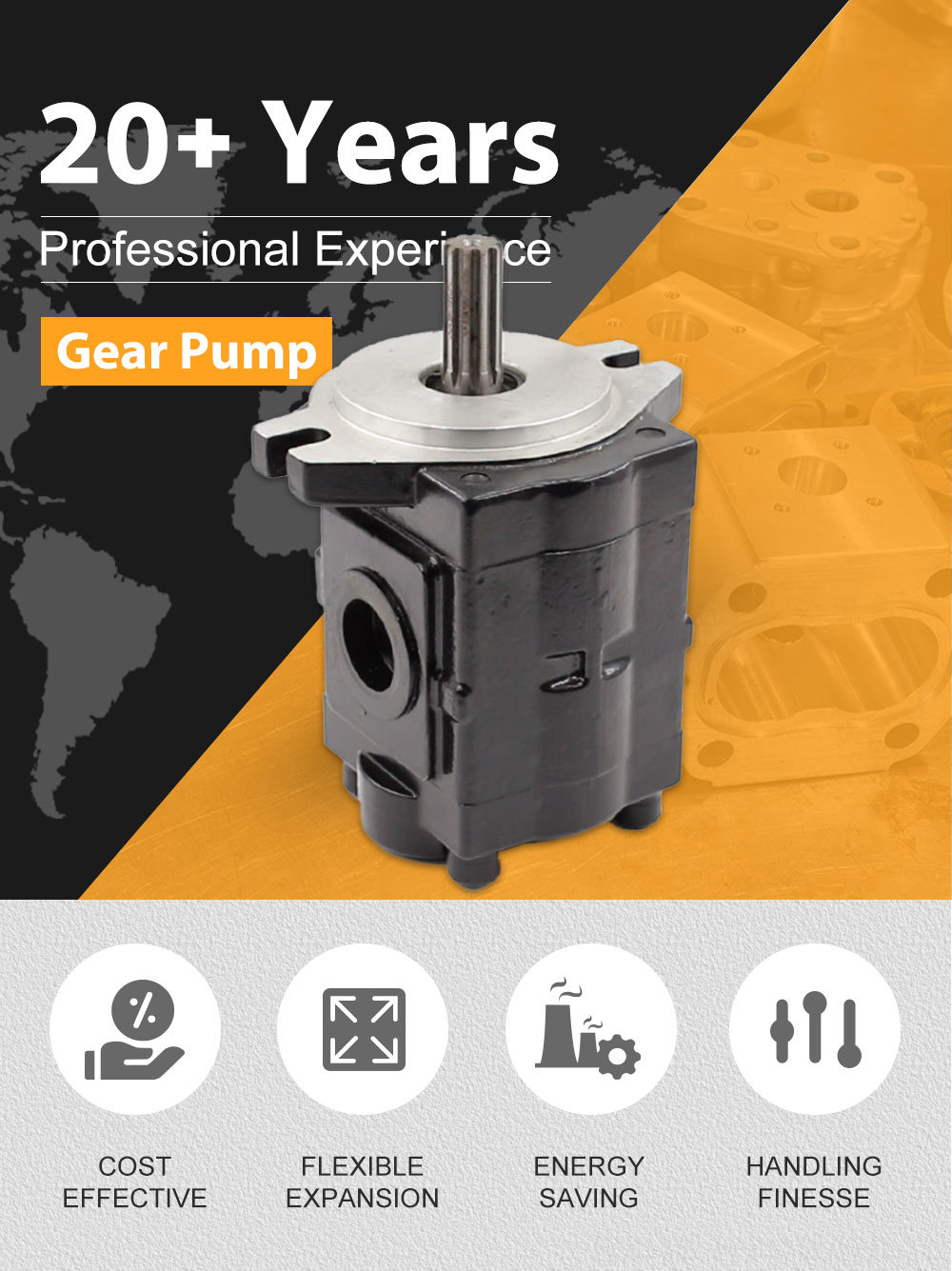

CBHS-C20 20 cc/rev Hydraulic Gear Pump detailed image

CBHS-C20 20 cc/rev Hydraulic Gear Pump detailed image

CBHS-C20 20 cc/rev Hydraulic Gear Pump drawing image

This 20 cc/rev and 100 cc/rev Hydraulic Gear Pump is designed for heavy-duty applications in various industries including construction, agriculture, material handling and industrial vehicles. It features a cast iron construction, high pressure rating, and bidirectional rotation, making it suitable for a wide range of demanding tasks.

Rated Pressure 20 MPa (2900 psi)
Max Pressure 25 MPa (3625 psi)
Rated Speed 2500 r/min
Max Speed 3000 r/min
Rotation /: (Bidirectional)
Structure External Gear Pump
Material Cast Iron
Flange Version ISO-4 Mounting Holes
Shaft Type H: Rectangle Spline

This 20 cc/rev and 100 cc/rev Hydraulic Gear Pump is a robust and reliable solution for your demanding applications. It boasts a cast iron construction ensuring durability and long service life. Its high pressure rating of 22 MPa (3190 psi) and maximum pressure of 25 MPa (3625 psi) enable it to handle heavy loads and demanding working conditions. The pump is capable of operating at a rated speed of 2500 r/min and maximum speed of 2500 r/min, ensuring efficient performance. The bidirectional rotation feature provides flexibility and adaptability to various applications. The pump is equipped with ISO-4 mounting holes for easy installation and a rectangle spline shaft for secure connection to other components. This versatile pump is ideal for various applications in construction, agriculture, material handling and industrial vehicles. It can power components such as hydraulic cylinders, motors, and other hydraulic systems. Its high performance and reliability make it an excellent choice for demanding tasks in a wide range of industries.

CBHS-C20 20 cc/rev Hydraulic Gear Pump application image

CBHS-C20 20 cc/rev Hydraulic Gear Pump packing image

CBHS-C20 20 cc/rev Hydraulic Gear Pump company image

CBHS-C20 20 cc/rev Hydraulic Gear Pump certification image
