CBHS3100 100 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump

Rated Pressure:20 MPa (2900 psi)

Max Pressure:25 MPa (3625 psi)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:CBHS-T3 Series Hydraulic Gear Pump

Productsize:29*21*23

Netweight:16.50 kg

Availability: In Stock

  • 100 cc/rev
370 Views are Looking for this Product

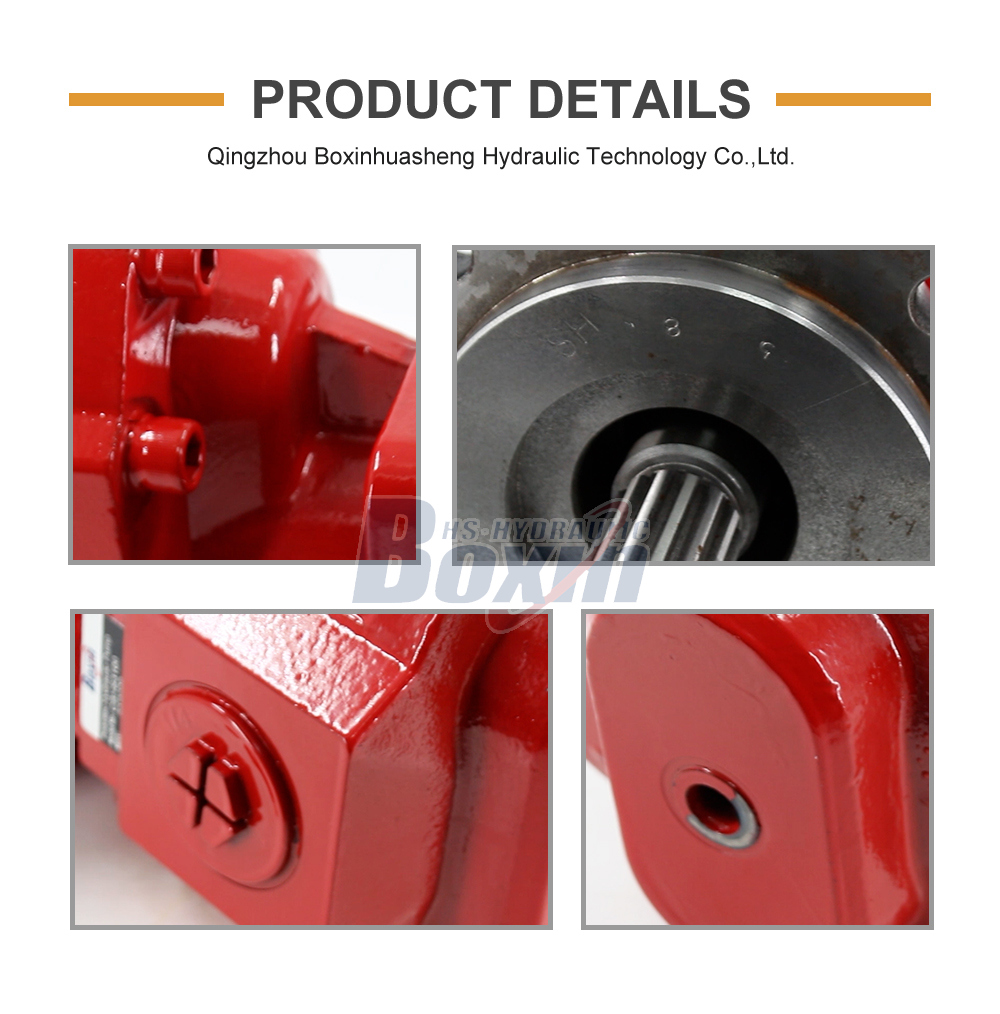

CBHS3100 100 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump detailed image

CBHS3100 100 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump detailed image

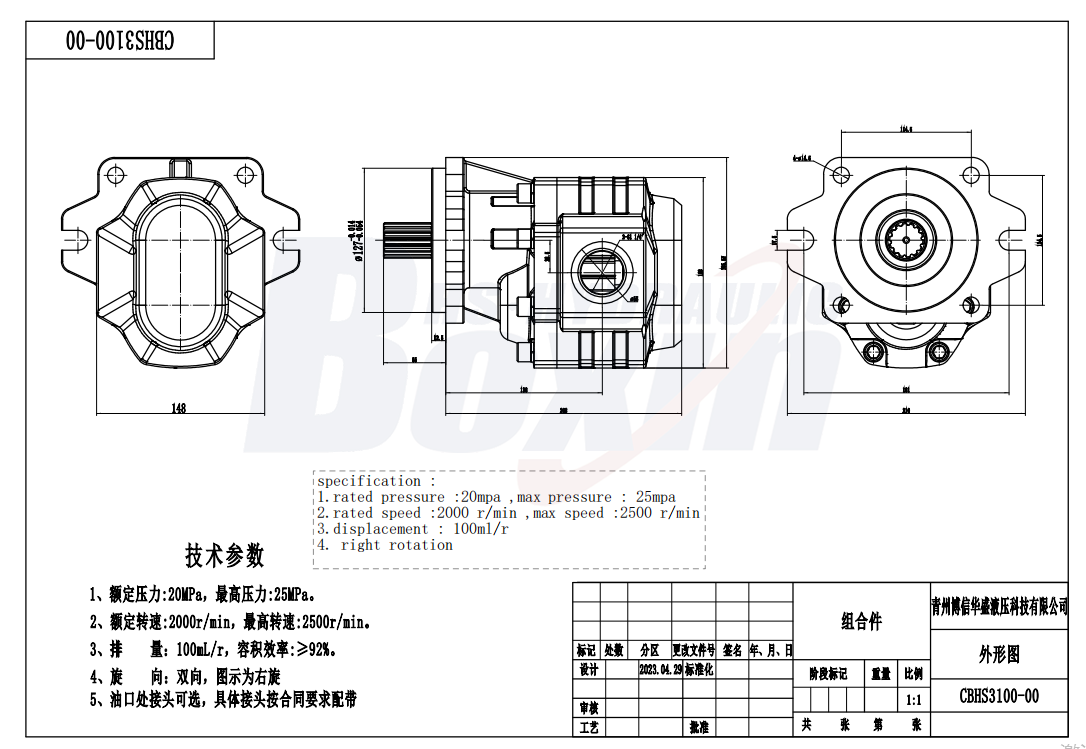

CBHS3100 100 cc/rev 20 MPa (2900 psi) Hydraulic Gear Pump drawing image

The CBHS3100 is a high-performance 100 cc/rev external gear pump constructed from durable cast iron. Designed for heavy-duty applications, it delivers a rated pressure of 20 MPa and a maximum speed of 3000 r/min. Featuring a B-Square flange and multiple spline shaft options, it is an ideal choice for global distributors and OEMs seeking reliable hydraulic power solutions.

CBHS-T3 Series Hydraulic Gear Pump Parameters
Displacement 100 cc/rev
Rated Pressure 20 MPa (2900 psi)
Max Pressure 25 MPa (3625 psi)
Rated Speed 2000 r/min
Max Speed 3000 r/min
Rotation L: Left (counter-clockwise), R: Right (clockwise)
Structure External Gear Pump
Material Cast Iron
Flange Version B-Square Flange
Shaft Type H: Rectangle Spline, X: Involute Spline

The CBHS3100 series 100 cc/rev hydraulic gear pump is engineered for excellence in demanding environments. Key features and advantages include: 1. Robust Construction: High-strength cast iron body ensures superior durability, heat dissipation, and resistance to pressure spikes. 2. High Efficiency: Advanced gear design minimizes internal leakage and optimizes volumetric efficiency. 3. Versatile Configuration: Available in both Left (L) and Right (R) rotation with Rectangle (H) or Involute (X) spline shafts to meet diverse installation requirements. 4. Wide Application: Perfectly suited for construction machinery, material handling equipment, and agricultural vehicles such as loaders, forklifts, and tractors. 5. Manufacturing Excellence: As a leading manufacturer, we provide OEM, ODM, and custom labeling services with strict quality control to support wholesalers and distributors worldwide. Whether for new equipment builds or aftermarket replacement, the CBHS3100 provides consistent, high-pressure performance.
