- 32 cc/rev
- 40 cc/rev
- 45 cc/rev
- 50 cc/rev
- 63 cc/rev
- 80 cc/rev
- 25 cc/rev
- 108 cc/rev
449 Views are Looking for this Product

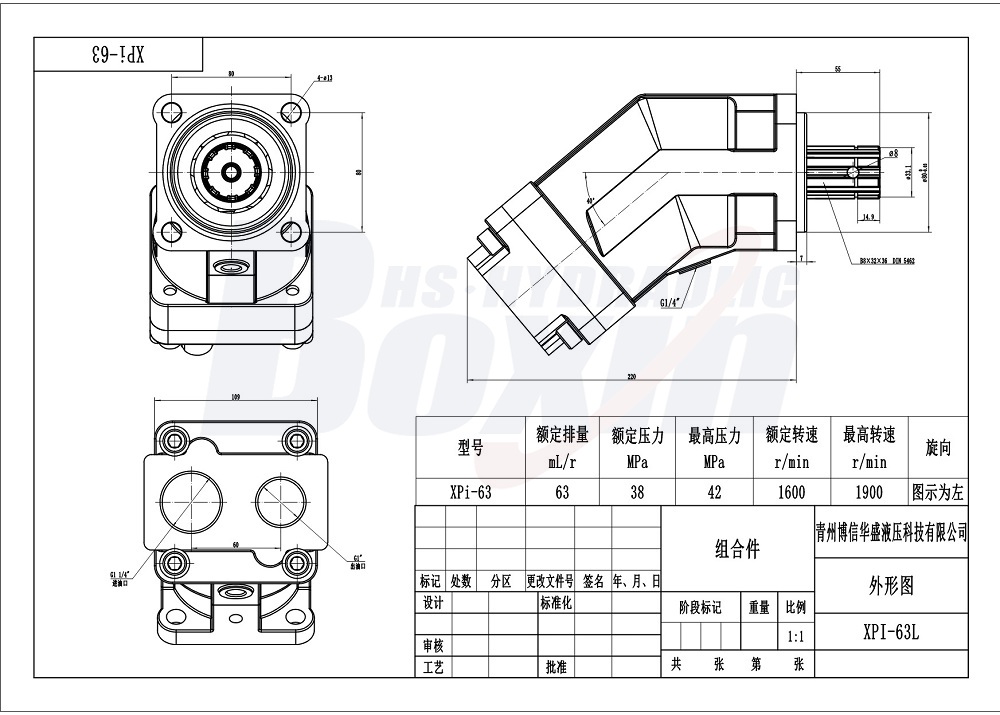

The XPI-63L is a high-performance 63 cc/rev swashplate-type hydraulic piston pump designed for heavy-duty applications, delivering a rated pressure of 38 MPa and a maximum pressure of 42 MPa with ISO-standard mounting for global compatibility.
| XPI Series Hydraulic Piston Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 40 cc/rev, 45 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 25 cc/rev, 108 cc/rev |
| Rated Pressure | 38 MPa (5511 psi) |
| Max Pressure | 42 MPa (6091 psi) |
| Rated Speed | 1600 r/min |
| Max Speed | 1900 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise) |
| Material | Cast Iron |
| Structure | Swashplate |
| Flange Version | ISO-4 Mounting Holes |
| Shaft Type | H: Rectangle Spline |
Product Highlights: The XPI-63L 63 cc/rev Hydraulic Piston Pump is engineered for durability and efficiency. Constructed from high-strength cast iron, it features a robust swashplate structure capable of handling intense working pressures up to 42 MPa (6091 psi). Its ISO 4-hole mounting flange and rectangular spline shaft ensure easy integration into existing systems. Advantages: High volumetric efficiency, low noise levels, and excellent pressure-to-weight ratio. It supports both left (CCW) and right (CW) rotation options to suit diverse drive configurations. Application Scenarios: Ideal for demanding mobile and industrial hydraulic systems, including construction machinery (excavators, loaders), agricultural equipment (tractors, harvesters), and material handling vehicles (forklifts, cranes). As a leading manufacturer, we provide OEM, ODM, and custom manufacturing services for distributors and traders worldwide.
