Crane Control Valve Custom Hydraulic Valve Solutions | P40-G12-G38-OT-2QTW Series OEM & ODM

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*20*12

Netweight:6.60 kg

Availability: In Stock

Description

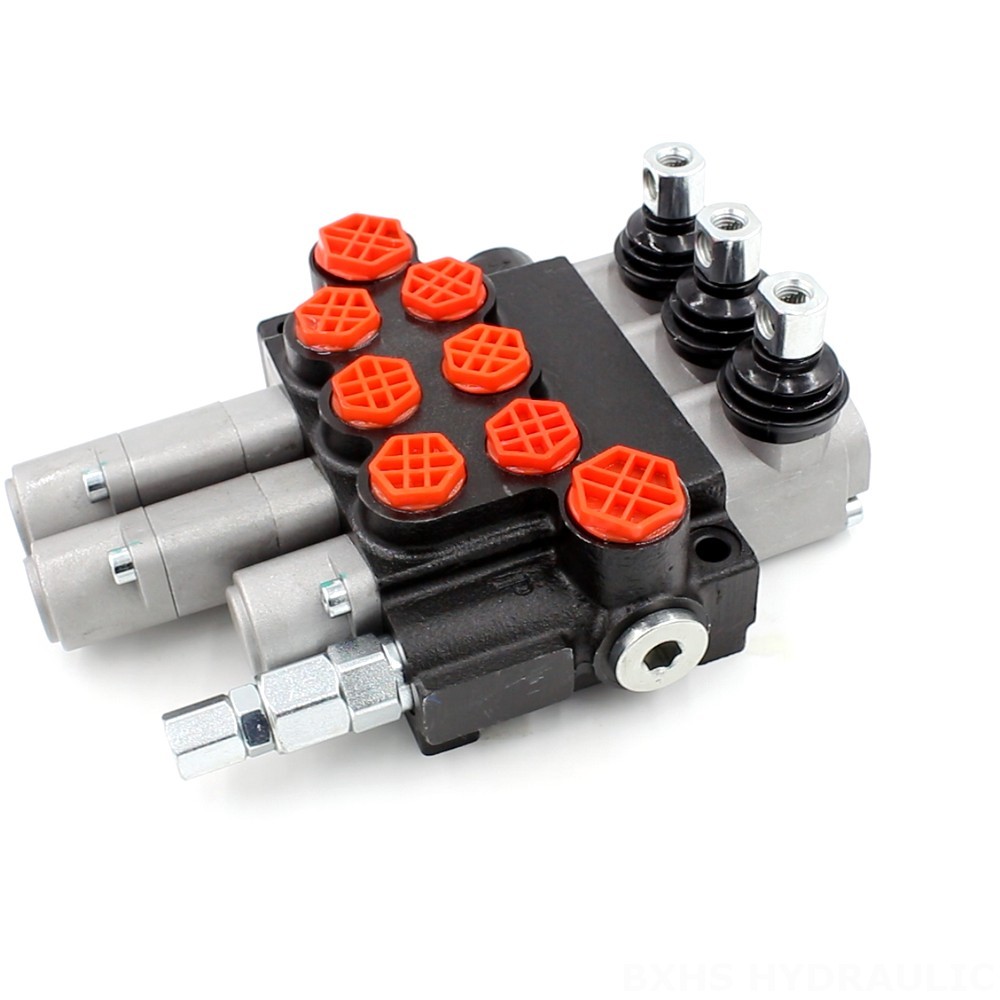

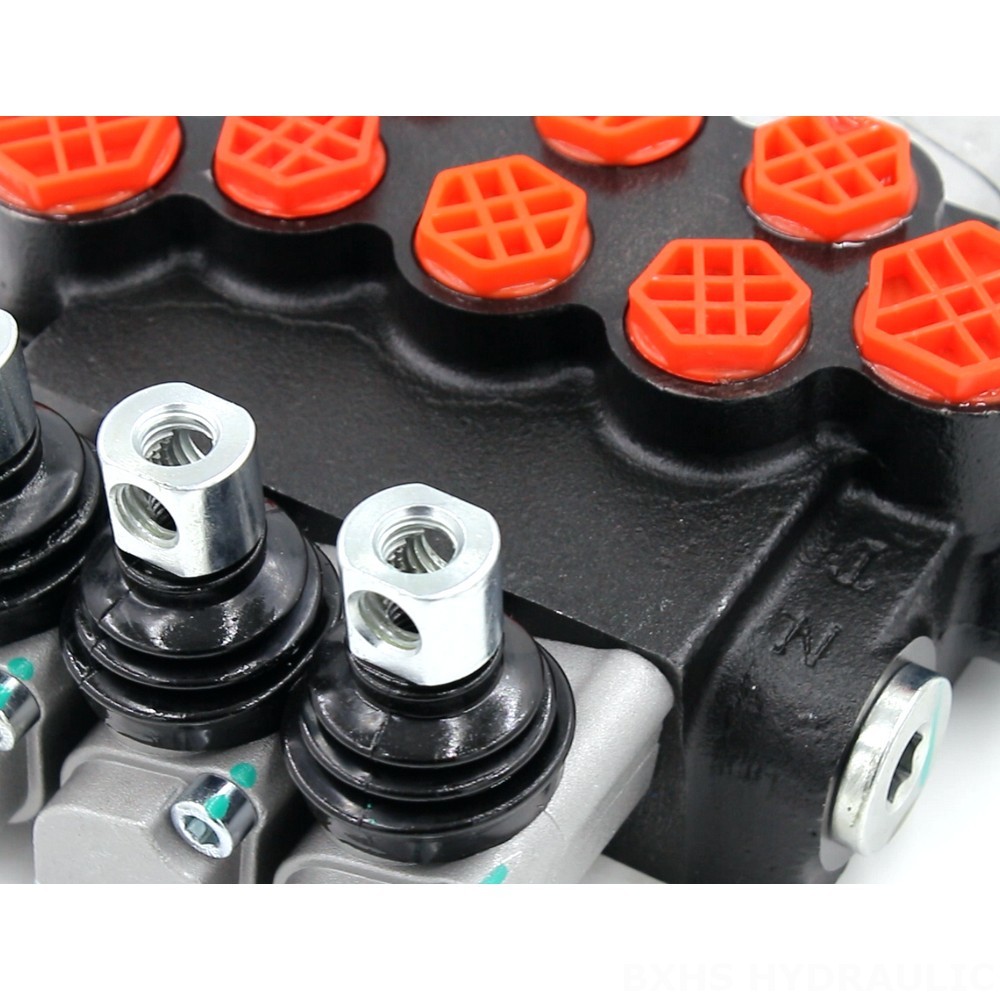

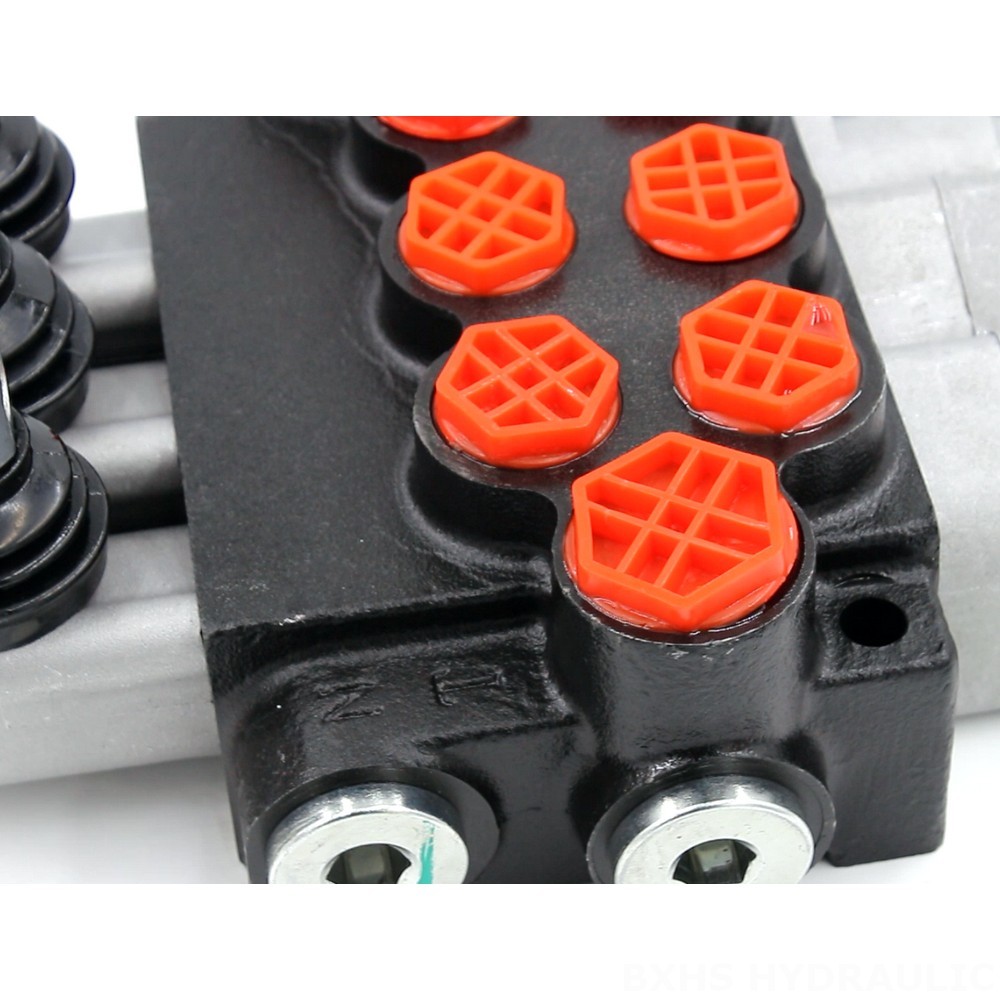

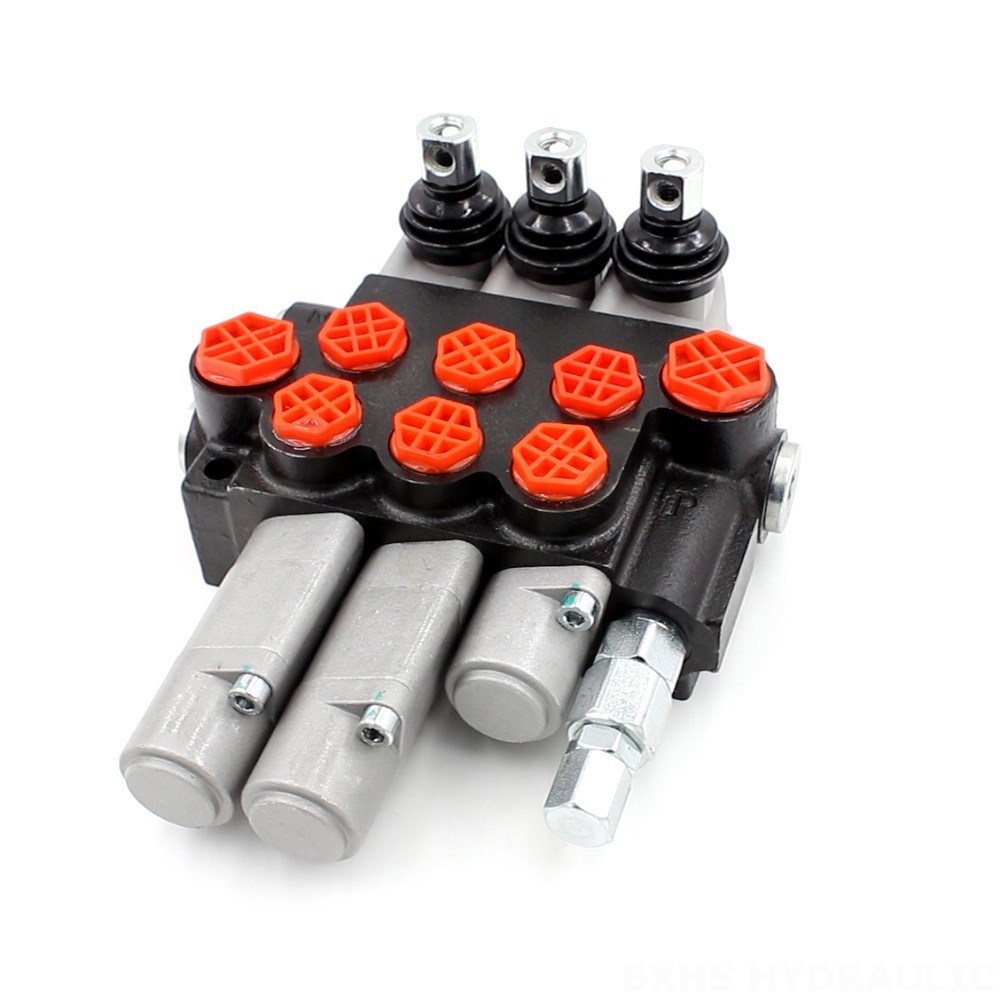

Crane Control Valve Custom Hydraulic Valve Solutions | P40-G12-G38-OT-2QTW Series OEM & ODM detailed image

Crane Control Valve Custom Hydraulic Valve Solutions | P40-G12-G38-OT-2QTW Series OEM & ODM drawing image

Our P40-G12-G38-OT-2QTW Series crane control valve is a high-performance, 3-section monoblock valve designed for demanding applications in material handling, construction, and agriculture. We offer OEM, ODM, and custom valve solutions to meet your specific requirements.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

This manual control valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi). It is suitable for a wide range of operating temperatures and viscosities. As a leading hydraulic product manufacturer, we specialize in providing OEM, ODM, and custom valve solutions. We can tailor our valves to your specific needs and provide you with the best possible performance. We also offer private labeling and wholesale options for distributors, wholesalers, and traders.

Crane Control Valve Custom Hydraulic Valve Solutions | P40-G12-G38-OT-2QTW Series OEM & ODM application image
