7 Views are Looking for this Product

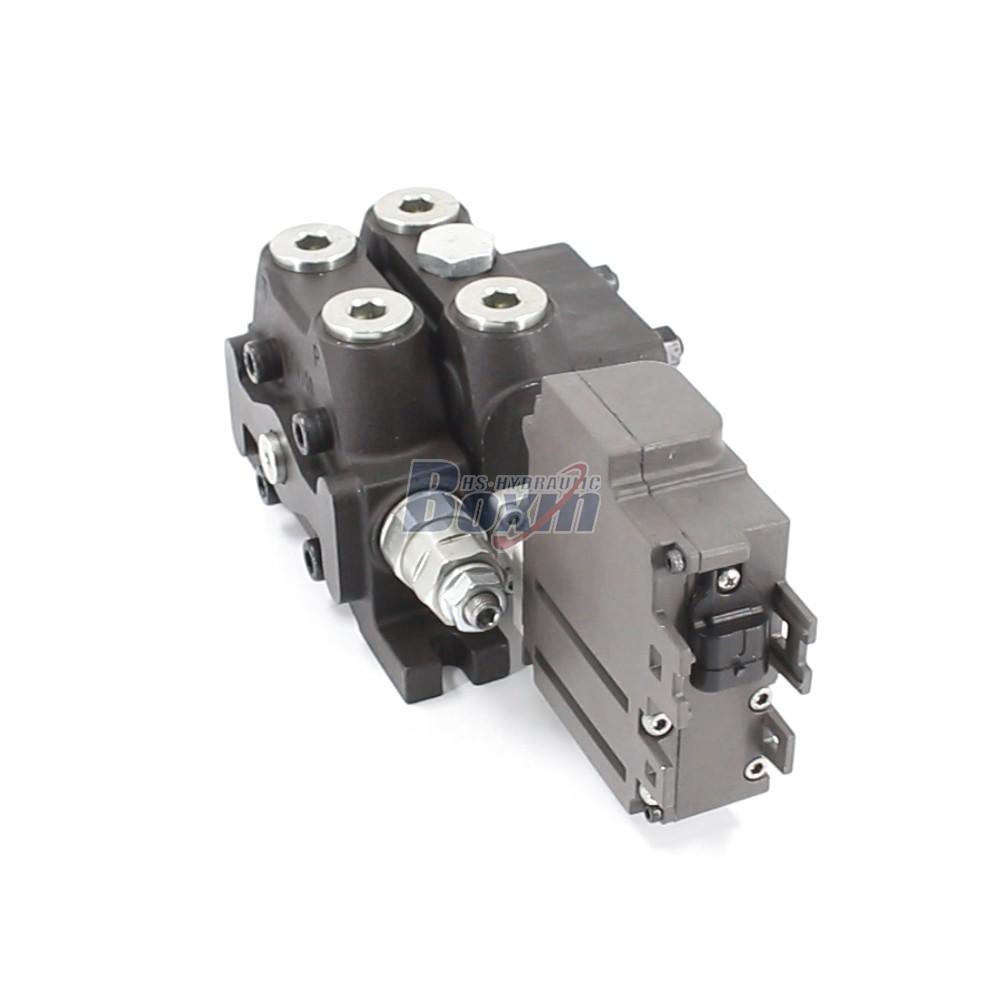

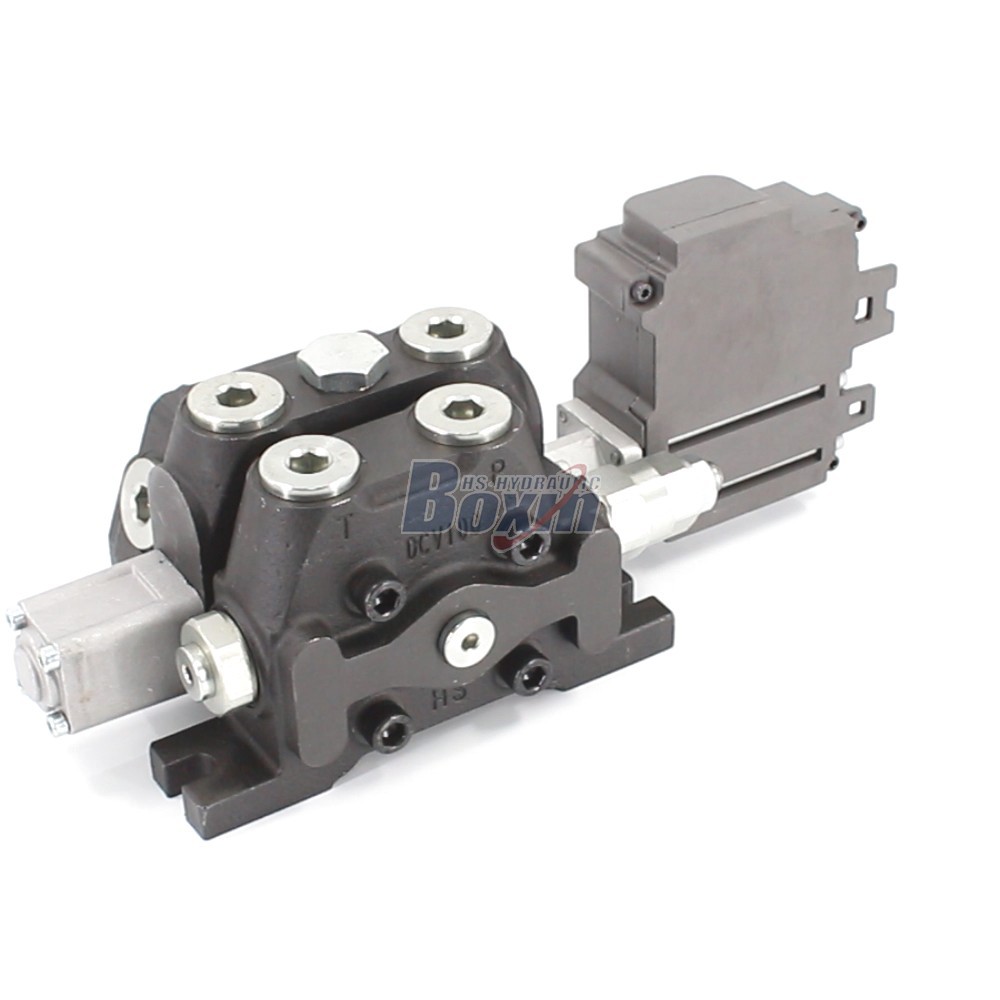

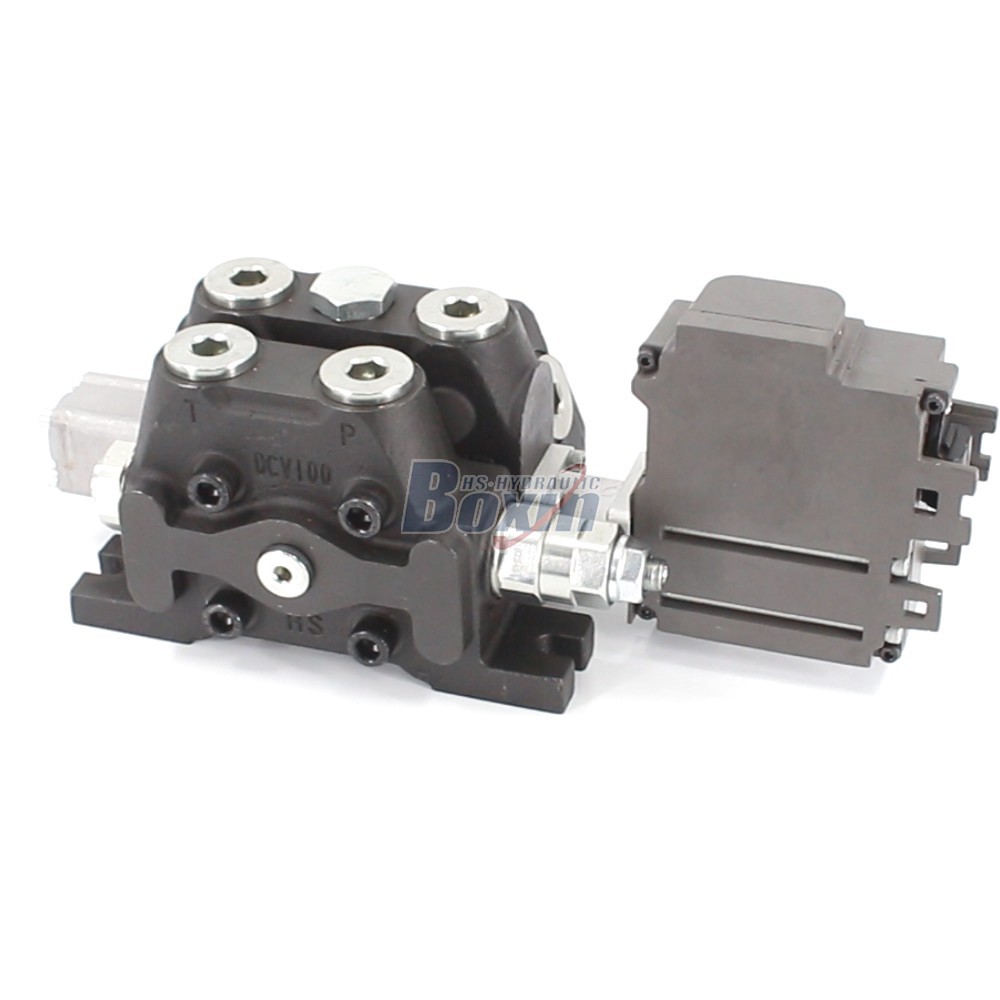

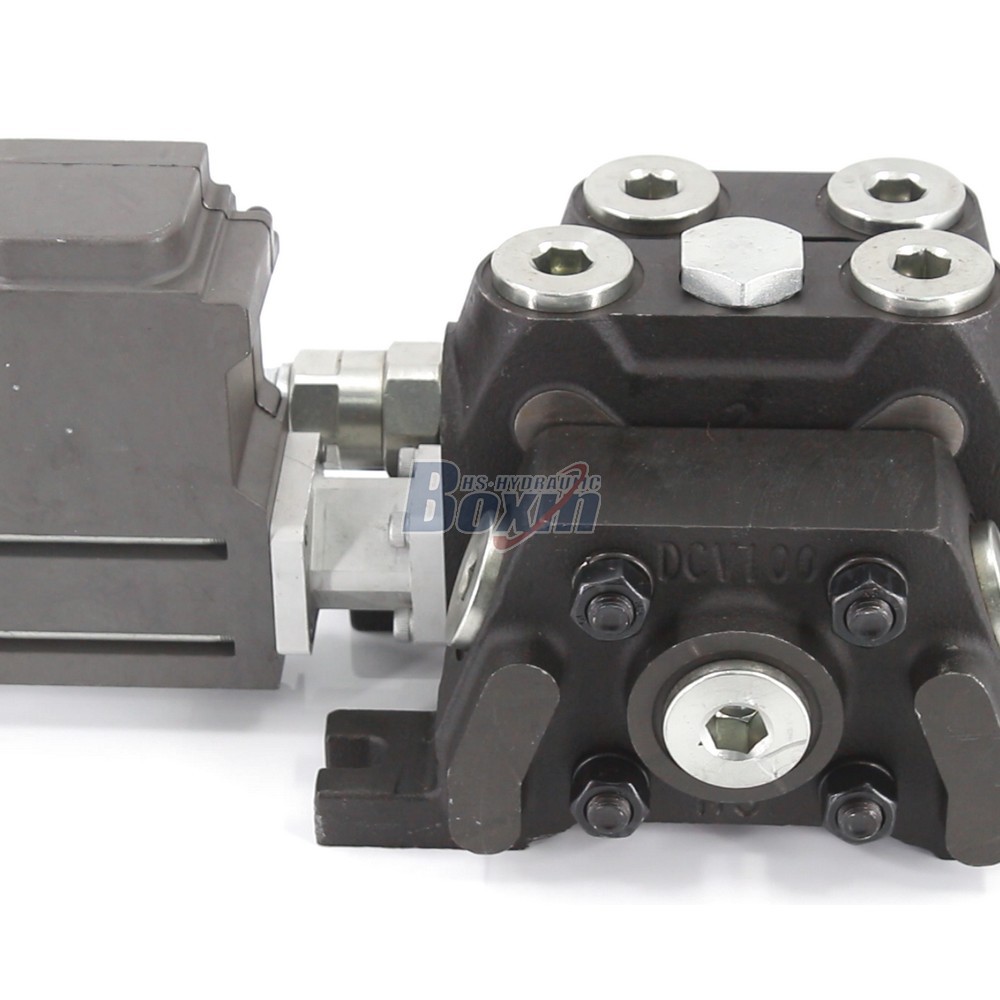

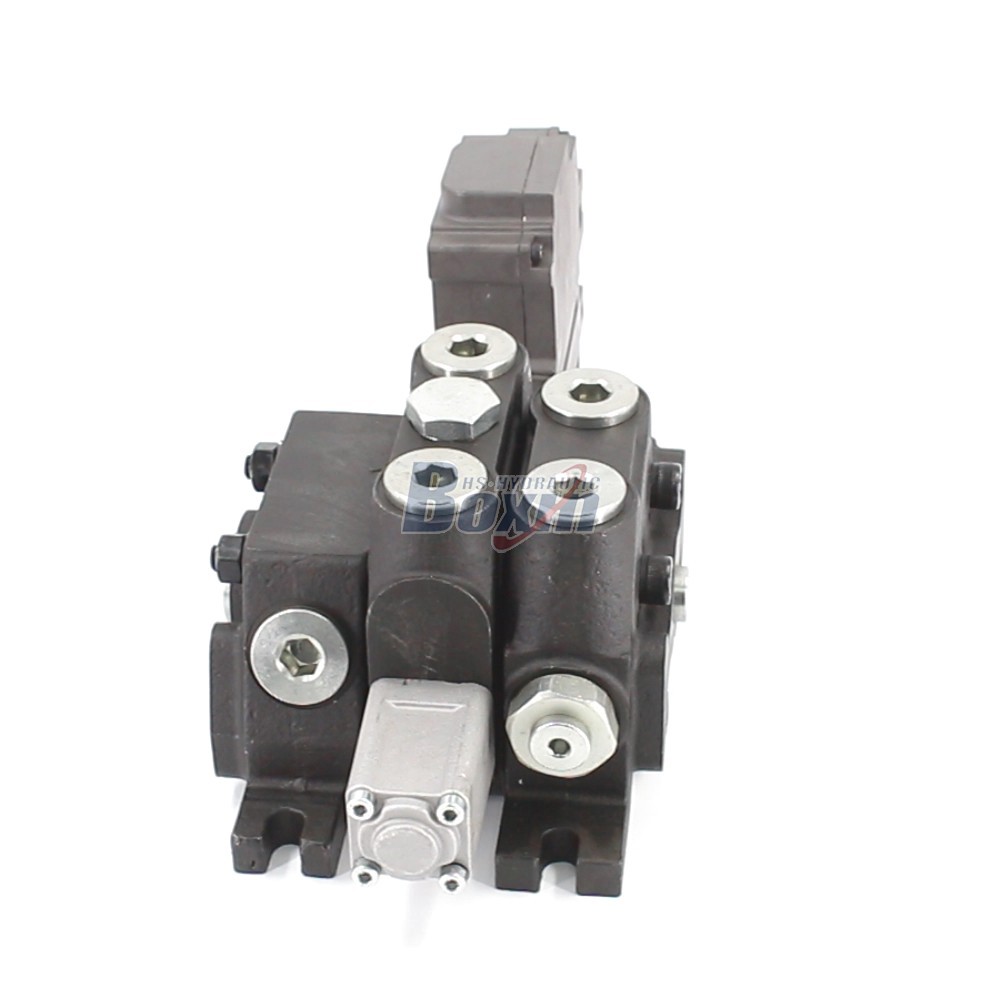

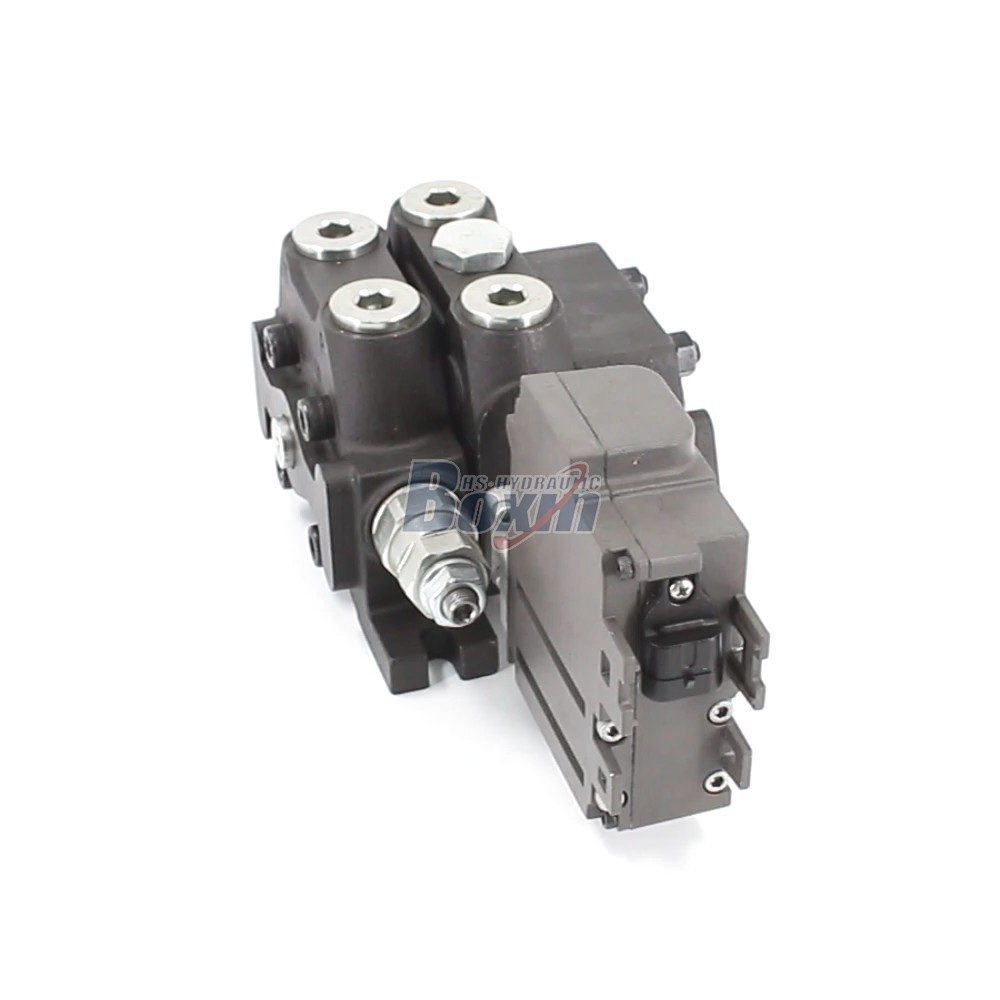

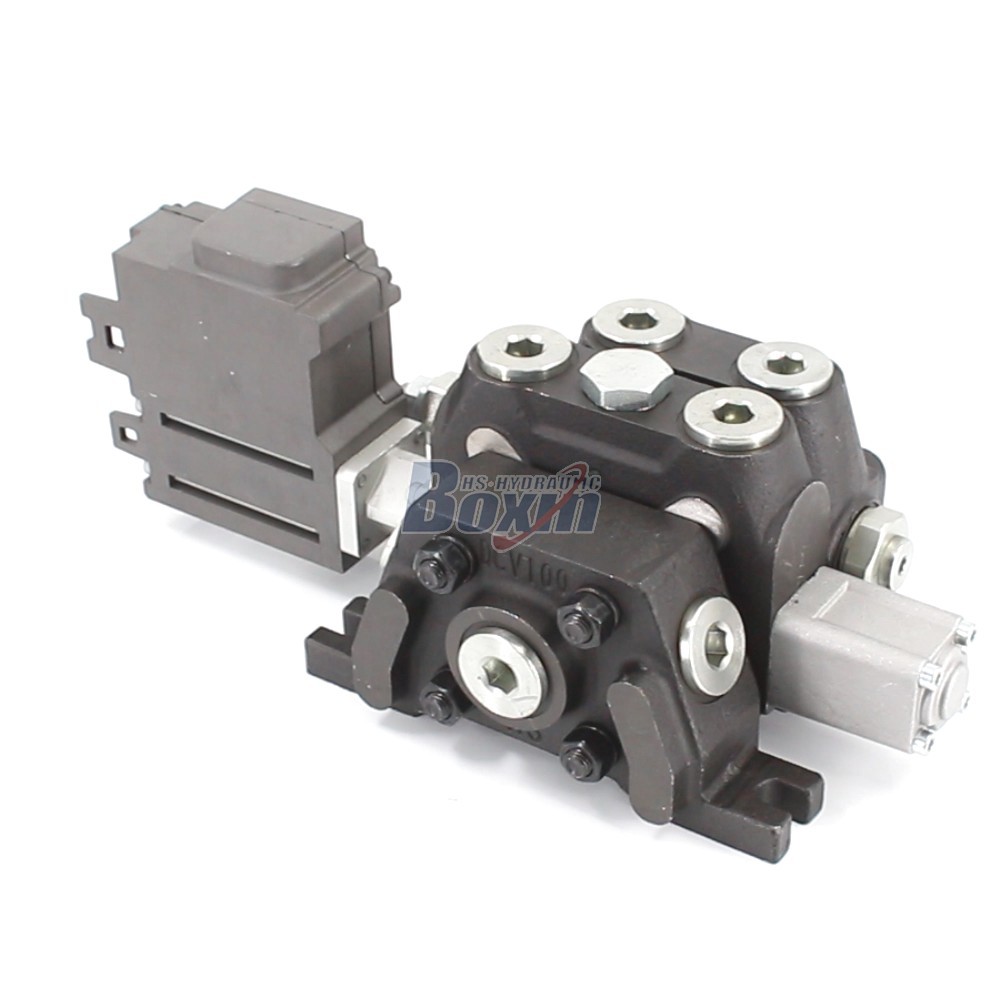

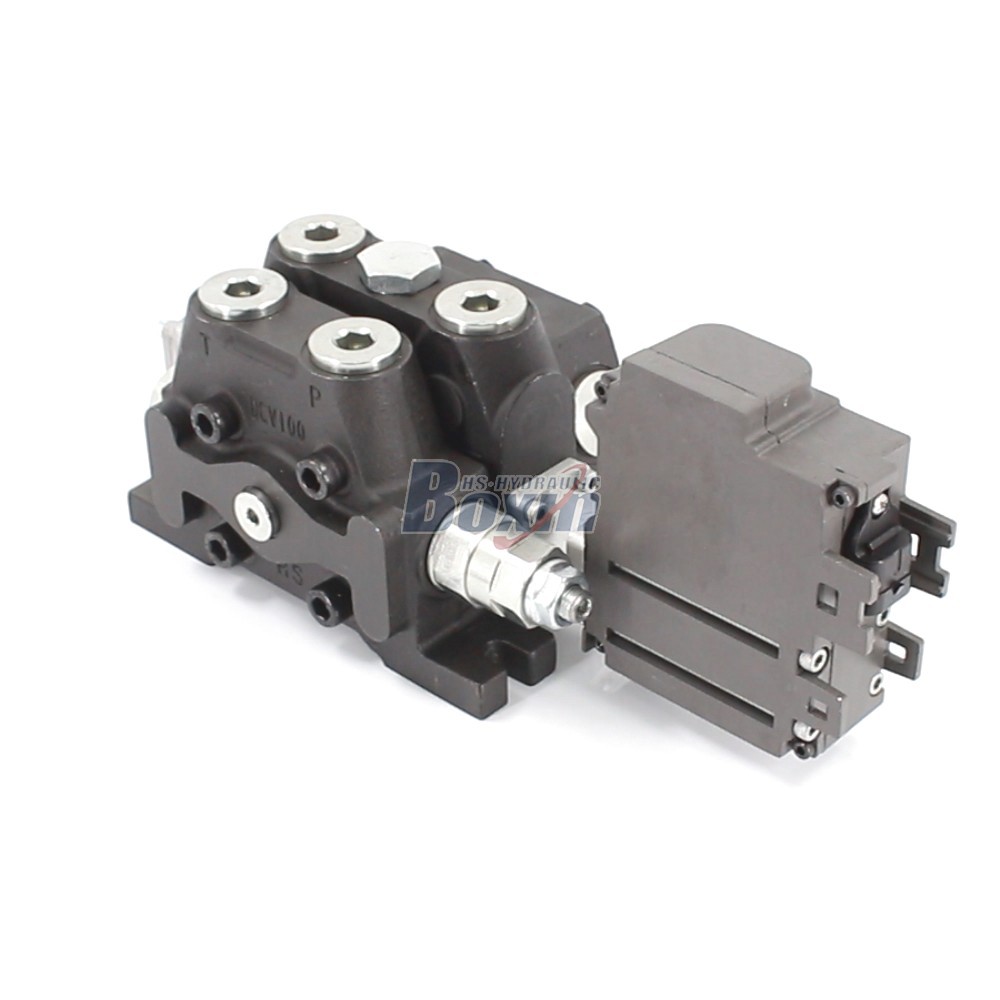

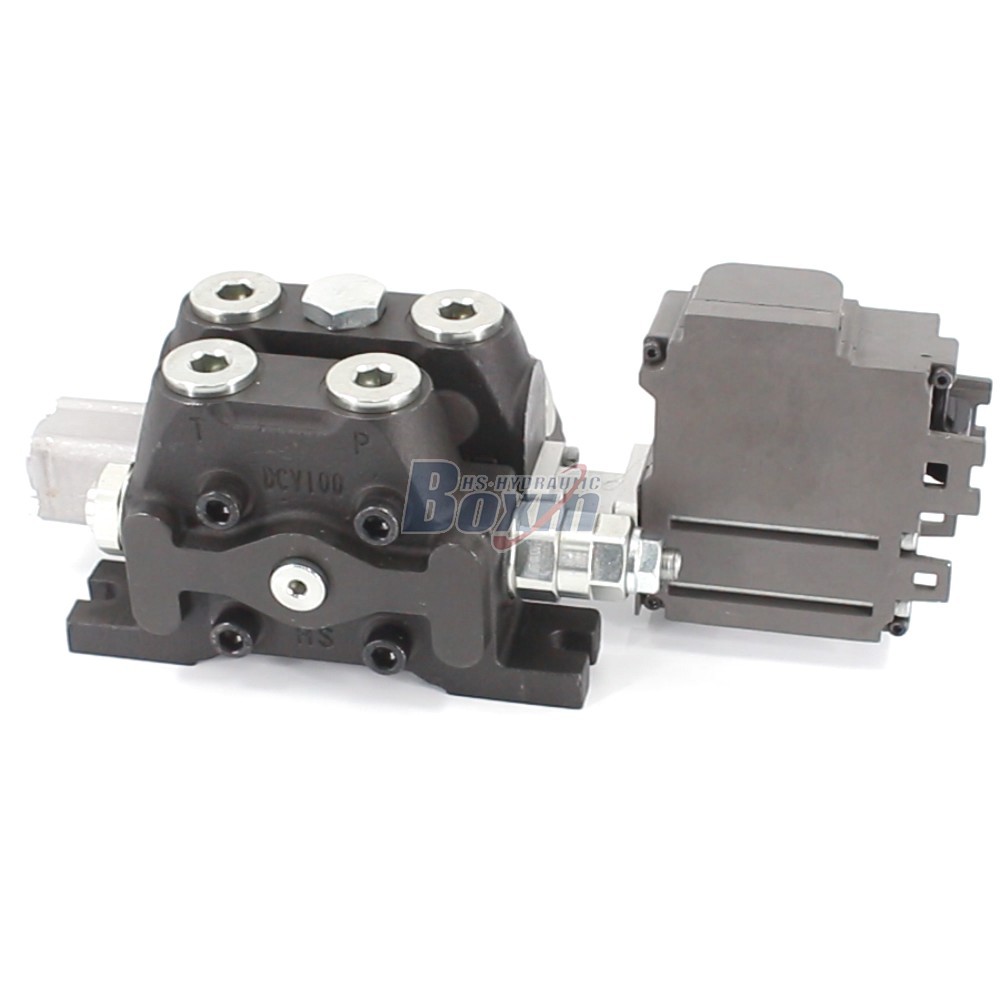

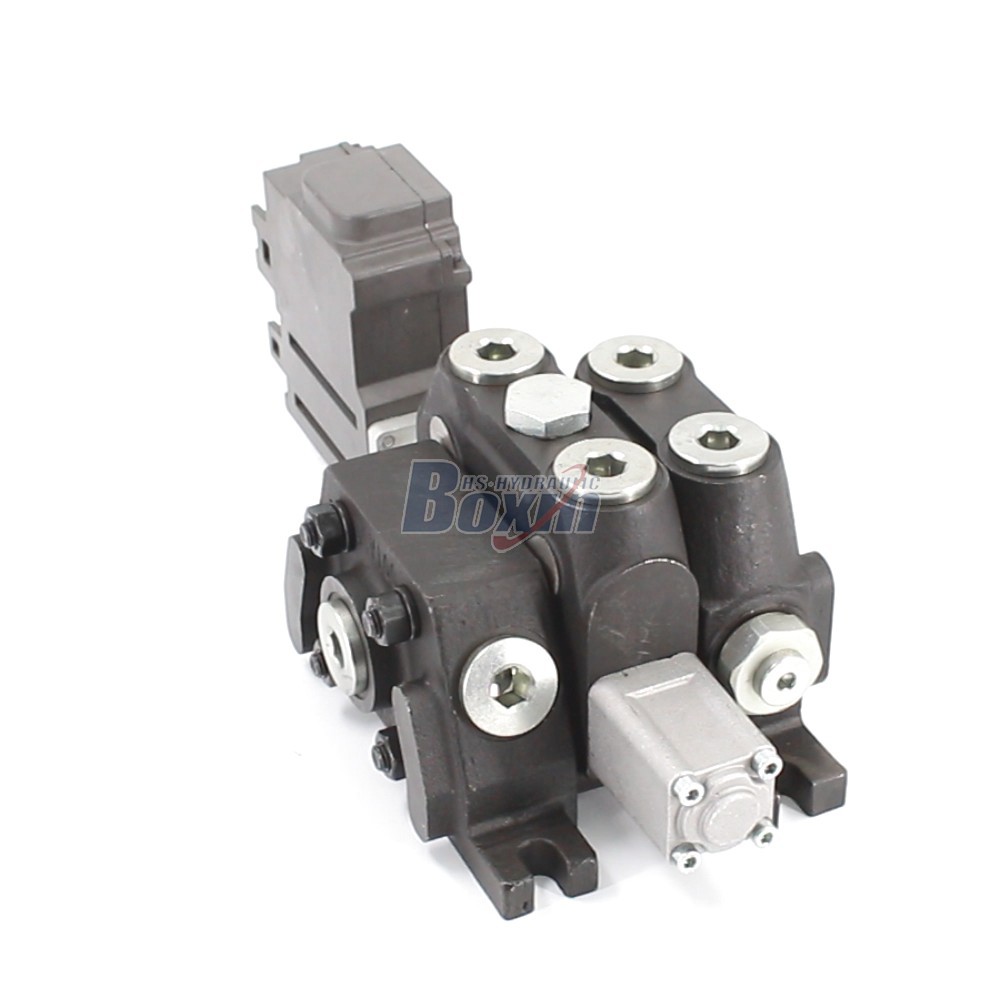

The DCV100EMA-OT is a robust 1-spool sectional directional valve designed for precise electric motor control in demanding hydraulic systems. With a rated flow of 100 L/min and max pressure of 315 bar, it offers versatile port configurations and reliable performance across extreme temperatures, making it ideal for global OEMs and distributors in construction, agriculture, and material handling sectors.

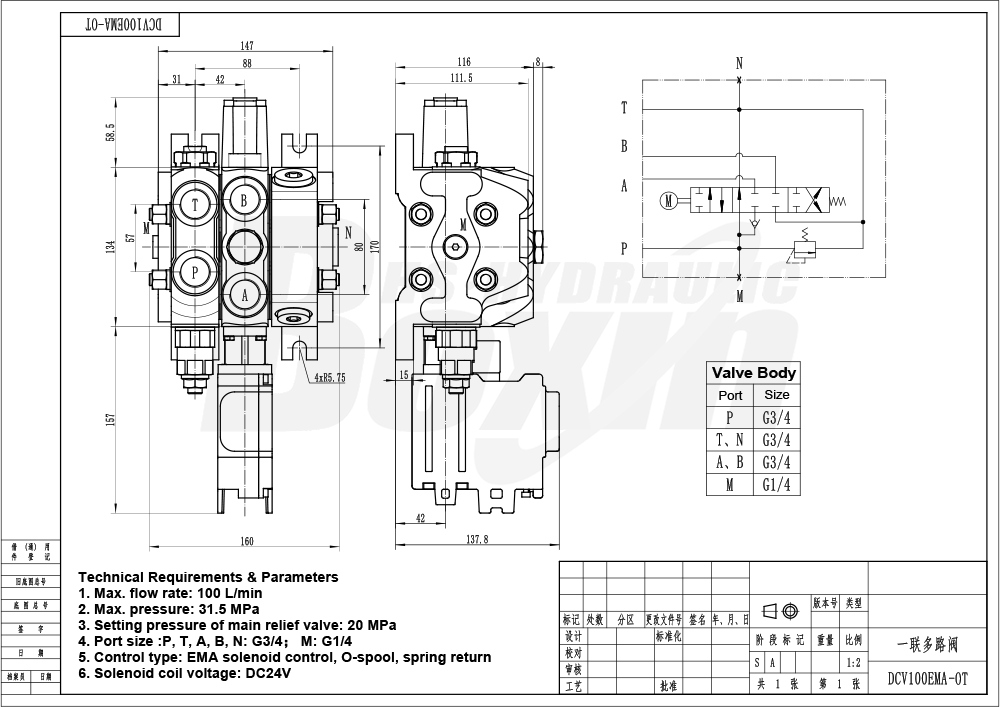

| DCV100 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Cable, Joystick, Manual and Joystick, Manual and Electro-hydraulic, Electric motor, Electro hydraulic and Solenoid |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Sectional valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 100 L/min (26.5 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Outlet Port | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Port Size | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
Product Features & Advantages:
- Precise Electric Control: Utilizes an electric motor for accurate and responsive spool positioning, ensuring smooth operation.
- High Performance: Handles up to 100 L/min (26.5 US gpm) flow rate and withstands pressures up to 315 bar (4600 psi).
- Versatile Connectivity: Compatible with multiple inlet/outlet port standards including G3/4, M27×2.0, M22×1.5, 3/4 NPT, SAE 10, and SAE 12, facilitating easy integration into various hydraulic circuits.
- Durability: Engineered to operate in ambient temperatures ranging from -40°C to +80°C and viscosity ranges of 15-75 mm²/s, ensuring reliability in harsh environments.
- Modular Design: Sectional structure allows for flexible system expansion and customization.
Applications:
This valve is extensively used in mobile and industrial hydraulic applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, and agricultural machinery like tractors and wood splitters. It is an excellent choice for manufacturers seeking OEM, ODM, or white-label solutions for global distribution.
