P40-QTW1-QW1 Manual 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:27*17*12

Netweight:5.50 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
  • Manual and Joystick
  • Solenoid and Cable
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
128 Views are Looking for this Product

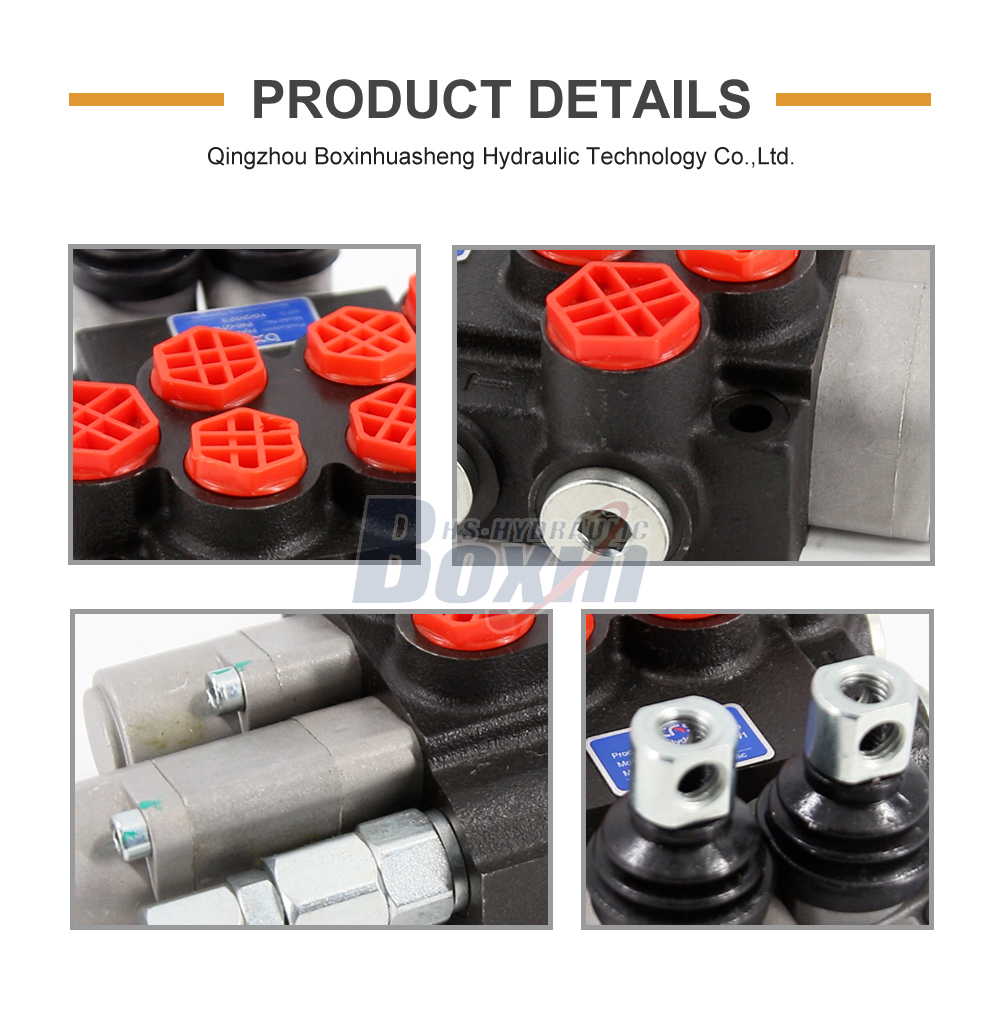

P40-QTW1-QW1 Manual 2 Spool Monoblock Directional Valve detailed image

P40-QTW1-QW1 Manual 2 Spool Monoblock Directional Valve detailed image

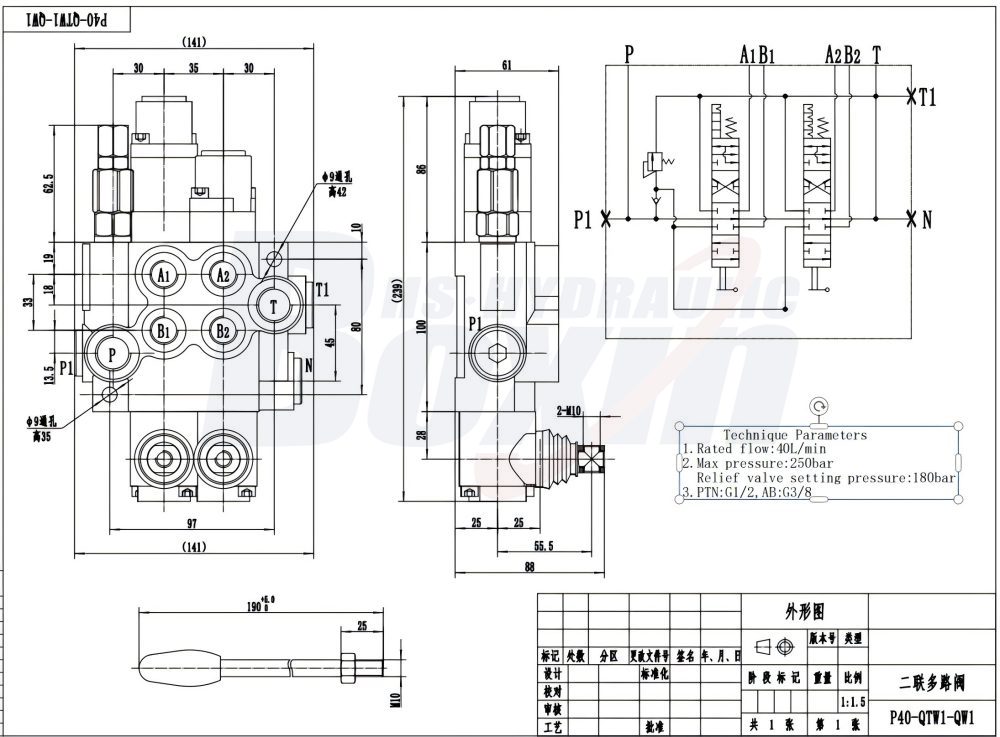

P40-QTW1-QW1 Manual 2 Spool Monoblock Directional Valve drawing image

The P40-QTW1-QW1 is a high-performance 2-spool monoblock directional control valve designed for manual operation in diverse hydraulic systems. It features a rated flow of 40 L/min and can withstand pressures up to 250 bar, making it an ideal solution for compact machinery requiring precise fluid management.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick, Solenoid and Cable
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our P40-QTW1-QW1 manual hydraulic valve offers exceptional reliability and versatility for global manufacturers and distributors. Key features include: 1. Robust Monoblock Construction: Optimized for durability and leak prevention in demanding environments. 2. Precise Manual Control: Features two spools for independent management of multiple hydraulic cylinders or motors. 3. High Adaptability: Multiple porting options including NPT, SAE, G, and Metric threads (M18/M22) ensure compatibility with international equipment standards. 4. Wide Operating Range: Engineered to perform in extreme temperatures from -40°C to +80°C. 5. Flexible Application: Perfectly suited for agricultural machinery like wood splitters and tractors, as well as construction equipment including mini-excavators and loaders. We provide OEM, ODM, and wholesale services to support your brand's growth in the global hydraulic market.
