DCV200 Electro-hydraulic 1 Spool Sectional Directional Valve

Rated Flow:200 L/min (52 US gpm)

Max Pressure:350 bar (5100 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV200 Series Sectional Directional Valve

Productsize:45*20*18

Netweight:20.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • 11 Spool
  • 12 Spool
1112 Views are Looking for this Product

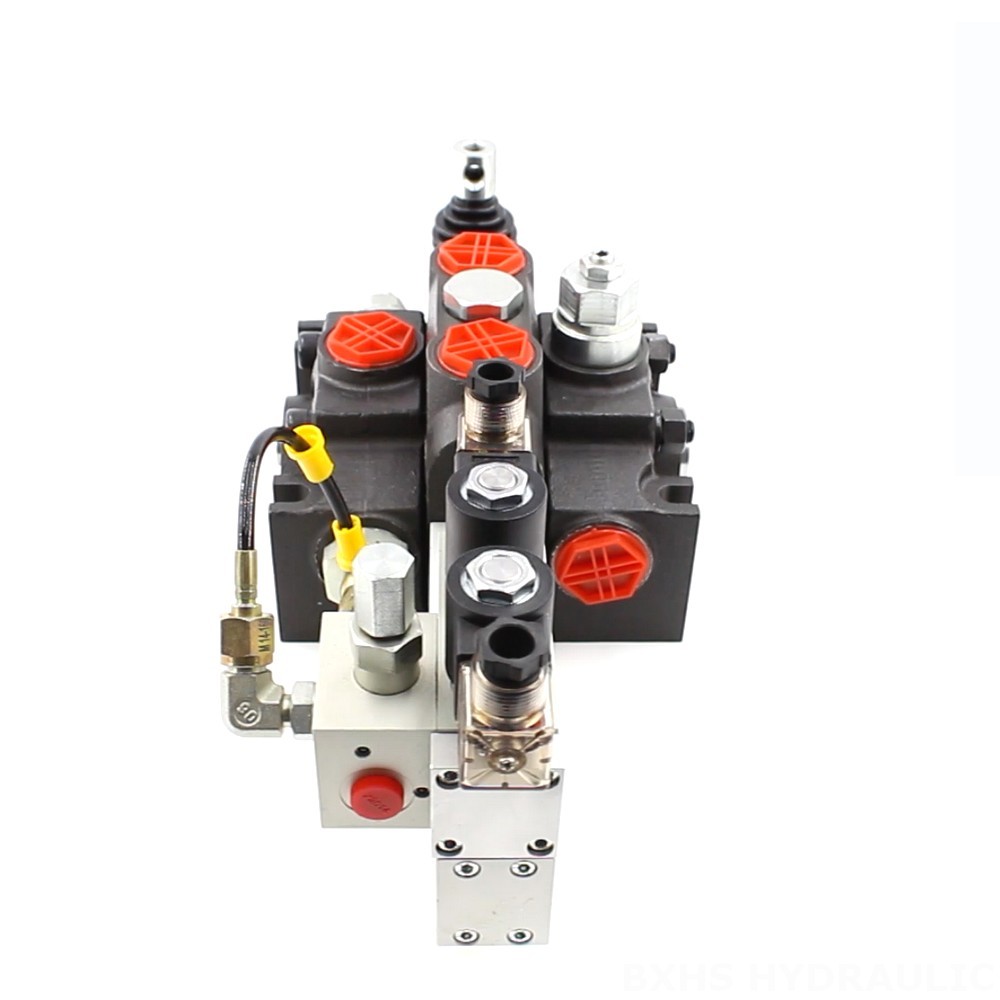

DCV200 Electro-hydraulic 1 Spool Sectional Directional Valve detailed image

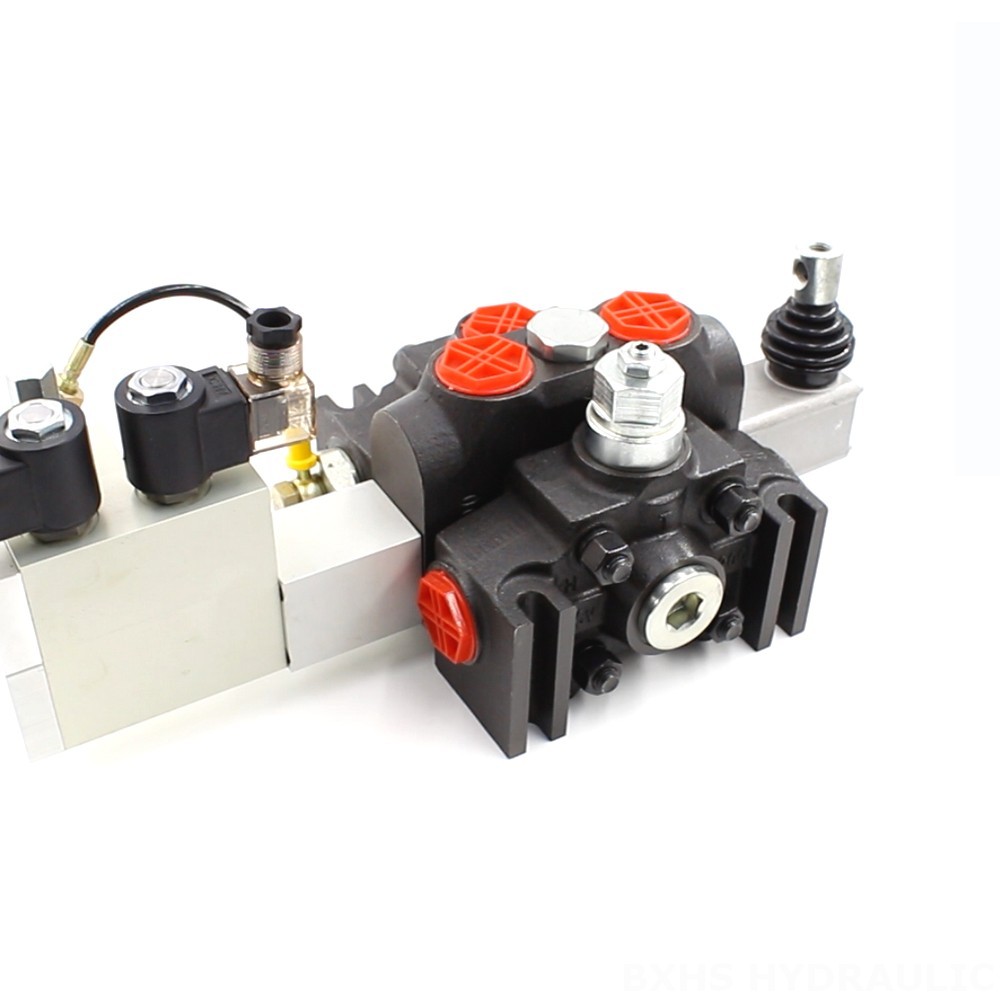

DCV200 Electro-hydraulic 1 Spool Sectional Directional Valve detailed image

DCV200 Electro-hydraulic 1 Spool Sectional Directional Valve drawing image

DCV200 Electro-hydraulic 1 Spool Sectional Directional Valve is a high-performance valve designed for use in a wide range of hydraulic applications. With a maximum pressure of 350 bar (5100 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), this valve is suitable for use in a variety of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles.

DCV200 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 200 L/min (52 US gpm)
Max Pressure 350 bar (5100 psi)
Inlet Port G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT
Outlet Port G1, M33×2.0, SAE 16, 1 NPT
Port Size G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Compact and lightweight design
* High flow capacity
* Low pressure drop
* Excellent sealing performance
* Long service life

**Applications:**

* Mobile hydraulics
* Industrial machinery
* Construction equipment
* Agricultural machinery
* Material handling equipment
