DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Outrigger Control Valve

Product Series:DCV40Z Series Outrigger Control Valve

Productsize:36*35*16

Netweight:11.50 kg

Availability: In Stock

  • Manual
  • Electro-hydraulic
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
138 Views are Looking for this Product

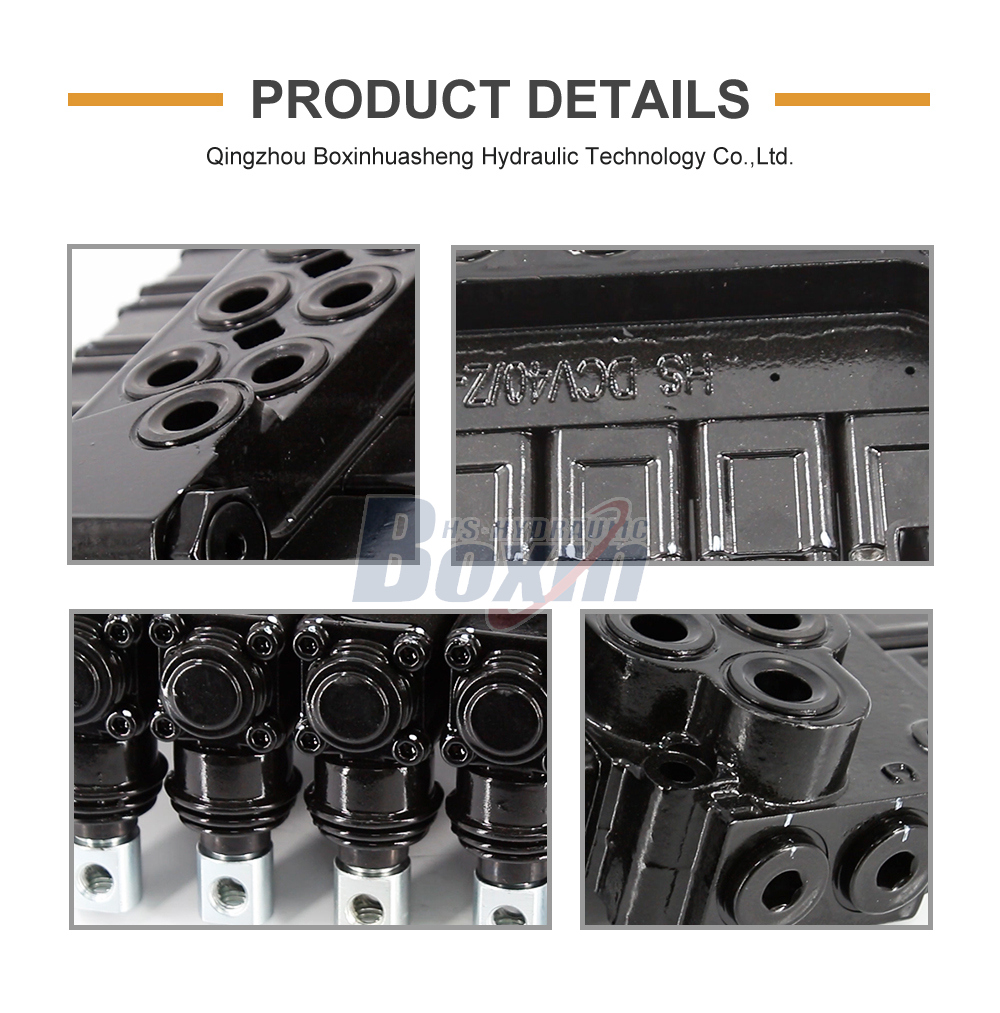

DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve detailed image

DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve detailed image

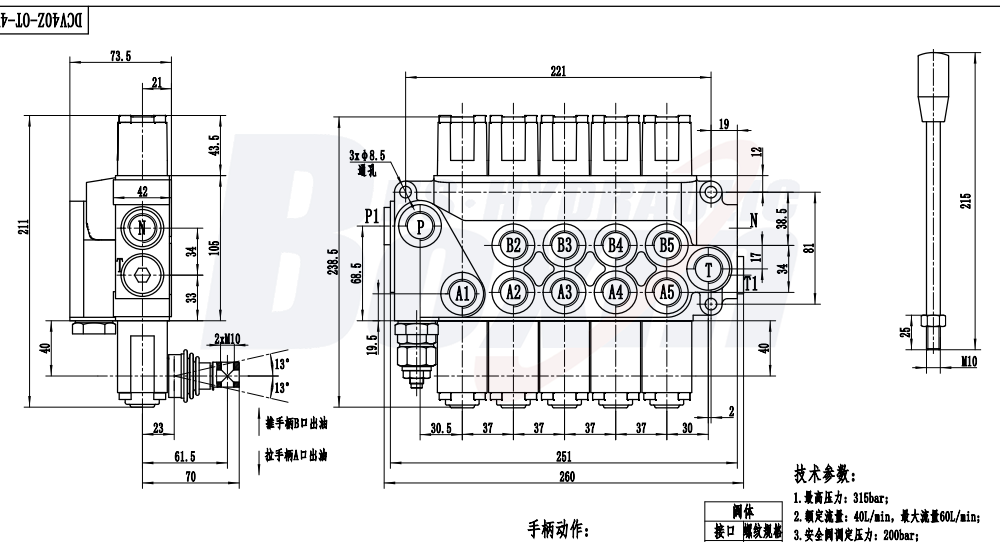

DCV40Z-FZJ Manual 5 Spool Outrigger Control Valve drawing image

The DCV40Z-FZJ is a robust 5-spool monoblock manual control valve engineered for high-performance hydraulic systems, capable of handling pressures up to 350 bar and a flow rate of 40 L/min. Designed for reliability in extreme conditions, it offers precise control for outrigger and auxiliary hydraulic applications.

DCV40Z Series Outrigger Control Valve Parameters
Control Method Manual, Electro-hydraulic, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 350 bar (5100 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The DCV40Z-FZJ 5-Spool Monoblock Valve is specifically designed to meet the rigorous demands of mobile hydraulic machinery. Key features include: 1. Superior Durability: Constructed for harsh environments with an operating temperature range of -40°C to +80°C. 2. High Pressure Capacity: Rated at 350 bar (5100 psi) to ensure high-force performance in heavy-duty lifting and positioning. 3. Versatile Connectivity: Features a wide array of port options including NPT, G, Metric, and SAE threads for seamless system integration. 4. Precise Manual Control: Designed for intuitive operation, making it ideal for outrigger stabilization and multi-function equipment control. 5. OEM & Customization: We offer comprehensive support for OEM/ODM projects, manufacturing, and wholesale, ensuring that port configurations and spool logic can be tailored to meet unique client specifications.
