DCV60 Manual 1 Spool Sectional Directional Valve

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product series:DCV60 Series Sectional Directional Valve

Productsize:14.4*11*23

Netweight:7.30 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Manual
  • Solenoid and Joystick
  • Manual and Joystick
  • Electric motor
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • 11 Spool
  • 12 Spool
114 Views are Looking for this Product

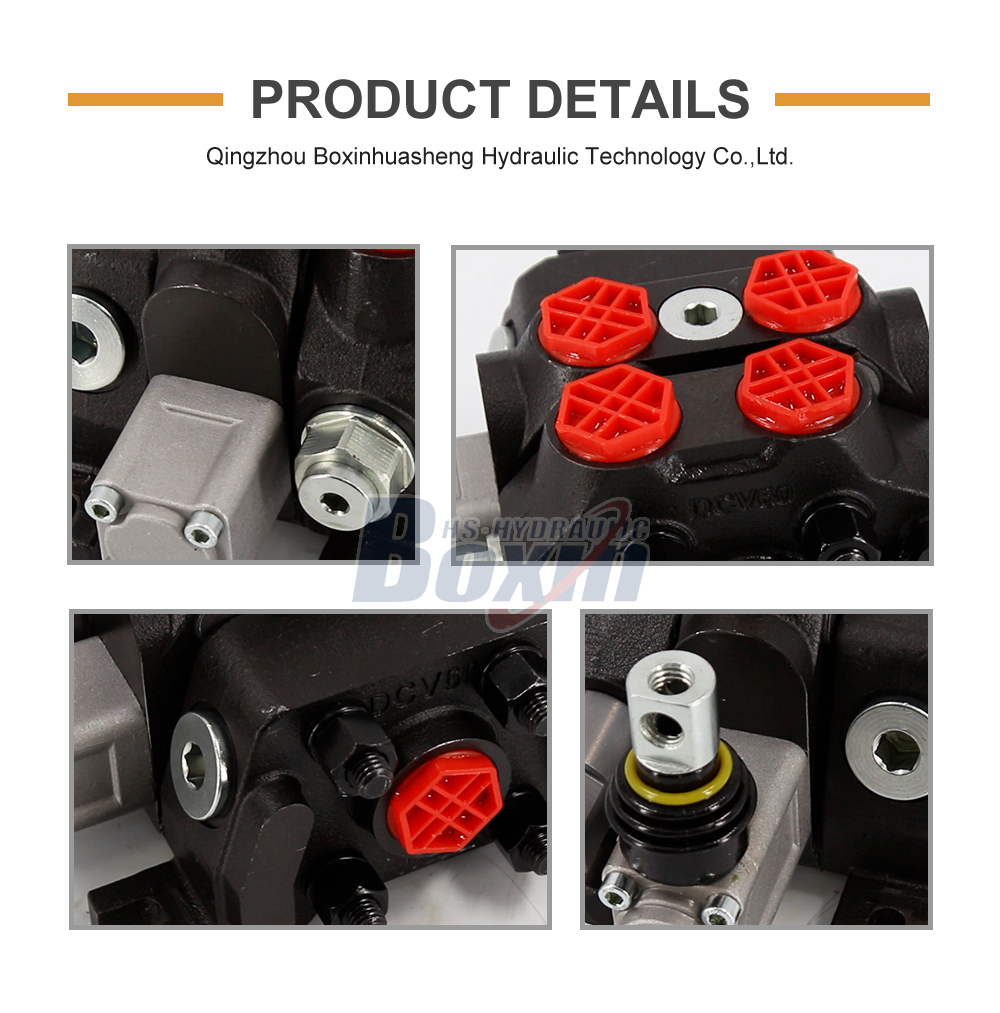

DCV60 Manual 1 Spool Sectional Directional Valve detailed image

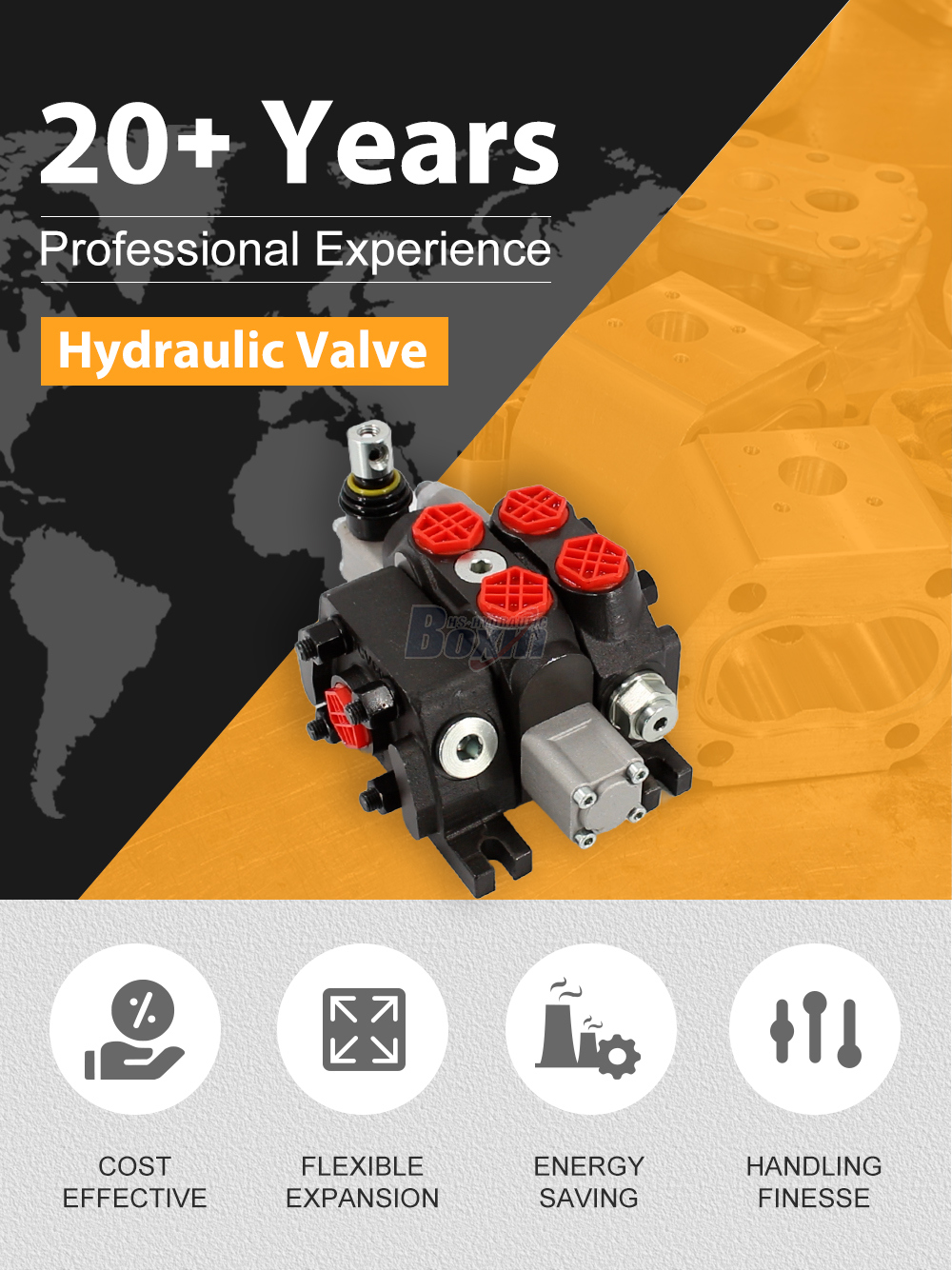

DCV60 Manual 1 Spool Sectional Directional Valve detailed image

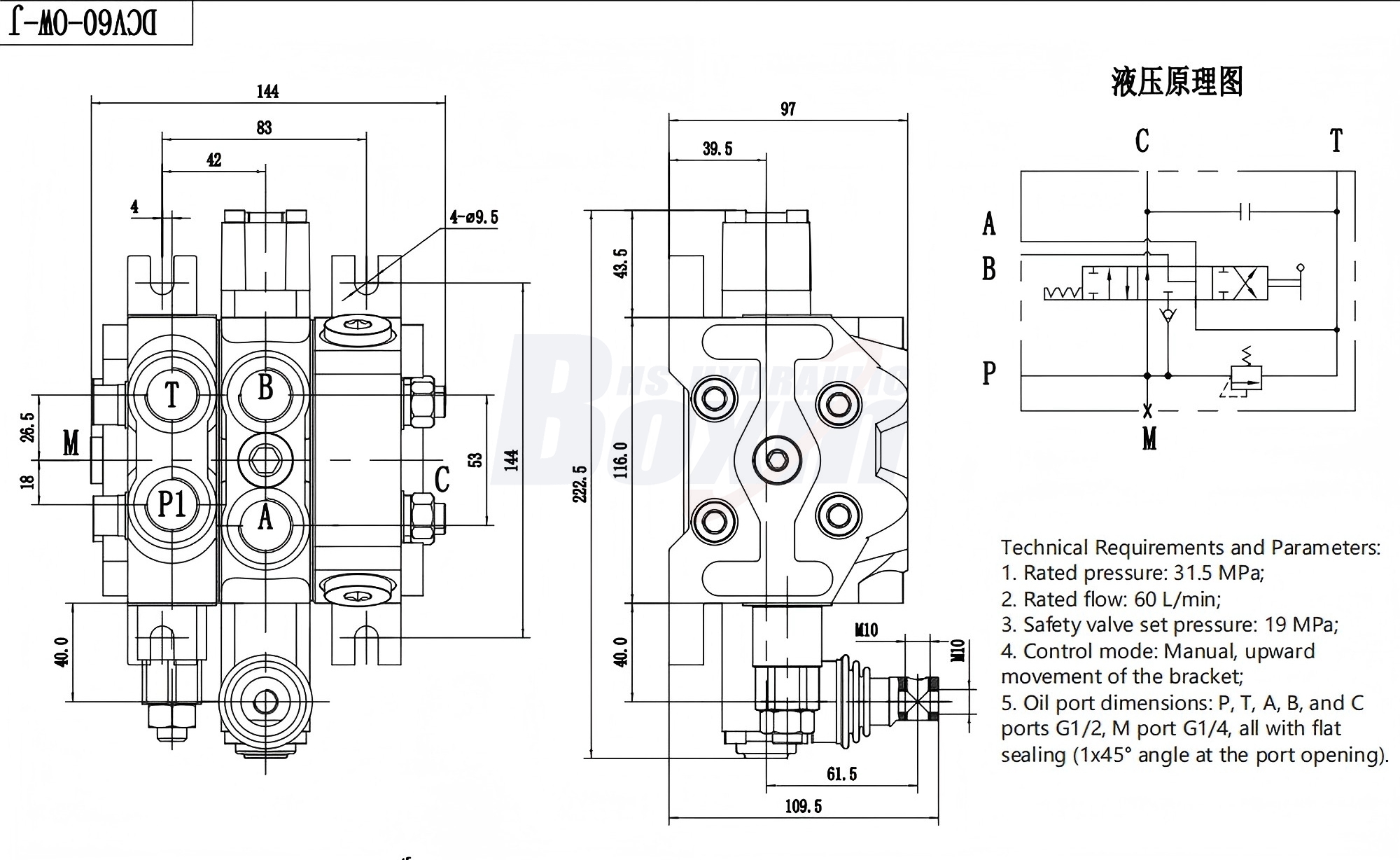

DCV60 Manual 1 Spool Sectional Directional Valve drawing image

The DCV60 is a high-performance, single-spool sectional directional control valve designed for precision flow management in demanding hydraulic systems. Engineered for versatility, it supports a wide range of inlet/outlet port configurations and handles pressures up to 350 bar, making it an ideal choice for global OEMs and aftermarket distributors seeking reliable, heavy-duty fluid control.

DCV60 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Manual, Solenoid and Joystick, Manual and Joystick, Electric motor
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 315 bar (4600 psi), 350 bar (5100 psi)
Inlet Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Outlet Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The DCV60 Manual Sectional Directional Valve offers superior durability and hydraulic efficiency. Key features include: 1. Robust Design: Engineered for extreme operating conditions between -40°C and +80°C. 2. High Pressure Capacity: Rated for 350 bar (5100 psi) with a flow rate of 60 L/min, ensuring consistent performance under heavy loads. 3. Flexible Configuration: Features extensive port options (NPT, G, M, SAE) to facilitate seamless integration into diverse machinery. 4. Precision Control: Reliable manual spool operation allows for accurate flow direction, essential for mobile equipment. 5. Customization: We offer comprehensive manufacturing, private labeling (OEM), and custom design services to meet specific technical requirements for wholesalers and trade partners worldwide. Ideally suited for agriculture, forestry, construction, and material handling equipment, the DCV60 ensures peak system productivity.

DCV60 Manual 1 Spool Sectional Directional Valve application image

DCV60 Manual 1 Spool Sectional Directional Valve packing image

DCV60 Manual 1 Spool Sectional Directional Valve company image

DCV60 Manual 1 Spool Sectional Directional Valve certification image
