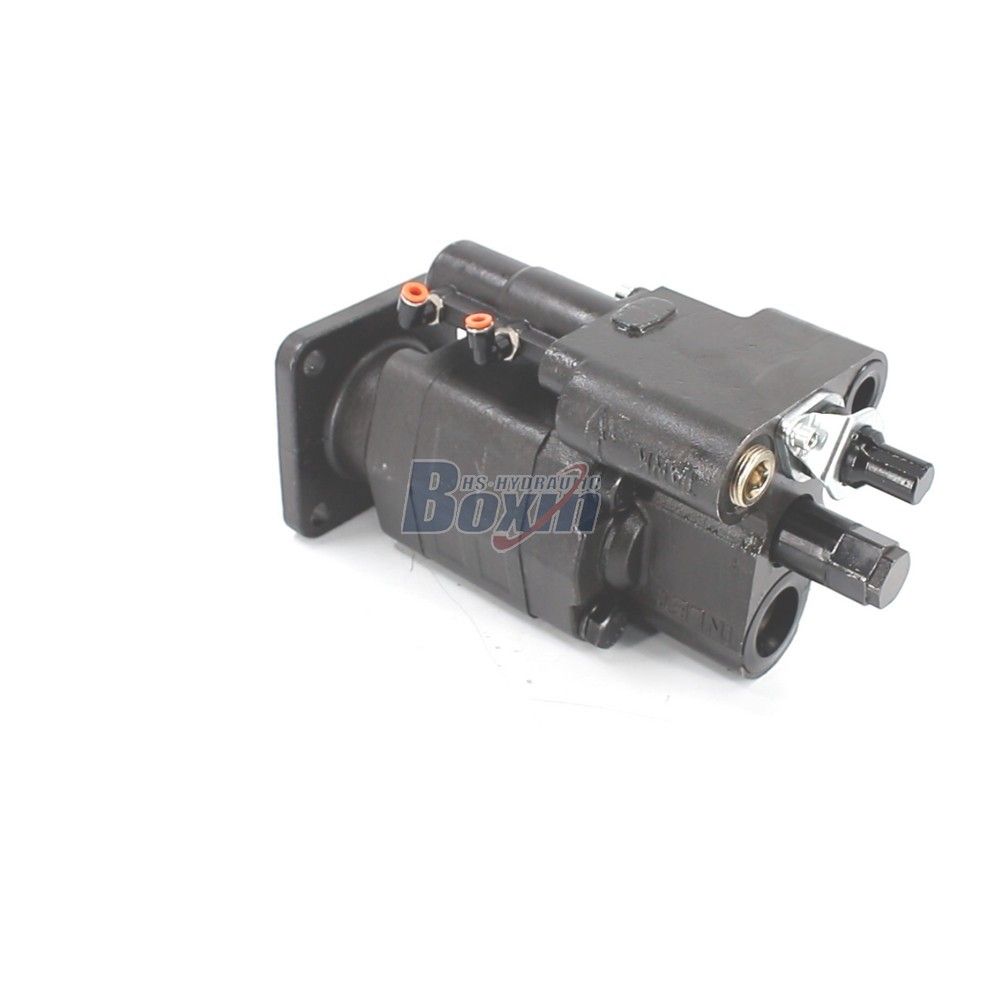

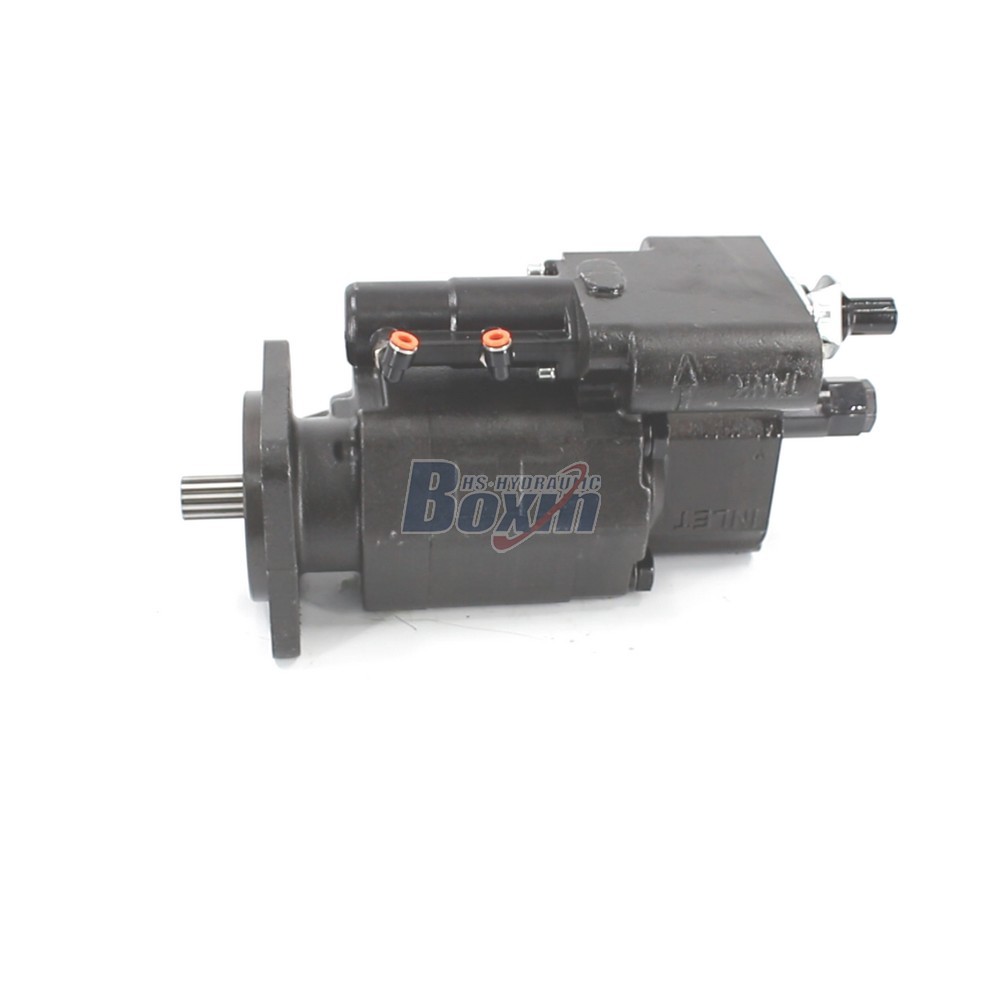

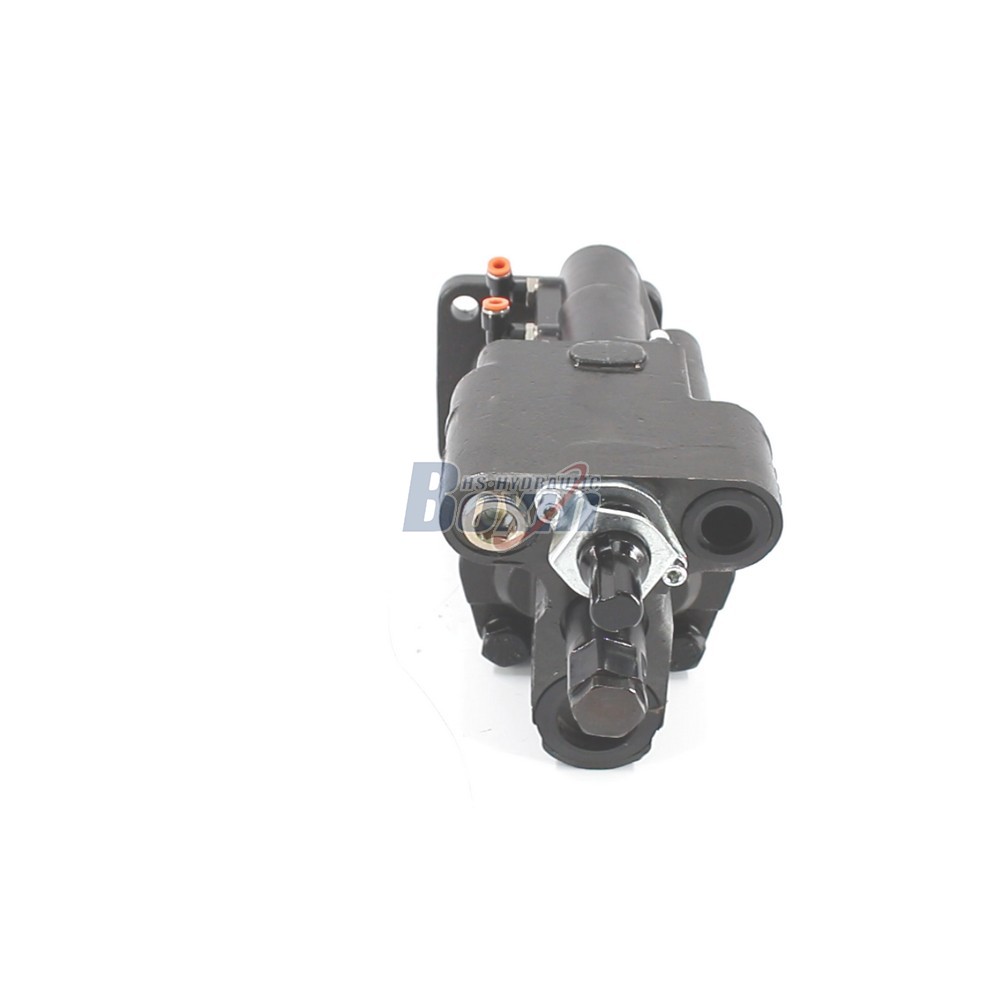

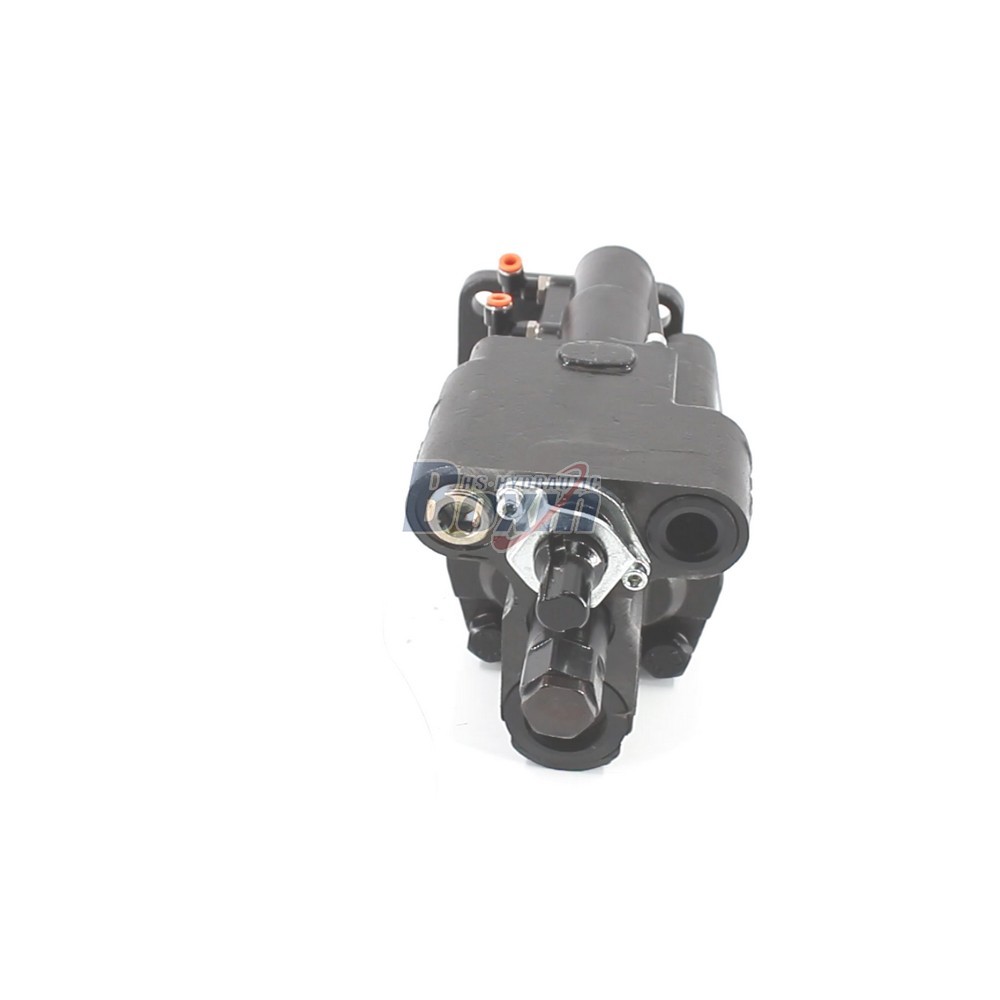

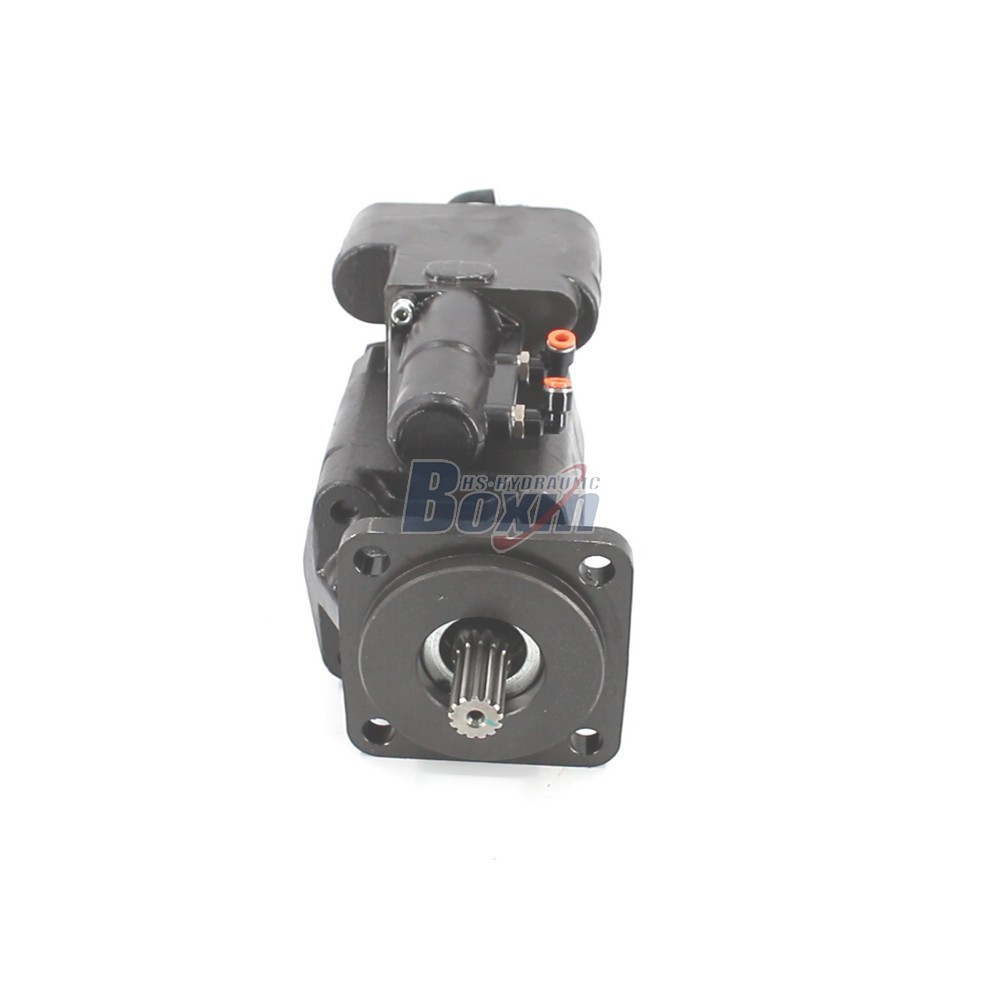

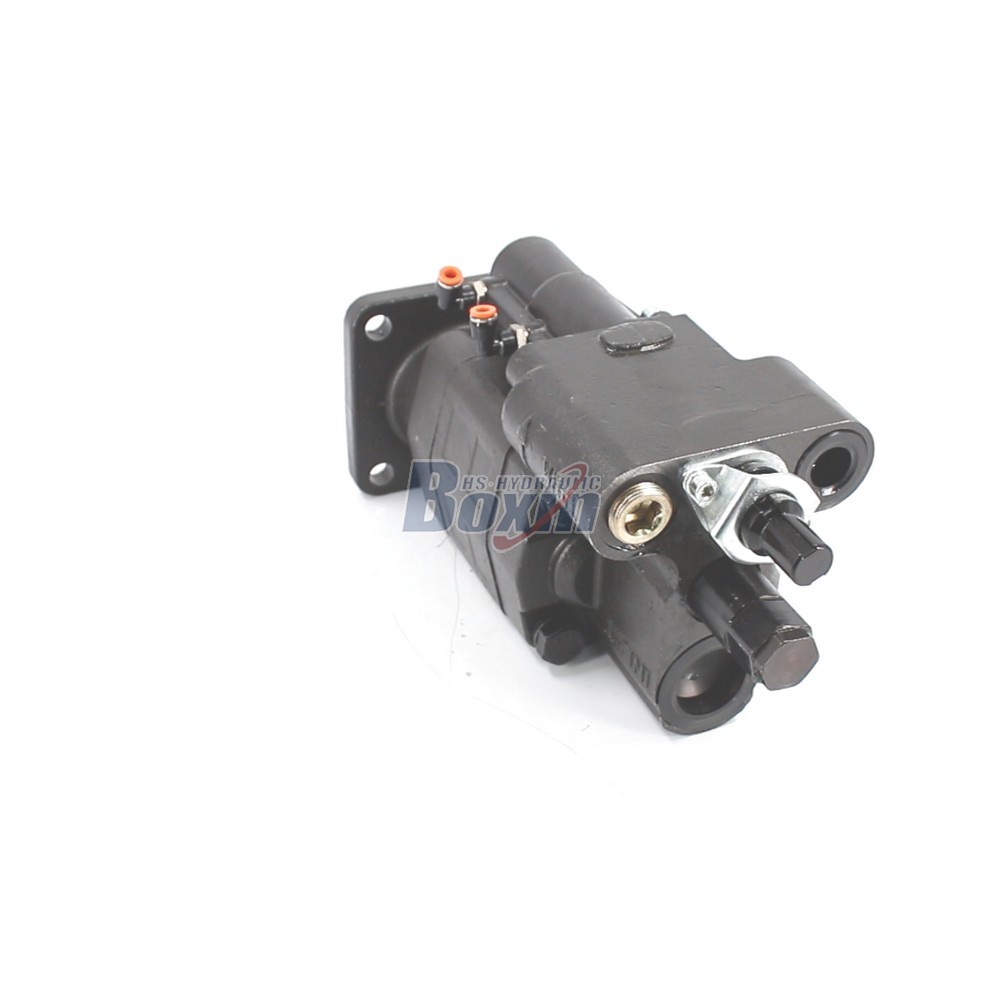

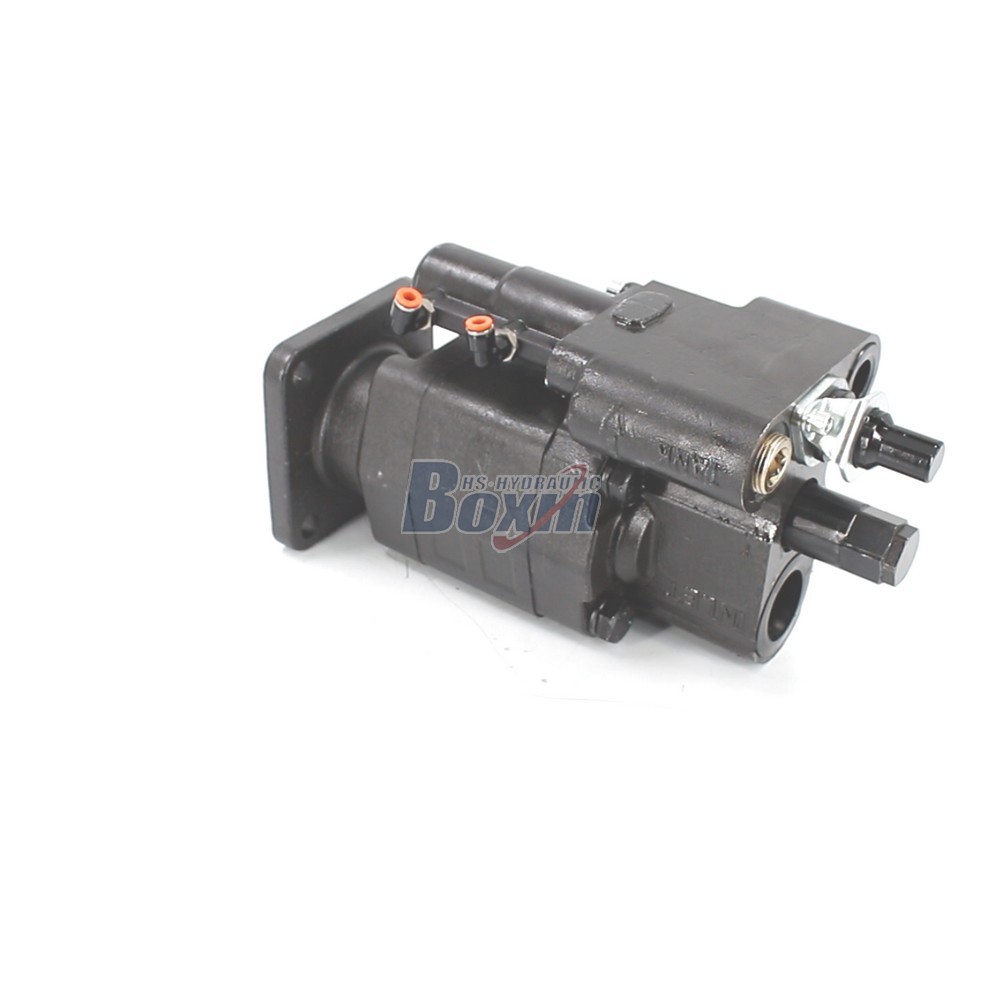

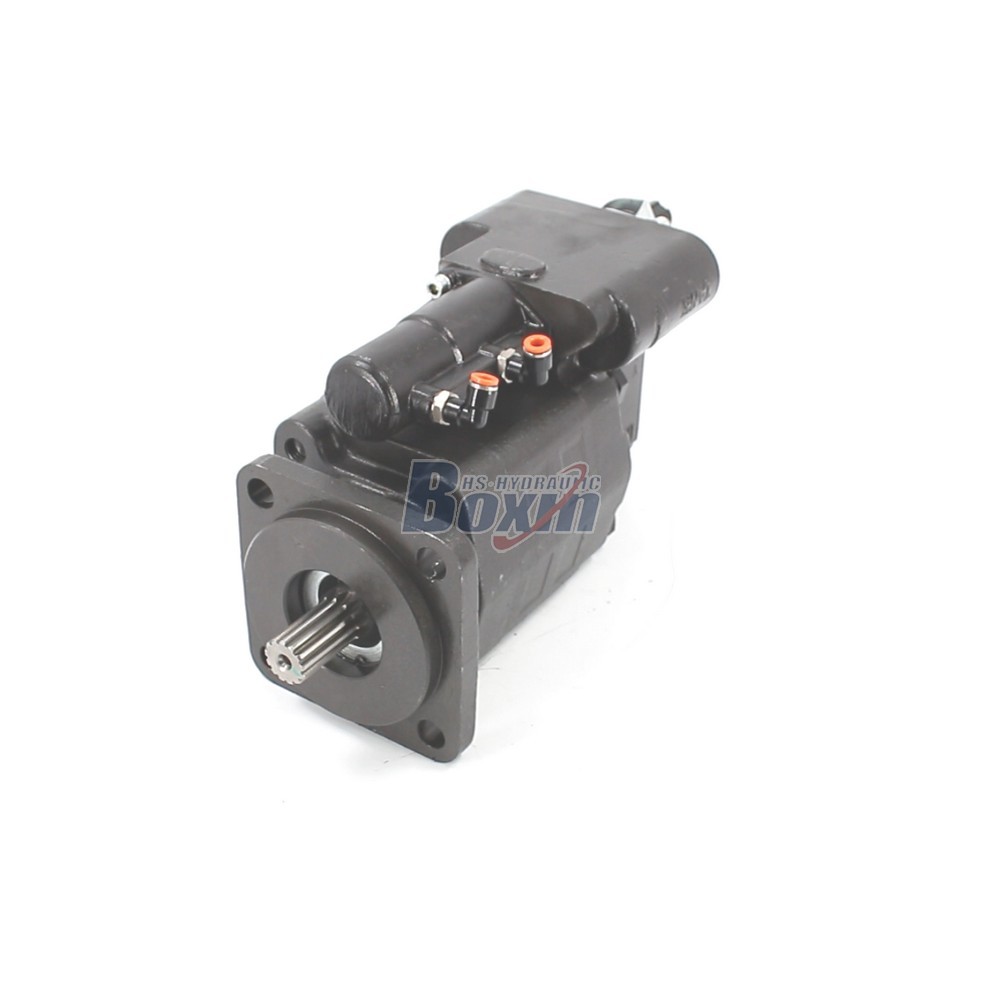

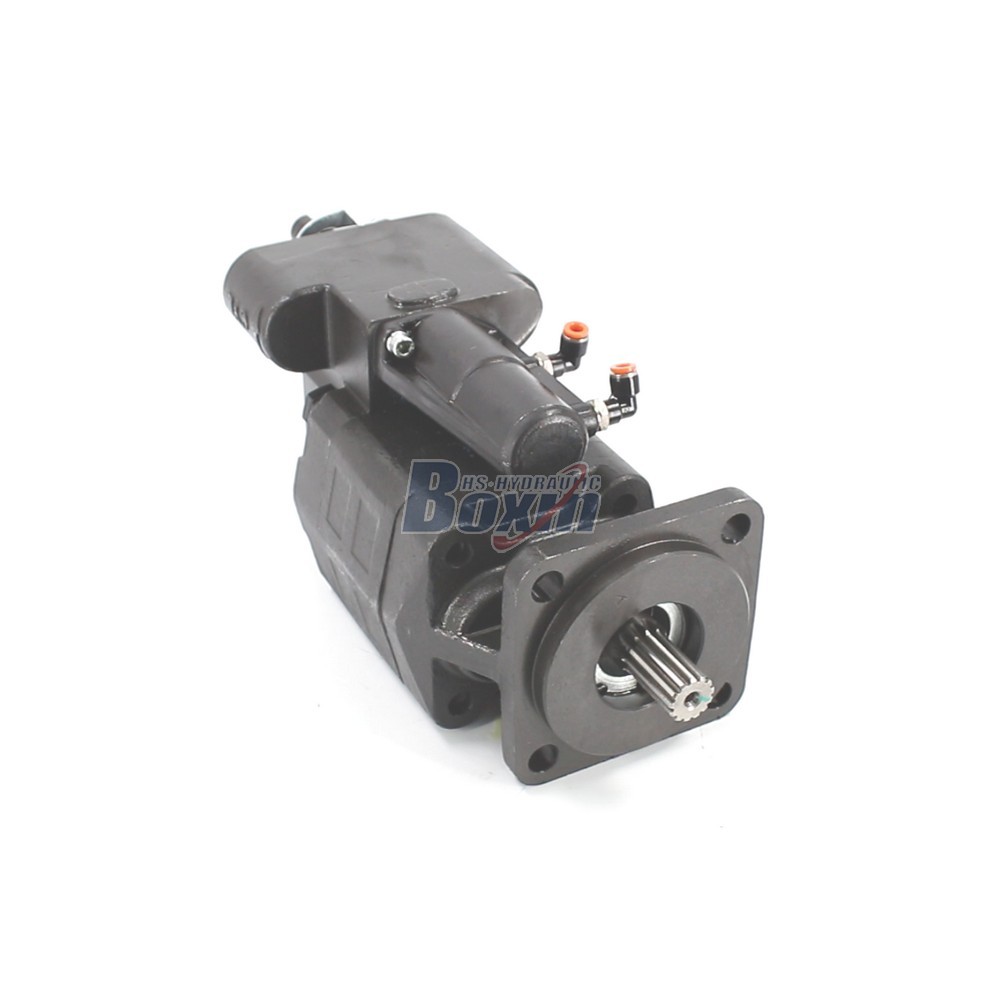

The G102-AS is a robust 63 cc/rev external hydraulic gear pump designed for global industrial and mobile applications. Featuring a durable cast iron construction, B-square flange, and involute spline shaft, it delivers reliable performance at 16 MPa rated pressure with left-hand rotation. Ideal for OEM, customization, and wholesale distribution.

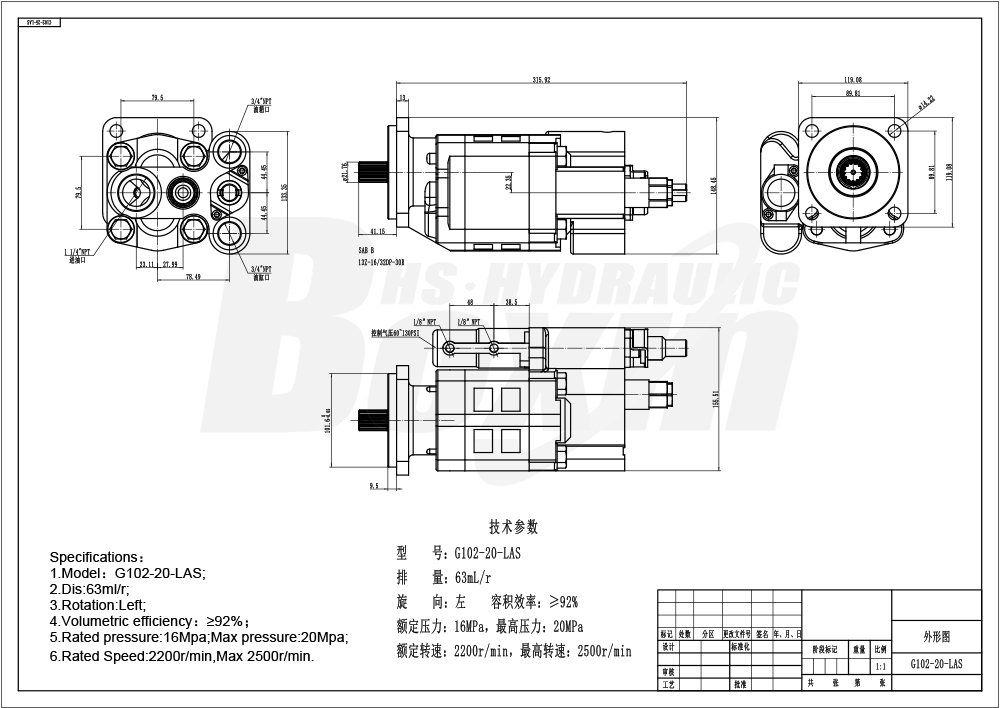

| G102 Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 63 cc/rev |
| Rated Pressure | 16 MPa (2320 psi) |
| Max Pressure | 20 MPa (2900 psi) |
| Rated Speed | 2200 r/min |
| Max Speed | 2500 r/min |
| Rotation | L: Left (counter-clockwise) |
| Material | Cast Iron |
| Structure | External Gear Pump |
| Flange Version | B-Square Flange |
| Shaft Type | X: Involute Spline |
Product Features & Advantages:
- High Durability: Constructed from high-grade cast iron to withstand harsh operating environments and heavy loads.
- Precise Specifications: 63 cc/rev displacement ensures consistent flow; rated for 16 MPa (2320 psi) with a maximum pressure of 20 MPa (2900 psi).
- Efficient Operation: Optimized for speeds up to 2500 r/min (rated 2200 r/min), providing smooth power transmission.
- Versatile Connectivity: Equipped with a standard B-Square Flange and Involute Spline shaft for easy integration into existing systems.
- Customization Ready: Supports OEM, ODM, and private labeling to meet specific client requirements.
Applications:
This pump is widely used in construction machinery (excavators, loaders), agricultural equipment (tractors, harvesters), and material handling vehicles (forklifts, telehandlers). It is an ideal choice for manufacturers and distributors seeking reliable hydraulic components for mobile and industrial hydraulic systems.
