- 32 cc/rev
- 40 cc/rev
- 50 cc/rev
- 63 cc/rev
- 80 cc/rev
- 100 cc/rev
- 25 cc/rev
- 110 cc/rev
5 Views are Looking for this Product

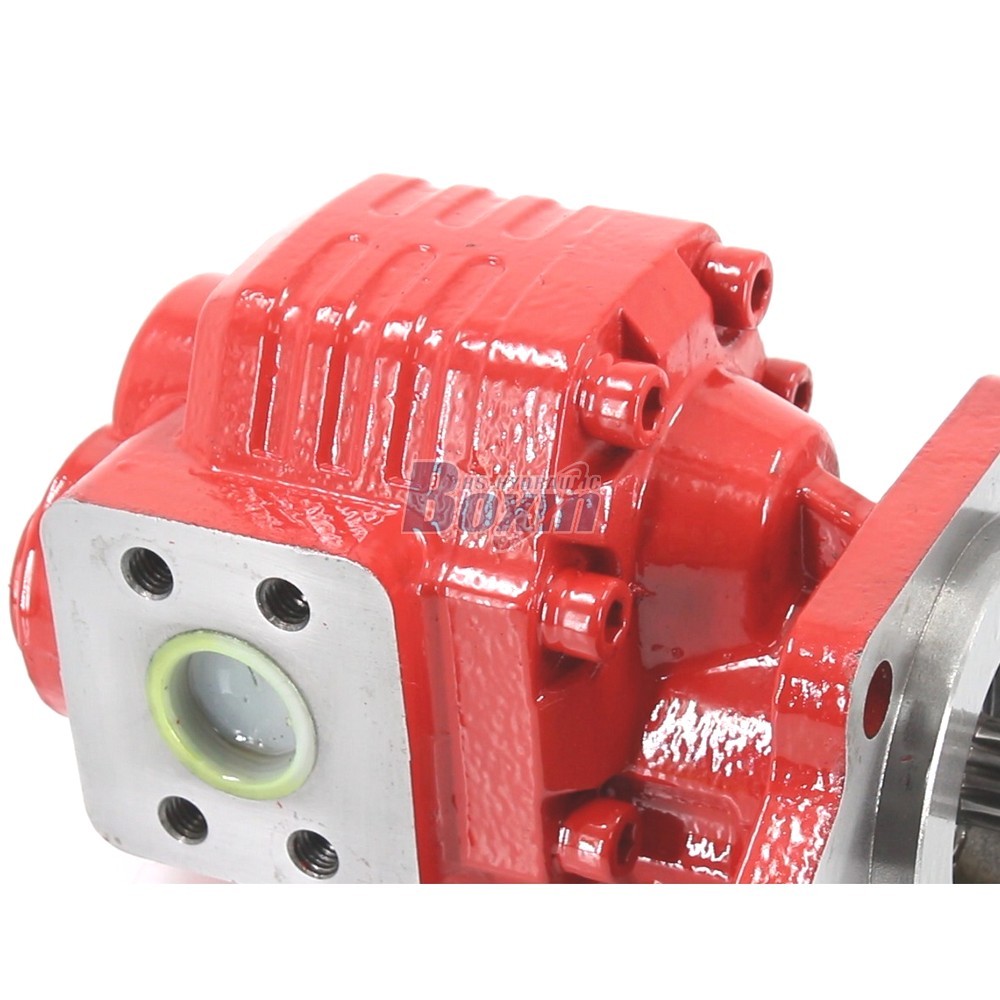

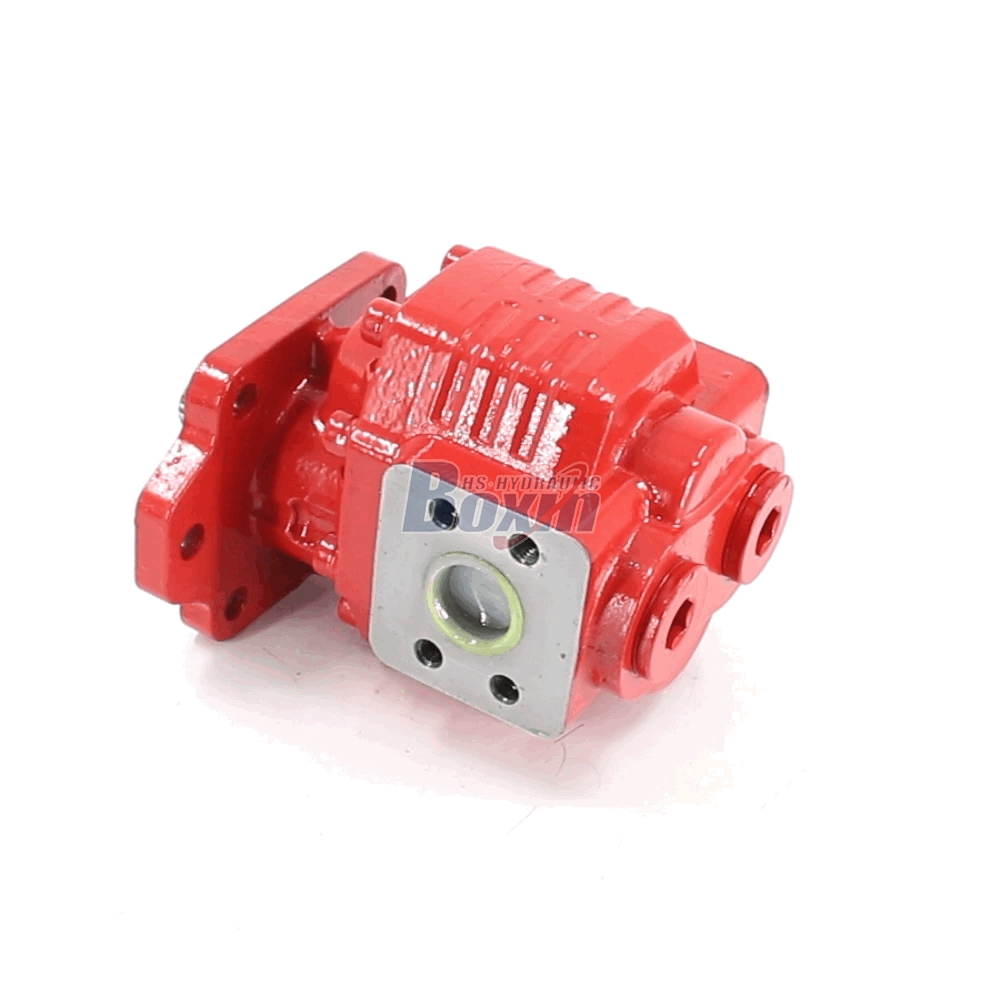

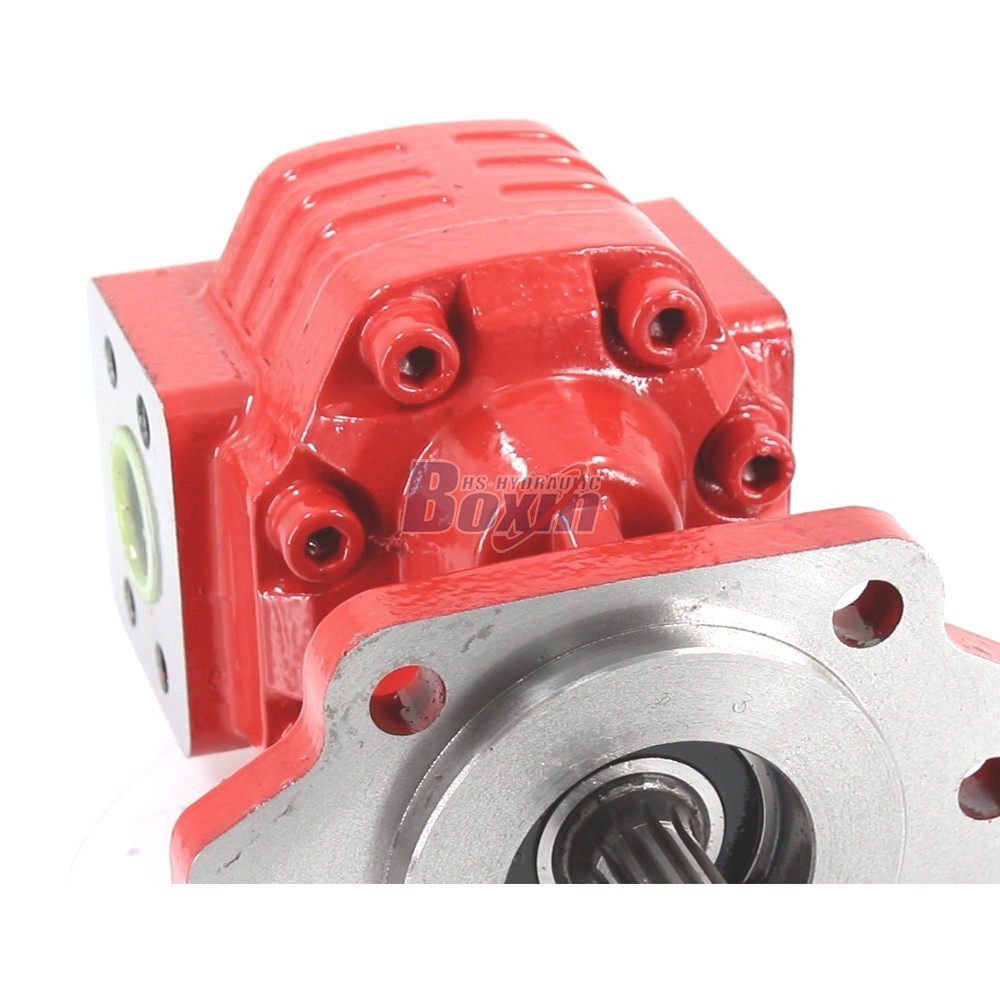

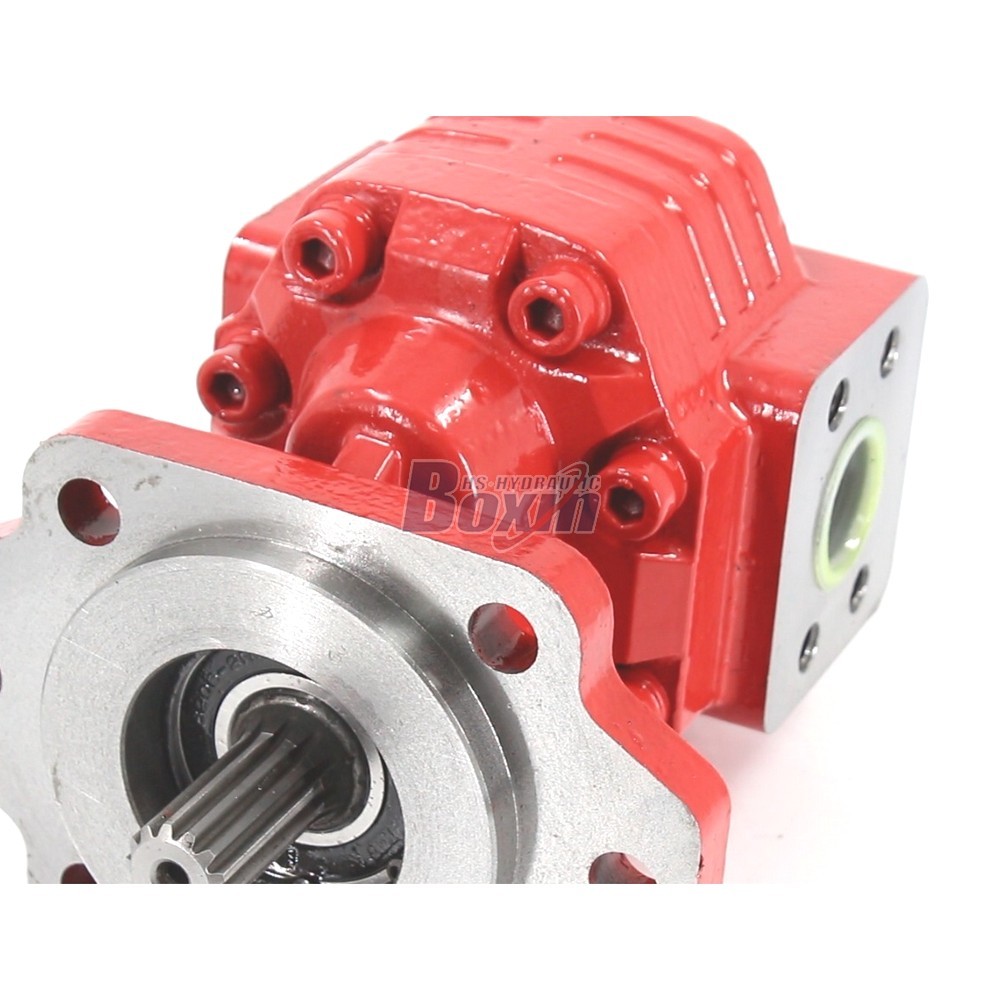

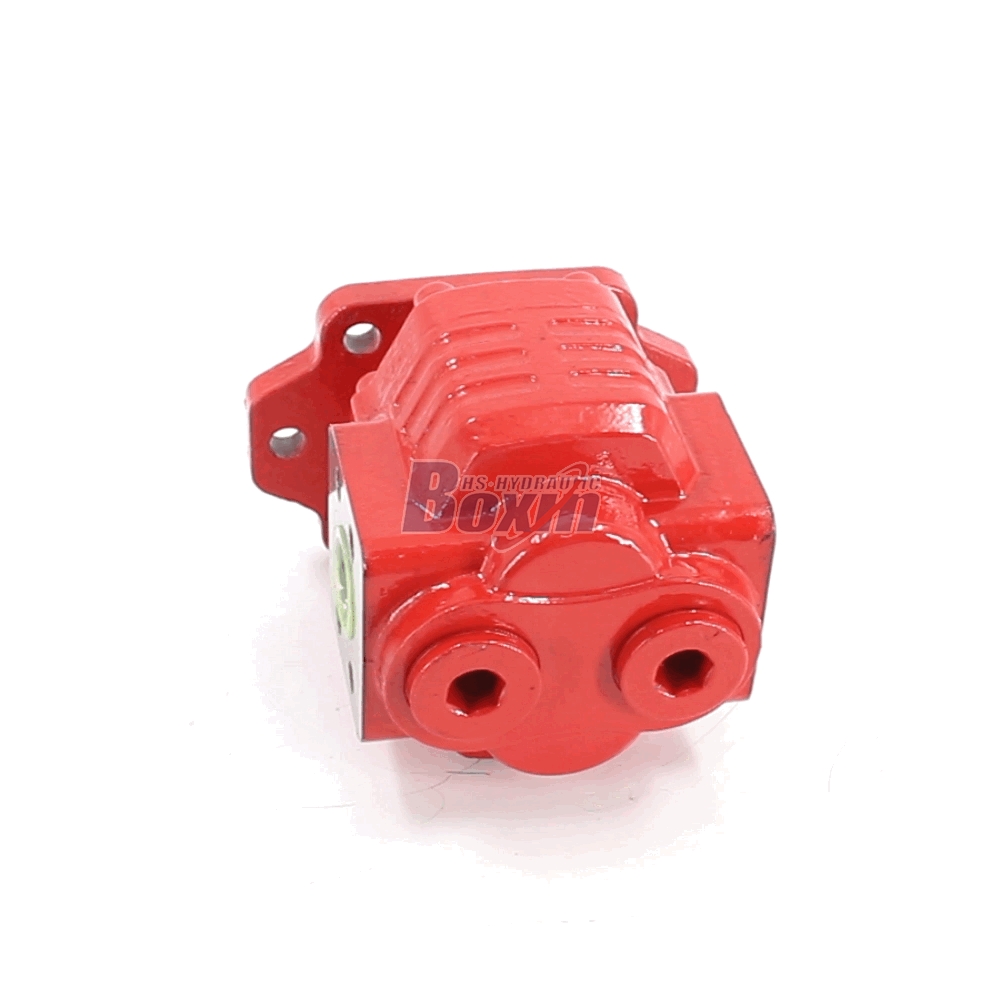

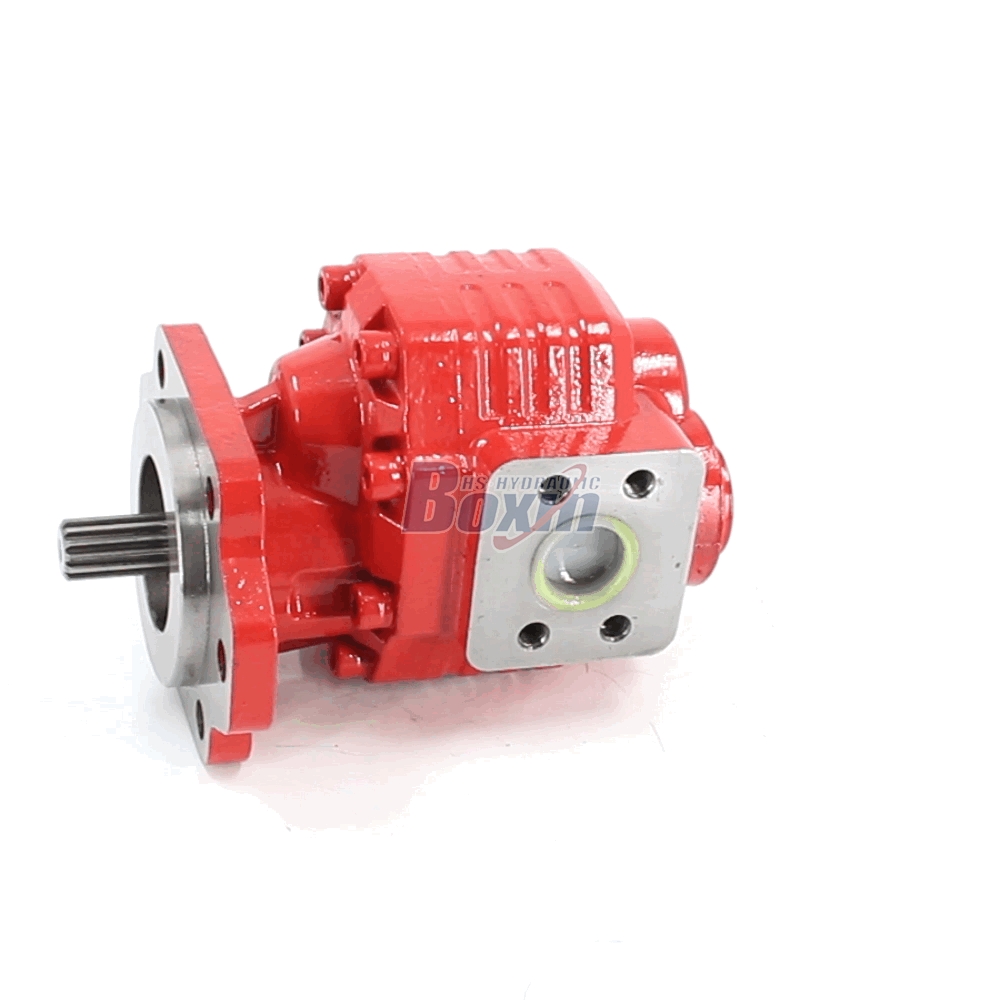

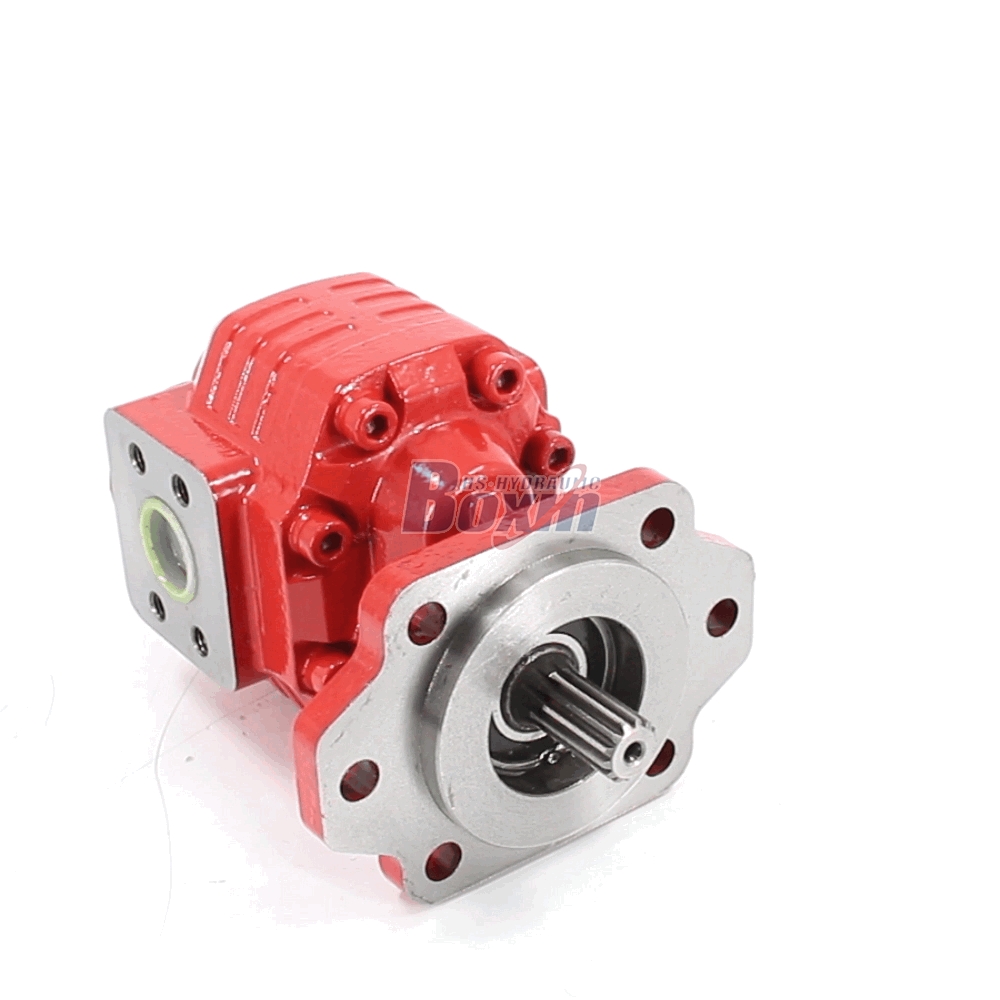

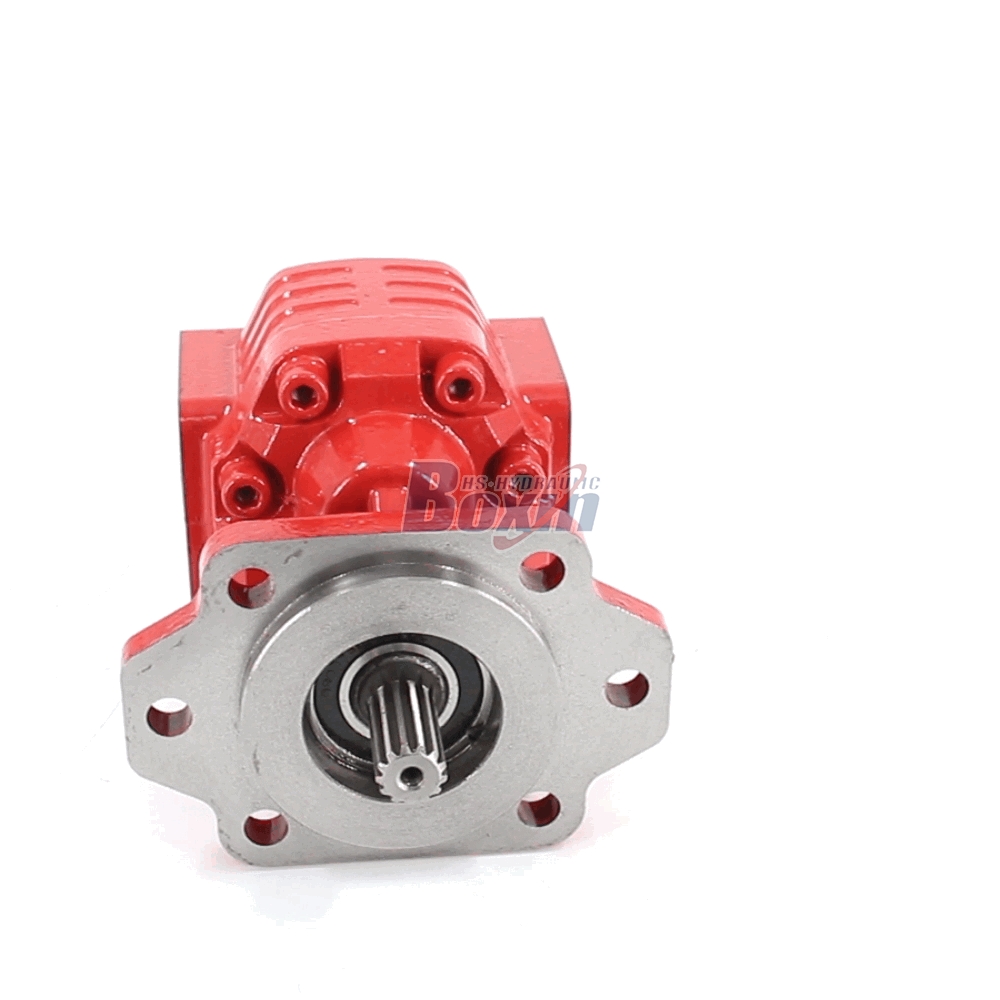

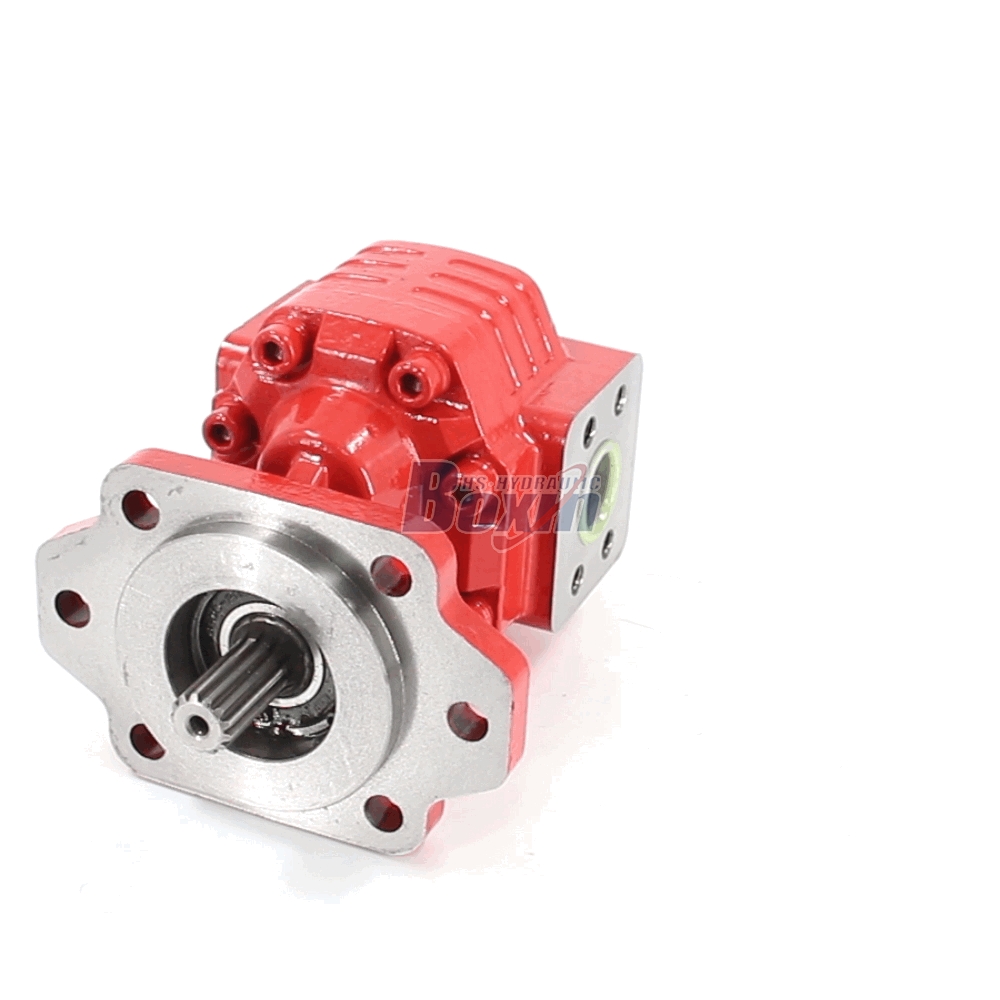

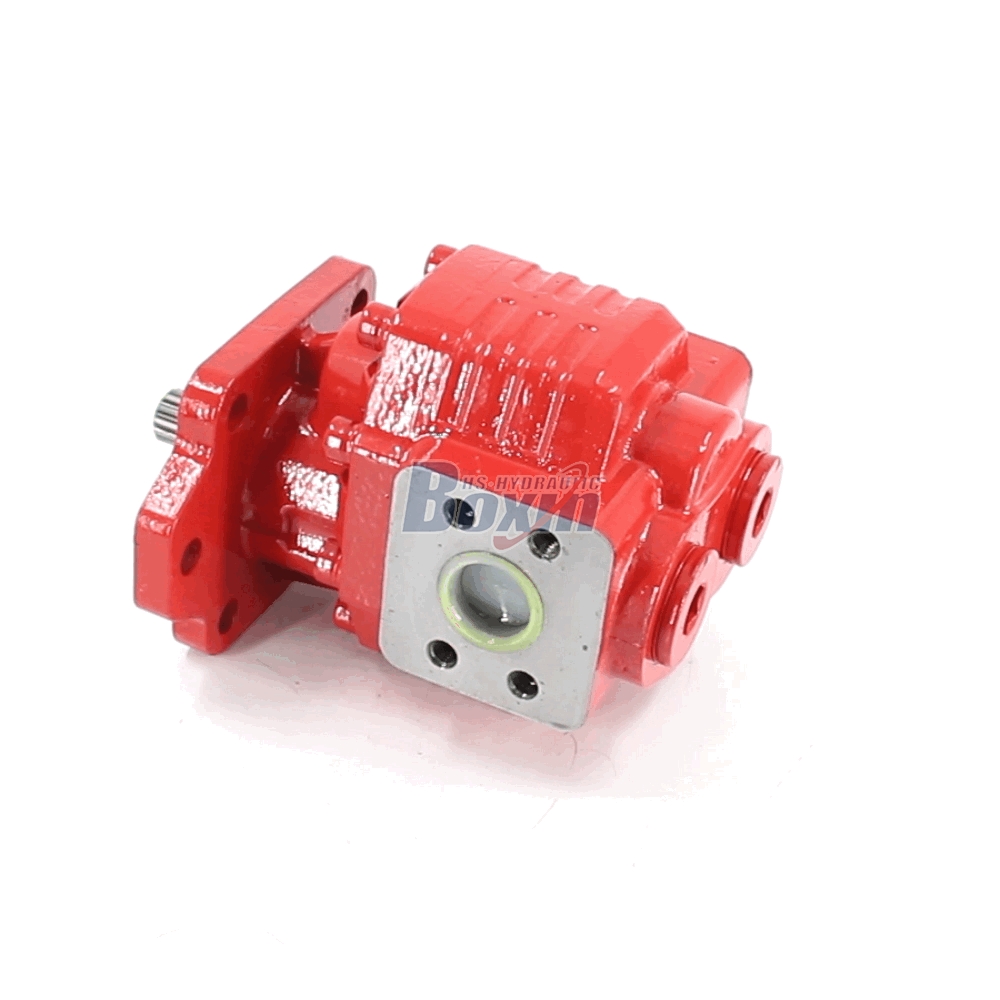

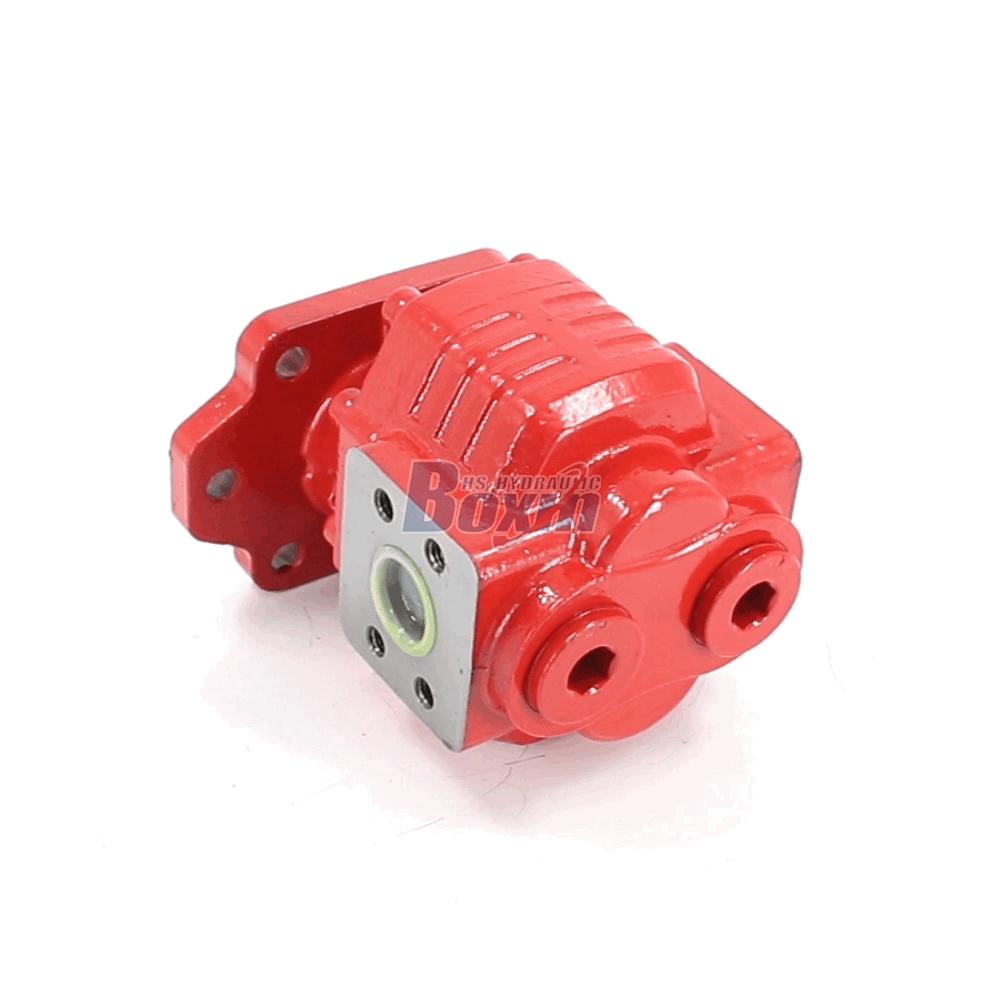

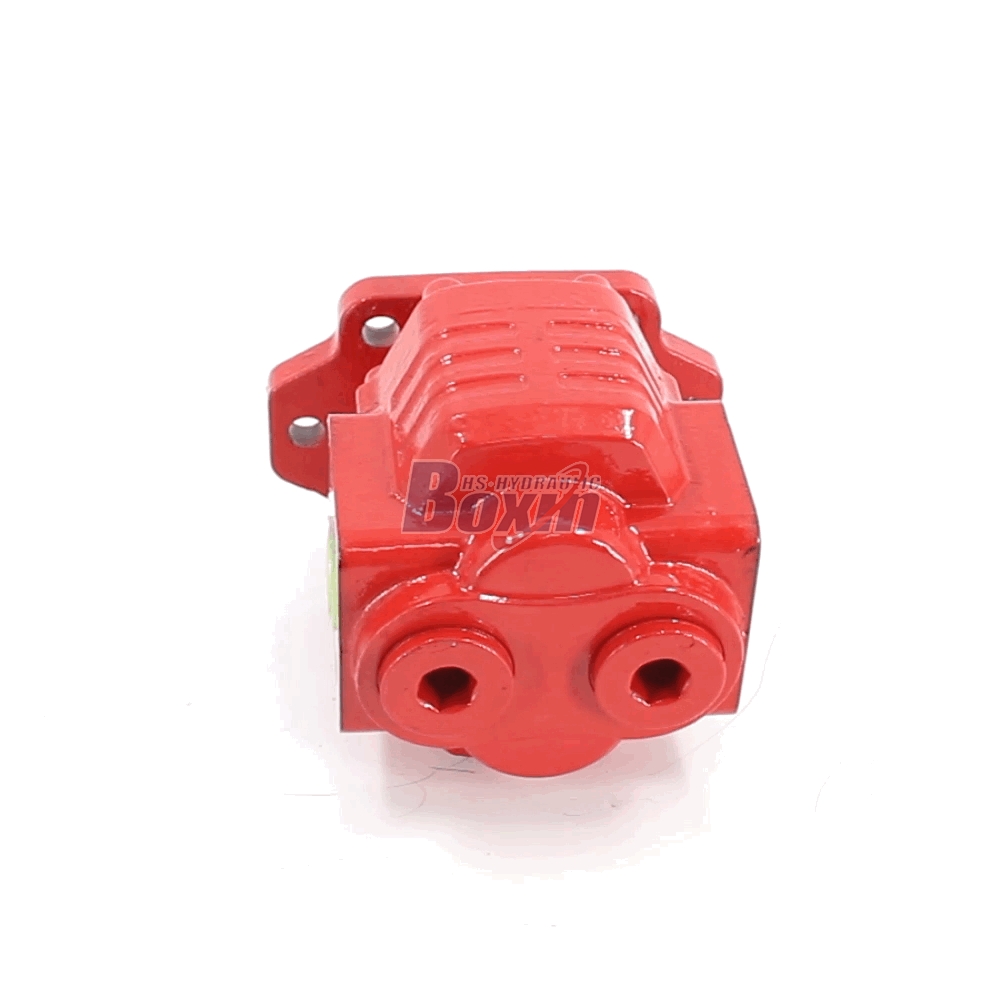

The CBHC-2063 is a high-performance external hydraulic gear pump with 63 cc/rev displacement, designed for demanding industrial and mobile applications. Featuring a robust cast iron body, SAE flange mounting, and rectangle spline shaft, it delivers rated pressures up to 22 MPa and maximum pressures up to 28 MPa. Available in bidirectional, clockwise, and counter-clockwise rotation options, this pump is ideal for material handling, construction, agriculture, and industrial vehicle systems.
| CBHC Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 40 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 25 cc/rev, 110 cc/rev |
| Rated Pressure | 20 MPa (2900 psi), 22 MPa (3190 psi) |
| Max Pressure | 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Rated Speed | 2200 r/min |
| Max Speed | 2500 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise), /: (Bidirectional) |
| Material | Cast Iron |
| Structure | External Gear Pump |
| Flange Version | SAE Flange |
| Shaft Type | H: Rectangle Spline |
The CBHC-2063 hydraulic gear pump is engineered for reliability and efficiency in heavy-duty hydraulic systems. With a displacement of 63 cc/rev, it provides consistent flow output at rated speeds of 2200 r/min and maximum speeds up to 2500 r/min.
Key Features & Advantages:
- High Pressure Capability: Rated pressure of 20–22 MPa (2900–3190 psi) with peak pressure tolerance up to 28 MPa (4061 psi), ensuring stable performance under extreme working conditions.
- Durable Construction: Cast iron housing provides excellent wear resistance, thermal stability, and long service life in harsh environments.
- Flexible Rotation Options: Available in bidirectional, right-hand (clockwise), and left-hand (counter-clockwise) configurations to suit various system designs.
- SAE Standard Flange: Ensures easy integration and interchangeability with standard hydraulic power units and equipment.
- Rectangle Spline Shaft: Delivers reliable torque transmission and compatibility with common drive systems.
Applications:
This pump is widely used in forklifts, telehandlers, skid steer loaders, wheel loaders, backhoe loaders, mini and midi excavators, agricultural tractors, sweepers, and other mobile and industrial hydraulic systems. It is suitable for lifting, steering, tilting, and auxiliary hydraulic functions.
We offer OEM, ODM, private labeling, customization, and wholesale services. We are actively seeking global distributors, wholesalers, agents, and trading partners.
