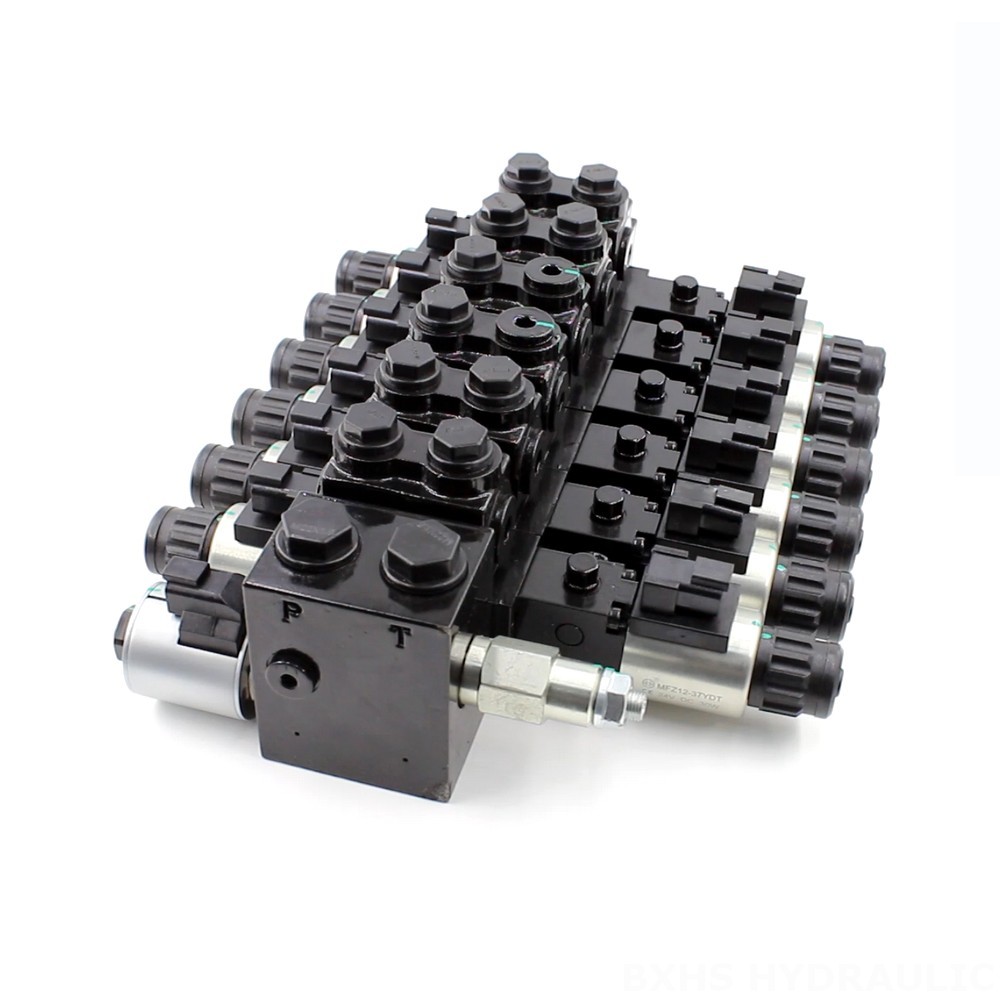

The HDCF50 Solenoid 6 Spool Solenoid Control Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), it provides excellent flow control and pressure regulation for hydraulic systems.
| HDCF50 Series Solenoid Control Valve Parameters | |
|---|---|
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Control Method | Solenoid |
| Port Size | M22×1.5, SAE 8 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section |
| Ambient Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Outlet Port | M18×1.5, M22×1.5, SAE 8 |
| Max Pressure | 160 bar (2300 psi) |
| Rated Flow | 50 L/min (13.2 US gpm) |
| Structure Type | Sectional valve |
| Inlet Port | M18×1.5, M22×1.5, SAE 8 |
**Product Features and Advantages:**
* Compact and robust design for durability in demanding applications
* 6 spool design for versatile flow control
* Solenoid control for precise and responsive operation
* Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids
* Operating temperature range of -20°C to +80°C (-4°F to +176°F) for use in diverse environments
**Applications:**
* Construction equipment (excavators, loaders, cranes)
* Material handling equipment (forklifts, telehandlers, stackers)
* Agricultural machinery (tractors, harvesters, sprayers)
* Industrial vehicles (sweepers, compactors, waste handlers)
* Other hydraulic systems requiring precise flow control and pressure regulation
