HSBS06-6 Solenoid 6 Spool Solenoid Control Valve

Rated Flow:30 L/min (7.9 US gpm)

Max Pressure:350 bar (5100 psi)

Vendor:BXHS

Product Type:Solenoid Control Valve

Product series:HSBS06 Series Solenoid Control Valve

Productsize:34.2*28.5*21.9

Netweight:35.00 kg

Availability: In Stock

  • Solenoid
  • 3 Spool
  • 6 Spool
133 Views are Looking for this Product

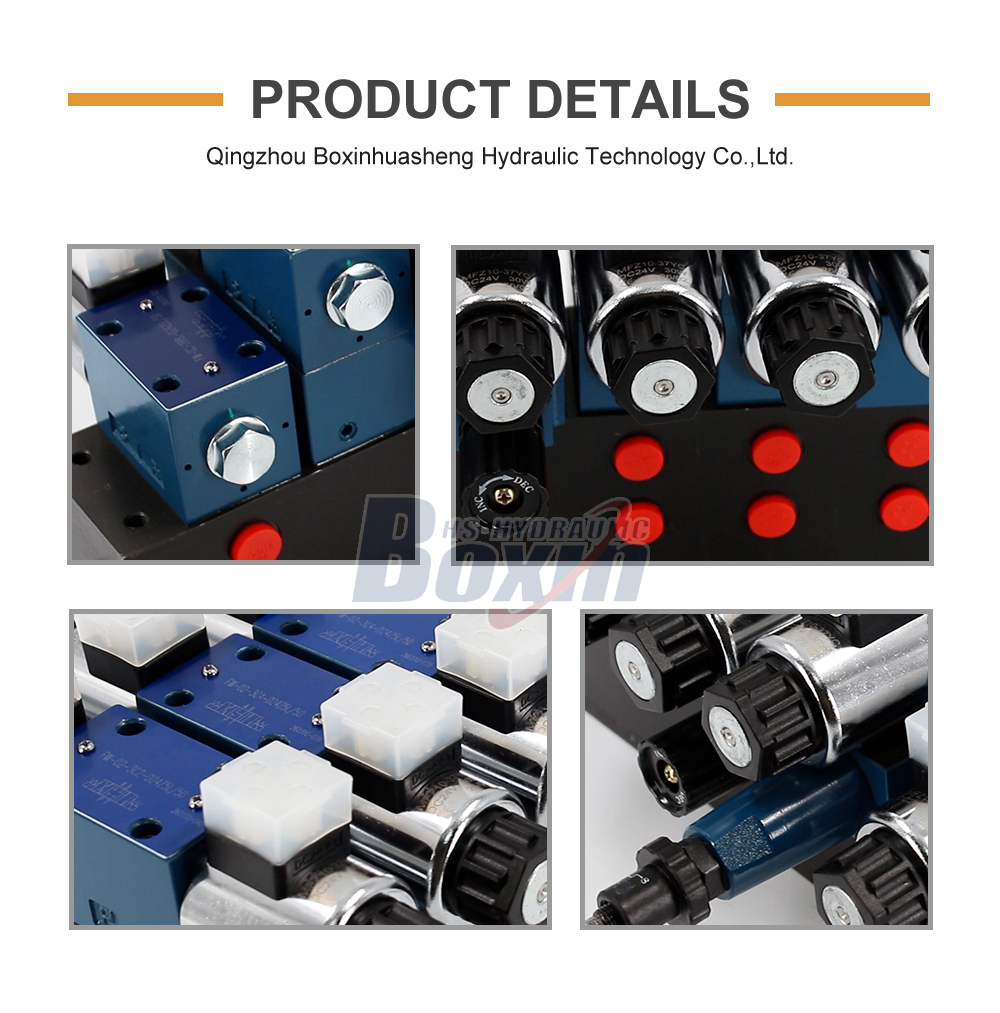

HSBS06-6 Solenoid 6 Spool Solenoid Control Valve detailed image

HSBS06-6 Solenoid 6 Spool Solenoid Control Valve detailed image

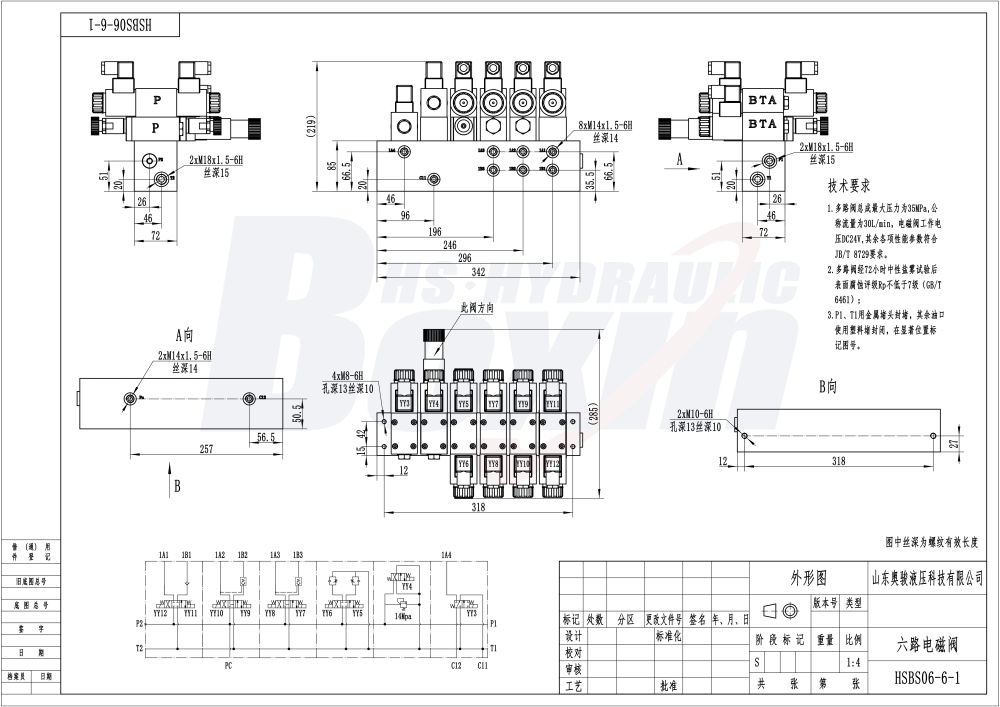

HSBS06-6 Solenoid 6 Spool Solenoid Control Valve drawing image

The HSBS06 is a high-performance 6-spool solenoid-controlled sectional hydraulic valve designed for precise movement and reliable pressure management in compact and heavy-duty machinery.

HSBS06 Series Solenoid Control Valve Parameters
Control Method Solenoid
Spool 3 Spool, 6 Spool
Ambient Temperature Range -20°C to +80°C (-4°F to +176°F)
Structure Type Sectional valve
Section 3 Section, 6 Section
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 30 L/min (7.9 US gpm)
Max Pressure 350 bar (5100 psi)
Inlet Port M18×1.5
Outlet Port M18×1.5
Port Size M14×1.5

The HSBS06 series represents the pinnacle of sectional valve engineering, specifically designed for versatile applications requiring 6-spool control. With a rated flow of 30 L/min and a maximum operating pressure of 350 bar (5100 psi), it ensures robust performance under demanding conditions. Its sectional structure allows for easy maintenance and customization. Key advantages include its wide operating temperature range (-20°C to +80°C) and compatibility with standard mineral oils (12-400 cSt). The solenoid control method enables seamless integration with electronic control systems, making it ideal for modern agricultural, construction, and material handling equipment. As a leading manufacturer, we provide OEM, ODM, and wholesale services to global distributors and traders.
