HSSP-2OT-J Manual 2 Spool Monoblock Directional Valve

Rated Flow:75 L/min (19.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product series:HSSP Series Monoblock Directional Valve

Productsize:20*18.5*9.3

Netweight:11.21 kg

Availability: In Stock

  • Manual
  • 1 Spool
  • 2 Spool
141 Views are Looking for this Product

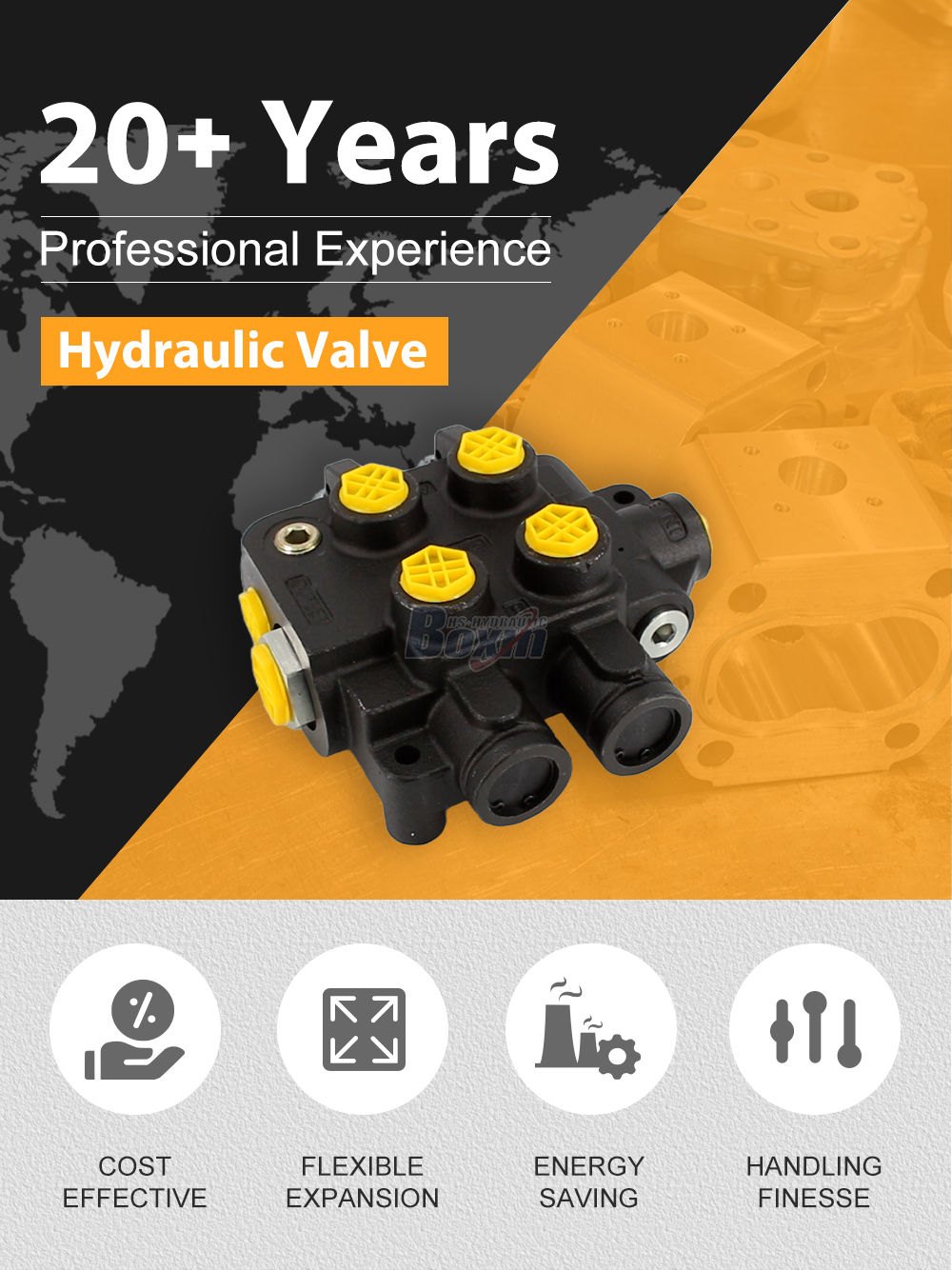

HSSP-2OT-J Manual 2 Spool Monoblock Directional Valve detailed image

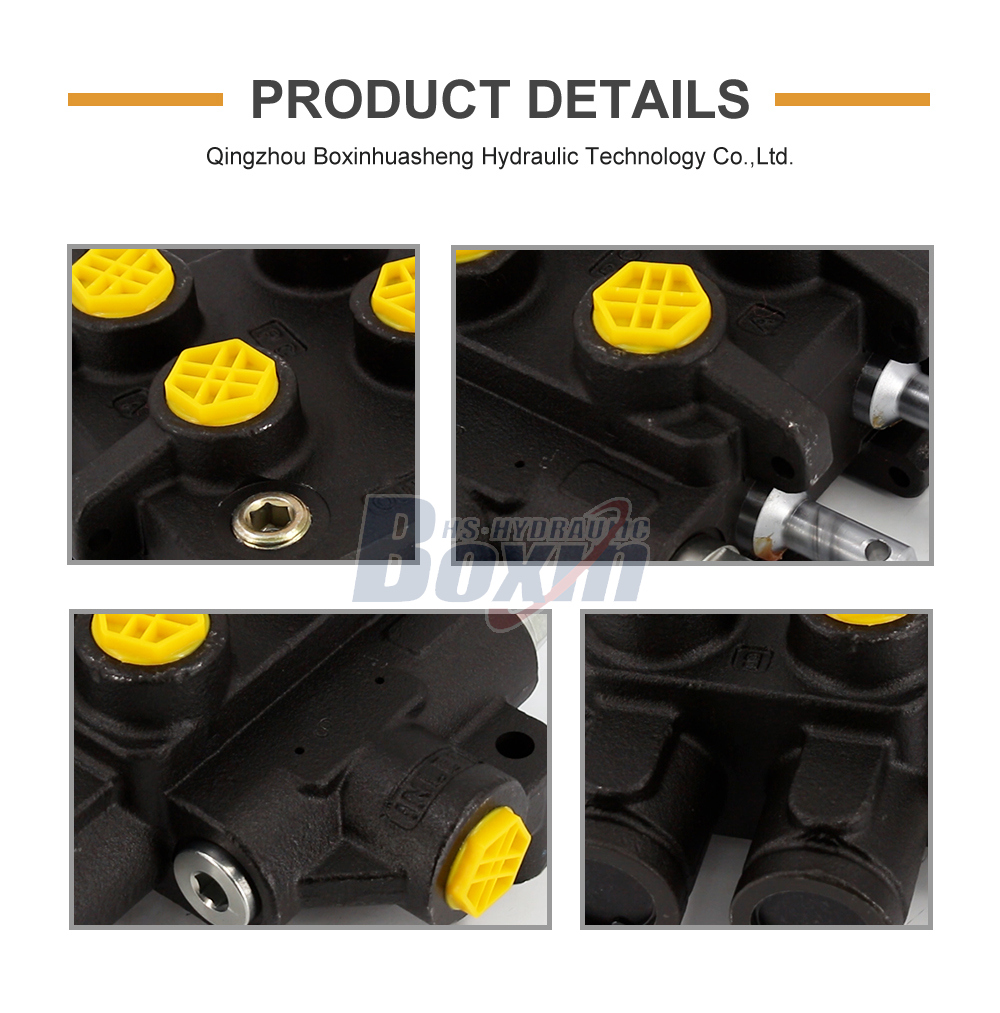

HSSP-2OT-J Manual 2 Spool Monoblock Directional Valve detailed image

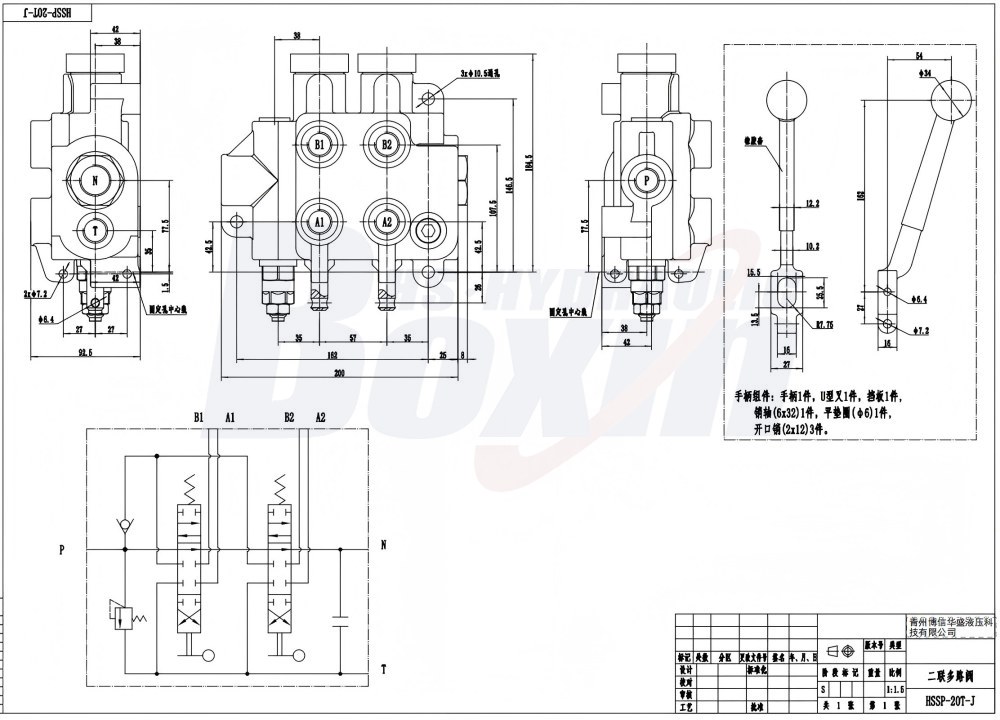

HSSP-2OT-J Manual 2 Spool Monoblock Directional Valve drawing image

The HSSP-2OT-J is a robust 2-spool monoblock directional control valve designed for high-performance hydraulic systems. Engineered for precision and reliability, it offers a rated flow of 75 L/min and withstands pressures up to 315 bar, making it an ideal choice for diverse industrial, construction, and agricultural mobile machinery.

HSSP Series Monoblock Directional Valve Parameters
Control Method Manual
Spool 1 Spool, 2 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 75 L/min (19.8 US gpm)
Max Pressure 315 bar (4600 psi)
Inlet Port 1/2 NPT
Outlet Port 1/2 NPT
Port Size 1/2 NPT

Features & Advantages: 1. High-Performance Design: Constructed with a compact monoblock structure for superior durability and minimal leakage risks. 2. Wide Operating Range: Engineered to function in extreme environmental conditions, from -40°C to +80°C. 3. Precision Control: The 2-spool design provides smooth, responsive management of hydraulic actuators. 4. Versatile Connectivity: Standard 1/2 NPT ports ensure easy integration into existing hydraulic circuits. 5. Customization Ready: We provide full OEM/ODM services, including branding, custom port configurations, and manufacturing support to meet unique OEM specifications. Applications: This valve is perfect for equipment requiring precise flow control, including construction machinery, agricultural attachments, and specialized material handling vehicles. Its compact profile is specifically optimized for small-to-medium mobile hydraulic systems where space efficiency and high pressure resistance are critical.
