HSW50 Hydraulic and Manual 8 Spool Monoblock Directional Valve

Rated Flow:63 L/min (16.6 US gpm)

Max Pressure:160 bar (2300 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:HSW50 Series Monoblock Directional Valve

Productsize:32.6*20*38

Netweight:17.00 kg

Availability: In Stock

  • Manual
  • Hydraulic
  • Hydraulic and Manual
  • Manual and Joystick
  • 8 Spool
  • 9 Spool
  • 10 Spool
128 Views are Looking for this Product

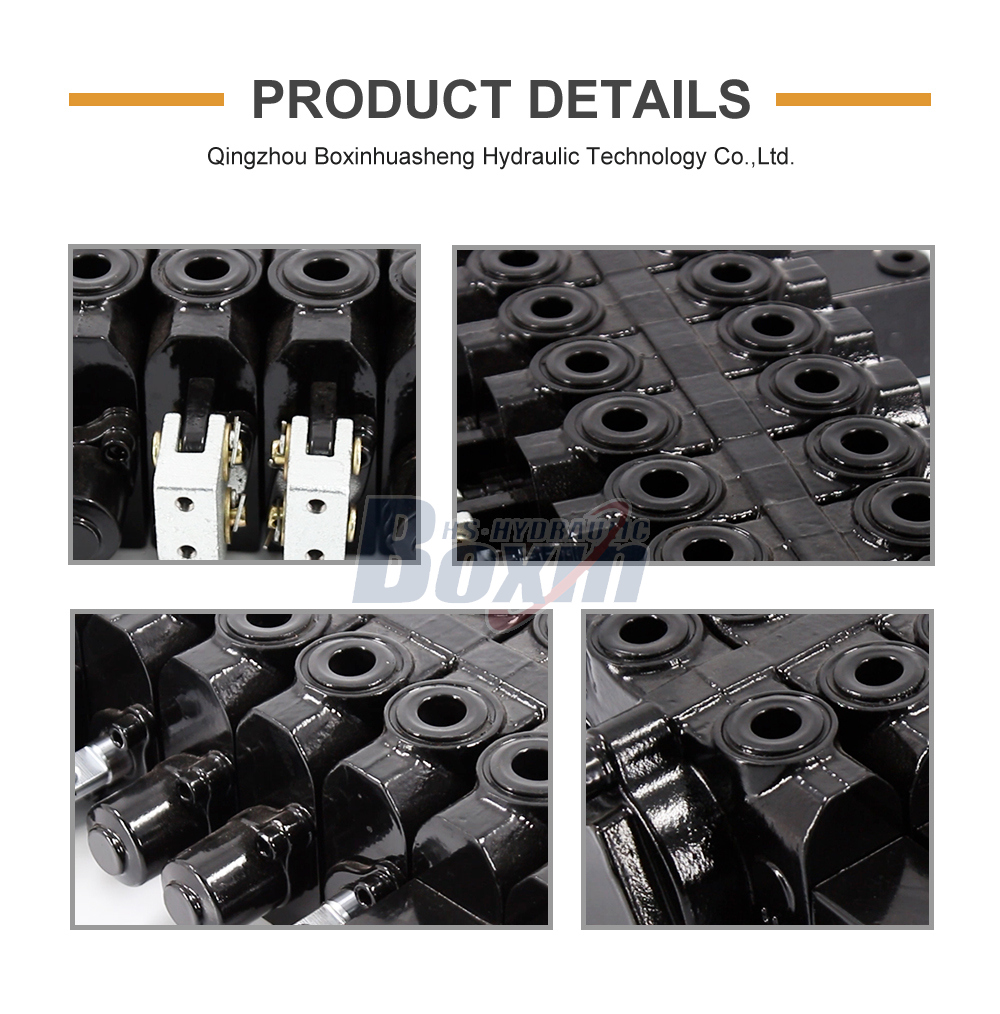

HSW50 Hydraulic and Manual 8 Spool Monoblock Directional Valve detailed image

HSW50 Hydraulic and Manual 8 Spool Monoblock Directional Valve detailed image

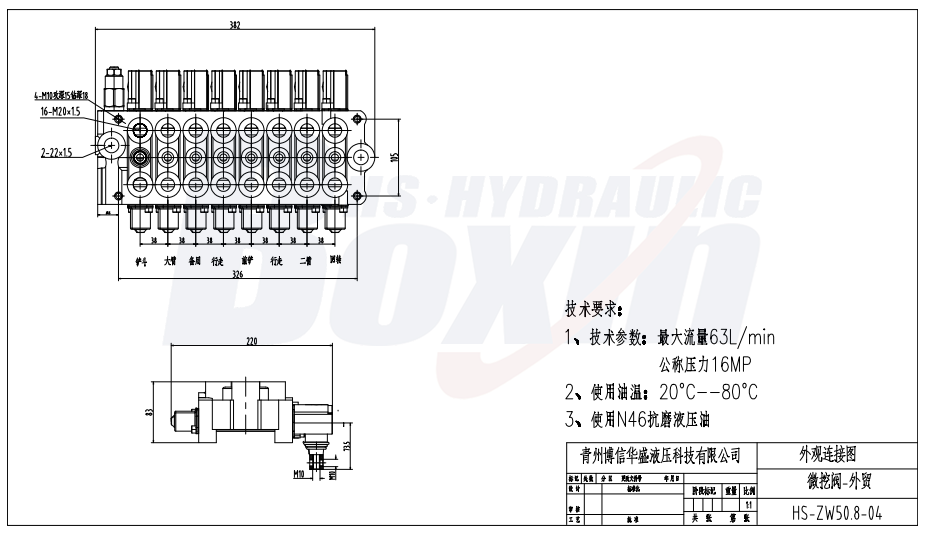

HSW50 Hydraulic and Manual 8 Spool Monoblock Directional Valve drawing image

The HSW50 is a high-performance 8-spool monoblock directional control valve designed for versatility, featuring both hydraulic and manual control methods. With a rated flow of 63 L/min and a maximum pressure of 160 bar, this robust valve is engineered for precise fluid management in compact and medium-sized machinery.

HSW50 Series Monoblock Directional Valve Parameters
Control Method Manual, Hydraulic, Hydraulic and Manual, Manual and Joystick
Spool 8 Spool, 9 Spool, 10 Spool
Ambient Temperature Range -20°C to +80°C (-4°F to +176°F)
Structure Type Monoblock valve
Section 8 Section, 9 Section, 10 Section
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 63 L/min (16.6 US gpm)
Max Pressure 160 bar (2300 psi)
Inlet Port M22×1.5
Outlet Port M22×1.5
Port Size M20×1.5

The HSW50 8-Spool Monoblock Valve is engineered for demanding industrial and mobile applications. Key features include: 1. Dual Control Mode: Supports both hydraulic pilot and manual lever operation for maximum flexibility. 2. Compact Integration: The 8-spool monoblock design reduces potential leak points and simplifies installation compared to sectional valves. 3. Wide Temperature Range: Operates reliably between -20°C and +80°C, making it suitable for extreme environments. 4. High Durability: Rated for pressures up to 160 bar with high-precision internal components ensuring long service life. 5. Universal Compatibility: Standard M22 and M20 port sizes allow for seamless integration into existing systems. Ideal for agricultural machinery like harvesters and wood splitters, as well as construction equipment including mini-excavators and loaders, providing smooth and responsive control for multiple hydraulic functions.
