HSW50 Manual and Joystick 8 Spool Monoblock Directional Valve

Rated Flow:63 L/min (16.6 US gpm)

Max Pressure:160 bar (2300 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product series:HSW50 Series Monoblock Directional Valve

Productsize:32.6*20*38

Netweight:19.00 kg

Availability: In Stock

  • Manual
  • Hydraulic
  • Hydraulic and Manual
  • Manual and Joystick
  • 8 Spool
  • 9 Spool
  • 10 Spool
142 Views are Looking for this Product

HSW50 Manual and Joystick 8 Spool Monoblock Directional Valve detailed image

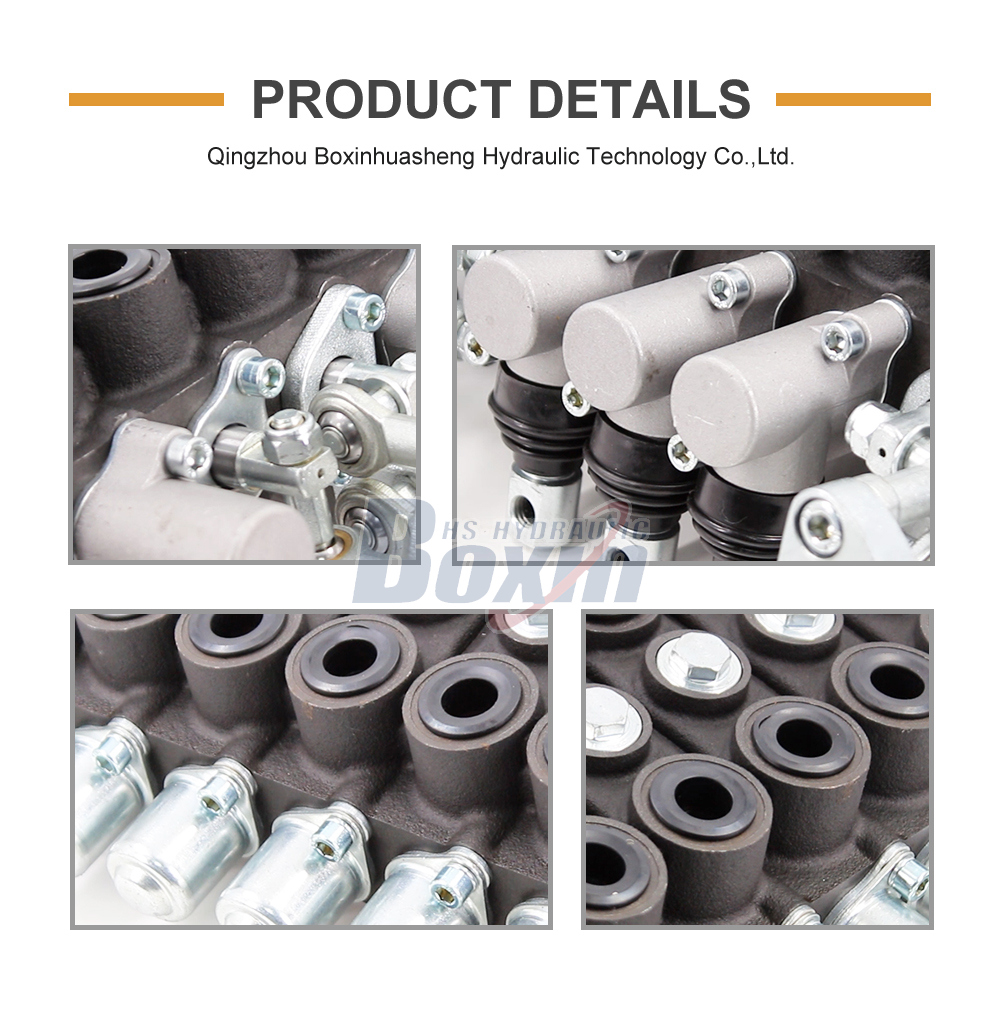

HSW50 Manual and Joystick 8 Spool Monoblock Directional Valve detailed image

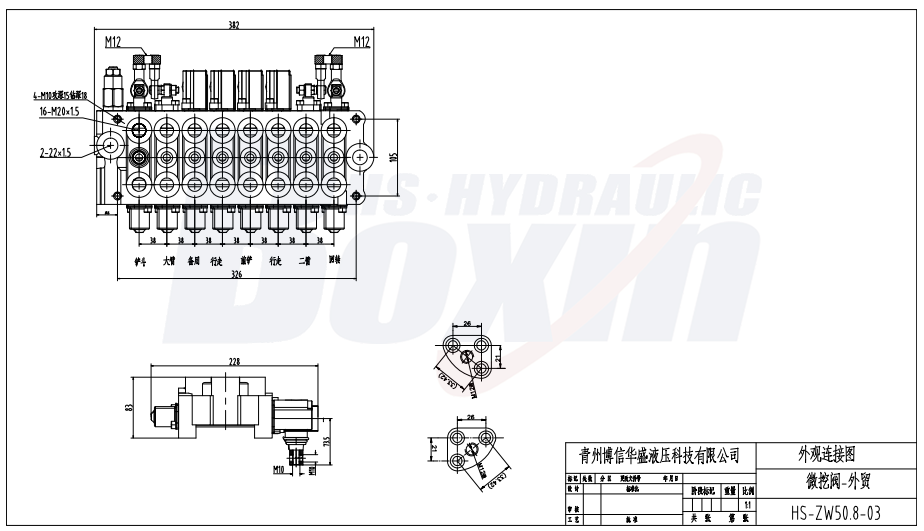

HSW50 Manual and Joystick 8 Spool Monoblock Directional Valve drawing image

The HSW50 is a high-performance 8-spool monoblock directional control valve designed for versatile hydraulic systems. Featuring a unique combination of manual and joystick control methods, it provides precise fluid management with a rated flow of 63 L/min and can withstand pressures up to 160 bar, making it ideal for multi-functional machinery.

HSW50 Series Monoblock Directional Valve Parameters
Control Method Manual, Hydraulic, Hydraulic and Manual, Manual and Joystick
Spool 8 Spool, 9 Spool, 10 Spool
Ambient Temperature Range -20°C to +80°C (-4°F to +176°F)
Structure Type Monoblock valve
Section 8 Section, 9 Section, 10 Section
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 63 L/min (16.6 US gpm)
Max Pressure 160 bar (2300 psi)
Inlet Port M22×1.5
Outlet Port M22×1.5
Port Size M20×1.5

Product Characteristics & Advantages: 1. Highly Integrated: The 8-spool monoblock structure offers a compact design, saving installation space and reducing leakage points. 2. Dual Control System: Equipped with both manual levers and joystick operation for ergonomic and intuitive control of multiple functions simultaneously. 3. Robust Performance: Rated for 160 bar (2300 psi) max pressure and 63 L/min flow, ensuring powerful movement for medium-sized implements. 4. Superior Adaptability: Operates efficiently in extreme temperatures ranging from -20°C to +80°C with standard M22 and M20 porting for global compatibility. 5. Precision Engineering: Optimized spool design minimizes internal leakage and ensures smooth shifting. Application Scenarios: Extensively used in agricultural machinery for multi-tool attachments, construction equipment for auxiliary hydraulics, and material handling vehicles like forklifts and loaders that require simultaneous control of lifting, tilting, and side-shifting.
