Hydraulic Pressure Casting Valve Tailor-made Hydraulic Valves with P40 Series | Bespoke Designs

Control Method:Manual and Joystick

Spool:2 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:23*18*13

Grossweight:6.50 kg

Availability: In Stock

803 Views are Looking for this Product

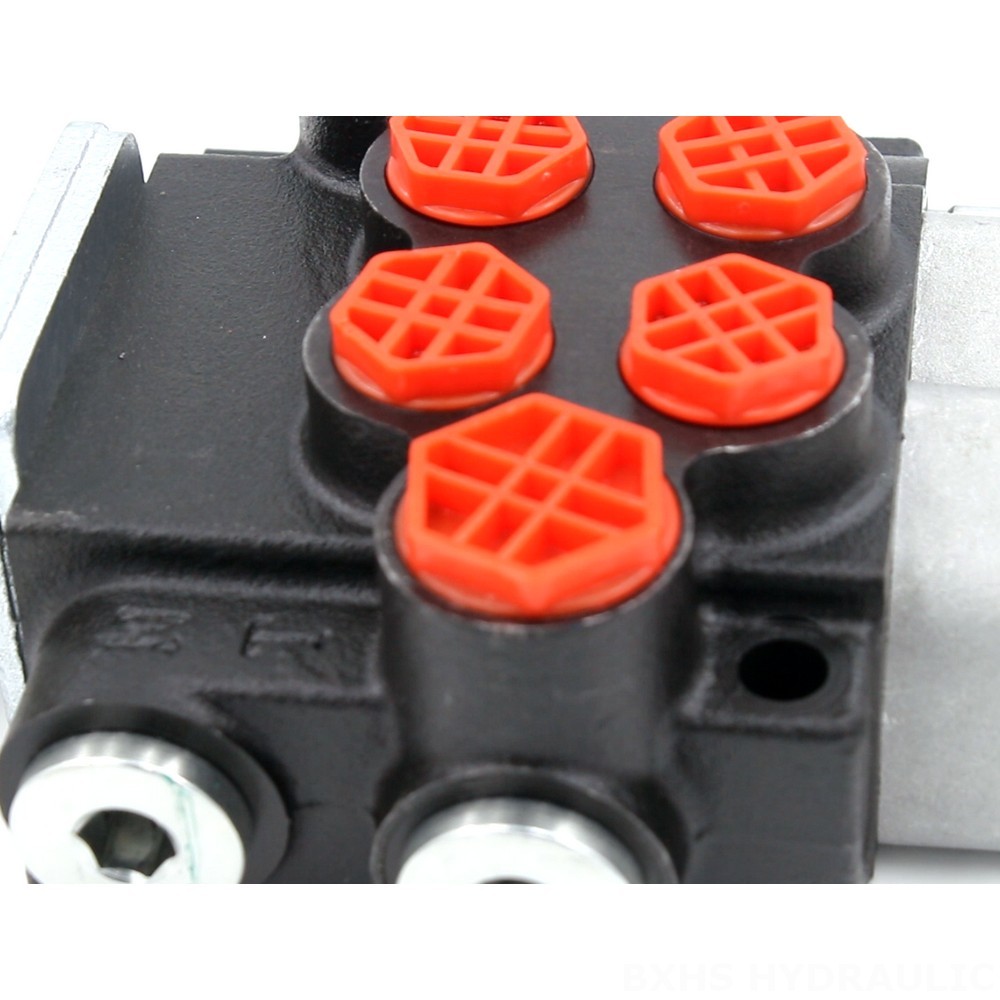

Hydraulic Pressure Casting Valve Tailor-made Hydraulic Valves with P40 Series | Bespoke Designs detailed image

Hydraulic Pressure Casting Valve Tailor-made Hydraulic Valves with P40 Series | Bespoke Designs detailed image

Hydraulic Pressure Casting Valve Tailor-made Hydraulic Valves with P40 Series | Bespoke Designs drawing image

Our Hydraulic Pressure Casting Valves are tailor-made to your specific requirements. Available in the P40 series with manual or joystick control, these monoblock valves offer reliable performance for a variety of applications in material handling, construction, agriculture, and industrial vehicles. We offer manufacturing, OEM, ODM, and private label services.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

These bespoke Hydraulic Pressure Casting Valves are designed with a 2-section, monoblock structure and feature a 2-spool design. They are capable of handling flow rates up to 40 L/min (10.5 US gpm) and pressures up to 250 bar (3600 psi). The valves are suitable for operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and operate within an ambient temperature range of -40°C to +80°C (-40°F to +176°F). We offer a variety of customization options to meet your specific needs, including control methods (manual or joystick), section configuration, and spool type. We are your trusted partner for OEM, ODM, and private label solutions, ensuring high-quality products and reliable performance. Contact us today to discuss your specific project requirements.
