Hydraulic Valve 12 V Dc Design and Manufacture to Your Specifications: P40 Valve ODM Services

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:30*23*16

Netweight:14.00 kg

Availability: In Stock

Description

Hydraulic Valve 12 V Dc Design and Manufacture to Your Specifications: P40 Valve ODM Services detailed image

Hydraulic Valve 12 V Dc Design and Manufacture to Your Specifications: P40 Valve ODM Services drawing image

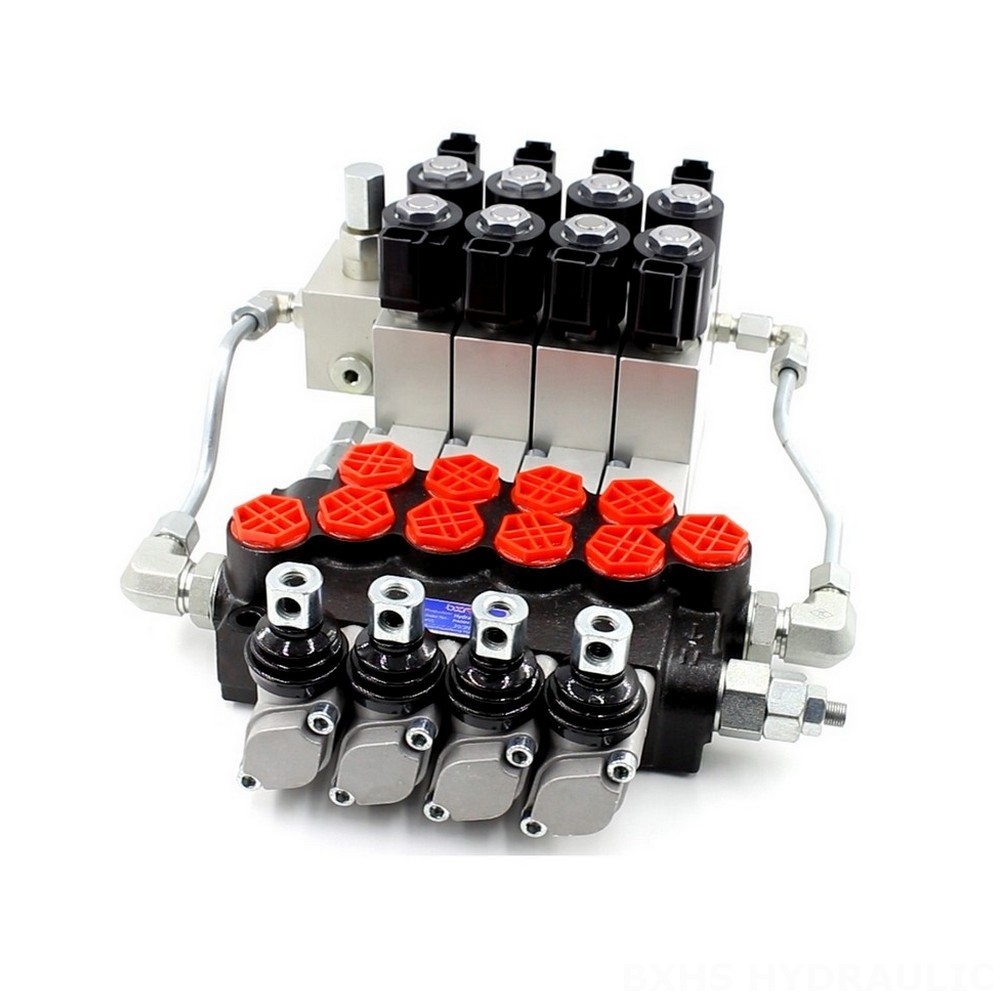

This 12V DC hydraulic valve, P40 Series, is a 4-section, 4-spool monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. We offer ODM services for this valve, providing custom design and manufacturing to your specific requirements.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

The P40 Series hydraulic valve is a high-performance electro-hydraulic control valve designed for demanding applications in industries such as construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock construction with 4 sections and 4 spools, providing precise and reliable control of hydraulic systems. The valve operates on 12V DC power and is available with a range of options to meet your specific needs. We offer ODM services for this valve, including custom design, manufacturing, and private labeling. We can also provide wholesale pricing and support for distributors and dealers. Contact us today to discuss your requirements and get a customized quote.

Hydraulic Valve 12 V Dc Design and Manufacture to Your Specifications: P40 Valve ODM Services application image
