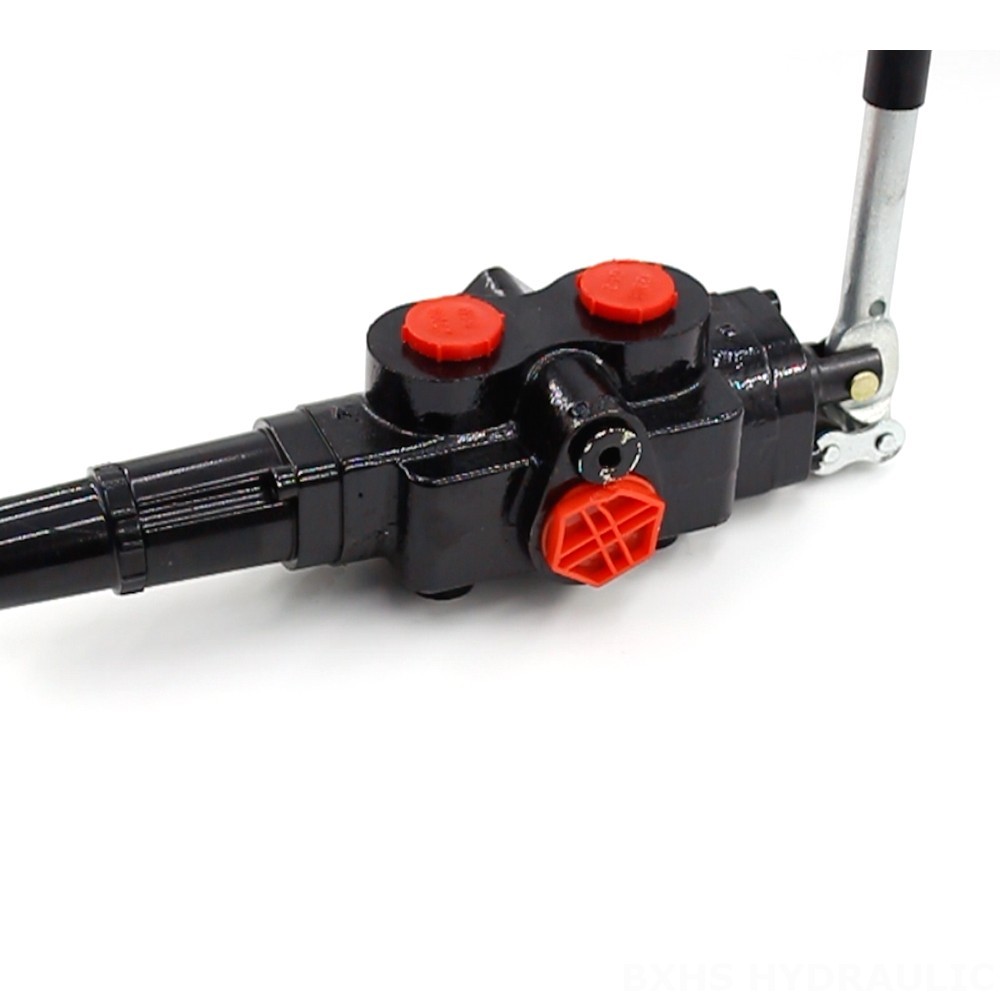

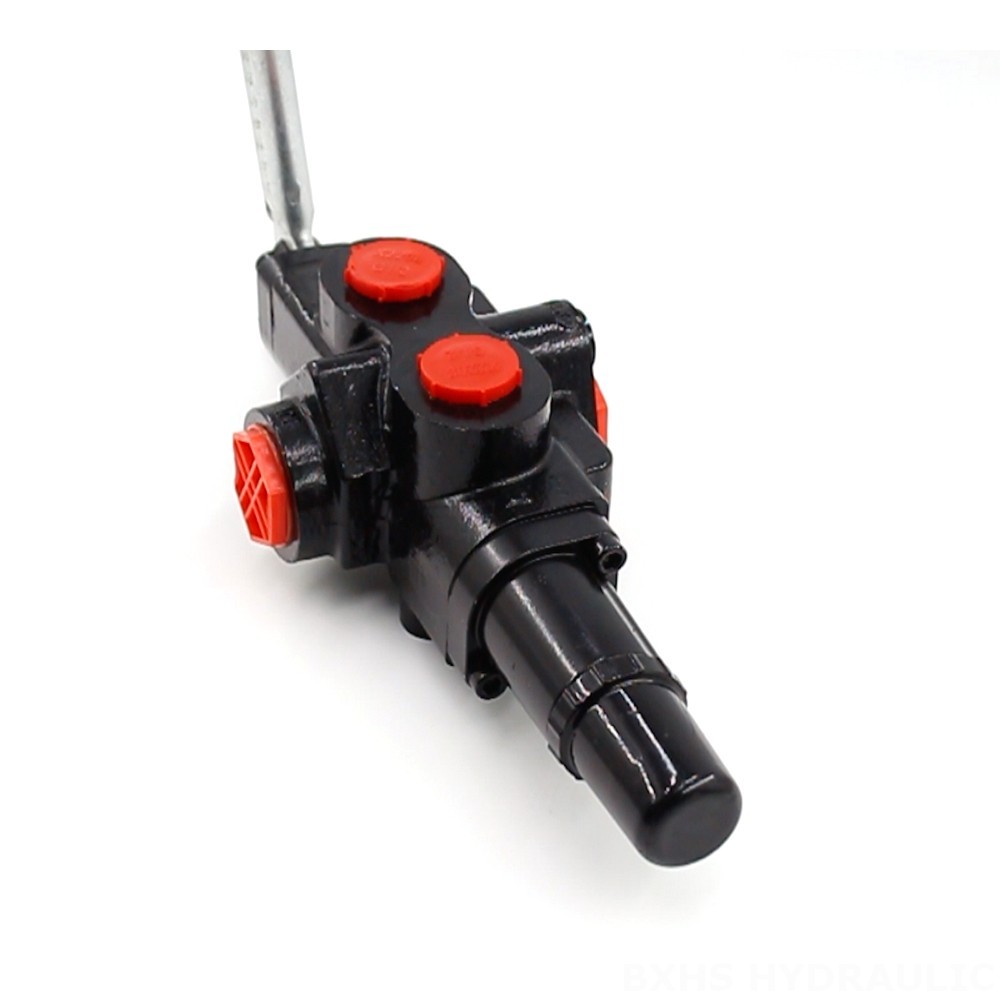

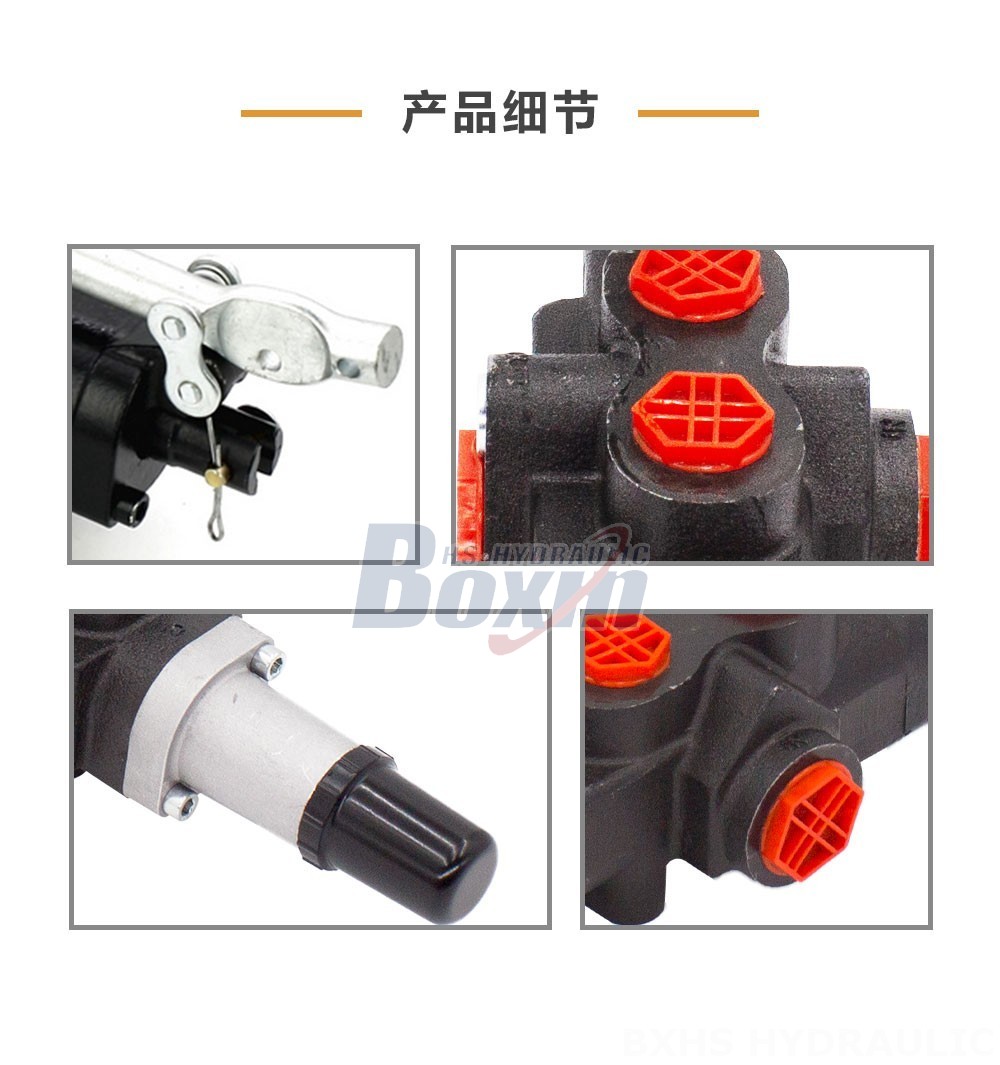

The LVA1-95 Manual 1 Spool Log Splitter Valve is a high-performance hydraulic valve designed for use in log splitter applications. With a rated flow of 95 L/min and a maximum pressure of 315 bar, this valve provides reliable and efficient control of hydraulic systems. Its monoblock construction ensures durability and leak-free operation, while the 1 spool design simplifies installation and maintenance.
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
|---|---|
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 315 bar (4600 psi) |
| Rated Flow | 95 L/min (25.1 US gpm) |
| Structure Type | Monoblock valve |
| Control Method | Manual |
| Section | 1 Section |
**Product Features and Benefits:**
* Manual control for precise and responsive operation
* Monoblock construction for durability and leak-free performance
* Rated flow of 95 L/min (25.1 US gpm) for efficient hydraulic system operation
* Maximum pressure of 315 bar (4600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with a wide range of hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in various environmental conditions
* 1 spool for simplified installation and maintenance
* Kick Out Setting Pressure: 70~140 bar (1015-2030 PSI) for precise control of log splitting force
**Applications:**
* Log splitters
* Forestry equipment
* Agricultural machinery
* Construction equipment
* Industrial machinery
