985 Views are Looking for this Product

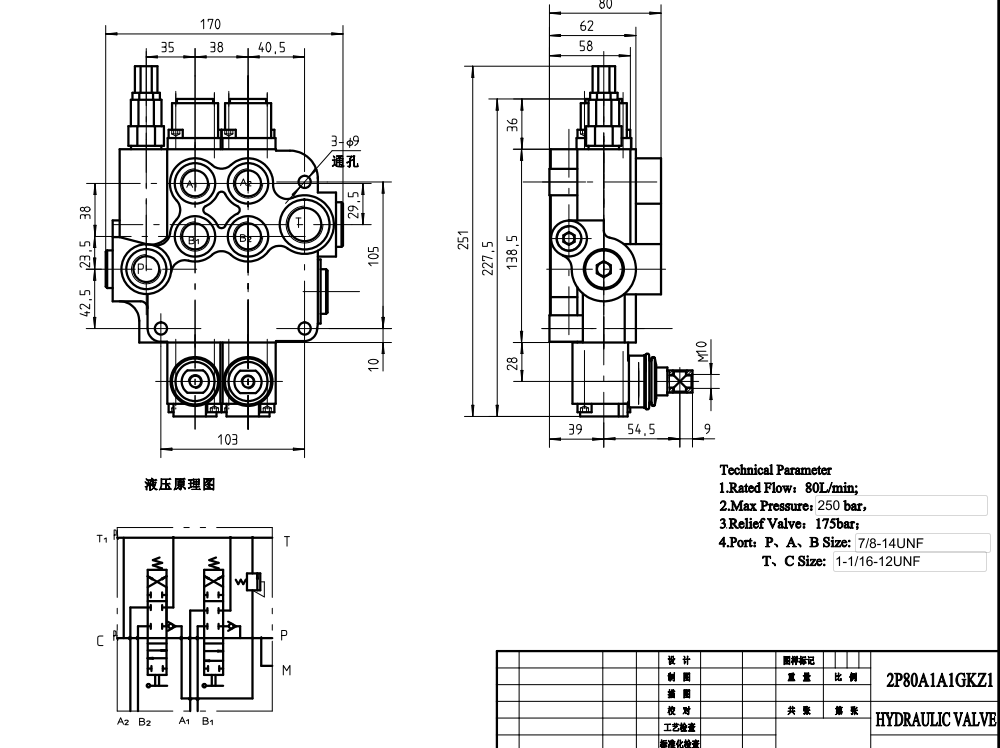

The P80-U1-1/16-U7/8 Manual 2 Spool Monoblock Directional Valve is a versatile and durable hydraulic valve designed for a wide range of applications in the material handling, construction, agriculture, and industrial vehicle industries. With its 2 spool design, 80 L/min flow rate, and 250 bar max pressure, this valve provides precise flow and pressure control for various hydraulic systems.
| P80 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Structure Type | Monoblock valve |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Rated Flow | 80 L/min (21.2 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Outlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Features and Advantages:**
* Manual control for precise and responsive operation
* Monoblock construction for compact size and durability
* 2 spool design for independent control of two hydraulic circuits
* High flow rate of 80 L/min for efficient operation
* Max pressure of 250 bar for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Wide ambient temperature range of -40°C to +80°C for use in extreme conditions
**Applications:**
The P80-U116-U78 Manual 2 Spool Monoblock Directional Valve finds applications in a variety of hydraulic systems, including:
* Material handling equipment, such as forklifts and telehandlers
* Construction and earth moving machinery, such as excavators and loaders
* Agricultural equipment, such as tractors and harvesters
* Industrial vehicles, such as sweepers and waste compactors
