Manual 3 Spool Monoblock Valve | Hydraulic System Components & Solutions

Control Method:Manual

Spool:3 Spool

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G1/2

Outlet Port:G3/4

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:HSDS15 Series Monoblock Directional Valve

Packagingsize:23.5*22*11

Grossweight:12.00 kg

Availability: In Stock

662 Views are Looking for this Product

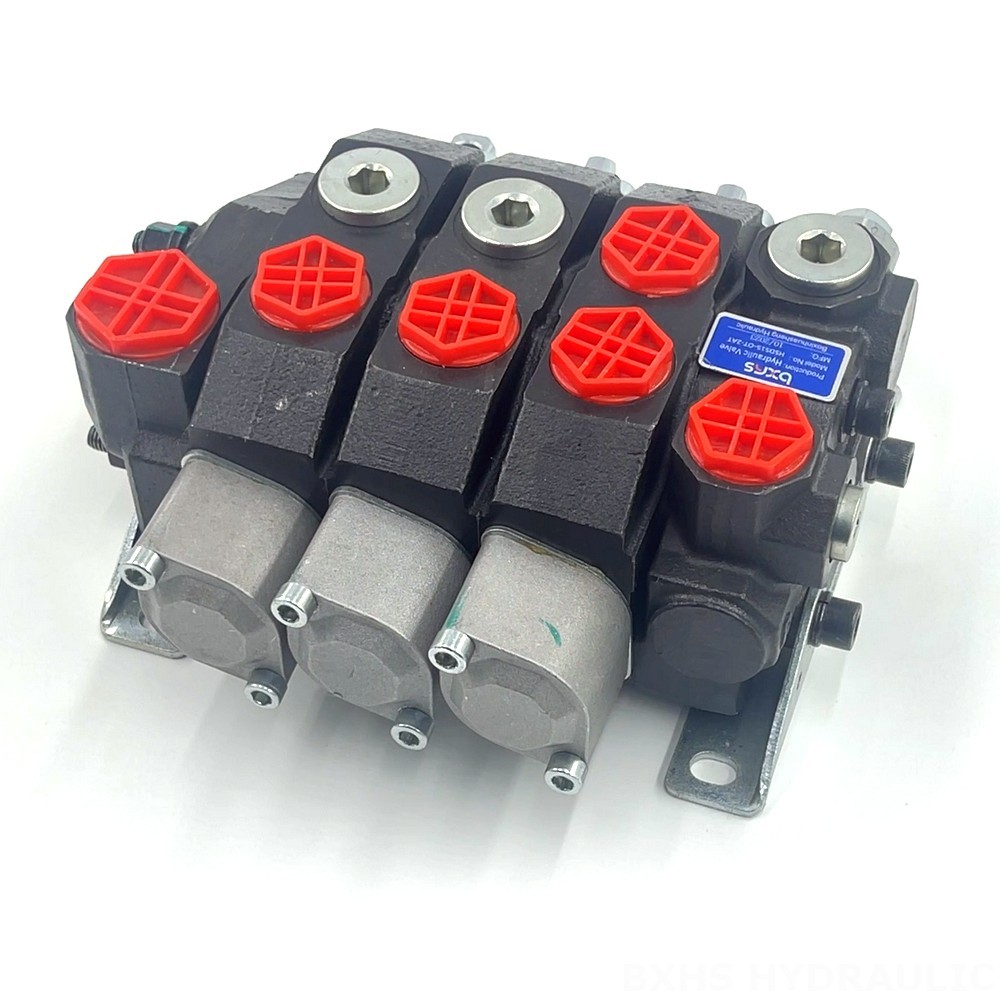

Manual 3 Spool Monoblock Valve | Hydraulic System Components & Solutions detailed image

Manual 3 Spool Monoblock Valve | Hydraulic System Components & Solutions detailed image

Manual 3 Spool Monoblock Valve | Hydraulic System Components & Solutions drawing image

The HSDS15 Series Manual 3 Spool Monoblock Valve is a reliable and versatile hydraulic component designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 60 L/min and a maximum pressure of 315 bar, ensuring efficient operation in demanding environments.

HSDS15 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

This manual 3-spool monoblock valve, belonging to the HSDS15 series, is a key component for hydraulic systems used in diverse industries. Designed as a sectional valve, it provides control for various functions within your machinery. The valve boasts a robust design with a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure of 315 bar (4600 psi), allowing it to operate efficiently even in demanding environments. Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), making it suitable for a variety of fluids. The valve is also built for durability and can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Its wide range of applications include: material handling (forklifts, telehandlers), construction and earth moving (mini-excavators, skid steer loaders, compact wheel loaders), agriculture (tractors, front-end loaders, harvesters, balers), and industrial vehicles (backhoes, sprayers).
