P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*22*12

Netweight:7.80 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
797 Views are Looking for this Product

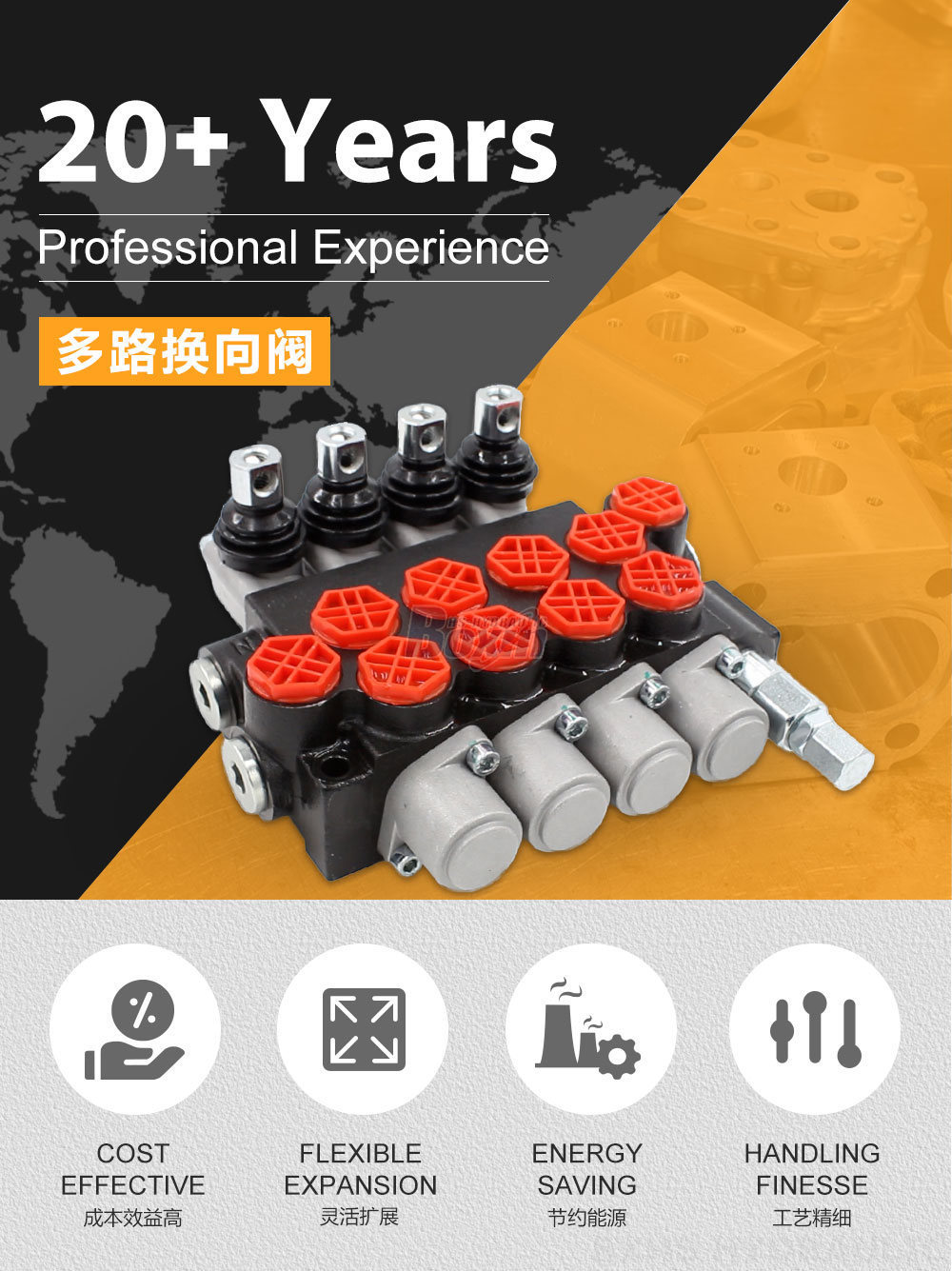

P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve detailed image

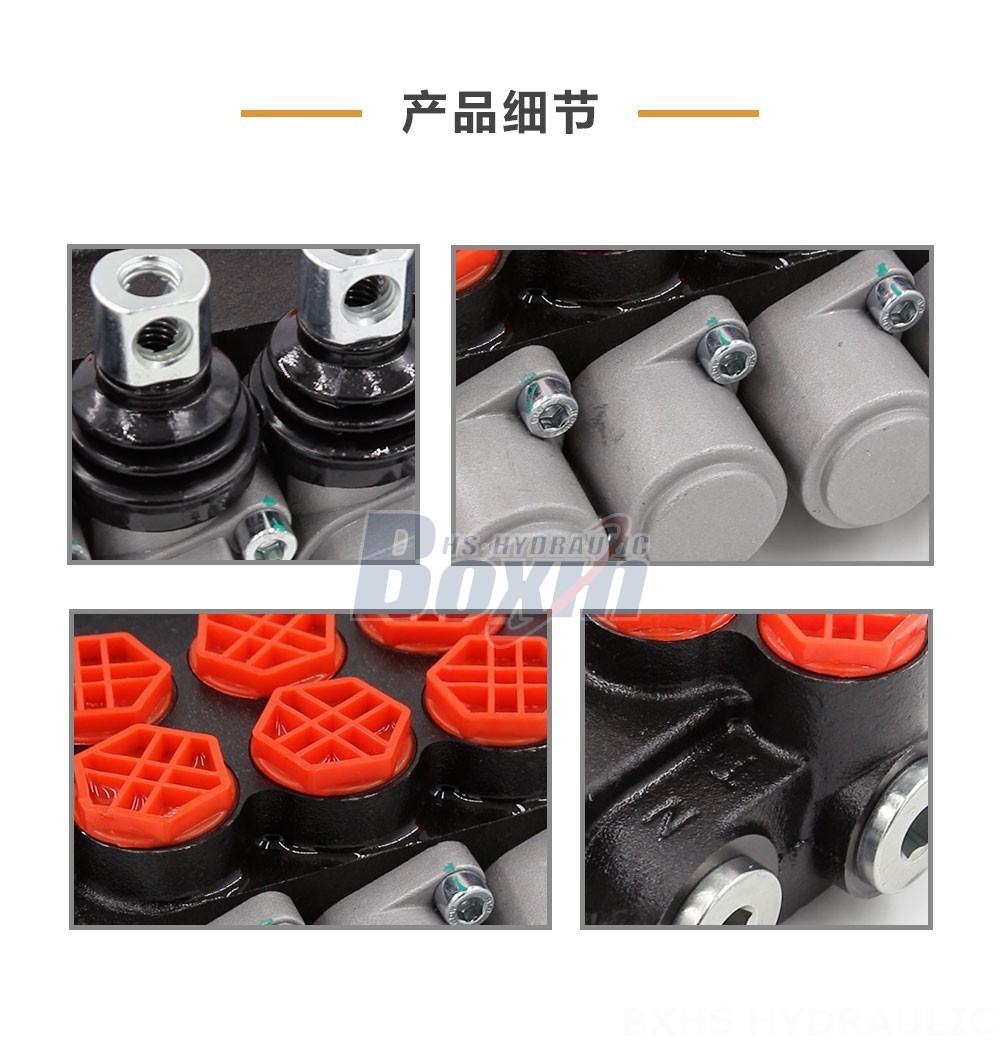

P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve detailed image

P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve drawing image

The P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve is designed for hydraulic systems requiring precise flow and pressure control. With its 40 L/min flow rate and 250 bar maximum pressure, it is suitable for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* **Manual control** provides precise and responsive operation.
* **Monoblock construction** offers a compact and durable design.
* **4 spool design** allows for simultaneous control of multiple hydraulic functions.
* **Rated flow of 40 L/min** ensures efficient system performance.
* **Maximum pressure of 250 bar** enables handling of heavy loads and demanding applications.
* **Operating viscosity range of 15 - 75 mm²/s** makes it suitable for a wide range of hydraulic fluids.
* **Ambient temperature range of -40°C to +80°C** ensures reliable operation in harsh environments.

**Applications:**

The P40-G12-G38-4OT Manual 4 Spool Monoblock Directional Valve is ideal for use in hydraulic systems of various machines and equipment, including:

* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
* Skid steer loaders
* Compact wheel loaders
* Agricultural machinery
