LKF60-WAQF Hydraulic 1 Spool Flow Control Valve

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:210 bar (3045 psi)

Vendor:BXHS

Product Type:Flow Control Valve

Product series:LKF60 Series Flow Control Valve

Productsize:12.3*12*0.48

Netweight:3.60 kg

Availability: In Stock

  • Manual
  • Hydraulic
  • 1 Spool
136 Views are Looking for this Product

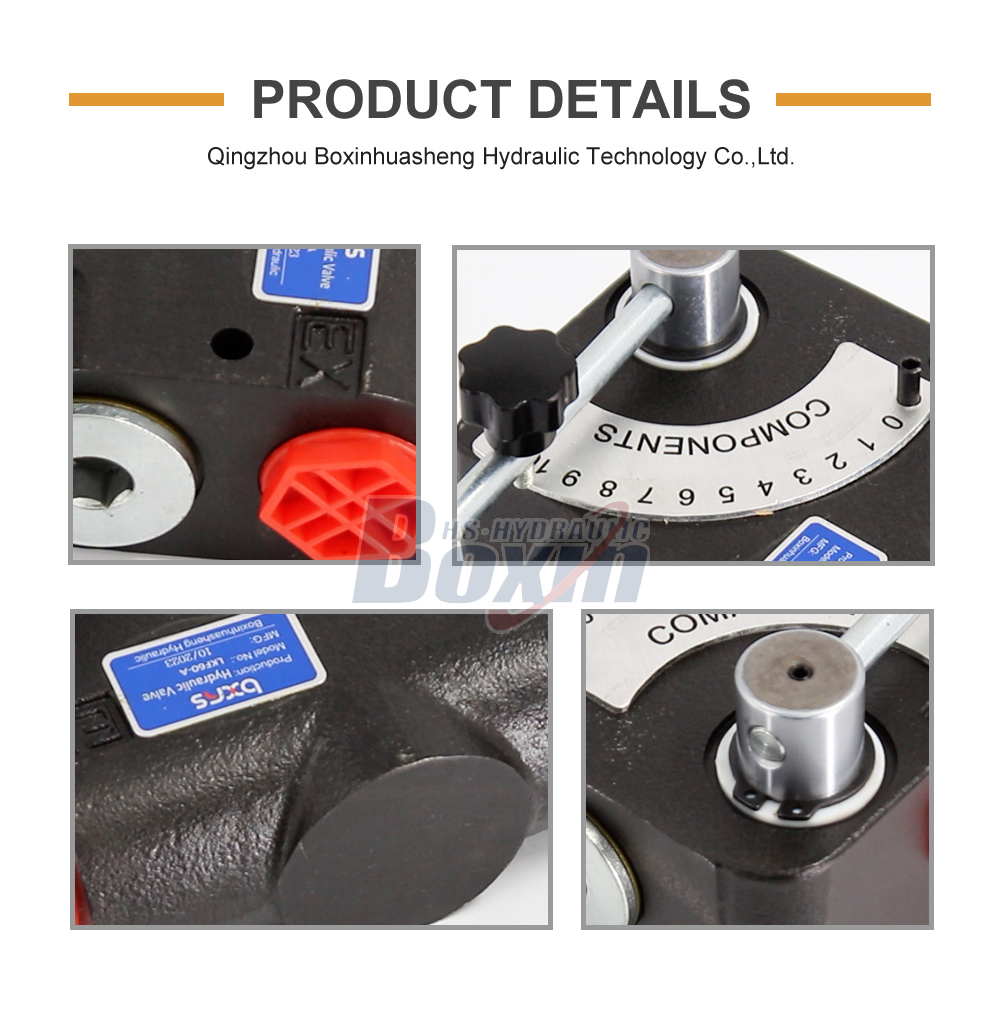

LKF60-WAQF Hydraulic 1 Spool Flow Control Valve detailed image

LKF60-WAQF Hydraulic 1 Spool Flow Control Valve detailed image

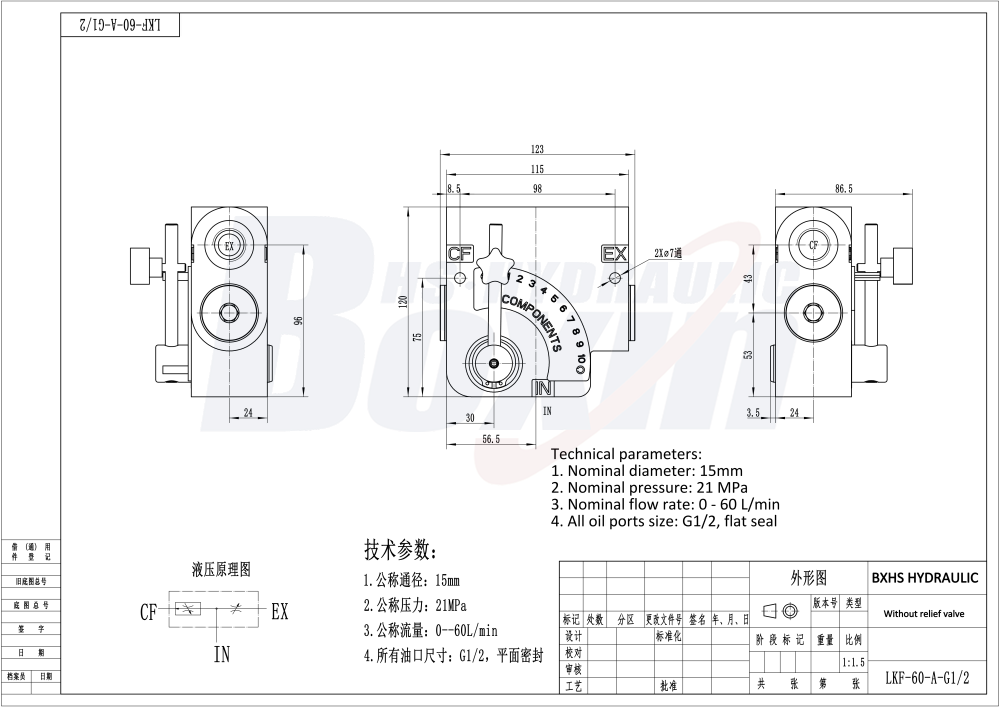

LKF60-WAQF Hydraulic 1 Spool Flow Control Valve drawing image

LKF60-WAQF is a high-precision 1-spool monoblock hydraulic flow control valve designed for constant flow output regardless of load pressure variations. It supports a rated flow of 60 L/min and pressures up to 210 bar, making it an ideal solution for systems requiring stable speed control.

LKF60 Series Flow Control Valve Parameters
Control Method Manual, Hydraulic
Spool 1 Spool
Ambient Temperature Range -20°C to +80°C (-4°F to +176°F)
Structure Type Monoblock valve
Section 1 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 210 bar (3045 psi)
Inlet Port G3/8, G3/4, G3/8, G1/2, G3/4, 1/2 NPT, 3/4 NPT
Outlet Port G3/8, G1/2, G3/4, 1/2 NPT, 3/4 NPT
Port Size G3/8, G1/2, G3/4, 1/2 NPT, 3/4 NPT, G3/8, G3/4, 1/2 NPT, 3/4 NPT

The LKF60-WAQF series is a full-range, pressure-compensated flow control valve. It is engineered to provide a constant flow to a primary circuit while diverting excess flow to a tank or another circuit, ensuring consistent actuator speed under varying loads. Key advantages include: 1. Versatile Porting: Multiple inlet/outlet options including G-thread and NPT for global compatibility. 2. Durability: Rugged monoblock construction capable of withstanding 210 bar (3045 psi) maximum pressure. 3. Wide Temperature Range: Reliable performance from -20°C to +80°C. 4. Application Versatility: Perfectly suited for agricultural machinery like wood splitters and harvesters, as well as construction equipment like skid steers. We offer comprehensive OEM, ODM, and wholesale services for global distributors and traders looking for high-quality hydraulic components.
