P40Q-OT Pneumatic 1 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:27*10*9

Netweight:3.30 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
  • Manual and Joystick
  • Solenoid and Cable
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
114 Views are Looking for this Product

P40Q-OT Pneumatic 1 Spool Monoblock Directional Valve detailed image

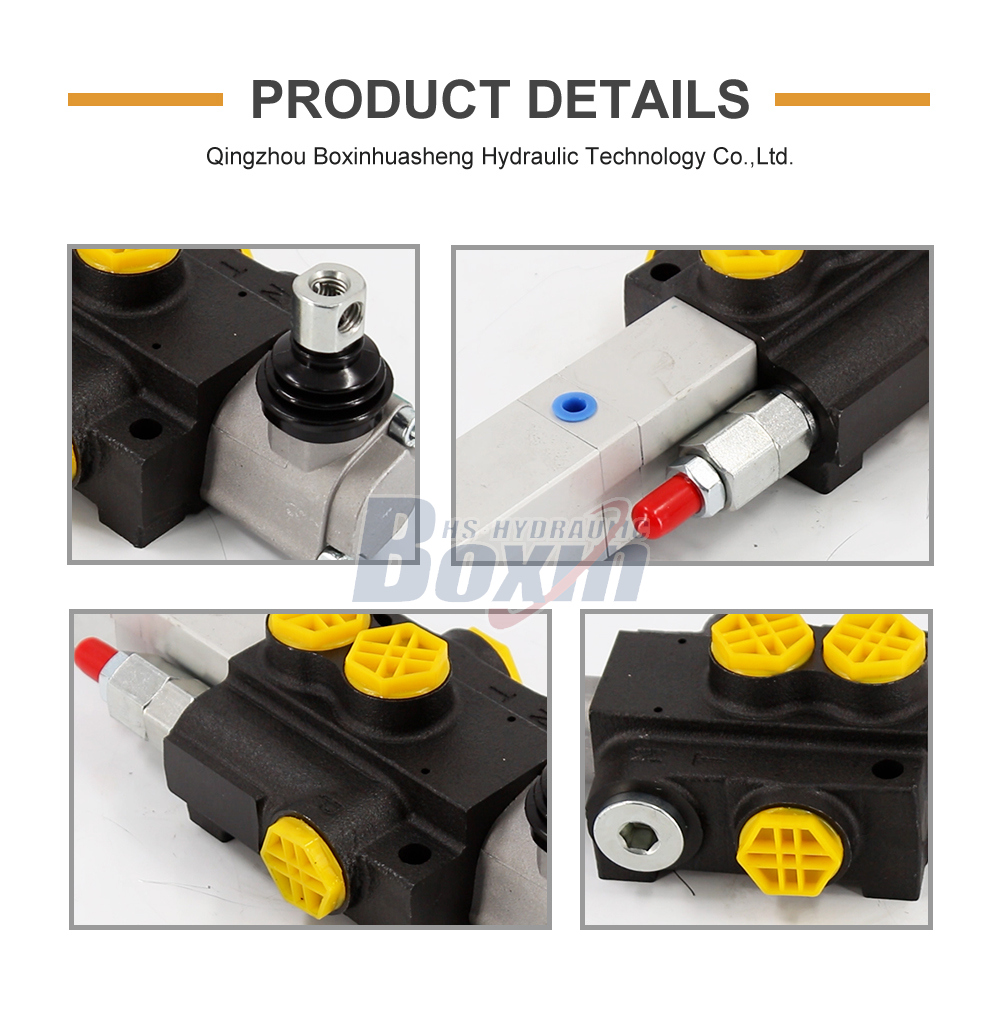

P40Q-OT Pneumatic 1 Spool Monoblock Directional Valve detailed image

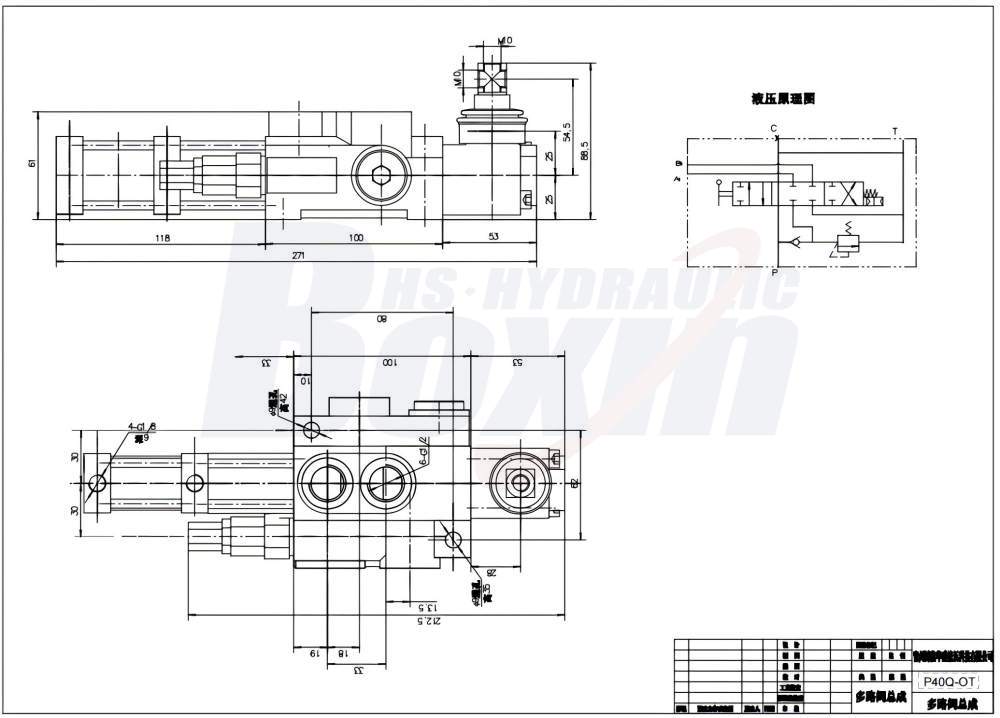

P40Q-OT Pneumatic 1 Spool Monoblock Directional Valve drawing image

The P40Q-OT is a high-performance 1-spool pneumatic monoblock directional valve, engineered for precision control in hydraulic systems. Rated at 40 L/min with a 250 bar pressure capacity, it offers exceptional durability in extreme temperatures ranging from -40°C to +80°C.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick, Solenoid and Cable
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40Q-OT Pneumatic Directional Valve is designed for reliable flow regulation in demanding environments. Key features include: 1. Pneumatic Control: Offers smooth, remote operation for improved operator ergonomics and safety. 2. Robust Construction: High-strength monoblock casting ensures long service life and resistance to high-pressure spikes. 3. Versatile Port Options: Available in multiple thread standards including NPT, G-thread, SAE, and Metric connections to suit various global hydraulic requirements. 4. Wide Operating Range: Maintains consistent performance across industrial, agricultural, and construction sectors, handling diverse fluids within a viscosity range of 15-75 mm²/s. Ideal for OEM manufacturing, retrofitting machinery, and custom hydraulic solutions, this valve provides flexible and efficient fluid power management for heavy equipment, loaders, and material handling systems.
