P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump

Rated Pressure:25 MPa (3625 psi)

Max Pressure:30 MPa (4351 psi)

Vendor:BXHS

Product Type:Hydraulic Piston Pump

Product Series:P Series Hydraulic Piston Pump

Productsize:27*15*16

Netweight:20.00 kg

Availability: In Stock

  • 40 cc/rev
  • 63 cc/rev
  • 80 cc/rev
144 Views are Looking for this Product

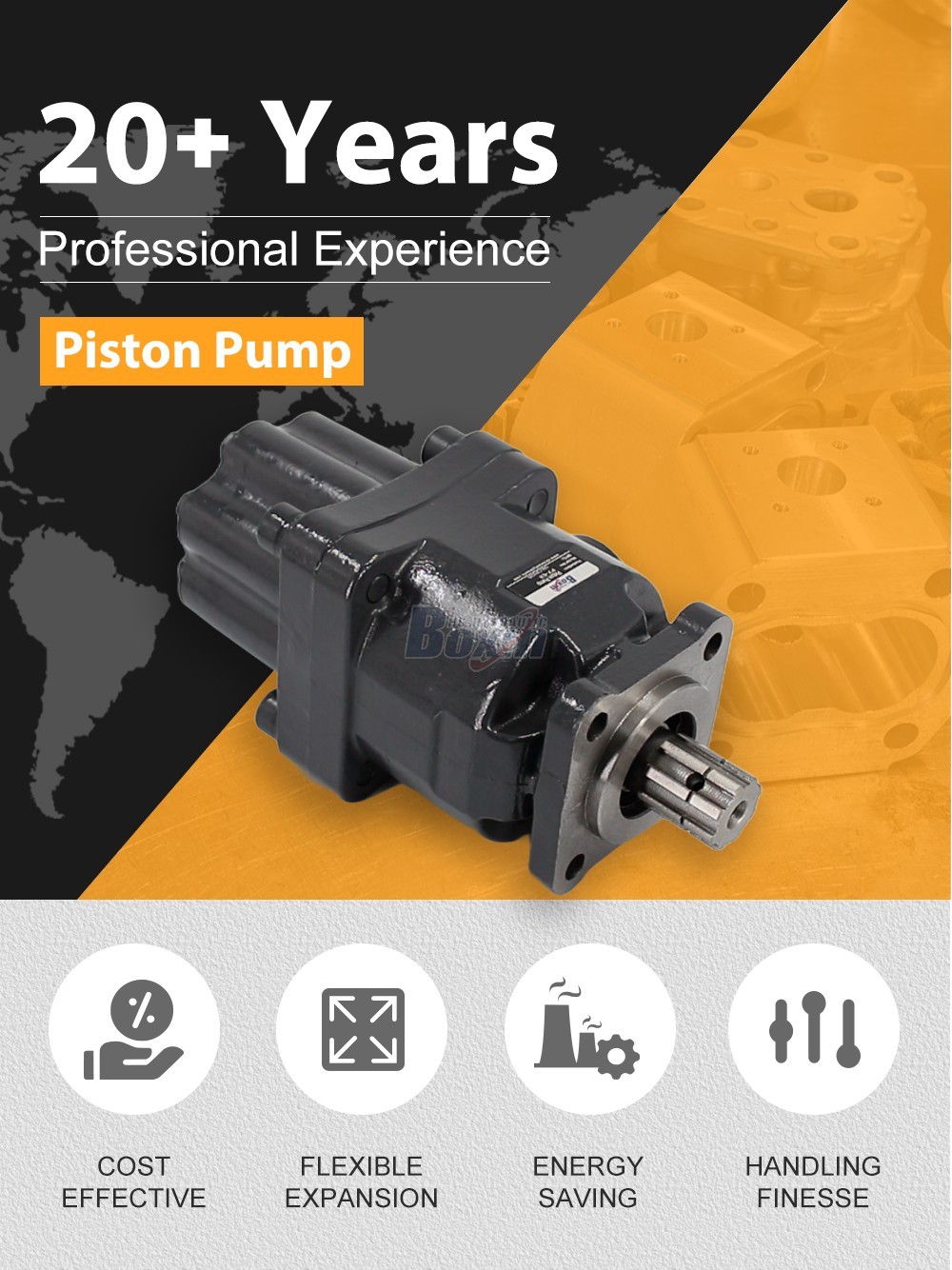

P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump detailed image

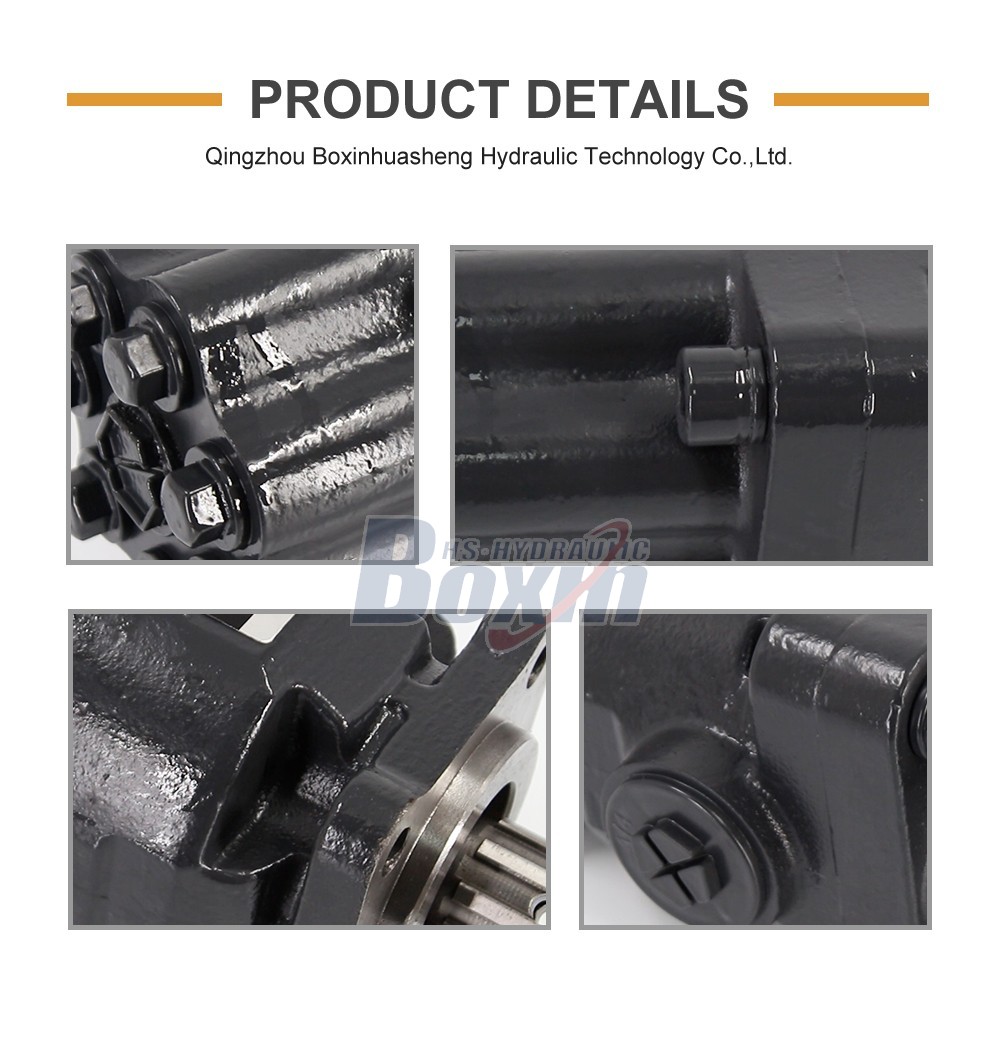

P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump detailed image

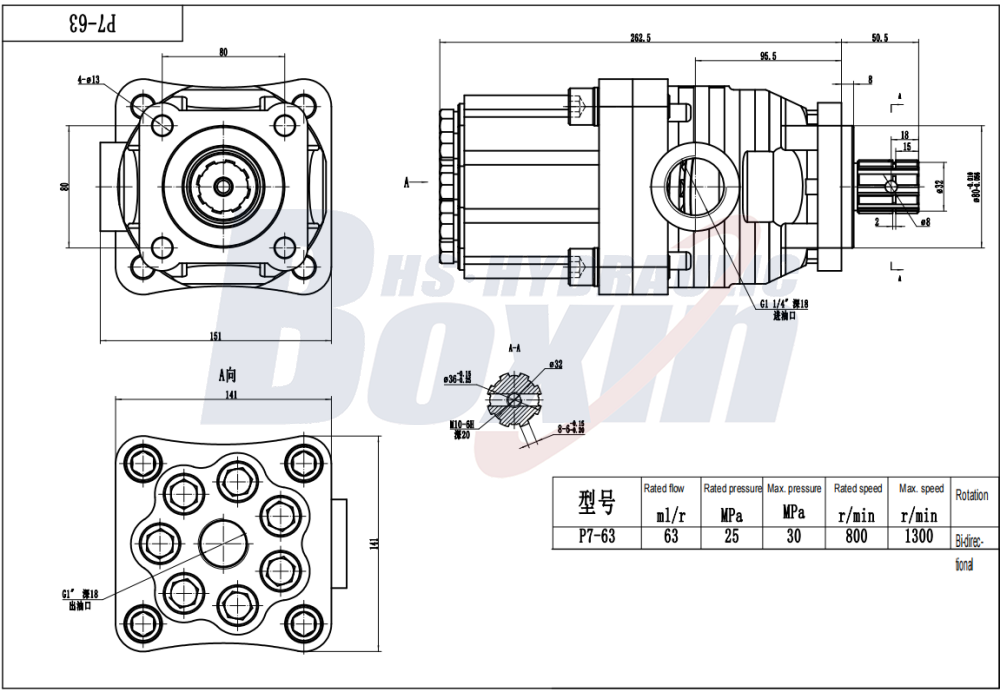

P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump drawing image

High-performance P7-63-GRAY series hydraulic piston pump with 63 cc/rev displacement, featuring robust cast iron construction and bidirectional rotation capability. Designed for high-pressure operations up to 30 MPa, it supports both ISO and UNI mounting standards.

P Series Hydraulic Piston Pump Parameters
Displacement 40 cc/rev, 63 cc/rev, 80 cc/rev
Rated Pressure 25 MPa (3625 psi)
Max Pressure 30 MPa (4351 psi)
Rated Speed 800 r/min
Max Speed 1300 r/min
Rotation /: (Bidirectional)
Structure External Gear Pump, Internal Gear Pump
Material Cast Iron
Flange Version ISO-4 Mounting Holes, UNI-3 Mounting Holes
Shaft Type H: Rectangle Spline

The P7-63-GRAY is a heavy-duty 63 cc/rev hydraulic pump engineered for demanding industrial and mobile applications. Constructed from high-strength cast iron, it ensures durability and long service life under high-pressure conditions (Rated 25 MPa / Max 30 MPa). Key Features: 1. Versatile Design: Supports both Internal and External gear structures with bidirectional rotation, providing maximum installation flexibility. 2. Multiple Mounting Options: Compatible with ISO-4 and UNI-3 flange standards for easy integration into various hydraulic systems. 3. High Torque Efficiency: Features a rectangle spline shaft (Type H) for secure power transmission. 4. Application Excellence: Ideal for construction machinery (Excavators, Loaders), agricultural equipment (Tractors, Harvesters), and industrial vehicles (Waste Compactors, Cranes). As a leading manufacturer, we offer comprehensive OEM, ODM, and customization services to meet global distributor and wholesaler requirements.

P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump application image

P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump packing image

P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump company image

P7-63-GRAY 63 cc/rev 25 MPa (3625 psi) Hydraulic Piston Pump certification image
