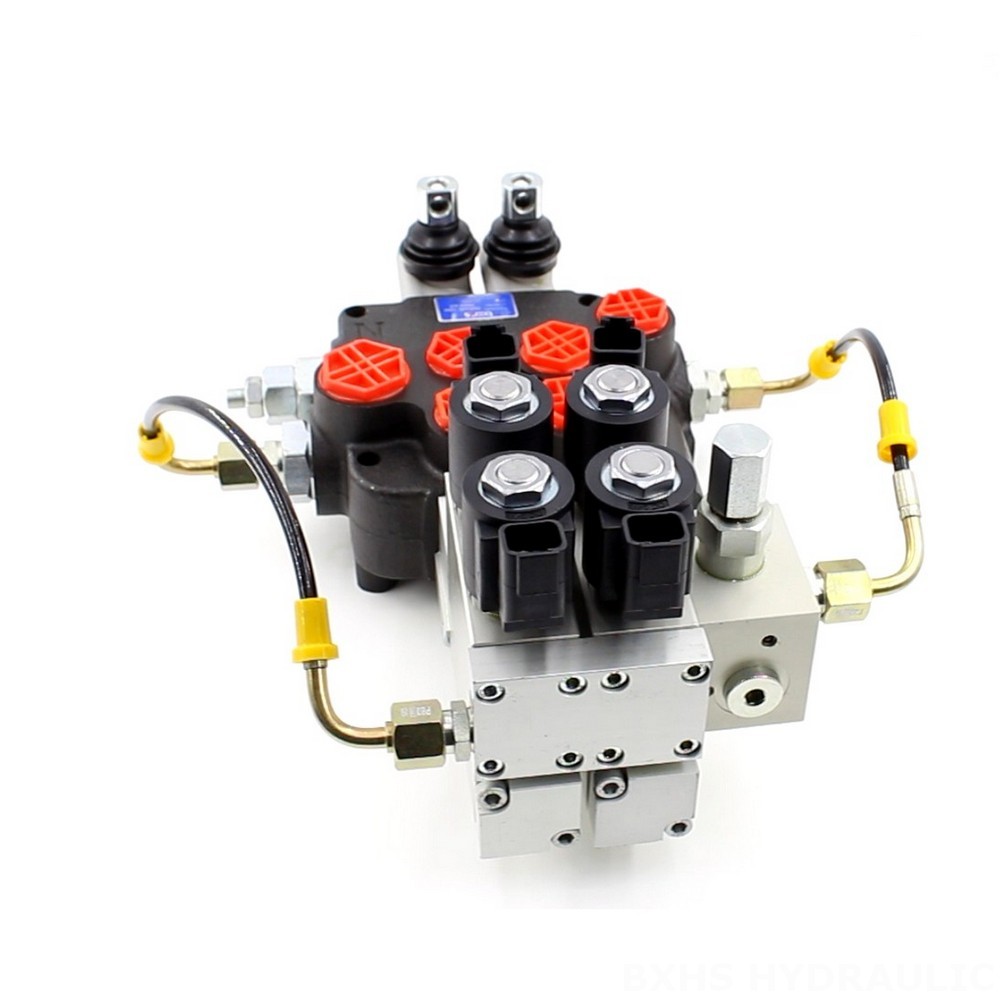

The P80 Electro-hydraulic 2 Spool Monoblock Directional Valve is a robust and reliable solution for hydraulic system control in various applications. It offers precise flow control with a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for demanding hydraulic systems. Its compact monoblock design ensures durability and simplified installation.
P80 Series Monoblock Directional Valve Parameters | |
---|---|
Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick |
Port Size | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
Max Pressure | 315 bar (4600 psi) |
Rated Flow | 80 L/min (21.2 US gpm) |
Structure Type | Monoblock valve |
Inlet Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
**Product Features and Benefits:**
* Electro-hydraulic control for precise and responsive flow regulation
* 2 Spool design for independent control of two hydraulic circuits
* Monoblock construction for compact design and leak-free operation
* High flow capacity (80 L/min) and pressure rating (250 bar) for demanding applications
* Wide operating temperature range (-40°C to +80°C) for harsh environments
**Applications:**
The P80 Electro-hydraulic 2 Spool Monoblock Directional Valve finds applications in various industries, including:
* Material Handling: Forklifts, Telehandlers, Stackers
* Construction and Earth Moving: Excavators, Loaders, Cranes
* Agriculture: Tractors, Harvesters, Balers
* Industrial Vehicles: Sweepers, Waste Compactors, Hook-Loaders
