P80-G12-G34 Manual 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*10.5*8

Netweight:7.80 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
716 Views are Looking for this Product

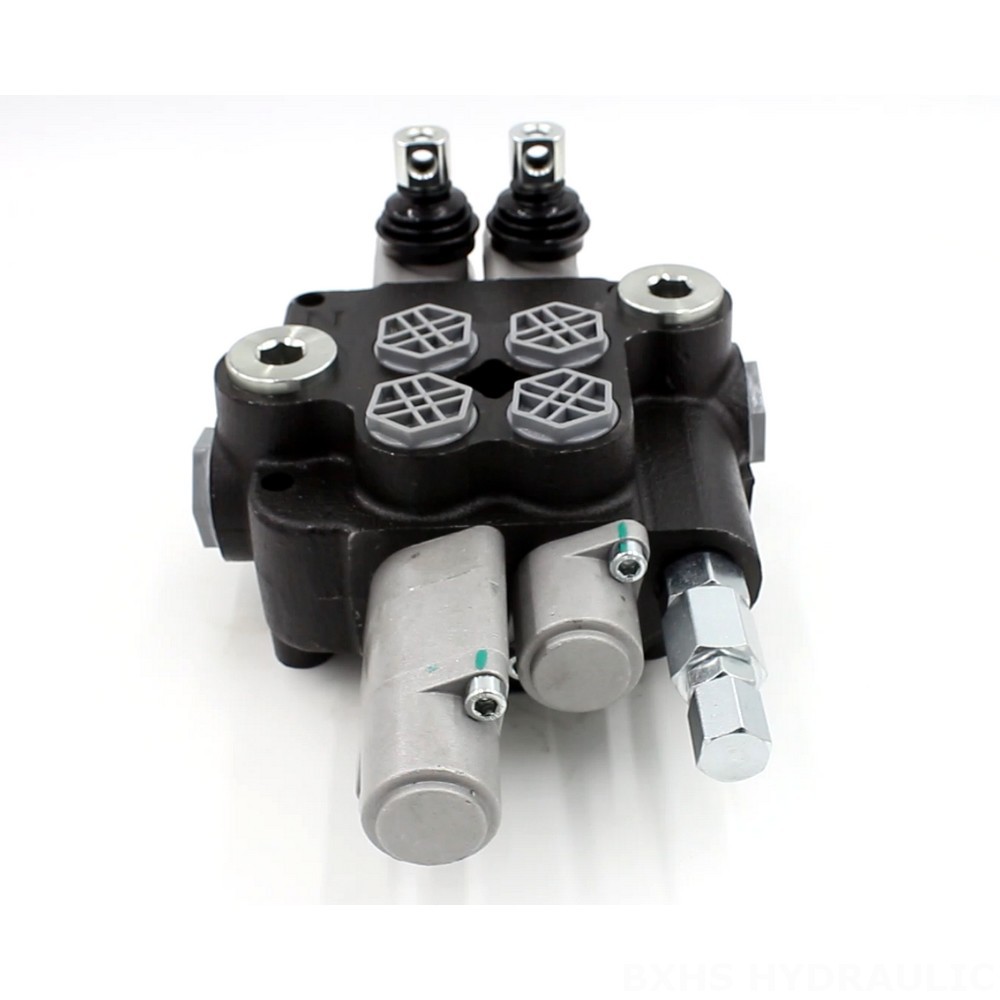

P80-G12-G34 Manual 2 Spool Monoblock Directional Valve detailed image

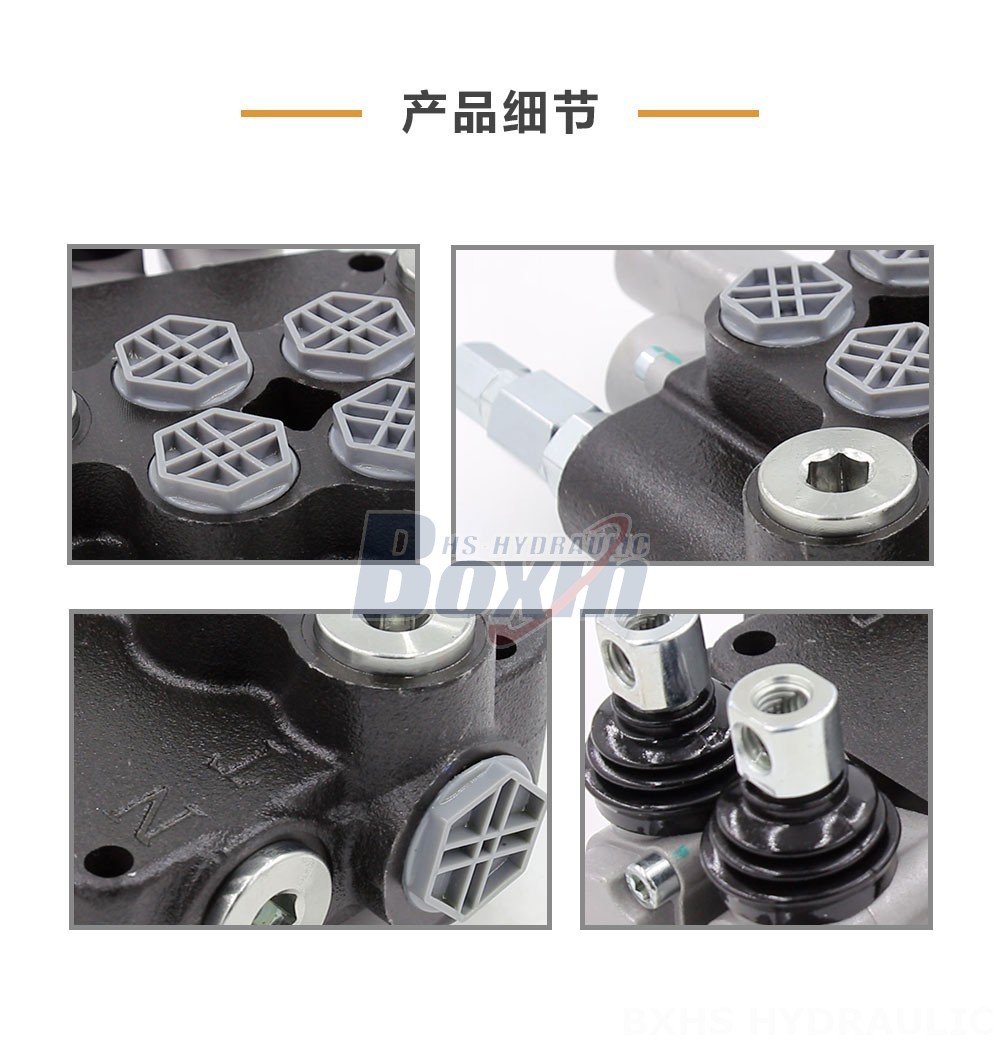

P80-G12-G34 Manual 2 Spool Monoblock Directional Valve detailed image

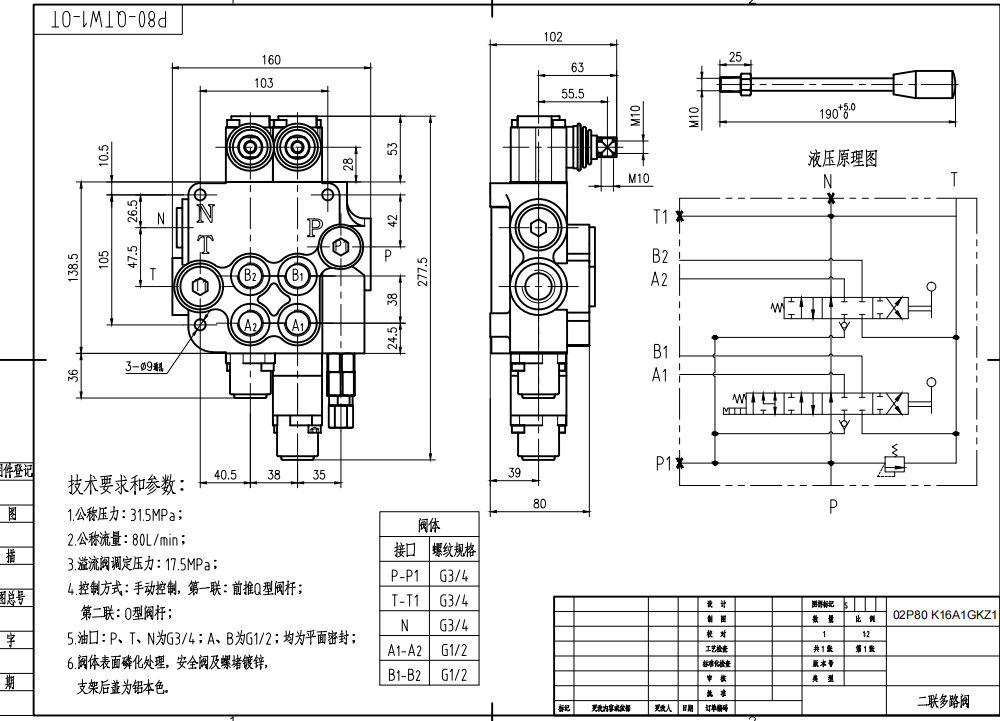

P80-G12-G34 Manual 2 Spool Monoblock Directional Valve drawing image

P80-G12-G34 Manual 2 Spool Monoblock Directional Valve is a hydraulic valve designed for controlling the direction of fluid flow in hydraulic systems. It features manual control, 2 spool design, 80 L/min rated flow, 250 bar max pressure, and operating viscosity range of 15 - 75 mm²/s. The valve operates within an ambient temperature range of -40°C to +80°C. Its compact monoblock design makes it suitable for applications where space is a constraint.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Inlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**
- Manual control for precise flow direction adjustment
- 2 spool design allows for independent control of two fluid paths
- Rated flow of 80 L/min ensures efficient fluid transfer
- Maximum pressure of 250 bar handles high-pressure applications
- Operating viscosity range of 15 - 75 mm²/s accommodates various fluid types
- Wide ambient temperature range of -40°C to +80°C for reliable operation in extreme conditions
- Compact monoblock design saves space and simplifies installation

**Applications:**
- Material Handling Equipment
- Construction and Earth Moving Machinery
- Agricultural Vehicles
- Industrial Vehicles
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
