PDF12-00-10 Manual 1 Spool Hydraulic Control Valve

Rated Flow:15 L/min (3.9 US gpm)

Max Pressure:10 MPa (1450 psi)

Vendor:BXHS

Product Type:Hydraulic Control Valve

Product Series:PDF Series Hydraulic Control Valve

Productsize:23.7*12.2*39

Netweight:2.50 kg

Availability: In Stock

  • Manual
  • 1 Spool
149 Views are Looking for this Product

PDF12-00-10 Manual 1 Spool Hydraulic Control Valve detailed image

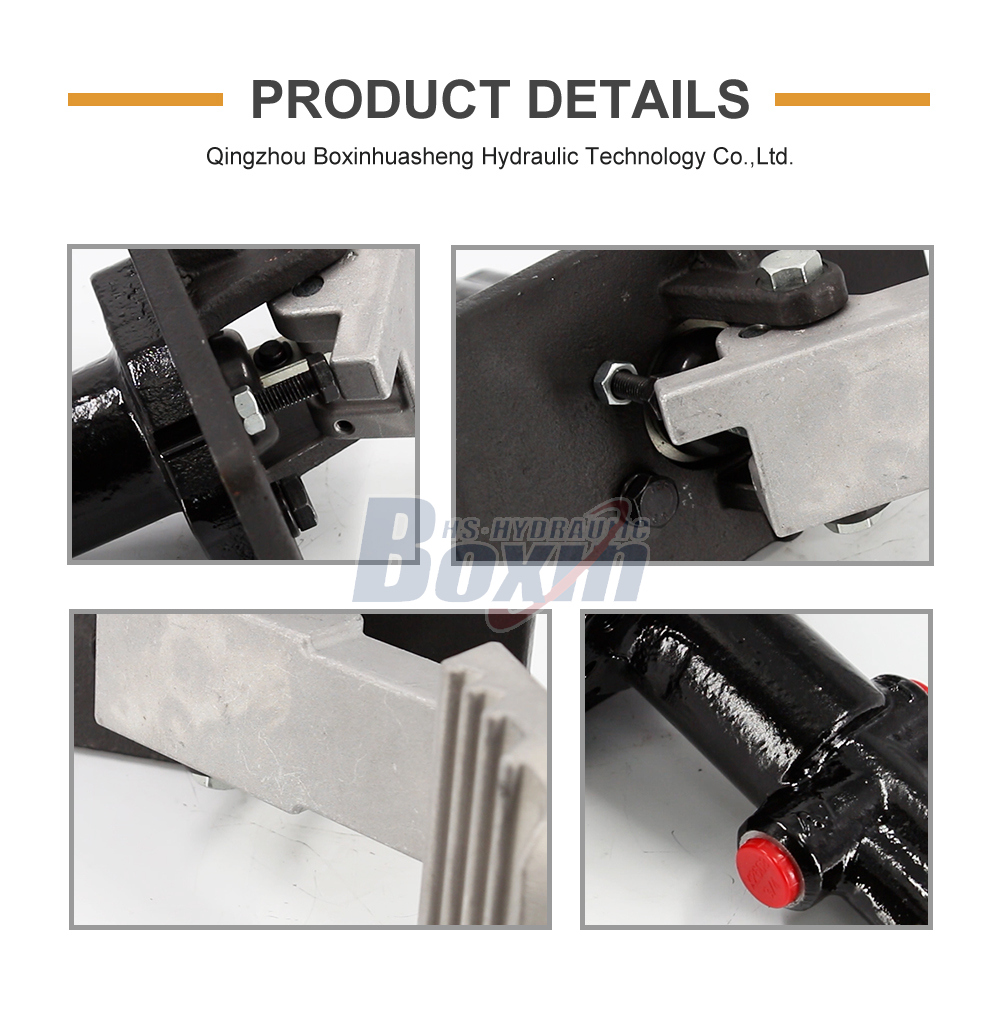

PDF12-00-10 Manual 1 Spool Hydraulic Control Valve detailed image

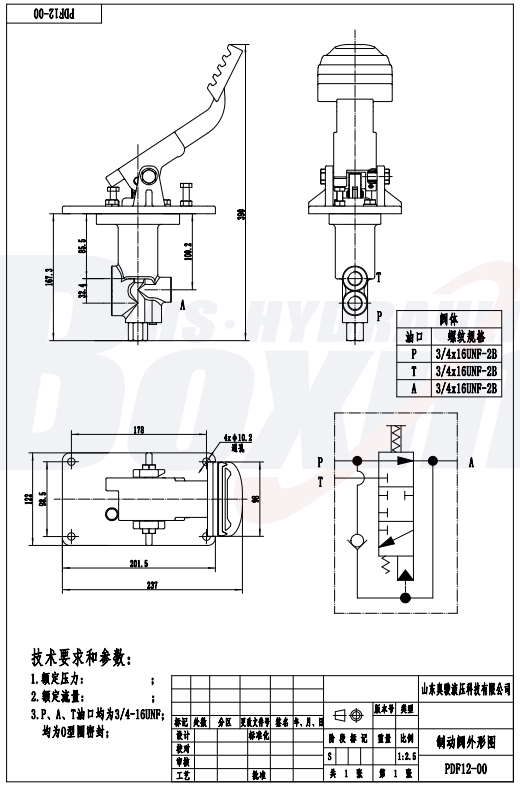

PDF12-00-10 Manual 1 Spool Hydraulic Control Valve drawing image

The PDF12-00-10 is a high-performance 1-spool monoblock hydraulic control valve designed for precise control in compact mobile applications. Featuring a rated flow of 15 L/min and maximum pressure of 10 MPa, it offers exceptional reliability across extreme temperature ranges from -40°C to +80°C.

PDF Series Hydraulic Control Valve Parameters
Control Method Manual
Spool 1 Spool
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F), -40°C to +80°C (-40°F to +176°F), -20°C to +80°C (-4°F to +176°F)
Structure Type Monoblock valve
Section 1 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt), 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 15 L/min (3.9 US gpm)
Max Pressure 10 MPa (1450 psi)
Inlet Port 3/4-16 UNF
Outlet Port 3/4-16 UNF
Port Size 3/4-16 UNF

The PDF12-00-10 Hydraulic Control Valve is engineered for efficiency and durability in demanding environments. Key features include a robust monoblock structure for leak-free operation, manual spool control for intuitive handling, and versatile 3/4-16 UNF ports for standard hydraulic integration. It excels in diverse operating conditions, maintaining consistent viscosity and performance even in harsh cold or hot climates. This valve is the ideal solution for Original Equipment Manufacturers (OEMs) and distributors seeking a reliable, compact control mechanism for agricultural machinery, construction equipment, and material handling vehicles. Our manufacturing facility supports complete customization, private labeling, and wholesale distribution to meet the specific technical requirements of your market.
