Professional Production SD8 Pneumatic 2 Spool Sectional Control Valve

Control Method:Pneumatic

Spool:2 Spool

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:7/8-14 UNF

Outlet Port:7/8-14 UNF

Port Size:7/8-14 UNF

Vendor:BXHS

Product Type:Sectional Directional Valve

Product series:SD8 Series Sectional Directional Valve

Packagingsize:34*24*15.5

Grossweight:12.50 kg

Availability: In Stock

74 Views are Looking for this Product

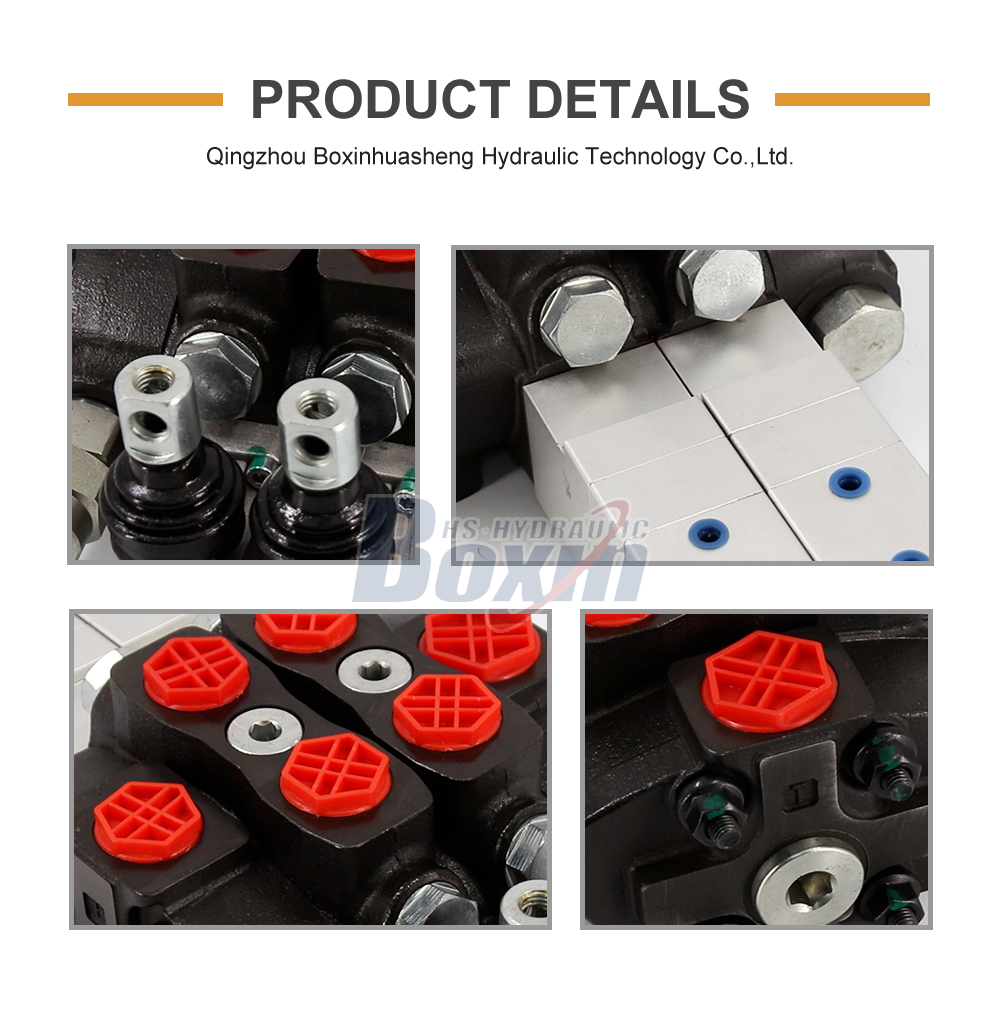

Professional Production SD8 Pneumatic 2 Spool Sectional Control Valve detailed image

Professional Production SD8 Pneumatic 2 Spool Sectional Control Valve detailed image

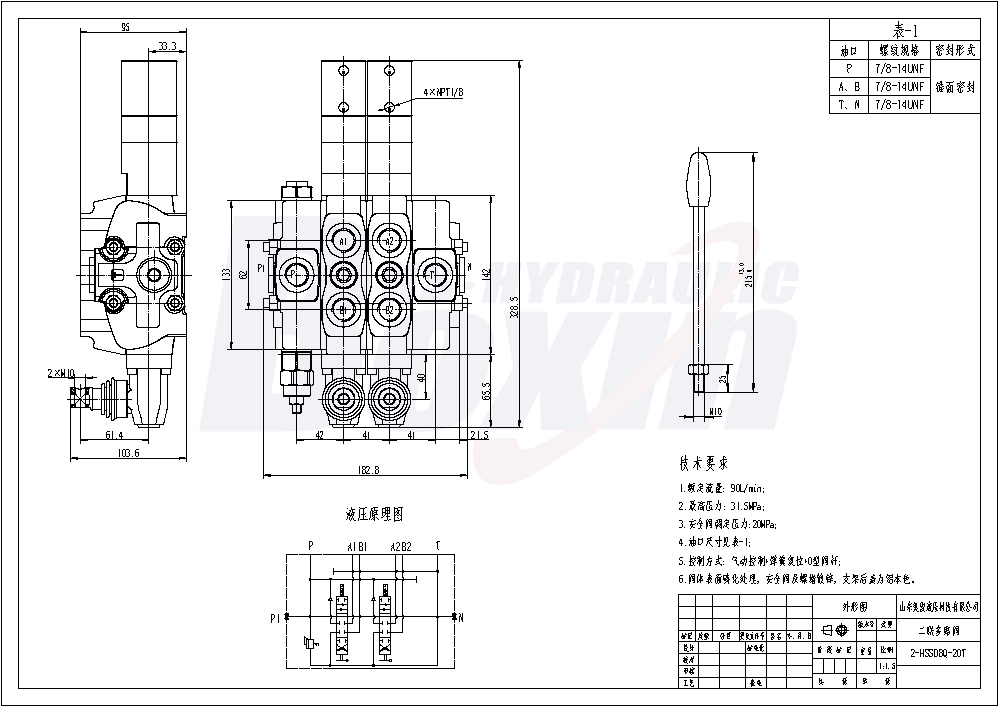

Professional Production SD8 Pneumatic 2 Spool Sectional Control Valve drawing image

The SD8 Series Pneumatic 2 Spool Sectional Control Valve is a versatile hydraulic solution designed for high-pressure applications up to 350 bar with a rated flow of 80 L/min. Engineered for durability and precision, this pneumatic-actuated valve is ideal for material handling, construction, and agricultural machinery, providing reliable performance in demanding environments.

SD8 Series Sectional Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Sectional valve
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Rated Flow 90 L/min (23.8 US gpm)
Max Pressure 315 bar (4600 psi)

As a leading large-scale hydraulic manufacturer, we offer the professional SD8 Series Pneumatic Sectional Control Valve, featuring a 2-spool configuration and robust G1/2 inlet/outlet ports. This valve is designed for heavy-duty applications including mini-excavators, wheel loaders, and tractors. We provide comprehensive manufacturing services such as OEM, ODM, and customized branding to meet specific technical requirements. Our factory supports bulk wholesale orders and is actively seeking global partners, including distributors, wholesalers, regional agents, and international traders. By choosing our factory-direct supply, you benefit from consistent quality, competitive wholesale pricing, and a stable supply chain. Whether for waste compactors or wood splitters, our SD8 pneumatic valves deliver superior flow control and hydraulic efficiency across diverse industrial vehicle sectors.
