SD11 Manual 1 Spool Monoblock Directional Valve

Rated Flow:70 L/min (18.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD11 Series Monoblock Directional Valve

Productsize:26*15*11

Netweight:6.40 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Electric
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
538 Views are Looking for this Product

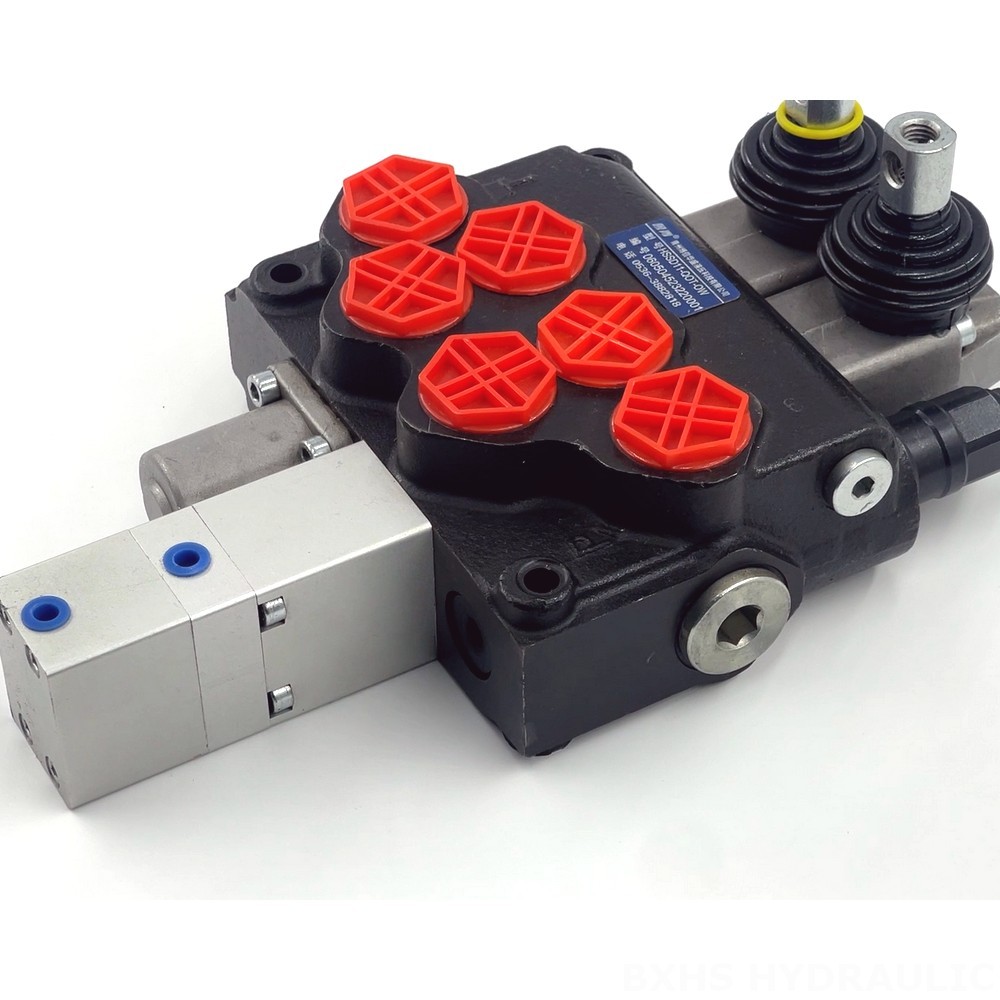

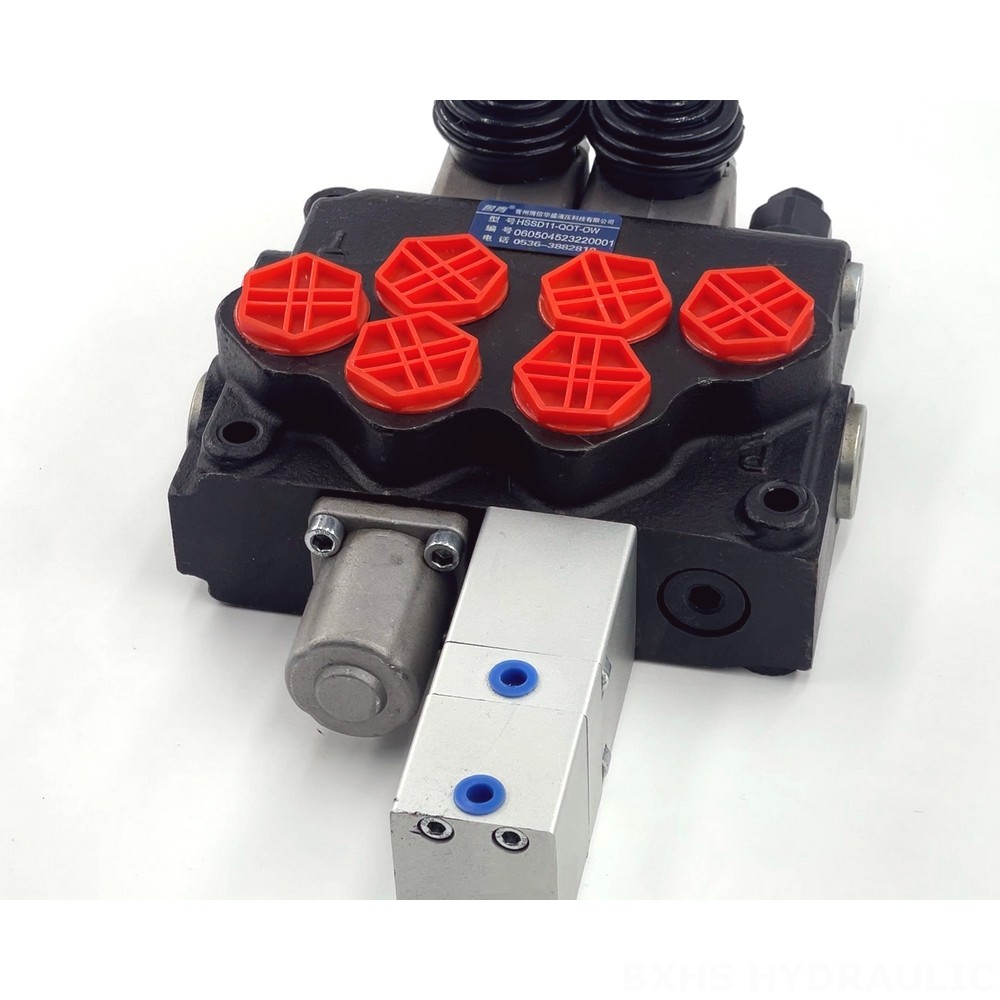

SD11 Manual 1 Spool Monoblock Directional Valve detailed image

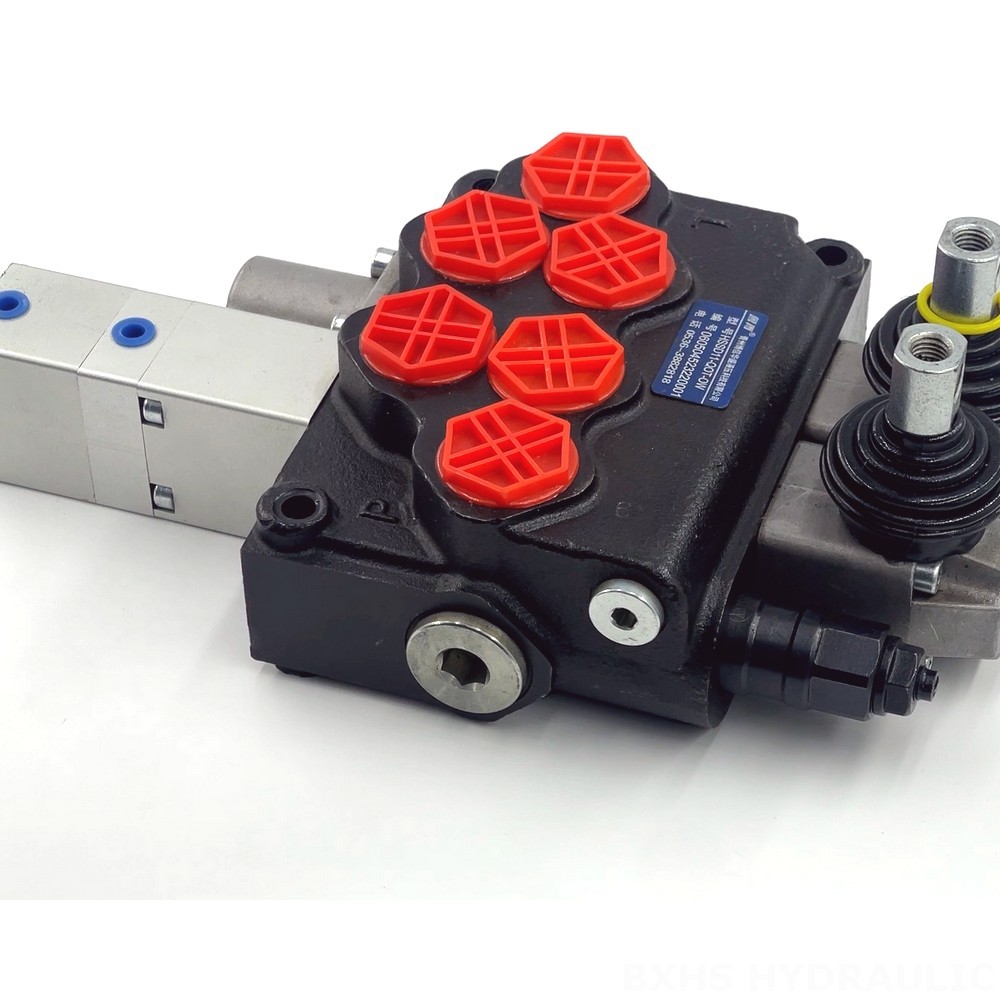

SD11 Manual 1 Spool Monoblock Directional Valve detailed image

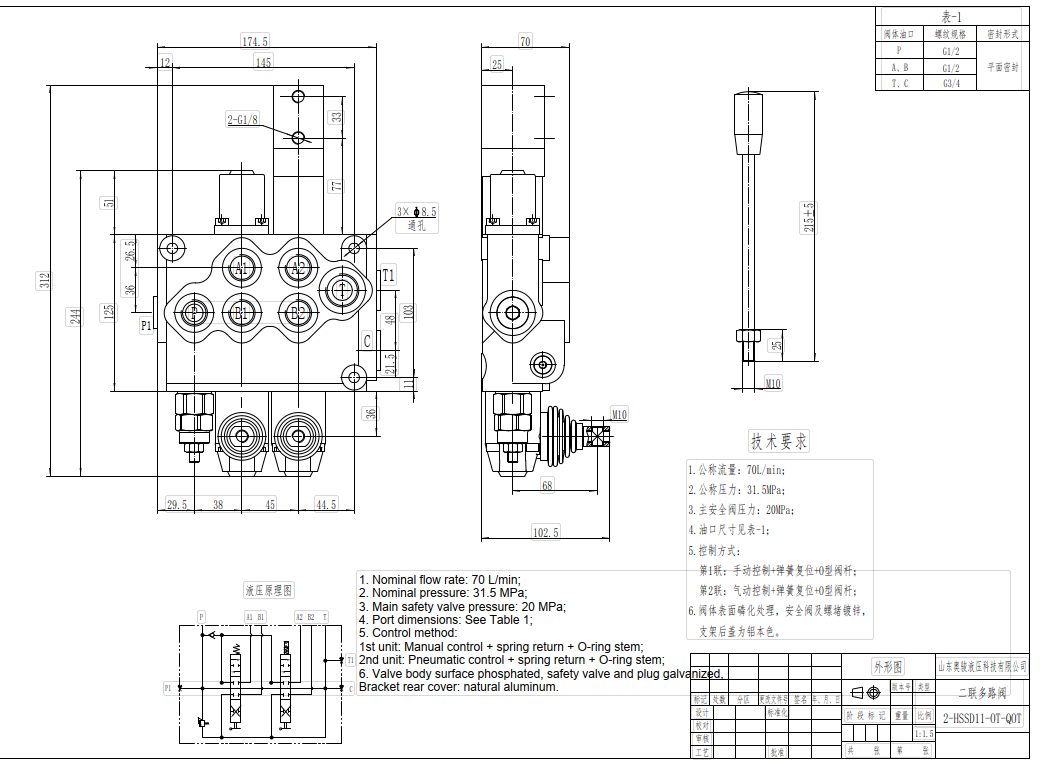

SD11 Manual 1 Spool Monoblock Directional Valve drawing image

SD11 Manual 1 Spool Monoblock Directional Valve is designed for a wide range of hydraulic applications. With a rated flow of 70 L/min (18.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve can handle demanding operating conditions. Its compact monoblock design provides a space-saving solution, while the manual control offers precise and responsive operation.

Section 1 Section,2 Section,3 Section,4 Section,5 Section
Structure Type Monoblock valve
Control Method Manual
Rated Flow 70 L/min (18.5 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)

**Product Features and Benefits:**

* Manual control for precise and responsive operation
* Monoblock design for a space-saving solution
* Rated flow of 70 L/min (18.5 US gpm) for efficient performance
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for versatility
* Ambient temperature range of -40°C to +60°C (-40°F to +140°F) for extreme conditions

**Applications:**

* Material handling equipment
* Construction and earth moving machinery
* Agricultural equipment
* Industrial vehicles
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
* Backhoe loaders
* Dump trucks
* Face drill rigs
* Concrete boom pumps
* Pave rollers
* Rotary drilling rigs
* Crushers and stone cutters
* Screeners
* Tractors with front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
* Forestry trailers
* Sprayers
* Balers
* Wood splitters
* Skip loaders
* Hook-loaders
* Waste compactors
* Sweepers
