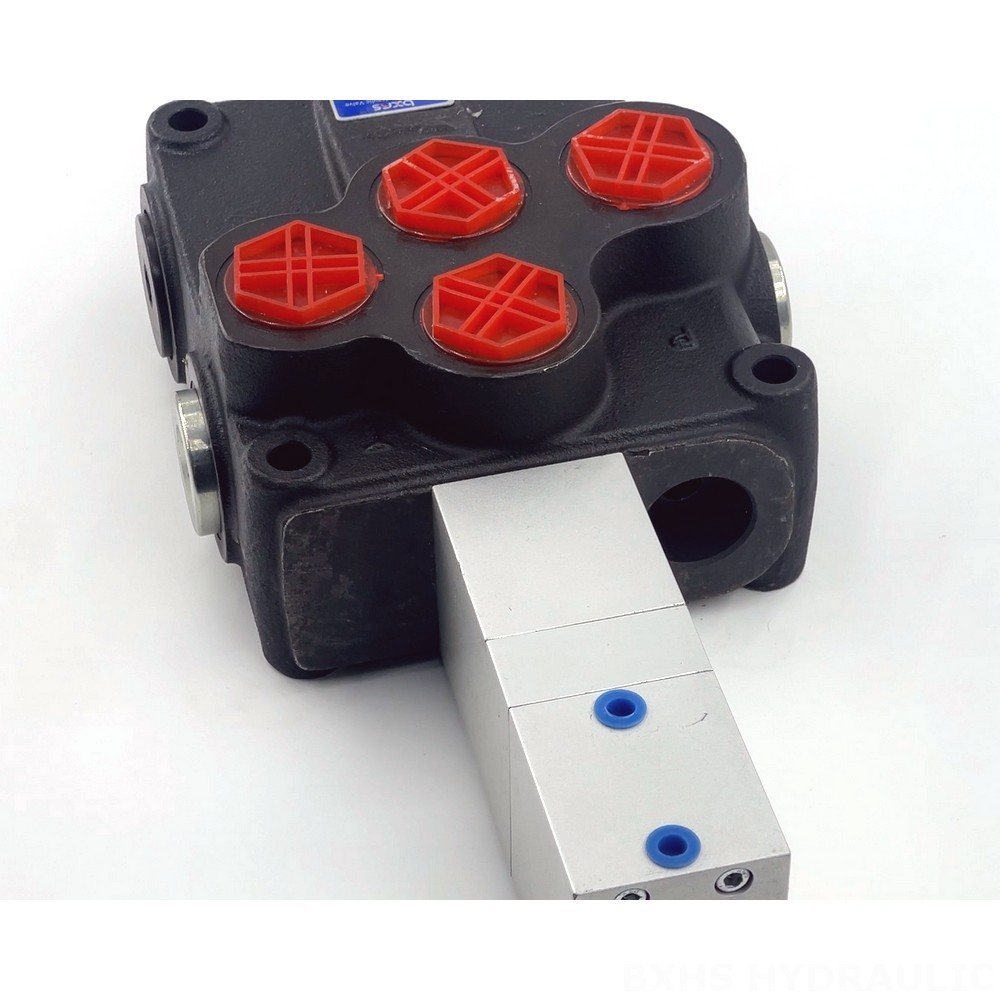

The SD18 Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It offers precise control of fluid flow and is constructed from high-quality materials for long-lasting durability.
| Section | 1 Section,2 Section,3 Section,4 Section |
|---|---|
| Structure Type | Monoblock valve |
| Rated Flow | 160 L/min (42.2 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Operating Viscosity Range | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
**SD18 Pneumatic Directional Control Valve: Technical Specifications**
**Control Method:** Pneumatic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:**-40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD18 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
