Monoblock Valve Solenoid Operated Valve | SD5 Series | Specifications and Technical Data

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Productsize:29*20*11

Netweight:7.50 kg

Availability: In Stock

Description

Monoblock Valve Solenoid Operated Valve | SD5 Series | Specifications and Technical Data detailed image

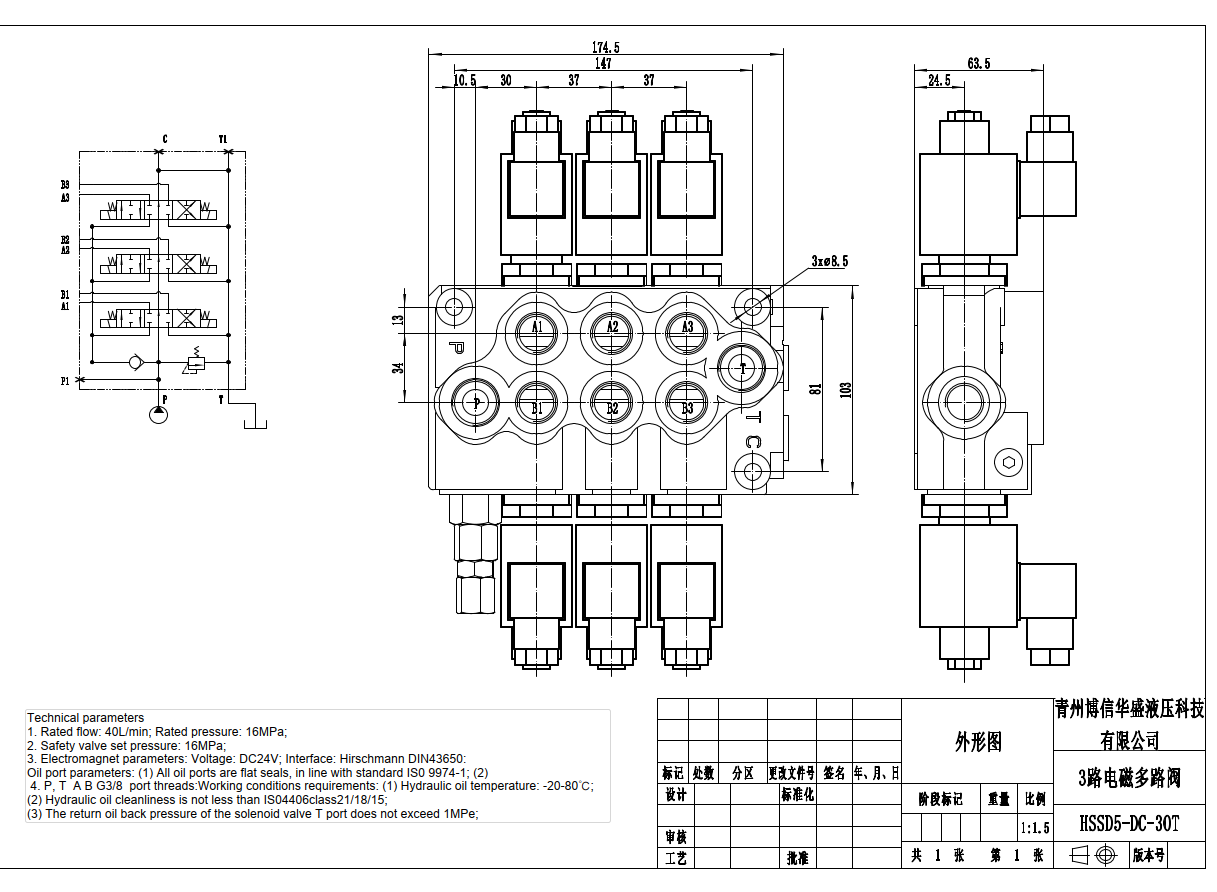

Monoblock Valve Solenoid Operated Valve | SD5 Series | Specifications and Technical Data drawing image

The SD5 Series Monoblock Valve is a solenoid operated hydraulic valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. It features a compact design, high flow rate, and robust construction, making it ideal for demanding environments.

Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	315 bar (4600 psi)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range	-40°C to +60°C (-40°F to +140°F)

The SD5 Series Monoblock Valve is a 3-section, 3-spool valve with a rated flow of 40 L/min and a maximum pressure of 305 bar. It is designed for use with hydraulic fluids with a viscosity range of 15-75 mm²/s and can operate in ambient temperatures ranging from -40°C to +60°C. This valve is suitable for applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The SD5 Series Monoblock Valve is a reliable and durable solution for your hydraulic system needs.
