SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve

Rated Flow:90 L/min (23.8 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:SD8 Series Sectional Directional Valve

Productsize:26*31*13.1

Netweight:18.00 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
  • Manual and Joystick
973 Views are Looking for this Product

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve detailed image

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve detailed image

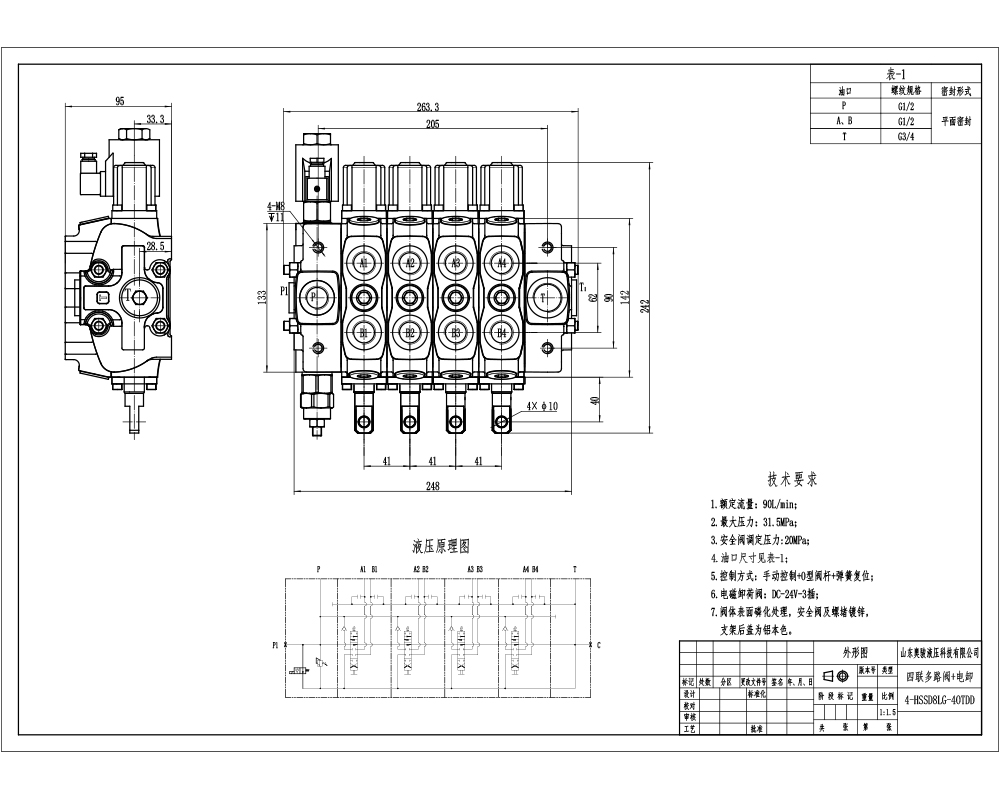

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve drawing image

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries and mobile equipment. With its manual control, 4-section spool design, and sectional valve structure, it offers precise and reliable flow control in hydraulic systems.

SD8 Series Sectional Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Solenoid and Joystick, Manual and Joystick
Port Size G1/2, SAE 10
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Outlet Port G1/2, G3/4, SAE 10, 3/4 NPT
Max Pressure 250 bar (3600 psi), 350 bar (5100 psi)
Rated Flow 90 L/min (23.8 US gpm)
Structure Type Sectional valve
Inlet Port G1/2, G3/4, SAE 10

**Product Features and Benefits:**

* Manual control for precise and responsive operation
* 4-section spool design for versatile flow control
* Sectional valve structure allows for easy integration and modularity
* Rated flow of 90 L/min (23.8 US gpm) for efficient hydraulic performance
* Maximum pressure of 350 bar (5100 psi) for demanding applications
* Wide operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) for compatibility with various hydraulic fluids

**Applications:**

SD8-Electric unloading valve Manual 4 Spool Sectional Directional Valve is suitable for a wide range of applications, including:

* Material handling equipment (forklifts, telehandlers, cranes)
* Construction and earth moving machinery (excavators, loaders, graders)
* Agricultural machinery (tractors, harvesters, balers)
* Industrial vehicles (sweepers, waste compactors, hook-loaders)
