SDS180 Manual 2 Spool Sectional Directional Valve

Rated Flow:150 L/min (39.6 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:SDS180 Series Sectional Directional Valve

Productsize:29.4*22*11.5

Netweight:19.10 kg

Availability: In Stock

  • 1 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Hydraulic
1236 Views are Looking for this Product

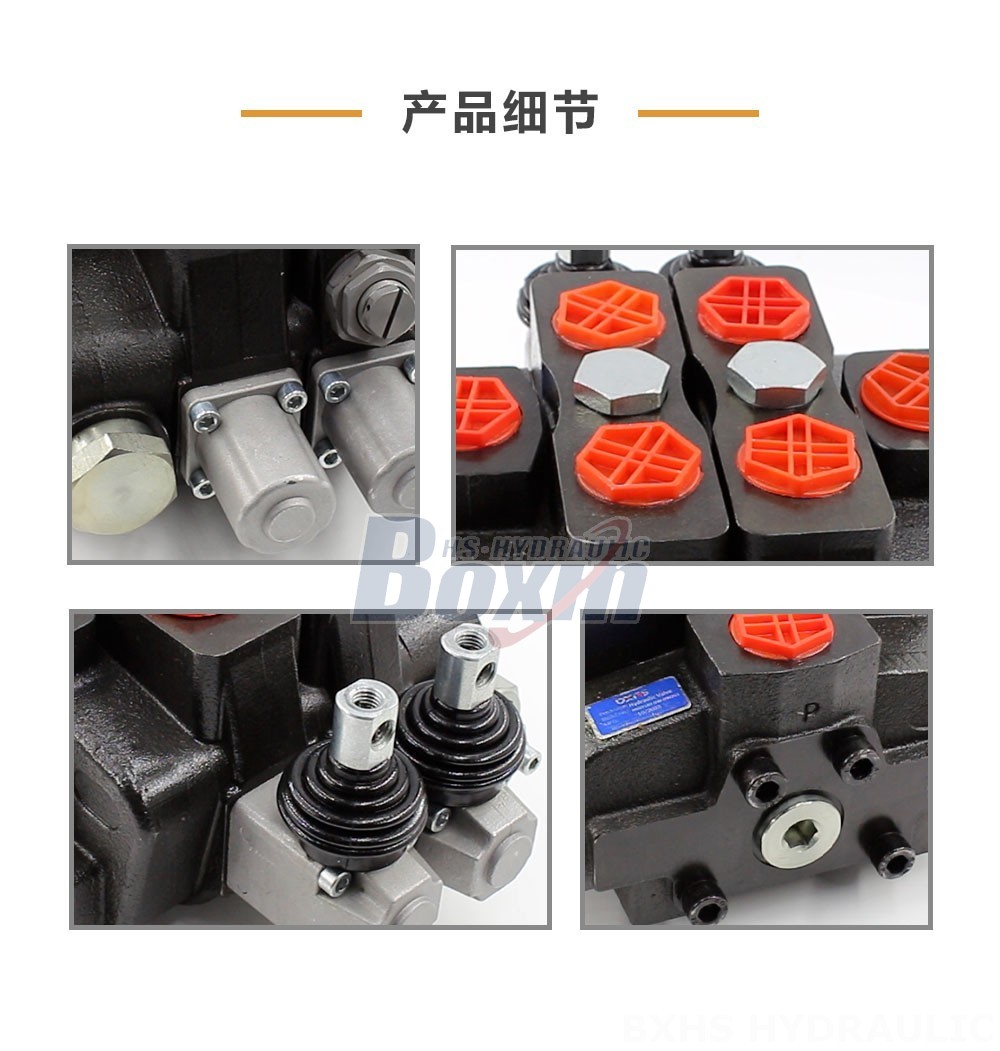

SDS180 Manual 2 Spool Sectional Directional Valve detailed image

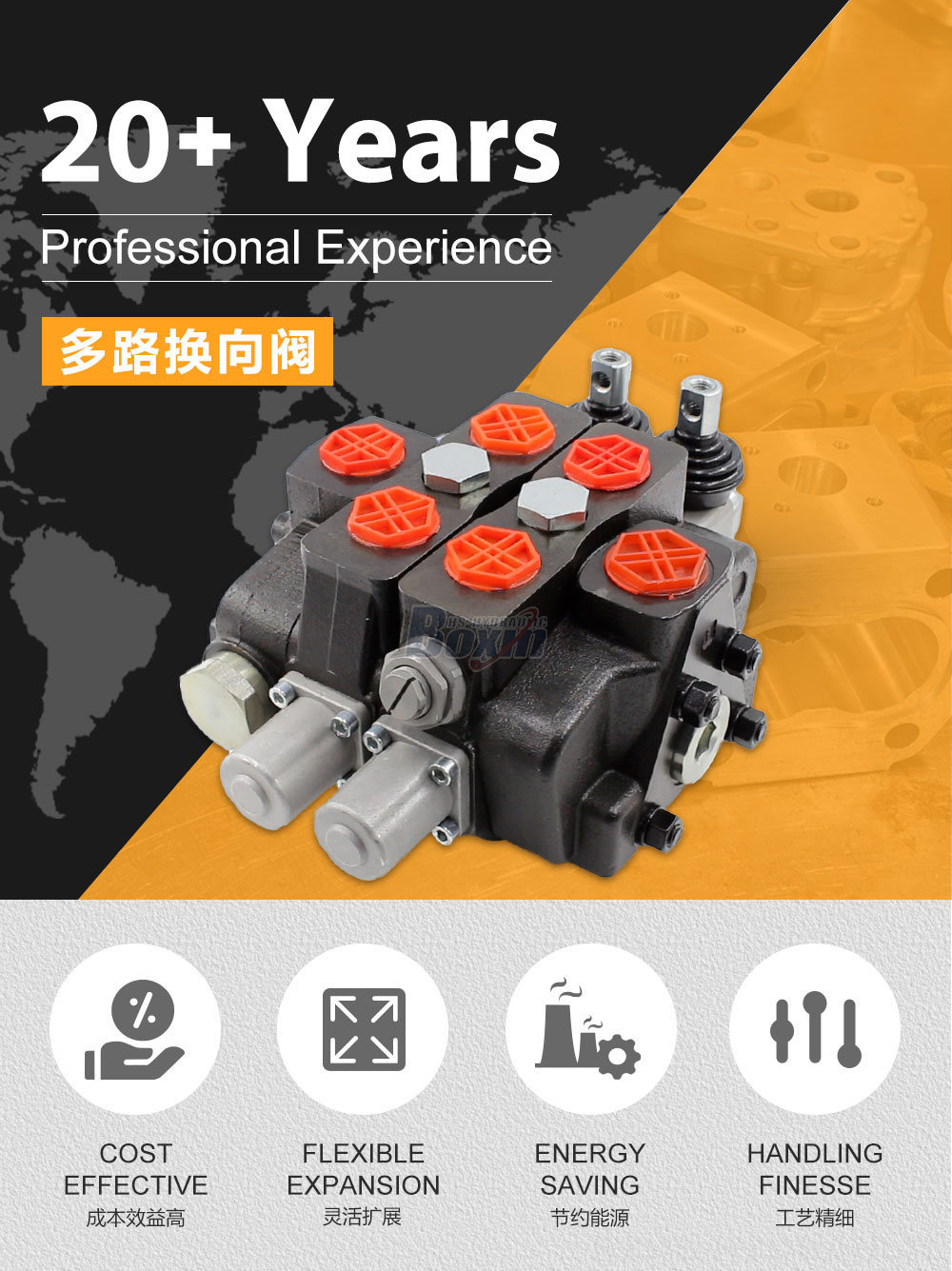

SDS180 Manual 2 Spool Sectional Directional Valve detailed image

SDS180 Manual 2 Spool Sectional Directional Valve drawing image

The SDS180 Manual 2 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a rated flow of 160 L/min and a maximum pressure of 350 bar, it provides precise and reliable control of hydraulic systems. Its modular design allows for easy integration into existing or new hydraulic circuits.

SDS180 Series Sectional Directional Valve Parameters
Spool 1 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Hydraulic
Port Size G3/4, G1, SAE 12
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 12 - 400 mm²/s (12 cSt to 400 cSt)
Outlet Port G1, SAE 16
Max Pressure 350 bar (5100 psi)
Rated Flow 160 L/min (42.2 US gpm)
Structure Type Sectional valve
Inlet Port G3/4, G1, SAE 12

**Product Features and Benefits:**

- Manual control for precise and direct operation
- 2 spool design for independent control of two separate hydraulic circuits
- Sectional valve construction for modularity and flexibility
- High flow capacity of 160 L/min for efficient system operation
- Maximum pressure of 350 bar for demanding applications
- Wide operating viscosity range of 12 - 400 mm²/s for compatibility with various hydraulic fluids

**Applications:**

The SDS180 Manual 2 Spool Sectional Directional Valve is widely used in a variety of applications, including:

- Construction equipment: excavators, loaders, cranes, graders
- Industrial vehicles: forklifts, telehandlers, aerial platforms
- Agricultural machinery: tractors, harvesters, balers
- Material handling equipment: conveyors, sorters, palletizers
