Single Control Valve Manual Monoblock Directional Valve - P80 Cable Series | Wholesale & OEM

Control Method:Cable

Spool:3 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:22*35*10

Grossweight:9.60 kg

Availability: In Stock

700 Views are Looking for this Product

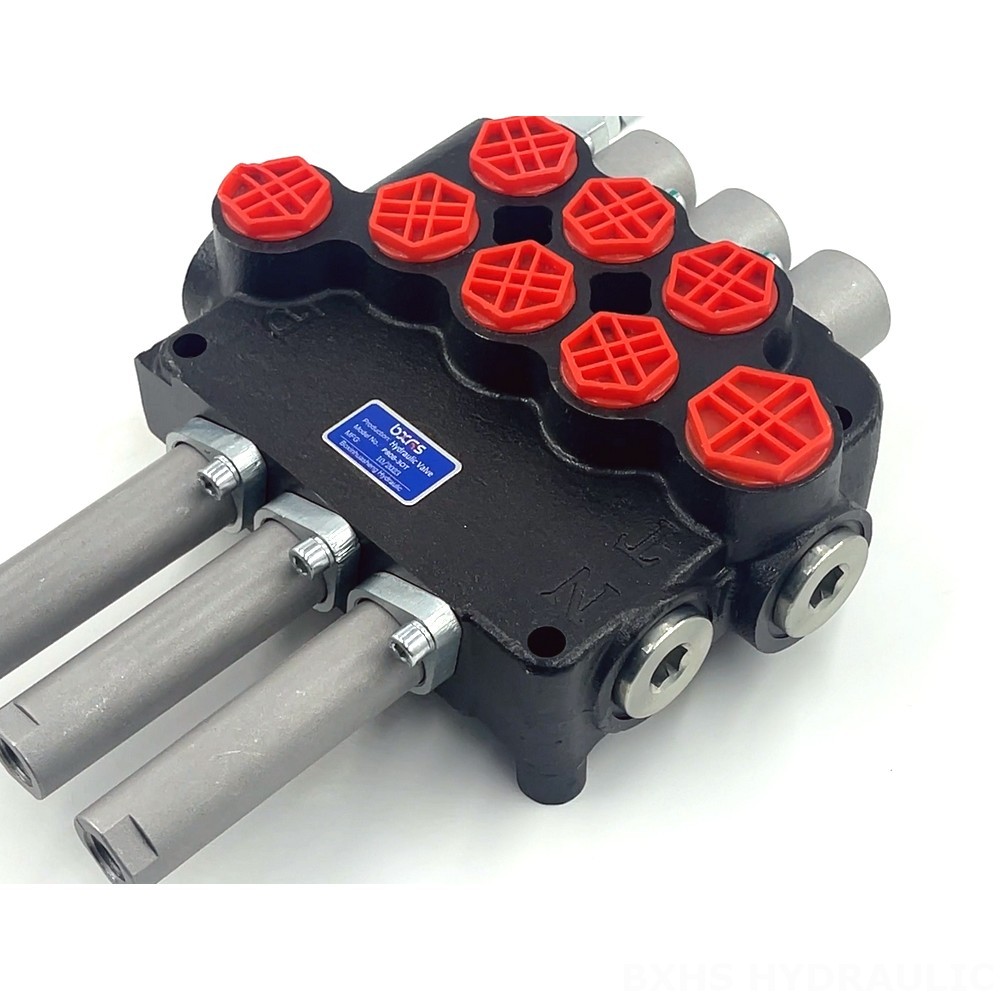

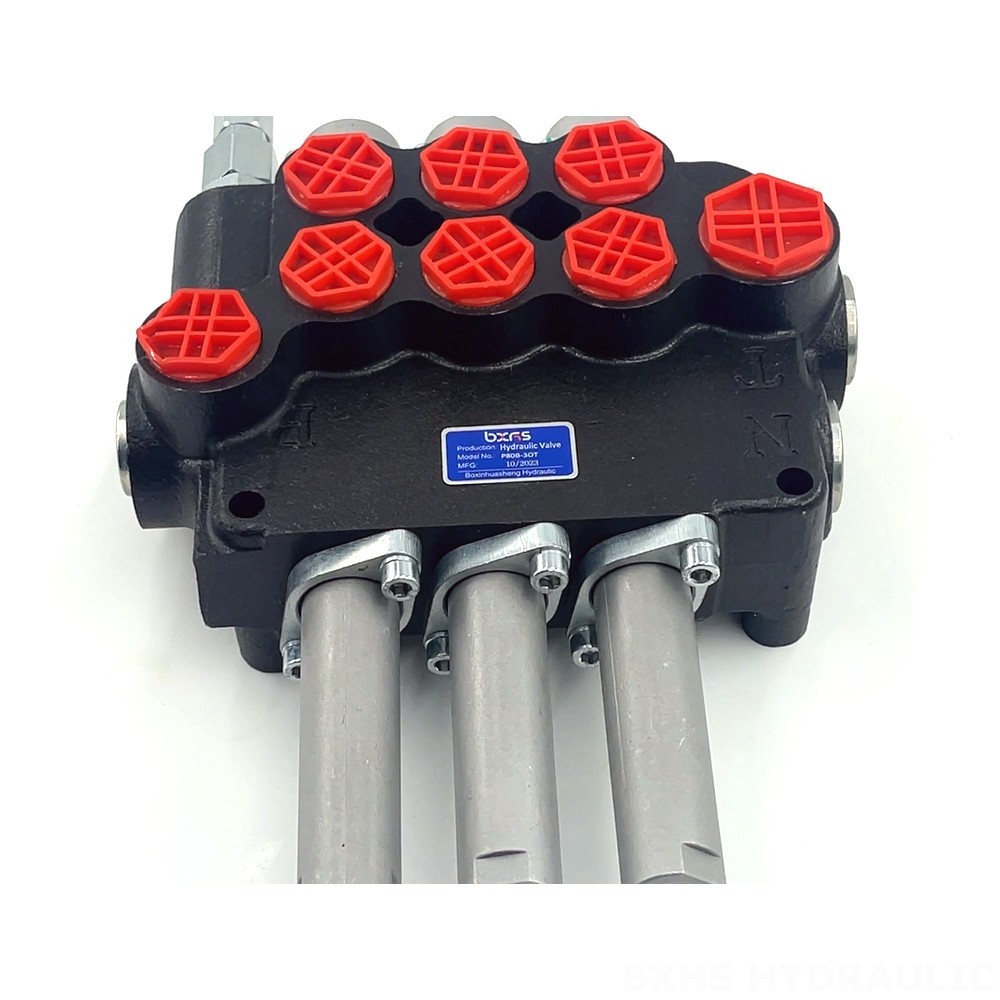

Single Control Valve Manual Monoblock Directional Valve - P80 Cable Series | Wholesale & OEM detailed image

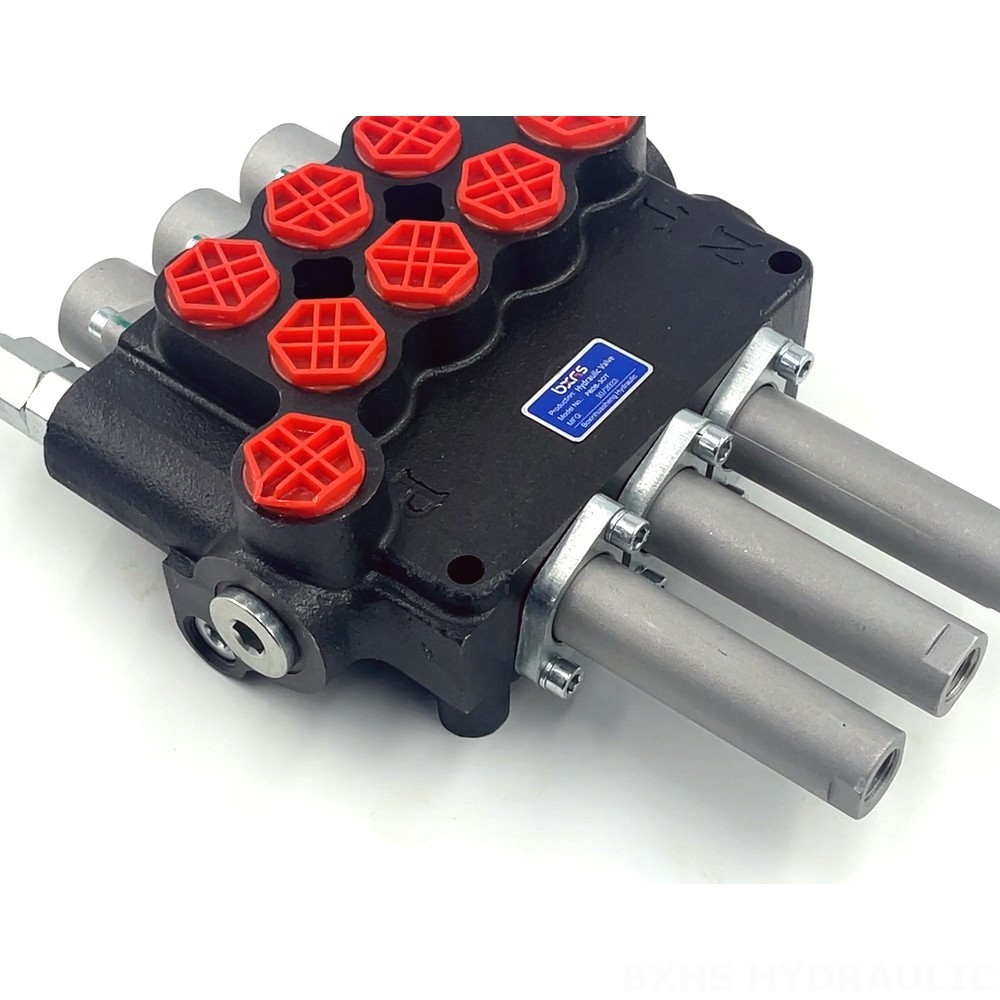

Single Control Valve Manual Monoblock Directional Valve - P80 Cable Series | Wholesale & OEM detailed image

Single Control Valve Manual Monoblock Directional Valve - P80 Cable Series | Wholesale & OEM drawing image

The P80 Cable Series Single Control Valve Manual Monoblock Directional Valve is a reliable and robust hydraulic valve designed for a wide range of applications in construction, agriculture, and industrial vehicles. This 3-section, cable-controlled valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding operations.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

This Single Control Valve Manual Monoblock Directional Valve from the P80 Cable Series is a high-performance hydraulic component designed for heavy-duty applications. It offers a 3-section design with cable control, providing precise and reliable operation. The valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for demanding tasks. The P80 Series valve is ideal for use in a variety of applications including material handling, construction and earth moving, agriculture, and industrial vehicles. Common applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve is designed to withstand harsh operating environments, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). This valve is available for wholesale and OEM applications, allowing manufacturers to integrate it into their own equipment designs.
