Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve

Control Method:Manual

Spool:4 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G3/4

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*27*11

Grossweight:13.40 kg

Availability: In Stock

595 Views are Looking for this Product

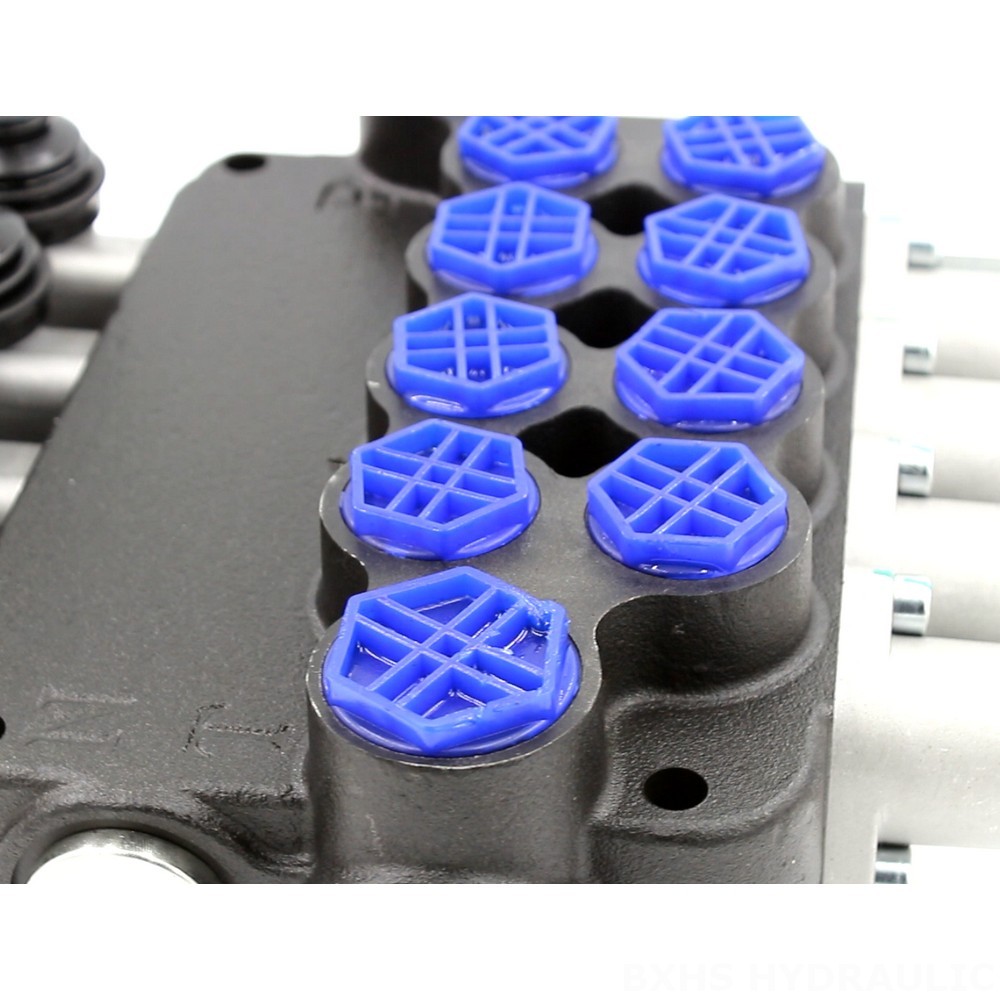

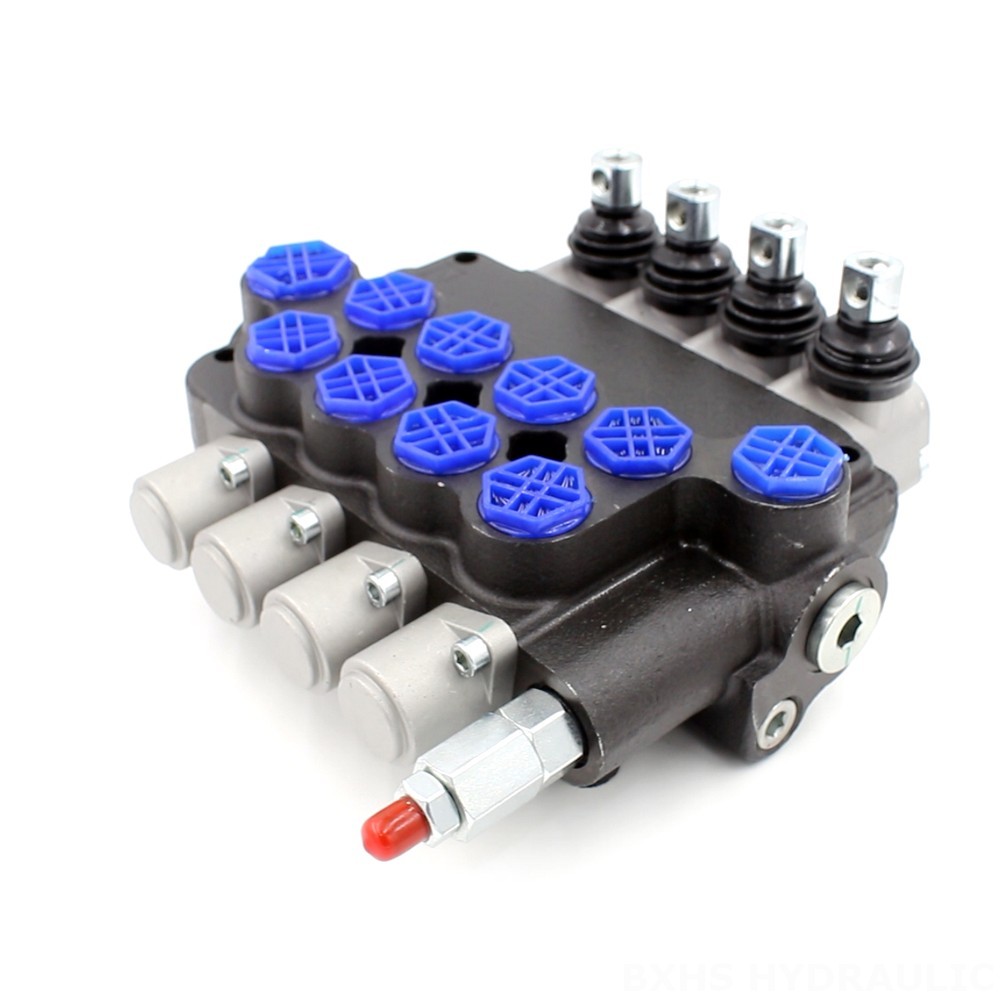

Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve detailed image

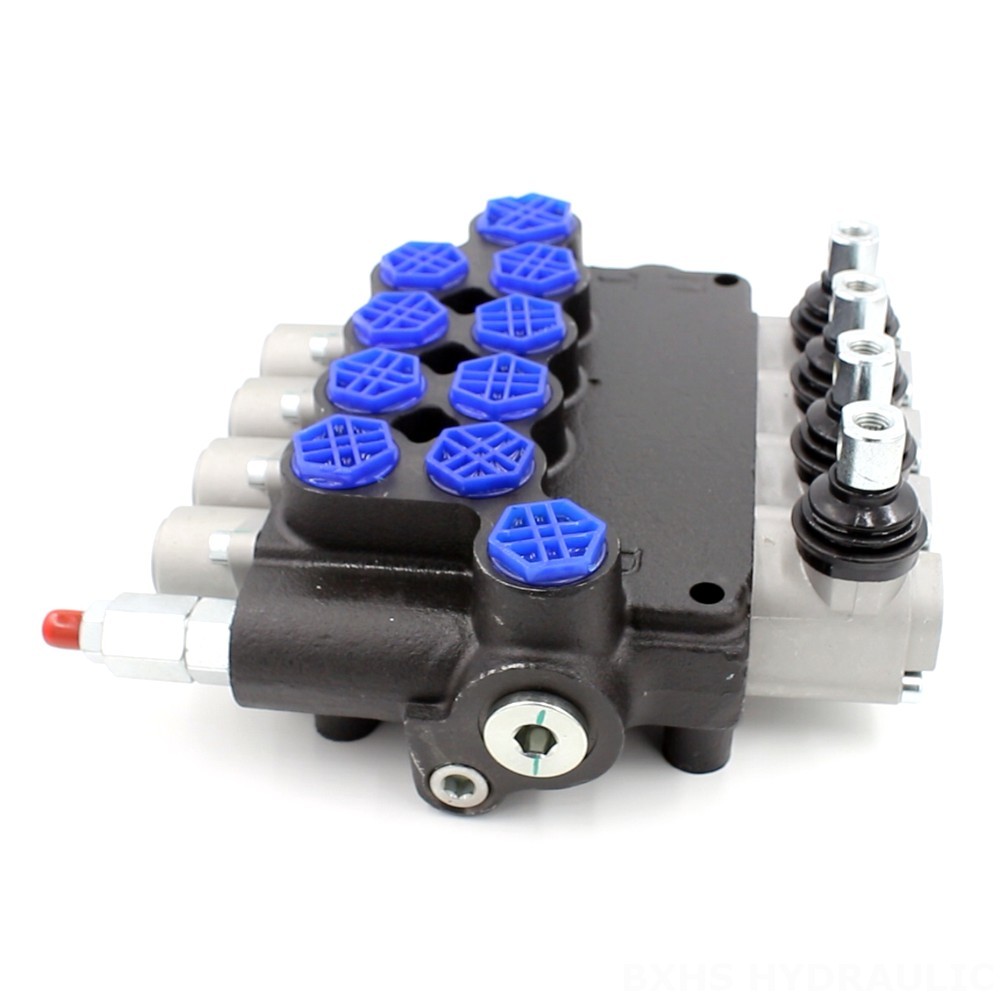

Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve detailed image

Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve drawing image

The P80-G12-G34 Directional Control Valve is a robust 4-section monoblock hydraulic valve designed for use in a wide range of construction, agricultural, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for demanding applications in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

This manual control valve offers reliable and precise hydraulic control for various applications. The P80 series valve features a 4-spool design with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). Its monoblock construction ensures durability and long-lasting performance in challenging environments. The valve operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). This versatile valve is ideal for use in construction, agricultural, and industrial vehicles including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.

Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve application image

Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve packing image

Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve company image

Tractor Valve Cable Control Hydraulic System Solutions | P80-G12-G34 Directional Control Valve certification image
