WZF-125 Pneumatic and Manual 3 Spool Monoblock Directional Valve

Rated Flow:110 L/min (29 US gpm)

Max Pressure:315 bar (4600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:WZF-125 Series Monoblock Directional Valve

Productsize:35.7*22.8*9.6

Netweight:18.80 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Pneumatic and Manual
  • 1 Spool
  • 2 Spool
  • 3 Spool
139 Views are Looking for this Product

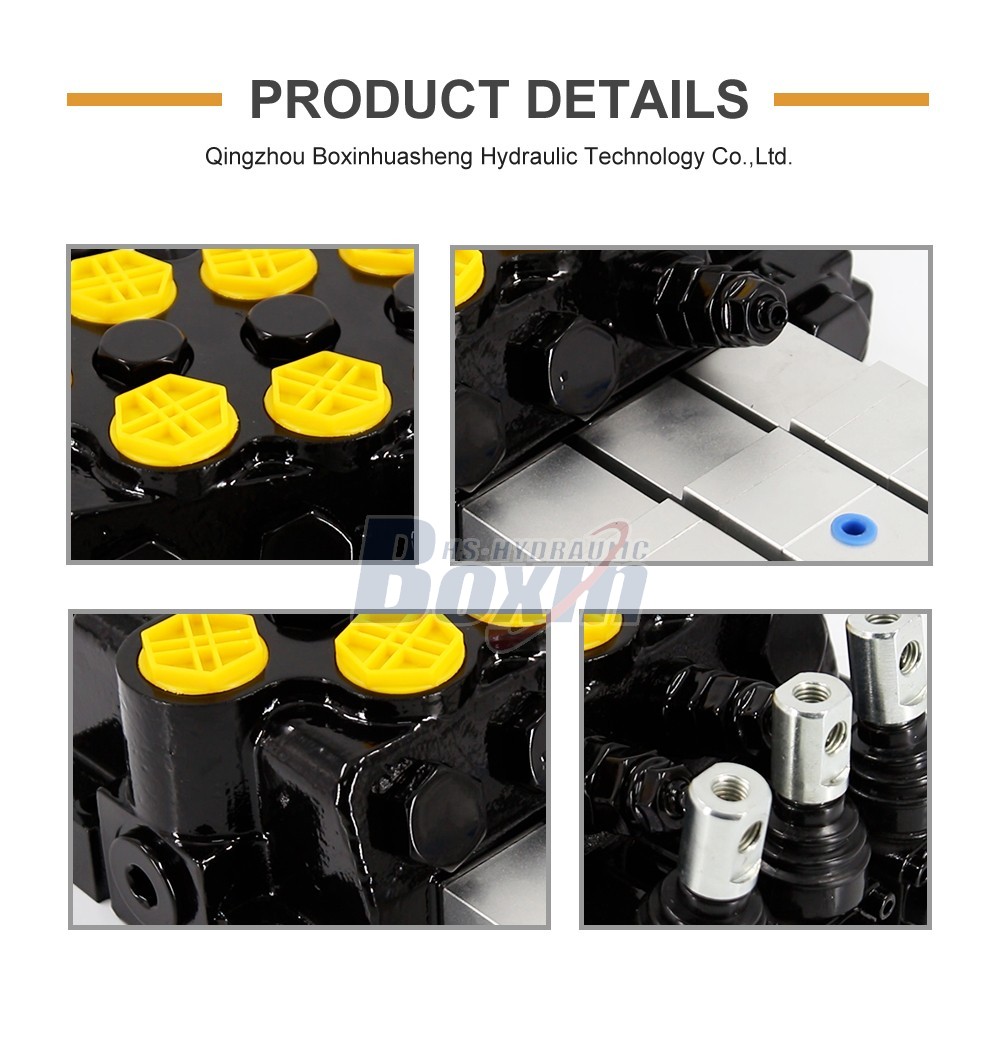

WZF-125 Pneumatic and Manual 3 Spool Monoblock Directional Valve detailed image

WZF-125 Pneumatic and Manual 3 Spool Monoblock Directional Valve detailed image

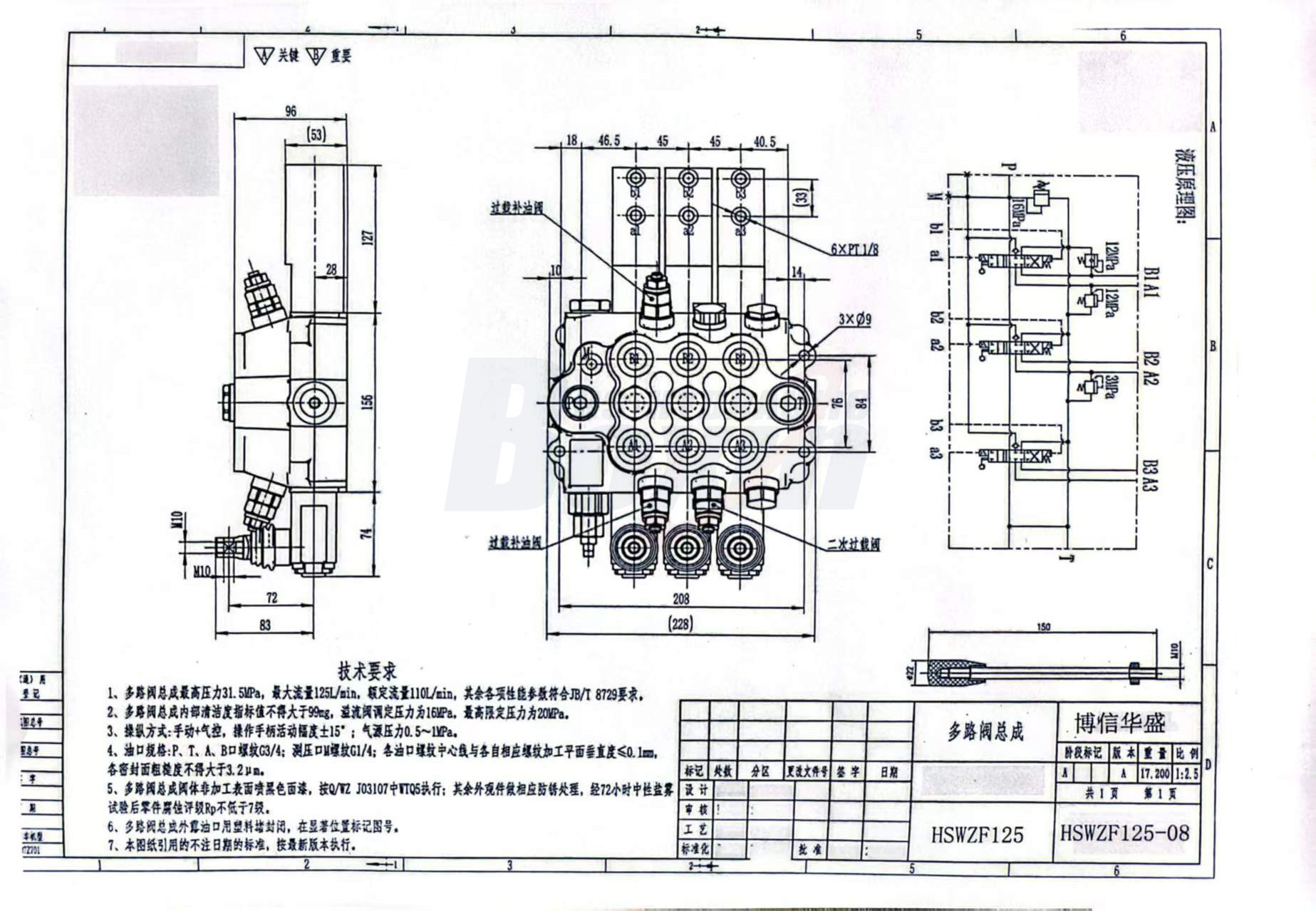

WZF-125 Pneumatic and Manual 3 Spool Monoblock Directional Valve drawing image

The WZF-125 is a high-performance 3-spool monoblock directional control valve designed for dual pneumatic and manual operation. Featuring a rated flow of 110 L/min and a maximum pressure rating of 315 bar, this robust valve is engineered for demanding hydraulic systems in global industrial and agricultural markets.

WZF-125 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Pneumatic and Manual
Spool 1 Spool, 2 Spool, 3 Spool
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Structure Type Monoblock valve
Section 1 Section, 2 Section, 3 Section
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Rated Flow 110 L/min (29 US gpm)
Max Pressure 315 bar (4600 psi)
Inlet Port G3/4
Outlet Port G3/4
Port Size G3/4

Product Highlights & Advantages: 1. Dual Control Integration: Seamlessly switch between pneumatic and manual operation, providing flexibility for remote and emergency local control. 2. High Capacity: Handles flow rates up to 110 L/min (29 US gpm) with a peak pressure of 315 bar (4600 psi), ensuring reliable performance in heavy-duty cycles. 3. Compact Monoblock Design: The 3-spool integrated structure reduces leakage points and simplifies installation compared to sectional valves. 4. Extreme Durability: Designed to operate in harsh environments with an ambient temperature range from -40°C to +80°C. 5. Standard Sizing: Equipped with G3/4 inlet, outlet, and working ports for universal compatibility. Application Scenarios: Ideal for MATERIAL HANDLING (forklifts, stackers), CONSTRUCTION (loaders, excavators), and AGRICULTURE (tractors, wood splitters). We offer comprehensive OEM/ODM services, wholesale manufacturing, and are actively seeking global distributors, agents, and trading partners.
