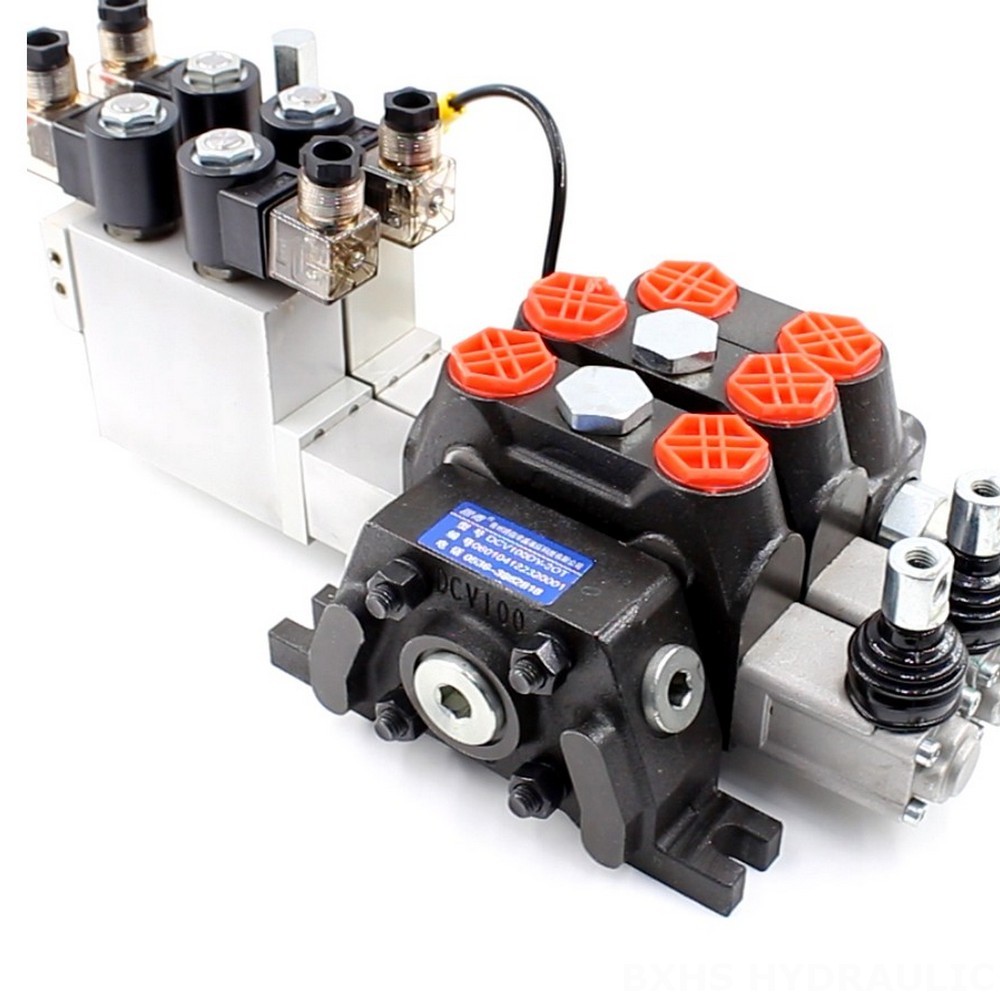

DCV100 Electro-hydraulic 2 Spool Sectional Directional Valve

Product Type:Sectional Directional Valve

Product Series:DCV100 Series Sectional Directional Valve

Control Method:Electro-hydraulic

Spool:2 Spool

Vendor:BXHS

Productsize:42*23*20

Netweight:21.00 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • 8 Spool
  • 9 Spool
  • 10 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Hydraulic
  • Cable
  • Joystick
  • Manual and Joystick
529 Views are Looking for this Product

product

product

product

Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 350 bar (5100 psi)
Rated Flow 100 L/min (26.5 US gpm)
Structure Type Sectional valve
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section,8 Section,9 Section,10 Section

DCV100 electro-hydraulic multi-directional control valve is a high-performance key component of hydraulic system, specially designed for the hydraulic system of drilling machinery, sanitation machinery, aerial work machinery, agricultural machinery, construction machinery and so on. The valve has excellent performance parameters of rated flow 100LPM, rated pressure 315bar and maximum pressure 350bar, adopts split-piece structural design, optional 1-12 couplings, and the control mode is electro-hydraulic control + manual control, which provides a stable and reliable fluid control solution for the hydraulic system.


Main features:


  1. Overload valve, safety valve opening and closing characteristics: DCV100 electro-hydraulic hydraulic multi-directional control valve is equipped with overload valve and safety valve, with good opening and closing characteristics, can respond to system pressure changes in a timely manner, to protect the safe operation of the hydraulic system.
  2. High versatility, applicable to a variety of mechanical equipment: the valve is highly versatile and applicable to a variety of mechanical equipment, including drilling machinery, sanitation machinery, aerial work machinery, agricultural machinery, construction machinery, etc., to meet the hydraulic control needs of different fields.
  3. Built-in check valve in each connection: DCV100 valve has a built-in check valve in each connection, which effectively prevents backflow phenomenon in the hydraulic system and improves the stability and safety of the system.
  4. A variety of stem types, flexible connection: the valve has a variety of stem types to choose from, can be connected to different hydraulic devices such as cylinders, motors, etc., strong flexibility, wide range of applications.
  5. Split structure, 1-12 couplings: Split structure design, users can choose 1-12 couplings according to the actual need, flexible installation, suitable for different size and complexity of the hydraulic system.
  6. Control mode: electro-hydraulic control DC12V or DC24V+manual: DCV100 supports electro-hydraulic control DC12V or DC24V+manual control mode, which is easy to operate and suitable for different environments and needs.


Applicable scenes:

DCV100 electro-hydraulic control hydraulic multi-directional control valve is suitable for drilling machinery, sanitation machinery, aerial work machinery, agricultural machinery, construction machinery and other hydraulic systems. Whether in building construction, road cleaning, agricultural production or construction machinery operation, the valve can play an important role.
