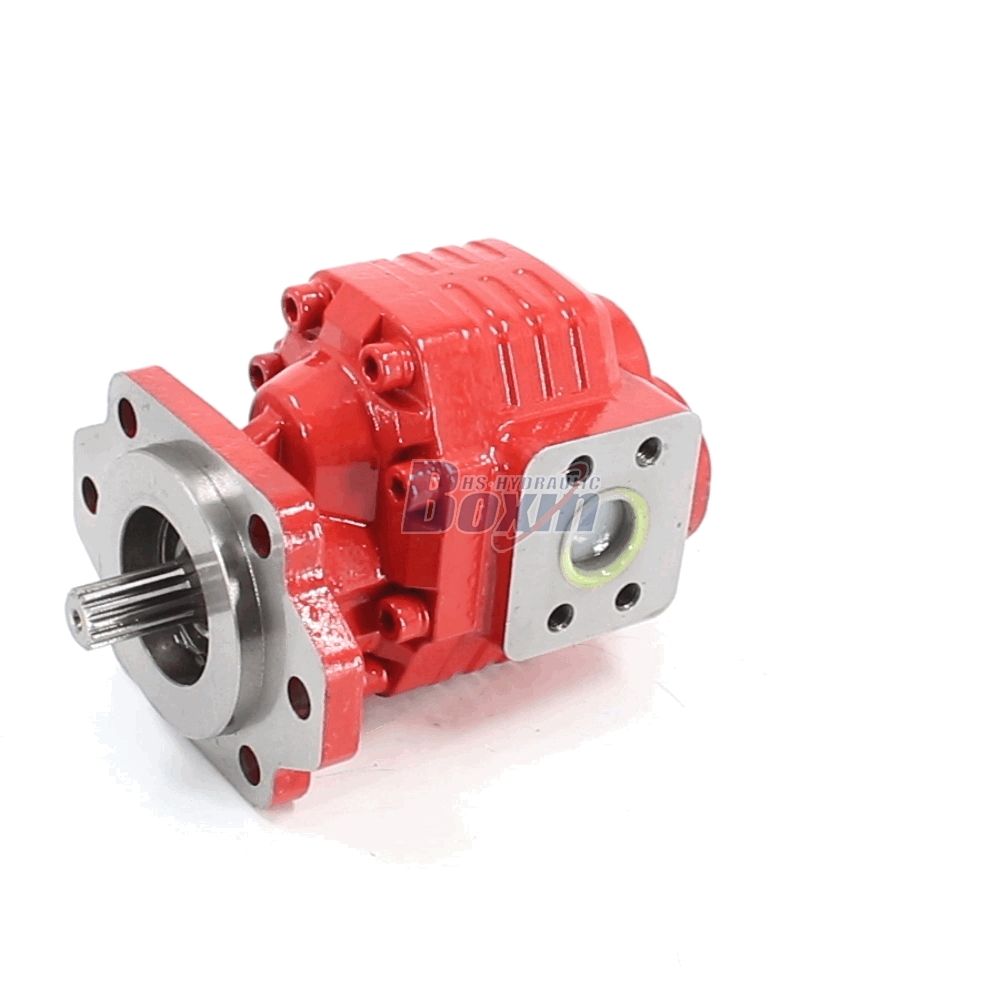

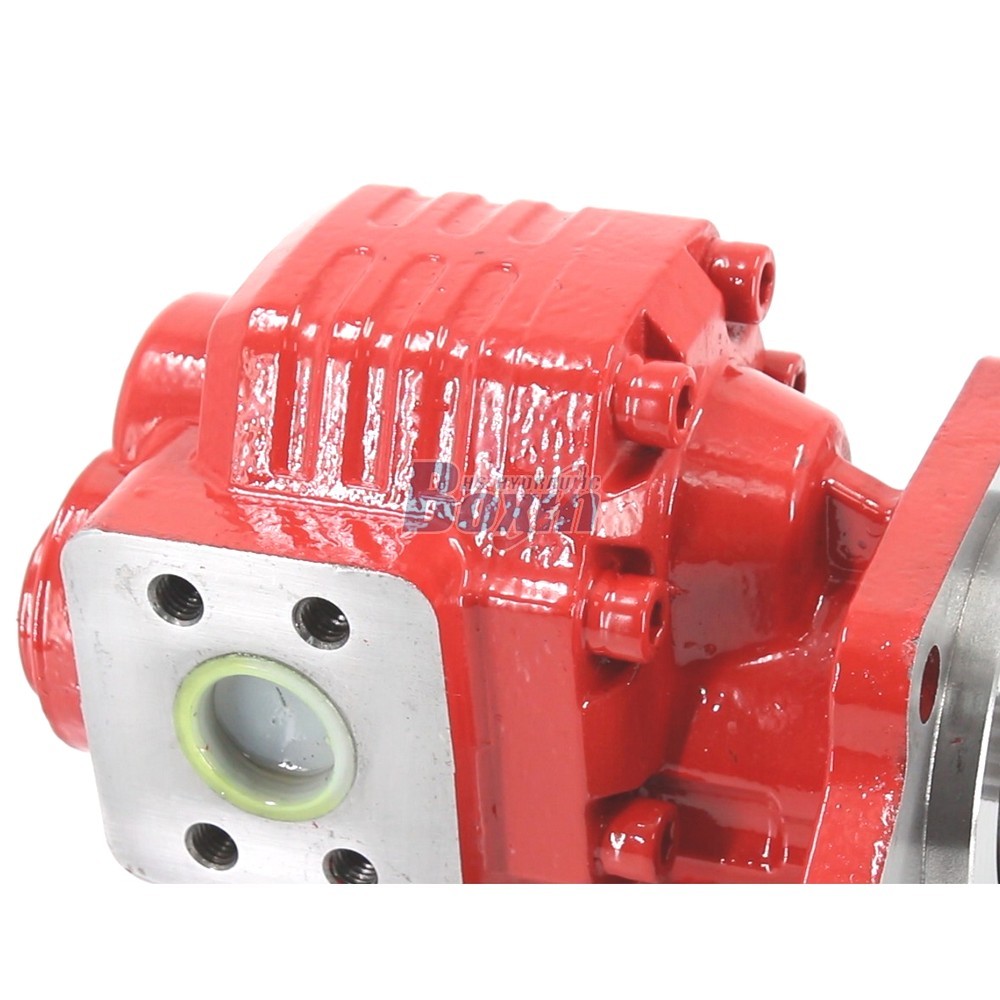

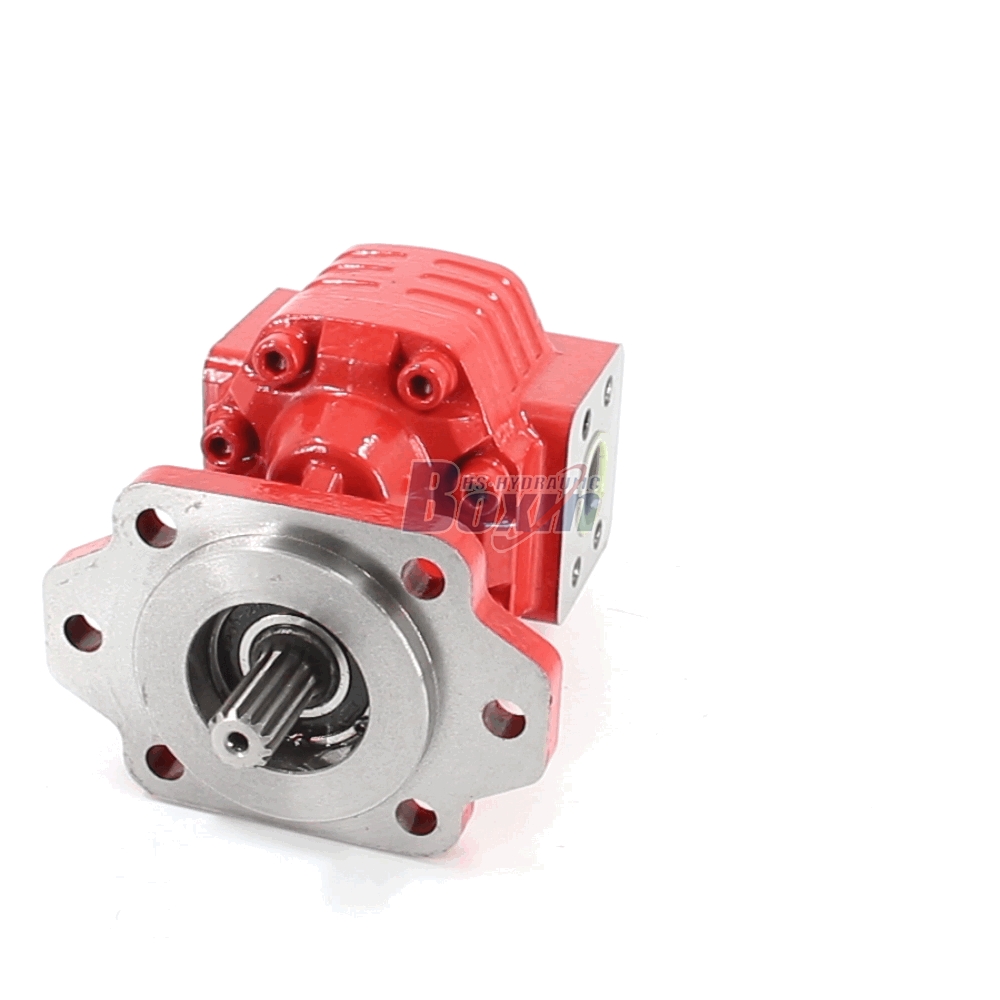

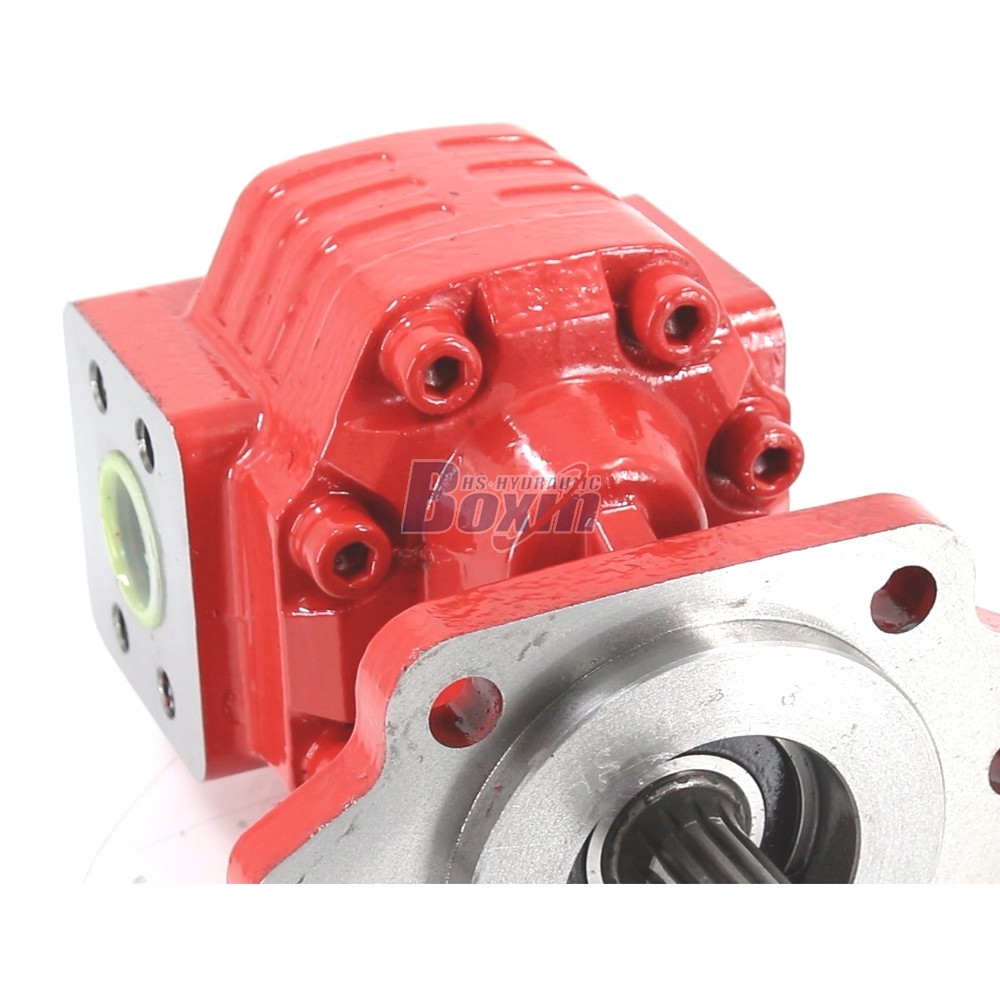

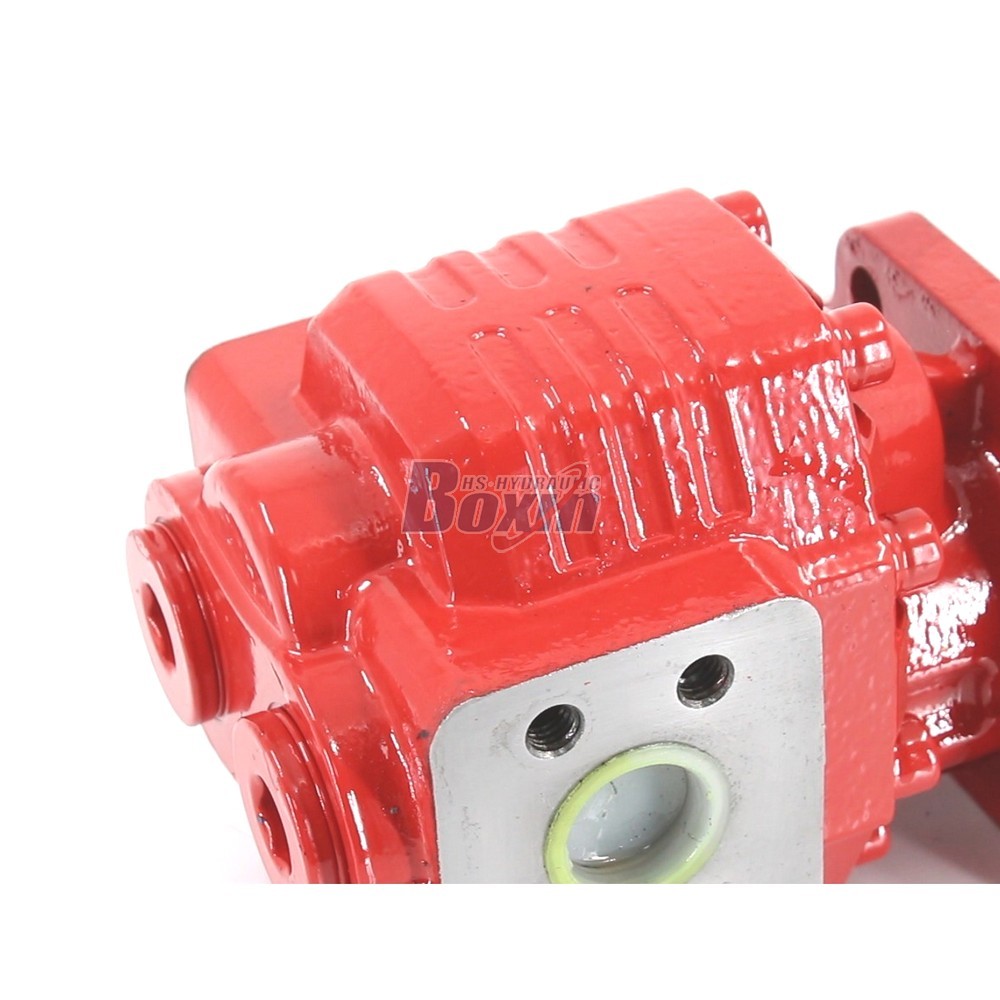

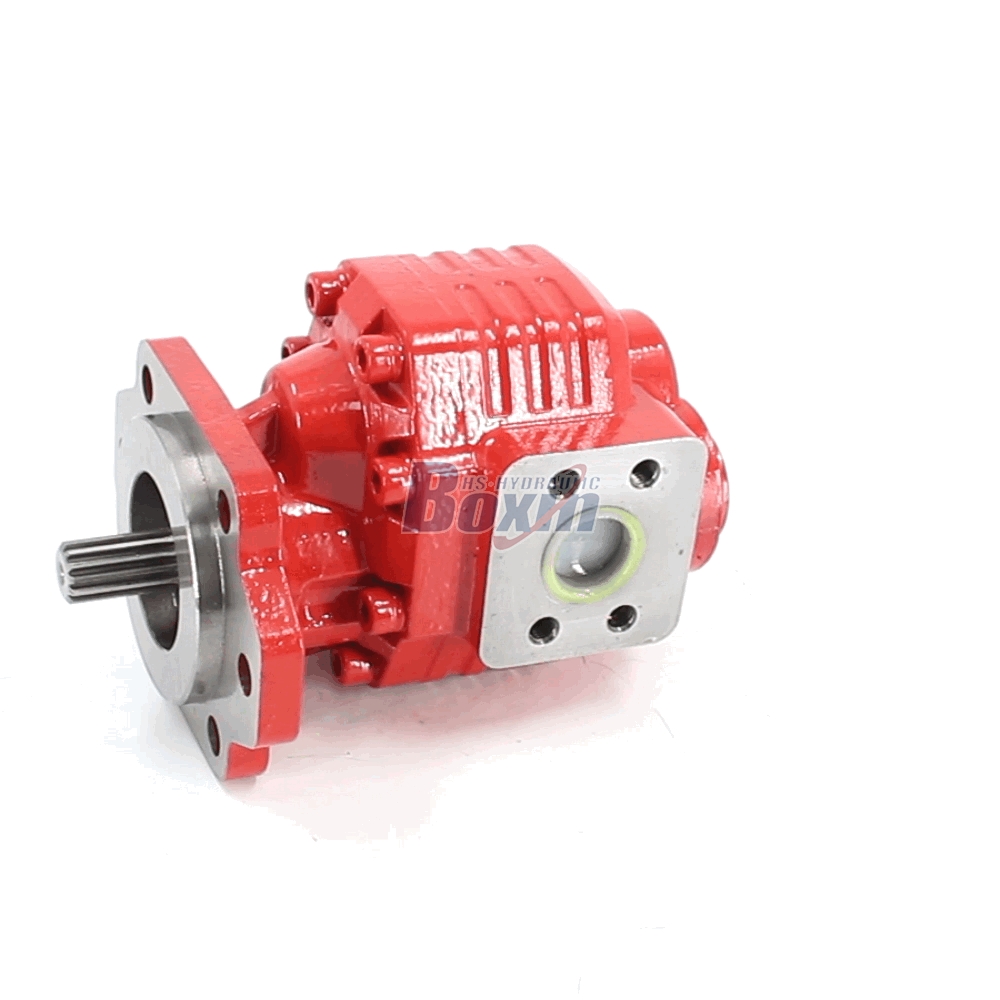

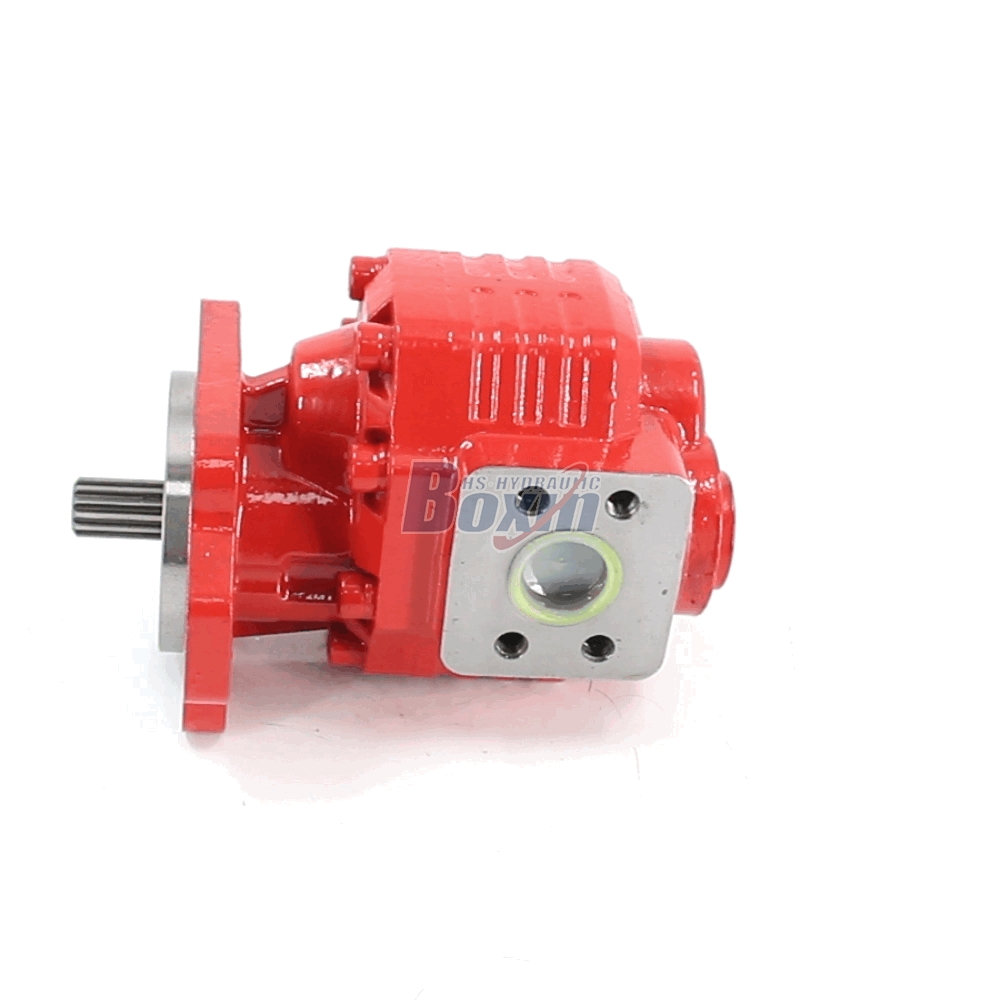

This CBHC-2063 Hydraulic Gear Pump features a 63 cc/rev displacement, rated for 20 MPa (2900 psi) and max 25 MPa pressure. Manufactured by a Professional Manufacturer with 25+ years of experience, it ensures reliable performance for forklifts, loaders, and excavators. Bidirectional rotation and 100% tested quality make it an ideal OEM replacement.
| CBHC Series Hydraulic Gear Pump Parameters | |
|---|---|
| Displacement | 32 cc/rev, 40 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 25 cc/rev, 110 cc/rev |
| Rated Pressure | 20 MPa (2900 psi), 22 MPa (3190 psi) |
| Max Pressure | 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Rated Speed | 2200 r/min |
| Max Speed | 2500 r/min |
| Rotation | L: Left (counter-clockwise), R: Right (clockwise), /: (Bidirectional) |
| Material | Cast Iron |
| Structure | External Gear Pump |
| Flange Version | SAE Flange |
| Shaft Type | H: Rectangle Spline |
**1. High-Efficiency Hydraulic Gear Pump Specs**
- Delivers consistent flow with 63 cc/rev displacement, operating at rated speed of 2200 r/min and max 2500 r/min.
- Handles demanding loads with 20 MPa (2900 psi) rated pressure and peak capacity of 25 MPa (3625 psi).
**2. Versatile CBHC-2063 Gear Pump Application**
- Engineered for heavy equipment including forklifts, telehandlers, skid steer loaders, and mini-excavators.
- Bidirectional rotation design offers flexible installation for material handling and agricultural machinery.
**3. Reliable 63cc Hydraulic Pump Quality Control**
- Produced in IATF 16949 certified facilities with 260+ CNC machines ensuring micron-level precision.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing before shipment to guarantee durability.
**4. Customizable Heavy Duty Gear Pump Solutions**
- OEM/ODM Available: Support for custom logos, packaging, and specific port configurations via laser marking.
- Backed by 35+ senior engineers with 10+ years of experience, providing tailored hydraulic solutions for global buyers.
**5. Factory Direct Sales & Global Supply**
- Source directly from a Wholesale China Factory with 1.5 million annual capacity and 25+ years of export expertise.
- Secure shipping with rust-proof treatment and heavy-duty wooden crates, ensuring safe delivery for Wholesale Direct Sales partners worldwide.
